Liberty 16-2C-PSH-WHT 16/2 Oash Cmp Plenum Shielded 1000Ft Roll

ITEM #: LWC-16-2C-PSH-WH MFG #: 16-2C-PSH-WHT

Liberty AV Solutions
free ship

List Price:

$528.32

Our Price:

$475.49

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    16-2C-PSH-WHT - Overview

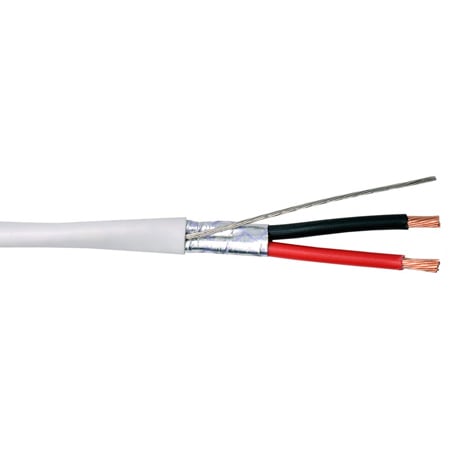

    2 conductor 16 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
    Applications:
    Speaker Level Audio Distribution
    70V Speaker systems
    DC Power, Class 2 and Class 3 power, system control

    • Specifications:

      • DC resistance: 4.38 Ω / 1000' | 14.36 Ω/KM
      • Mutual capacitance: 52.0 pF/FT | 170.56 pF/M
      • Impedance: 36 Ω
      • Inductance: 0.15æH/FT | 0.49æH/M
      • Velocity of Propagation: 55%
      • Voltage rating: 300V
      • Maximum current: [email protected]°C
      • Plenum rated polyvinyl chloride
      • Wall thickness: 0.010" | 0.26mm
      • Diameter: 0.079" | 2.00mm
