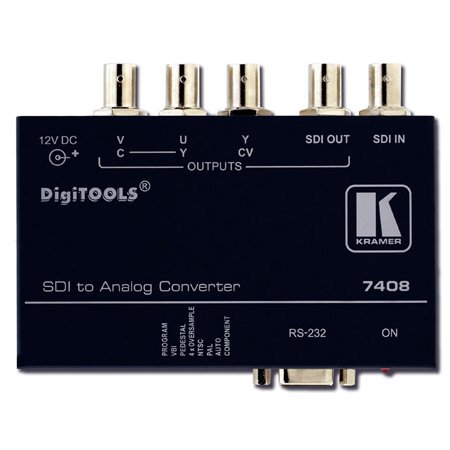

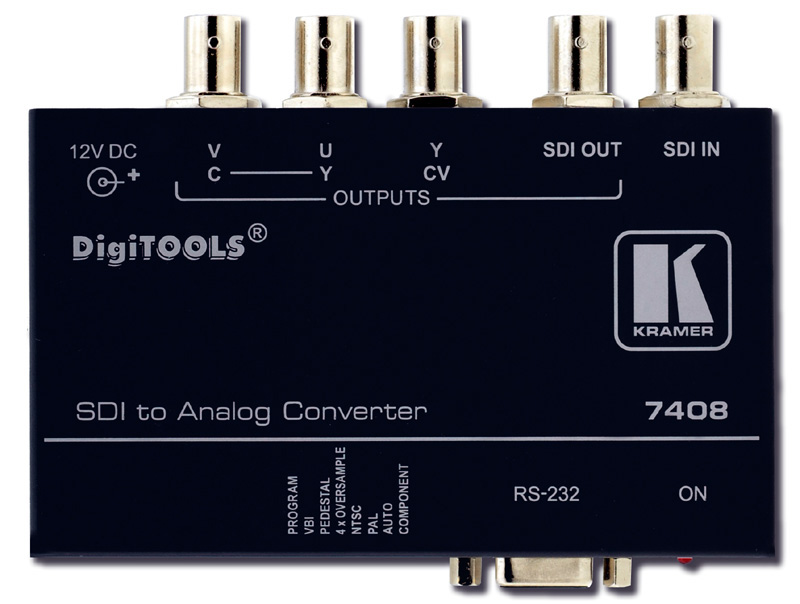

Kramer Electronics 7408 SDI to Analog Video Converter

7408 - Overview

7408 - Overview

• Features:

  • Reclocked and equalized SDI output (loop)
  • 4 times digital over sampling to minimize digital artifacts

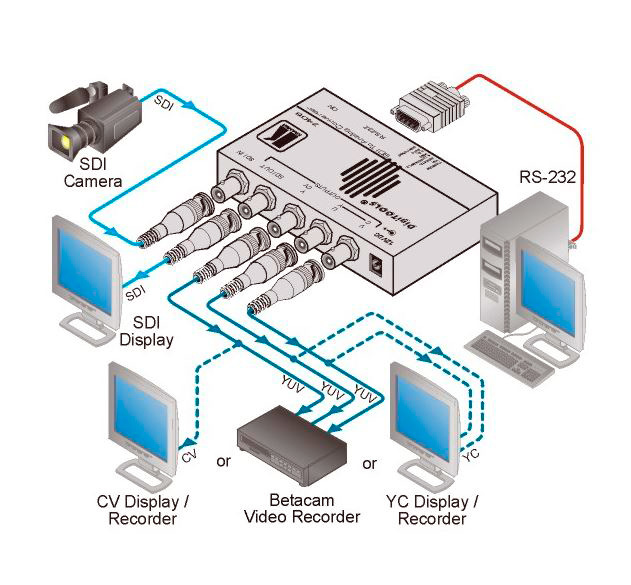

  • Output configuration to Composite Video and s-Video (Y/C), or component video (YUV)
  • User-friendly Windows PC software, provided for ProcAmp control via RS-232 for adjusting parameters such as contrast, hue, saturation and sharpness
  • NTSC encoding with or without a 7.5IRE setup
  • A perforated cover to prevent overheating
  • To achieve the best performance: Connect only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low-quality cables)
  • Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer 7408 away from moisture, excessive sunlight and dust


• Specifications:

  • Input:
  • 1 SDI SMPTE-259M, ITU-R BT.601 on a BNC connector.


  • Outputs:
  • 1 reclocked SDI: SMPTE-259M, ITU-R BT.601 on a BNC connector
  • 1 composite video: 1Vpp / 75 Ohm on a BNC connector
  • 1 S-Video: 1Vpp, 0.3Vpp / 75 Ohm on two BNC connectors
  • 1 component video (Y, U and V) on three BNC connector.


• GTIN:

  7291063027674
