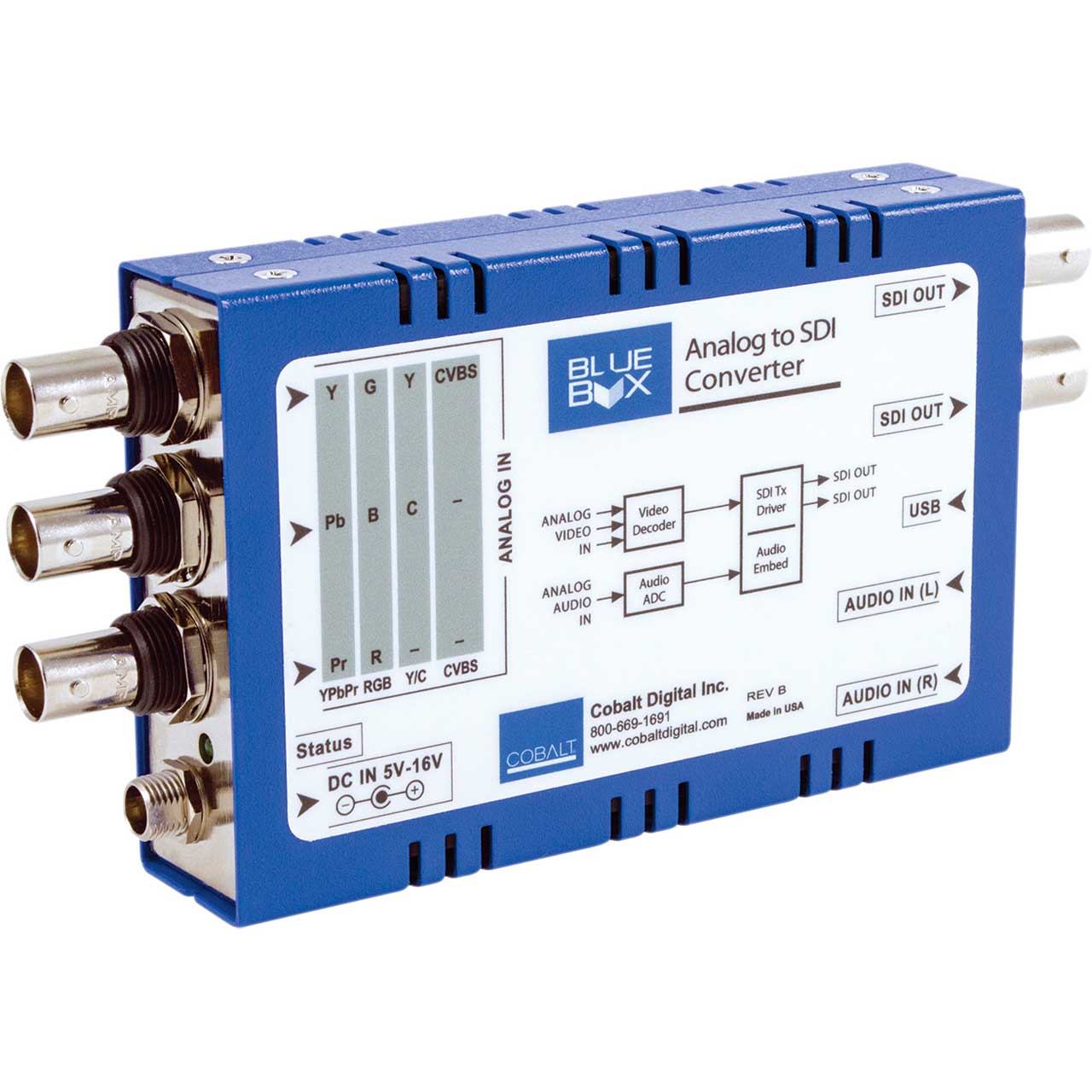

Cobalt Digital BBG-A-TO-S Blue Box HD/SD Analog Component/Composite-To-HD/SD-SDI with Audio Embedder

ITEM #: CB-BBG-ATOS MFG #: BBG-ATOS

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$895.00

Availability: In Stock
iAvailability Description Popup


    BBG-ATOS - Overview

    Powers Directly from a USB Port!
    Cobalt introduces Blue Box - their line of interface converter boxes that not only offer excellent performance, but also excel to a new level of ease of use and installation practicality.

    Designed to power from associated equipment, Blue Box provides for a neater, more physically secure and dependable installation than with other interface boxes. Blue Box can power directly via USB to get its power from video monitors or other equipment without bulky and non-secure "wall wart" adapters.

    BlueBox offers excellent performance, and excels to a new level of ease of use and installation practicality. The Blue Box BBG-A-TO-S can power directly via USB to get its power from video monitors or other equipment. Blue Box Analog to SDI offers CVBS SD or component SD/HD conversion to SDI using high-quality 12-bit A/D conversion, with SD line 21 closed-captioning passed onto the converted stream. Full support of multiple analog standards such as SMPTE, Betacam, MII, RGB, and S-video (Y/C) is provided. A stereo analog audio pair can be embedded onto embedded audio channels 1/2 with full 24-bit resolution.

    Cobalt thought of everything so that Blue Box provides everything you need - all in one convenient converter box!

    Please Note: BBG ATOS does NOT upconvert. HD analog in yields HD/SDI out.

    • Features:

      • Powers directly from host equipment USB jack - no need for delicate and bulky "wall wart" power supplies or connections.
      • 3G (1080p5994/50) conversion on HDMI models
      • Audio embed/de-embed for analog audio interfaces.
      • Convenient, compact form and fit provides secure and uncluttered affixing to monitors and cameras
      • Rugged construction backed with a five-year warranty
      • Passes line 21 closed-captioning for analog-to-SD-SDI conversions
      • High-quality 12-bit A/D conversion of NTSC/PAL YPbPr, RGB or S-Video/CVBS SD video to SMPTE 259M or SMPTE 292M
      • Stereo analog audio input embedding to embedded audio pair on SDI output.
      • Powers directly from host equipment USB or standard corded power adapter
      • 2x SDI DA output
      • Compact size and low weight design easily affixes directly to camera or host device chassis

    • Specifications:

      • Standards supported
      • SMPTE 259M, 292M

        Inputs
      • YPbPr, RGB, Y/C, CVBS analog video (75O BNCs)
      • (2) analog audio (unbalanced consumer RCA)
      • DC power (via USB or adapter)

        Outputs
      • (2) SDI (75Ω BNCs)

        Audio Conversion Format
      • 48 kHz sampling, 24-bit

        Power Source
      • Power-sourced directly from host equipment USB port. Converter can also be powered using corded AC adapter (included)

        Power
      • 5-16 VDC, 2.4 W

        DC Power Connectors
      • USB Mini and coaxial locking connector (for use with supplied Cobalt power adapter)

        Dimensions (W x H x D)
      • 5.5" x 3" x 1" (including connector projections) (139 x 77 x 26 mm)
