Kramer AAD-OUT2-F16 2-Channel Analog & Digital Audio Output Card for VS-1616 Switcher

ITEM #: KR-AAD-OUT2-F16 MFG #: AAD-OUT2-F16

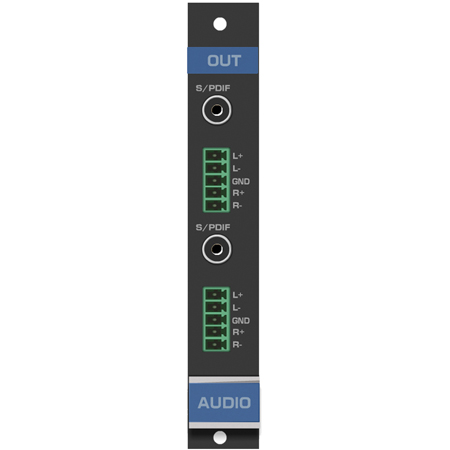

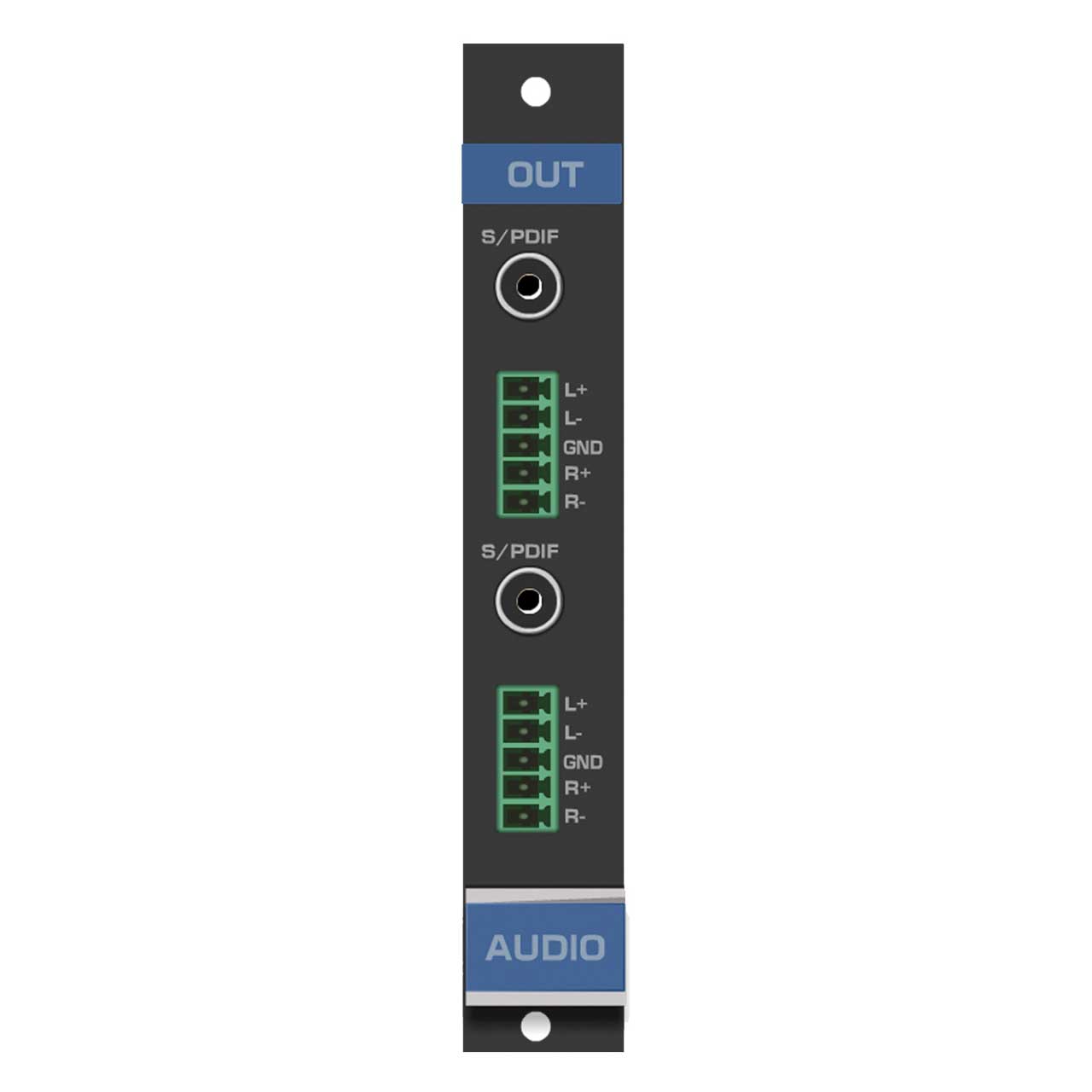

Primary Image
Kramer
Free Shipping with $49 Minimum Order

List Price:

$735.00

Our Price:

$588.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AAD-OUT2-F16 - Overview

    The Kramer AAD-OUT2-F16 is a two-channel analog and digital output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The AAD-OUT2-F16 outputs two analog and digital signals from the chassis.

    • Features:

      • Balanced Analog Audio over Terminal Block Connector.
      • S/PDIF Digital Audio over RCA Connector.


    • Specifications:

      • Ports: 2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5-pin terminal blocks
      • Total Bandwidth: Analog (-3db): >100kHz, Digital: 32kHz - 192kHz sample frequency
      • Power Consumption: 5.8W
      • Operating Temperature: 32° to 104°F
      • Storage Temperature: -40° to 158°F
      • Humidity: 10% to 90%, RHL non-condensing
      • Safety Regulatory Compliance: CE
      • Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
      • Product Dimensions: 7.48" x 5.12" x 0.79" W, D, H
      • Product Weight: 0.4lbs)approx
      • Shipping Dimensions: 13.58" x 6.50" x 2.05" )W, D, H
      • Shipping Weight: 0.3kg (0.6lbs) approx


    • GTIN:

      7291063066772
