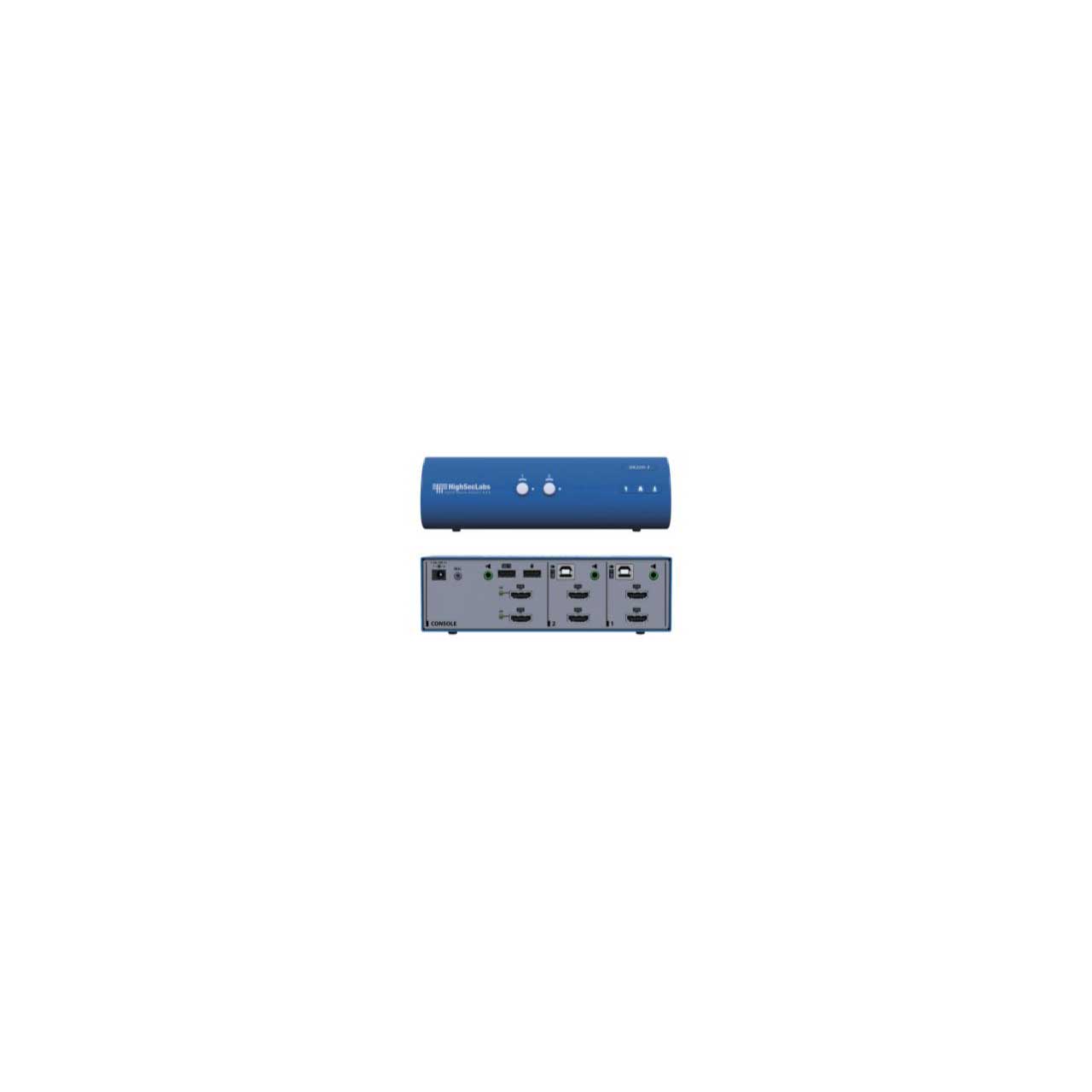

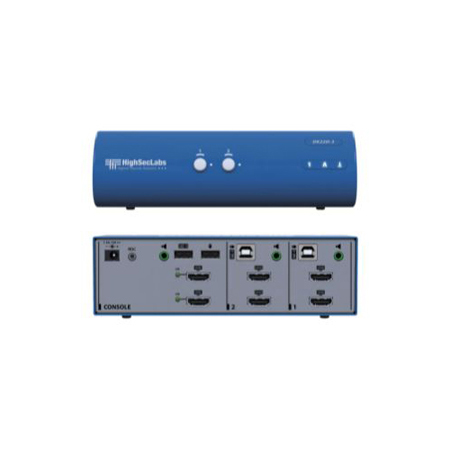

Kramer DK22H-3 HighSecLabs Secure Dual Head 2-Port 4K30 UHD HDMI KVM Switch

DK22H-3(CPN10288) - Overview

Highest Security by Design (NIAP PPS V3.0) - Prevent Information Leaks

• Features:

  • Highest Security by Design - NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for peripheral Sharing Switch (PSS) devices.
  • 4K30 UHD Resolution - Supports resolutions up to 3840x2160 @30Hz.
  • Work Freely Without Compromising Security - Display and control classified and non-classified computers without compromising security.
  • Prevent Information Leaks - Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering.
  • Dual Display - Provides flexible presentation options with duplicate or extend view modes.

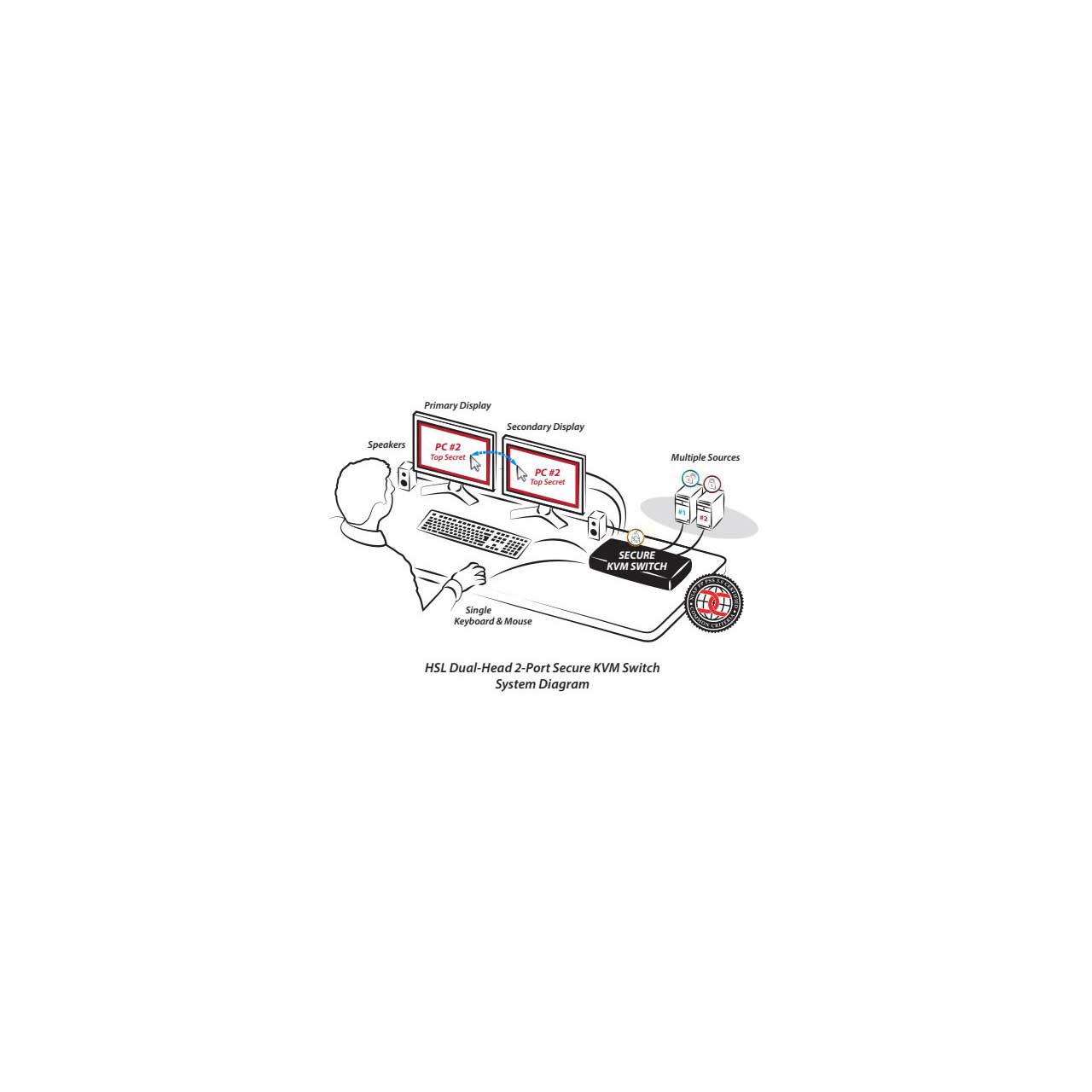

  • Smooth Switching Between Computers (Virtual Display Technology) - Automatically switch all peripheral control from one computer to another by dragging the cursor between each computer's display border.
  • Keyboard Lock Indication - Caps Lock, Num Lock, and Scroll Lock indication on front panel.
  • Versatile and Flexible - Configurable as a KVM switch (default) for sharing a display, keyboard and mouse between connected computers, or KM switch for sharing keyboard and mouse and simultaneously working on multiple computers connected to separate displays.


• Specifications:

  • CONSOLE PORTS
  • 2 x HDMI connectors, 2 USB-A connectors for keyboard and mouse, 1 3.5mm mini jack for unbalanced stereo audio, 1 3.5mm mini jack connector for control (RDC)


  • COMPUTER PORTS
  • 4 HDMI connectors, 2 USB-B connectors for keyboard and mouse, 2 3.5mm mini jacks for unbalanced stereo audio


  • MAX RESOLUTION
  • 4K30 UHD (3840X2160 @30Hz)


  • WARRANTY
  • 3 years


  • POWER REQUIREMENTS
  • 12V DC, 1.5A


  • AC INPUT
  • 100 to 240V AC


  • POWER TYPE
  • External


  • OPERATING TEMPERATURE
  • 32° to 104°F (0° to 40°C)


  • STORAGE TEMPERATURE
  • -4° to 140°F (-20° to 60°C)


  • HUMIDITY
  • 0-80% RH, non-condensing


  • SUPPORTED OS
  • Windows, Linux, Mac


  • SECURITY CERTIFICATION
  • NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices


  • PRODUCT CERTIFICATION
  • CE, RCM, FCC class B, VCCI, TUV US, TUV Canada


  • PRODUCT LIFE-CYCLE
  • 10 years


• Item Includes:

  • HighSecLabs Secure Dual Head 2-Port 4K30 UHD HDMI KVM Switch


• Warranty:

  • Standard two (2) year warranty


• GTIN:

  7290108020762
