KanexPro SP-HD1X44K 1x4 HDMI Splitter with 4K Cinema Resolutions & EDID Selector


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    SP-HD1X44K - Overview

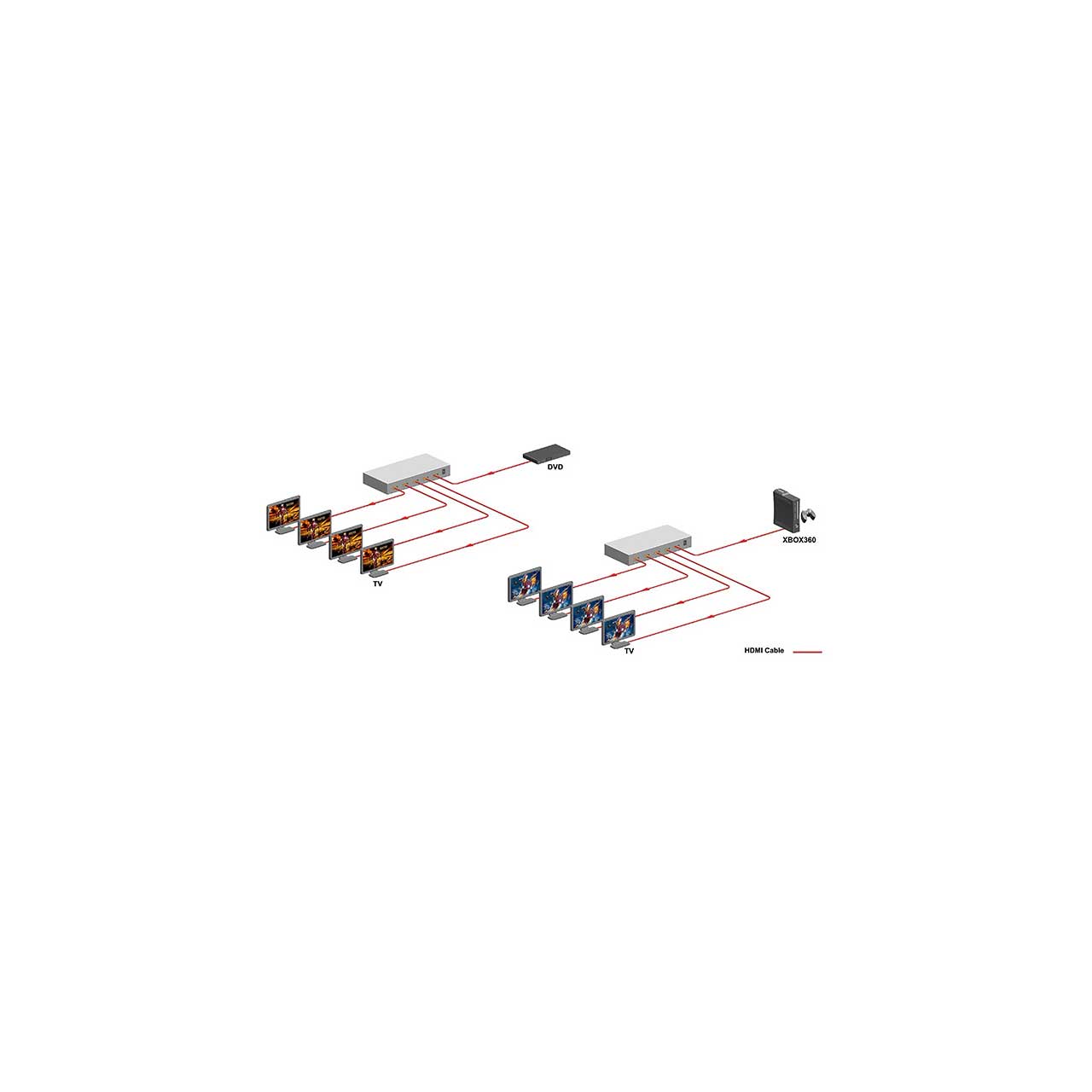

    The KanexPro SP-HD1X44K 1x4 HDMI Splitter is a 4K@30Hz compliant distribution amplifier lets you duplicate one HDMI source to four displays without losing signal integrity and resolution.

    The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality, four times the resolution of high-definition 1080p. This HDCP compliant splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, it ensures you'll be ready to take advantage of tomorrow's display technology.

    • Features:

      • Distribute high-resolution HDMI signals to four Ultra HD displays
      • Supports 4Kx2K resolution
      • Supports full HD 1080p (1920 x 1080@60Hz)
      • Computer resolution up to WUXGA (1920 x1200@60Hz)
      • EDID mode for copying the same resolution to input port
      • HDCP & CEC compliant
      • Supports latest HDMI High Speed Specifications
      • Supports 12-bit per channel (36-bit all channel) Deep color
      • Front USB ports for firmware update
      • Compact metal enclosure
    • Specifications:

      • Signal Inputs/Output:
      • Input DDC Signal: 5 volts p-p (TTL)
      • Maximum Single Link Range: 4K x 2K@30Hz
      • Output Video: HDMI 1.4 with full HD 1080p,1920x1200, 720p, 3D and 4Kx2K + HDCP
      • CEC - Pass through enabled

        Operating Frequency:
      • Vertical Frequency Range: 50/60Hz
      • Video Amplifier Bandwidth: 2.97 Gbps

        Resolutions (HDTV):
      • Interlaced (50&60Hz): 480i, 576i, and 1080i
      • Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K@30Hz

        Power Requirements:
      • External Power Supply: 5V DC@ 1A
      • Power consumption (Max): 5W

      • Size (L-W-H): 5.7"x2.7"x0.98"
      • Weight: 0.27 lbs. (25g)

      • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
      • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Item Includes:

      • HDMI Splitter
      • 5V, 1A DC power supply
      • Manual
    • Warranty:

      • Limited Warranty: 1-Year Parts & Labor
    • GTIN:
