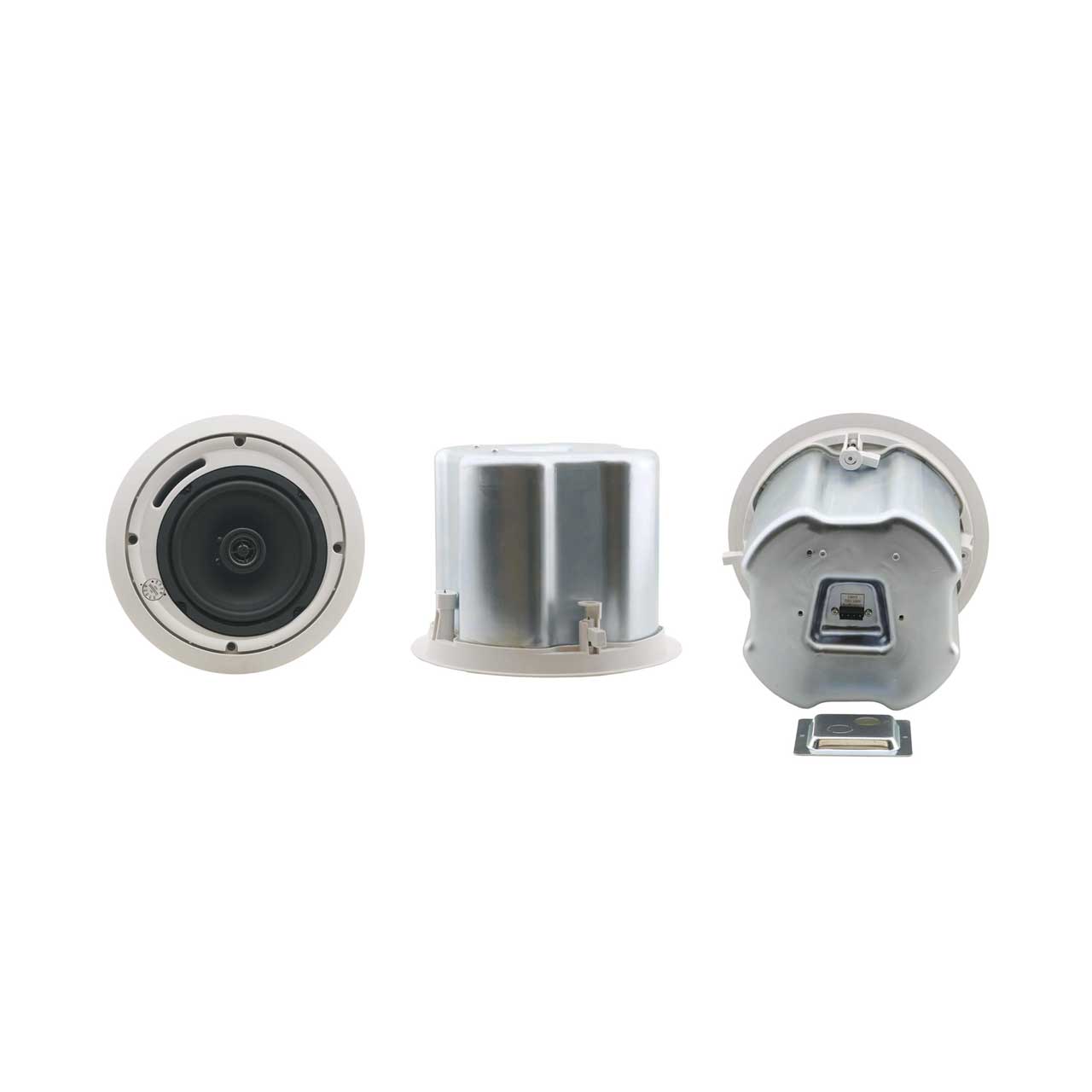

Kramer Galil 6-C 6.5 Inch Closed-Back 2-Way Coaxial Ceiling Speaker - EN 54-24 Certified - Pair

82-500678 - Overview

2-way coaxial speaker

• Features:

  • Type - 2-way coaxial speaker
  • Woofer - 6.5" polypropylene cone
  • Tweeter - 0.5" Mylar dome
  • Impedance - 8Ω
  • Power Handling - 30W RMS, 80W continuous program
  • Transformer Taps - 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z); 100V: 30W/15W/7.5W/Off (Lo-Z)
  • UL 1480 & 2043 Listed


• Specifications:

  • DESCRIPTION
  • 2-way closed-back ceiling speakers

    INSTALLATION DIMESIONS
  • Mounting depth: 19.6cm (7.72")
  • Cutout diameter: 22.4cm (8.82")


  • FREQUENCY RESPONSE
  • 80Hz to 20kHz @ - 10dB, 95Hz to 20kHz @ ±3dB


  • WOOFER
  • 6.5" (165mm) polypropylene with rubber surround


  • TWEETER
  • 0.5" (13mm) Mylar dome


  • IMPEDANCE
  • 8Ω (transformer tap in off position)


  • TRANSFORMER TAPS
  • 70V - 3.7W/7.5W/15W/30W/Off (Lo-Z), 100V - 7.5W/15W/30W/Off (Lo-Z)


  • SENSITIVITY
  • 87dB SPL, 1W @1m


  • MAX SPL
  • Continuous: 100.7dB, peak: 103.7dB


  • POWER HANDLING
  • 30W RMS, 80W continuous program


  • CROSSOVER FREQUENCY
  • 9.2kHz


  • COVERAGE ANGLE
  • 101°


  • DIRECTIVITY FACTOR (Q)
  • 7.5 averaged 1kHz to 10kHz


  • DIRECTIVITY INDEX (DI)
  • 8.6dB averaged 1kHz to 10kHz


  • INPUT CONNECTOR
  • Terminal block


  • MATERIALS
  • ABS bezel, aluminum grill, metal back can


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


• Item Includes:

  • GALIL 6-C speakers (1 pair)
  • Ceiling Mounting Kit (1)
  • Template (1)


• Warranty:

  • Standard 1 Year Warranty


• GTIN:

  7291063020385
