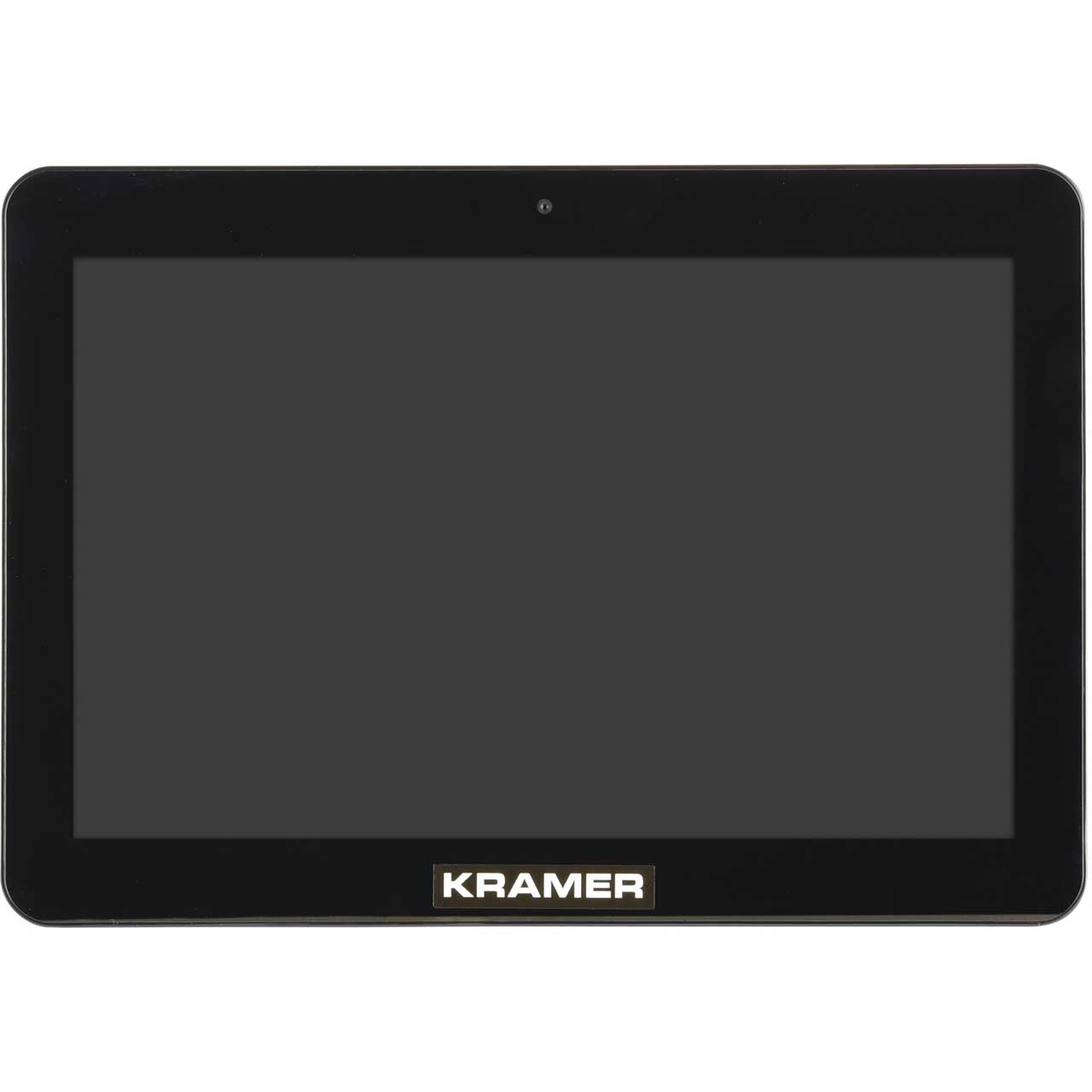

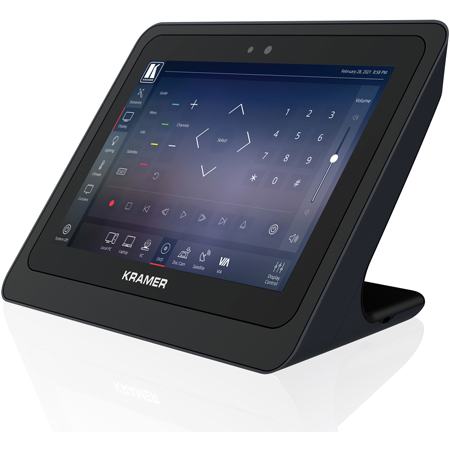

Kramer KT-1010 10 Inch Wall and Table Mount PoE Touch Panel - Black

KT-1010 - Overview

Easy Installation - Powering and connectivity via a single Ethernet cable

• Features:

  • Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
  • Superior User Experience - IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, built-in lighting sensor for auto-adaptable brightness, and advanced 10 multi-touch points and 2-finger gesture capabilities.
  • Powerful Processing - Quad-core CPU, GPU, 2GB RAM, 8GB ROM processing performance, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 2Mp HD front camera operation.
  • Flexible Services - Advanced Android 6.0 operating system with diverse Kramer and market-available applications from cloud/store offerings.
  • Easy Installation - Powering and connectivity via a single Ethernet cable.
  • Flexible Mounting - Including table and wall mounts.
  • Optional Connectivity - Simple wireless BTLE 4.0 Bluetooth as well as connection to USB peripheral devices for either table or wall-mount installations, using the included USB cable.
  • Reliable Networking - Seamless switching between wired and wireless 802.11ac connectivity.
  • Versatile Powering Options - PoE and power adapter.
  • Auto Sensing - Optimized performance and operation according to automatically detected LAN speed.
  • Firmware Update - Via USB port.
  • Secured Deployment - Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.
  • Secured Operation - Highly secured operation of applications using password protection, hidden control buttons and more. Red LED alert when camera is active.


• Specifications:

  • PORTS
  • 1 Ethernet: On an RJ-45 connector
  • 1 SD card: On an SD card (SDHC Class10 compatible) slot
  • 1 USB: On a USB 2.0 type A connector
  • 1 USB: On a micro USB 2.0 connector
  • 1 Headphone: On a 3.5mm mini jack connector

    GENERAL
  • CPU Performance: GCortex-A17, quad core, up to 1.8 GHz
  • GCPU: Mali-T764, with TE, ASTC, AFBC technology
  • System Memory: 2GB DDR3 SDRAM
  • Internal Storage Memory: 8GB eMMC
  • External Storage Memory: SD card (SDHC Class10 compatible)
  • Touch Panel Type: 10 point capacitive multi-touch type
  • Wireless Communication: IEEE 802.11 a/b/g/n/ac, Bluetooth: BT4.2
  • Ethernet: 10/100/1000 Mbps LAN

    AUDIO
  • Speaker unit: 2W+2W
  • Supported Formats: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
  • Camera: 2M pixels (optional)
  • Supported Formats: MP2, WMA, WAV, AAC, OGG, ASF

    PHYSICAL
  • Display Type: TFT LCD
  • Display Size: 10.1" (16:9 diagonal), 1280 RGB (H) x 800(V) pixels
  • Viewing Angle: 75° - 85° horizontal/vertical
  • Contrast Ratio: 350cd/m2 brightness, 800:1
  • Back-light: LED Side-light type
  • VESA Mounting Ready: Metal-fittings mounting screw holes for 75x75mm VESA mount

    POWER
  • Source: 12V/2A DC adapter
  • POE: Power over Ethernet (optional)

    USER INTERFACE
  • Controls: Volume, menu, and power buttons
  • Indicators: LED sidebars to indicate room status

    ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -10° to +55°C (14° to 131°F)
  • Humidity: 10% to 90%, RHL non-condensing


• Item Includes:

  • KT-1010 Touch Panel
  • 12V AC/DC power adapter (1)
  • Tabletop Mount (1)
  • On-wall Mount Bracket Kit (1)
  • Panel Mount Bracket (1)
  • Installation Screw Pack (1)
  • Allen Key (1)


• Warranty:

  • Standard three (3) year warranty


• GTIN:

  7291063077785
