Symetrix ARC-2E 1-Gang CAT5/6 Audio Wall/Surface Panel for DSP Systems - Audio Functions/Logic Events - 24 Menus - White

ITEM #: SYX-ARC-2E MFG #: 80-0056

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$366.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    80-0056 - Overview

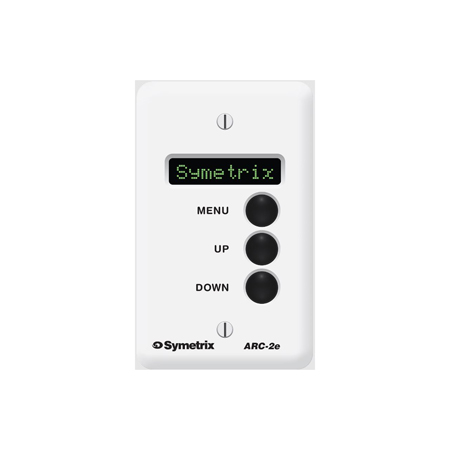

    The Symetrix ARC Wall Panels control basic audio functions or complex logic events.

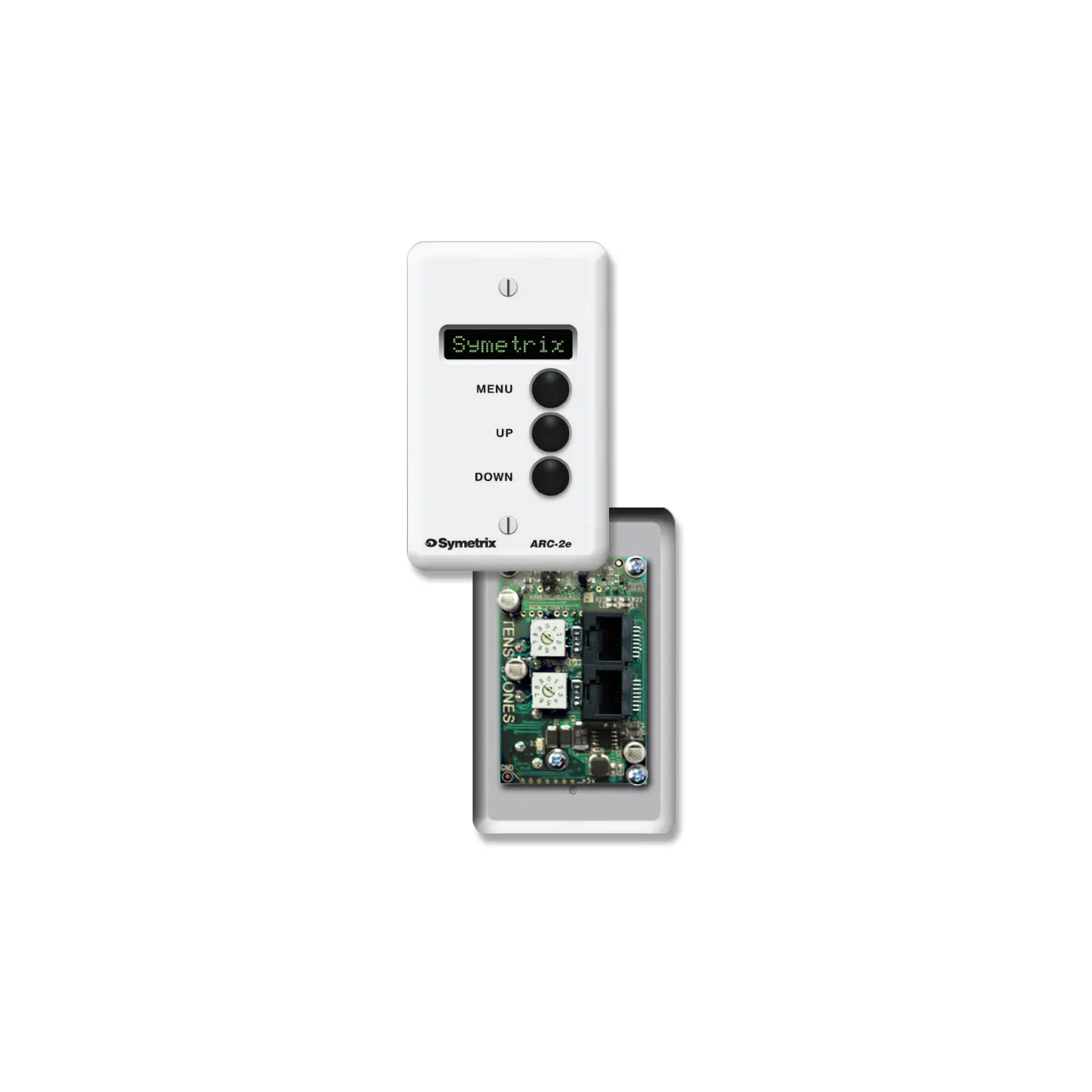

    The ARC-2e is a menu-driven remote control for Symetrix DSPs with twenty- four menus each with up to sixteen items used to control multiple basic functions or complex logic-based events including volume, presets, source selection, room combining and more. The 8-character backlit display supports up to thirty-one scrolling characters, providing user feedback for control assignments, default settings, and actions. The three buttons navigate menus, adjust parameters, and enable or disable the wall panel. The ARC-2e mounts in a single gang electrical box (US).

    Navigation: Pressing the menu button moves the user through the menu names. The menu button also acts as a preset trigger when a preset list is scrolled. The up/down arrow buttons adjust parameter settings and scroll through preset lists. Holding the menu button and using the up/ down arrow keys move the user forward or backward through the menus.

    Behavior: The wall panel's behavior is programmable. Menu brightness in active and inactive states can be set independently so the display will dim in light-sensitive environments. When idle the ARC-2e can scroll a message and return to the top of its menu tree. Programmable upper and lower parameter limits contain ranges of adjustment and a button press lockout prevents tampering. The ARC-2e is furnished with a white faceplate and mounts in a single gang electrical box

    User Control of Symetrix DSP Systems
    Flexible and Extensible
    Easy to Install Using CAT5/6 Cabling
    Easy to Program Using Composer

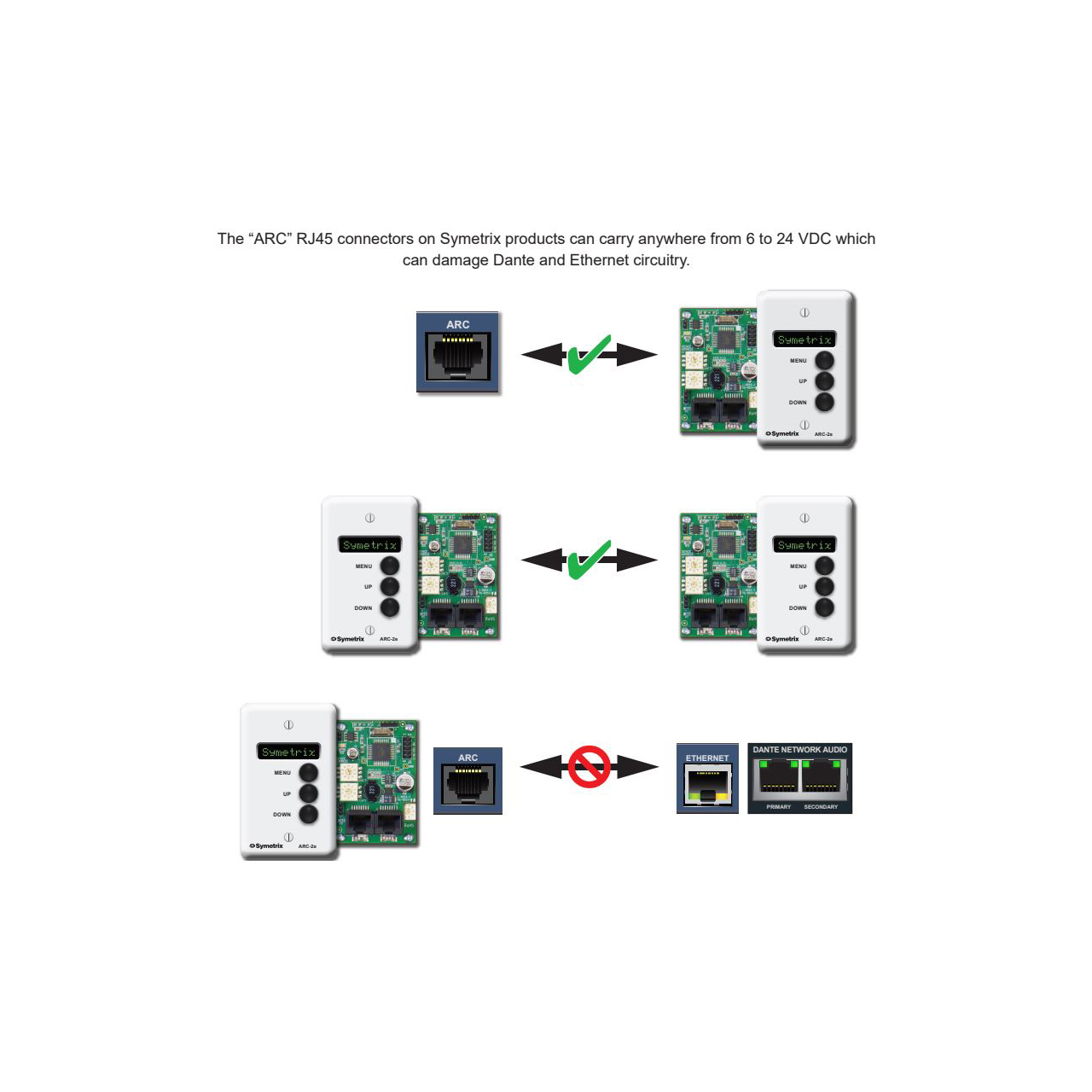

    Note! The "ARC" RJ45 connectors on Symetrix products can carry anywhere from 6 to 24 VDC which can damage Dante and Ethernet circuitry.

    • Features:

      • 24 menus, 16 items.
      • Control basic audio functions or complex logic events.
      • 8 character backlit display, 31 scrolling characters.
      • 3 navigation buttons.
      • Programmable brightness.
      • Mounts in a single gang North American electrical box.

    • Specifications:

      • Processor: Atmel ATmega 128
      • Field-Upgradeable Firmware: Yes
      • Number of Menus: 24
      • Enumerations per Menu: 16
      • Menu Range Limits: Yes
      • Maximum Characters per Menu Name: 31
      • Maximum Number of Strings*: 255 *A "string" is equal to eight characters
      • Maximum Operating Voltage: 30 VDC

    • Item Includes:

      • 1x ARC-2e hardware device
      • 1x Quick Start Guide

    • Warranty:

      • 5 years
