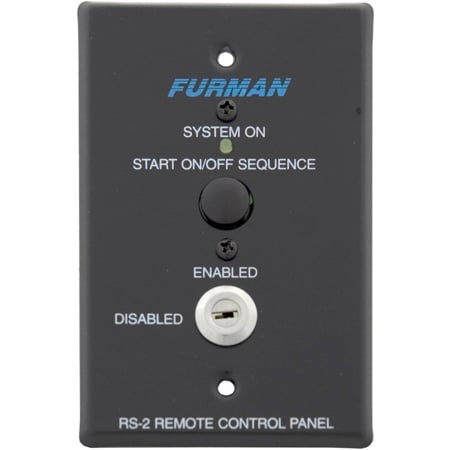

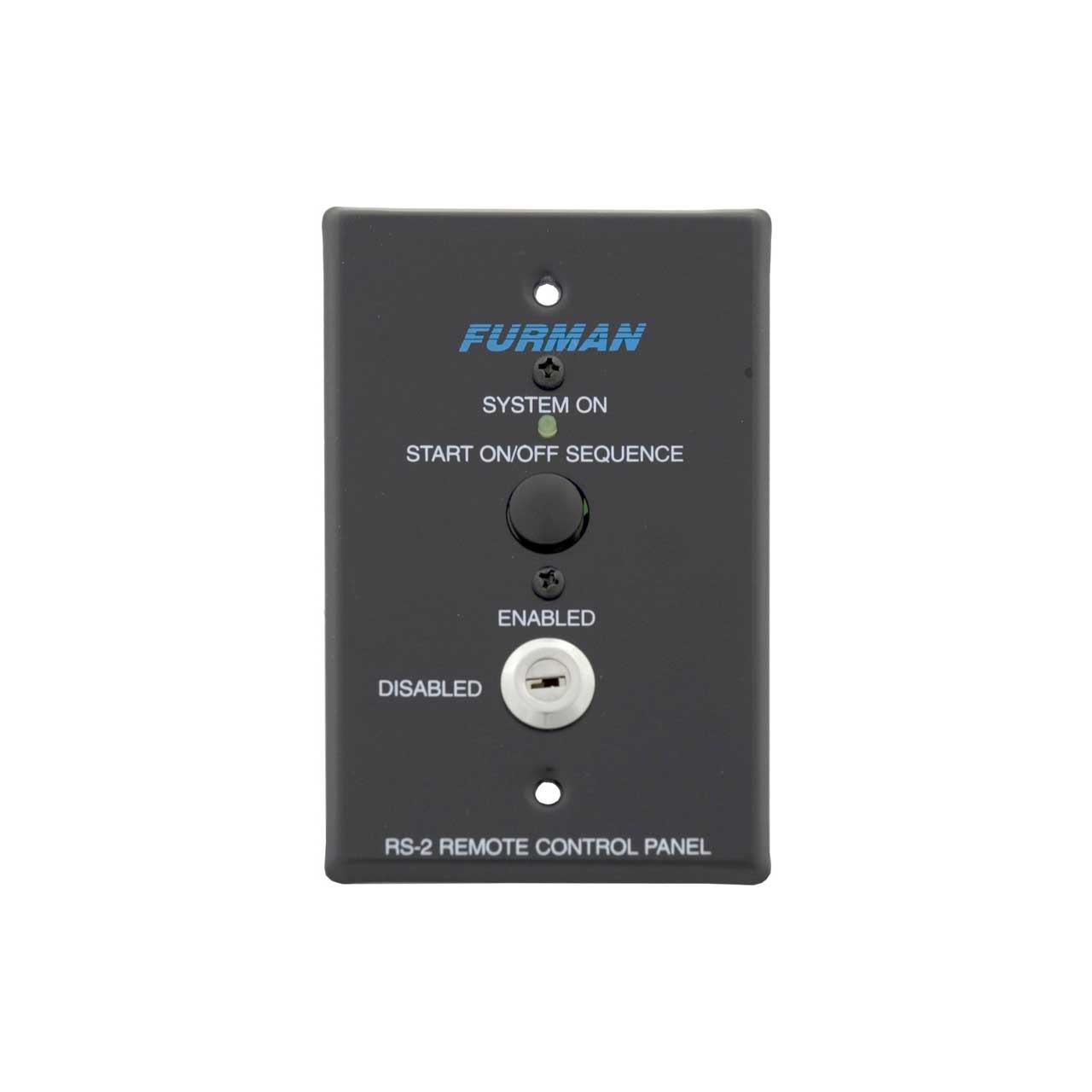

The RS-2 Remote System Control Panel provides a simple way to control AC equipment from one or more locations, using only inexpensive low-voltage wiring.
The panel can be easily installed in a single gang switch box with a minimum depth of 1.5". Features include a locking key switch and a "System On" indicator LED. The RS-2 includes a momentary 'Start ON/OFF Sequence' push-button. The rear of the panel has a circuit board with a full size barrier strip for field wiring connections.
The RS-2 can be used to control the Furman ASD-120 Sequenced Power Distributor, the Power Link, Power Port, Remote AC Controller, the MiniPort Power Relay series, or the PS-8R, PS-8R II or PS-PRO II Power Sequencers, as well as other equipment that needs a switch contact at a remote location.
