Kramer KT-208WM 8-Inch Wall Mounted PoE Touch Panel

ITEM #: KR-KT-208WM MFG #: KT-208WM

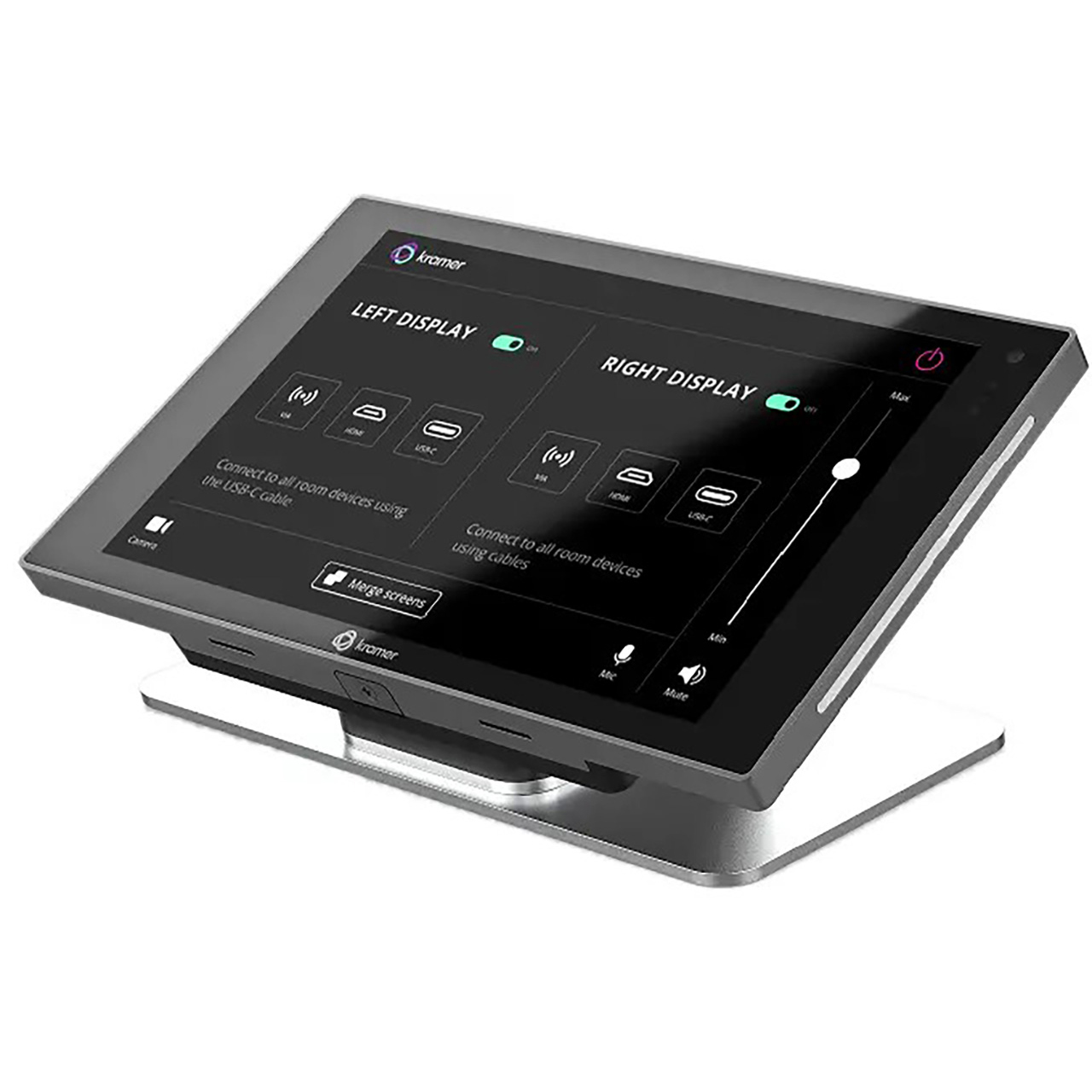

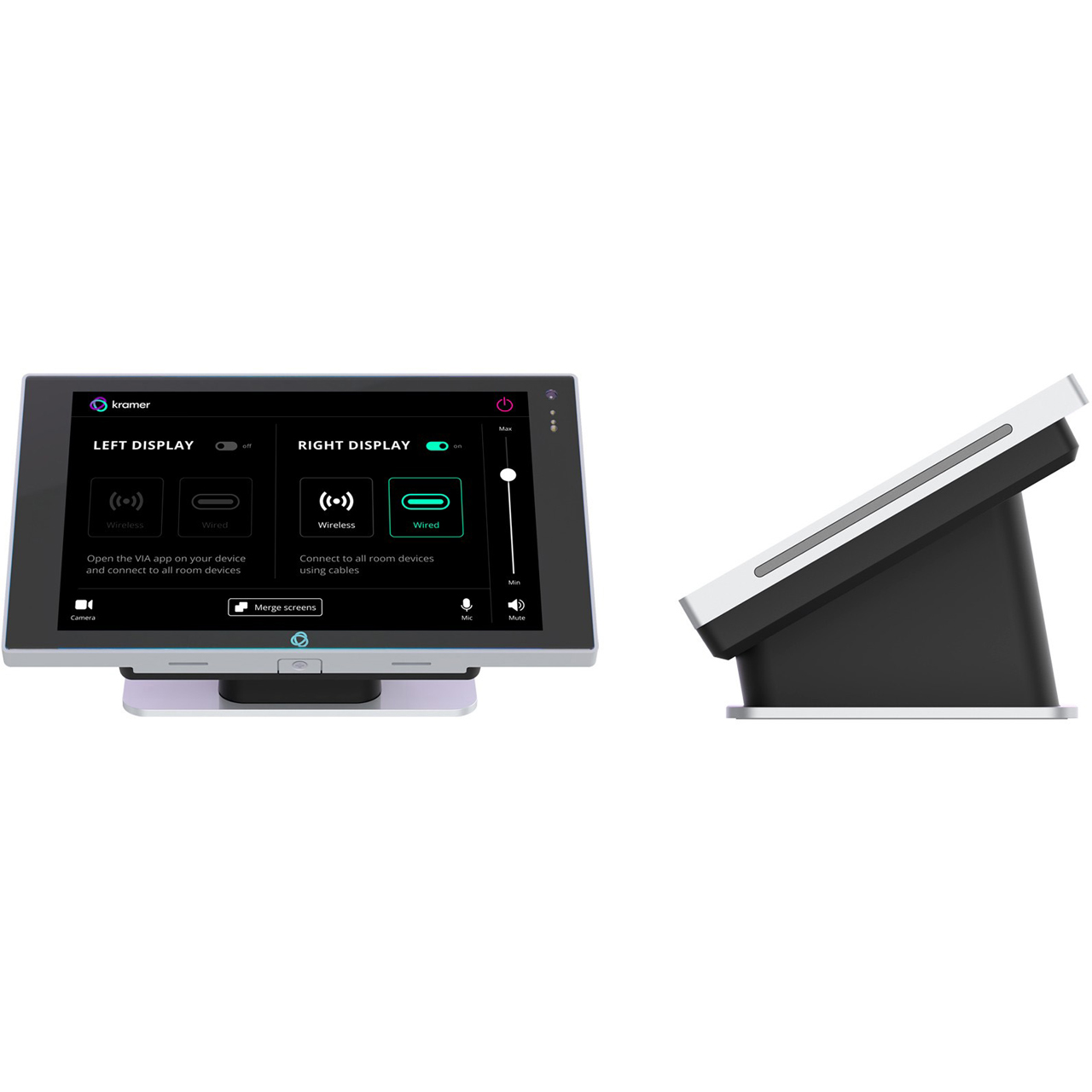

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,735.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


KT-208WM - Overview

The Kramer KT-208WM is a new powerful, 8-inch, IPS, multi-touch, touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either on a tabletop or wall. KT-208WM, with the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi-Fi connectivity options. The touch panel has a built-in speaker and camera and comes either with a tabletop or a wall mount. The touch panel is easy to assemble, using elegant wiring, secured mounting, reliable operation and flexible deployment. KT-208WM is a touch panel that is ideal for any 24/7 Kramer-supported commercial AV or control application and features a user-friendly, fully customizable graphical user interface configured by Kramer software.

Elegant Design
The KT-208WM provides smooth integration with room furniture design, with the included wall mount, flexible panel cabling, and locking design options.

Superior User Experience
The display panel is an IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi-touch points and 2-finger gesture capabilities.

Powerful Processing
The system is powered by an i.MX8M Plus Quad Core A53, 4GB RAM, 32GB ROM processor, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 5MP FF front camera operation.

Secured Operation
The KT-208WM has highly secured operation of applications using password protection, hidden control buttons, and more. There is also a red LED alert when the camera is active. Additionally, it includes flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.

Kramer Control
Deliver advanced, user-friendly control in any space, quickly, and easily. A cloud-based, enterprise-class AV control platform with an on-premises option, Kramer Control transforms the control experience, end-to-end. Going far beyond the traditional boundaries of AV, it enables control of any in-room AV and automation devices, from anywhere.

Please Note: Image is for reference only. This is the "Wall Mount" version.

  • Features:

    • Flexible Services - Latest Android 11 operating system.
    • Easy Installation - Powering and connectivity via a single Ethernet cable.
    • Secured Deployment - Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.
    • Reliable Networking - Seamless switching between wired and wireless 802.11ac connectivity
    • Versatile Powering Options - PoE and power adapter (sold separately).
    • Auto Sensing - Optimized performance and operation according to automatically detected LAN speed.
    • Firmware Update - Define automatic updates on a predefined time of the day or update manually using USB port.
    • Auto Sensing - Optimized performance and operation according to automatically detected LAN speed.

  • Specifications:

      Ports:
    • 1x Ethernet On an RJ-45 connector with PoE 802.3at
    • 1x USB On a USB type C (ADB) connector

      System Specs
    • Dimensions: 8.35" x 5" x 5"
    • Weight: 1lb (0.5kg)
    • CPU Performance: ARM Quad-core Cortex-A53 up to 1.8GHz (64 bit)
    • System Memory: 4GB LPDDR4
    • Internal Storage Memory: 32GB eMMC
    • Touch Panel Type: Capacitive multi-touch
    • Wireless Communication: Wi-Fi 6, 802.11 a/b/g/n/ax/ax+BT 5.0
    • Ethernet: 10/100/1000 Mbps LAN
    • Display Screen Multi-touch: (PCAP)
    • Display Size: 8" (16:10 diagonal), 1280 RGB(H) x 800(V) pixels
    • Wall Mounting: Ready Dedicated bracket for easy mounting
    • Contrast Ratio: 350cd/m2 brightness, 1000:1
    • Back-light: LED Side-light type

      Audio
    • 2x Speaker Unit built-in, 1W
    • 2x Microphone, built-in
    • Audio Codecs: MPEG/OGG/AAC

      Video
    • Camera: 5Mp FF
    • Video Format: H.264/H.265,VC-1, MPEG-4, VP9/VP8
    • Image Codecs: JPEG/BMP/GIF/PNG

      Power
    • PoE (Power over Ethernet) 802.3af
    • Source: 12V/2A DC adapter (optional)

      User Interface
    • Controls: Volume, menu, and power buttons
    • Indicators: LED sidebars to indicate room status (requires 3rd party integration)

  • Item Includes:

    • 1x KT-208WM 8-Inch Wall Mounted PoE Touch Panel
    • 1x Wall Mount
    • 1x Installation Hardware
    • 2x LED Side Bar

  • Warranty:

    • 1 Year Limited Warranty
