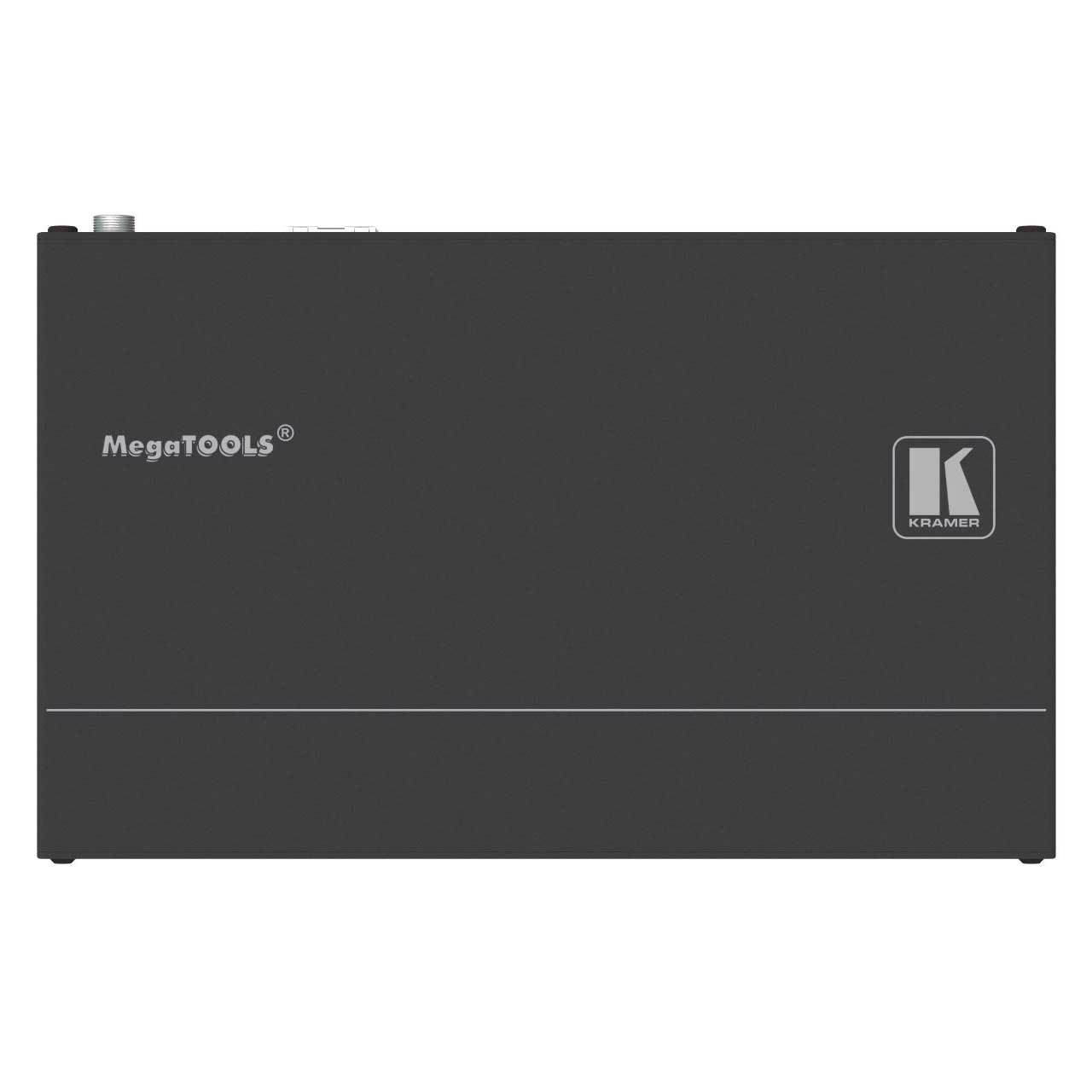

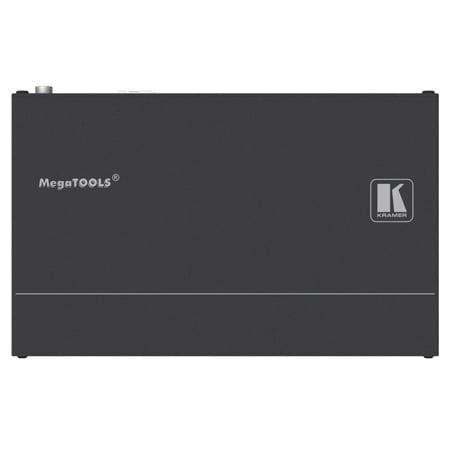

Kramer Control FC-28 10 port Serial IR GPI/O and Relay PoE Control Gateway

ITEM #: KR-FC-28 MFG #: FC-28

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$515.00

Our Price:

$412.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    FC-28 - Overview

    PoE-powered control gateway

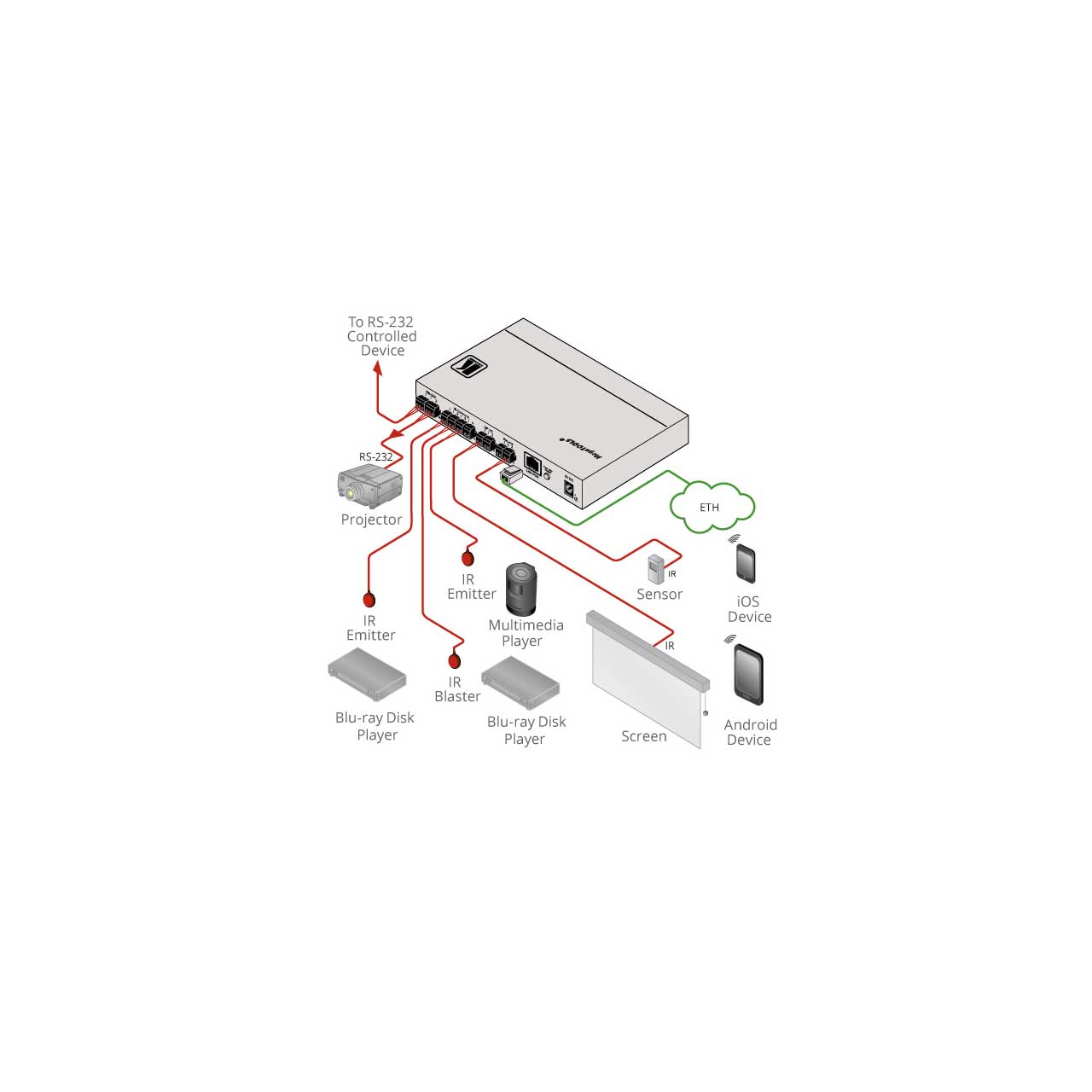

    The Kramer FC-28 is a PoE-powered control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS-232, IR, GPI/O and relay control connections. Multiple control clients can be IP-connected to the FC-28 control gateway for concurrent control of two RS-232,four IR controllable devices, such as AV scalers, video displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting.

    Perfect for:
    Remote IP control of RS-232 and IR controlled devices
    K-Touch multi-clients IP room control
    LAN-based expansion of K-Config control system

    • Features:

      • 2 RS-232 Bi-directional Control Ports - Control a device via bi-directional serial control protocols.
      • 4 IR Emitter Control Ports - Control a device via IR control protocols.
      • 2 GPI/O Control Ports - Controls a device via general purpose I/O ports, program-configured as digital input, digital output or analog input interface for controlling sensors, door-locks, audio volume and light dim level, or lighting control devices.
      • 2 Relay Control Ports - Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.
      • Simultaneous IP Control Communication - With up to 40 IP control clients.
      • IR Sensor Port - Learns commands from IR remotes.
      • Mini USB Port - For firmware upgrades and local technical services.
      • 1 Ethernet Control Port - Remote protocol-based control port.
      • PoE Support - Per IEEE 802.3af standard.
      • Built-in Web Pages - Remote browser-based control and support.
      • Easy Installation - Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto-setup deployment for simple and cost-reducing installation.

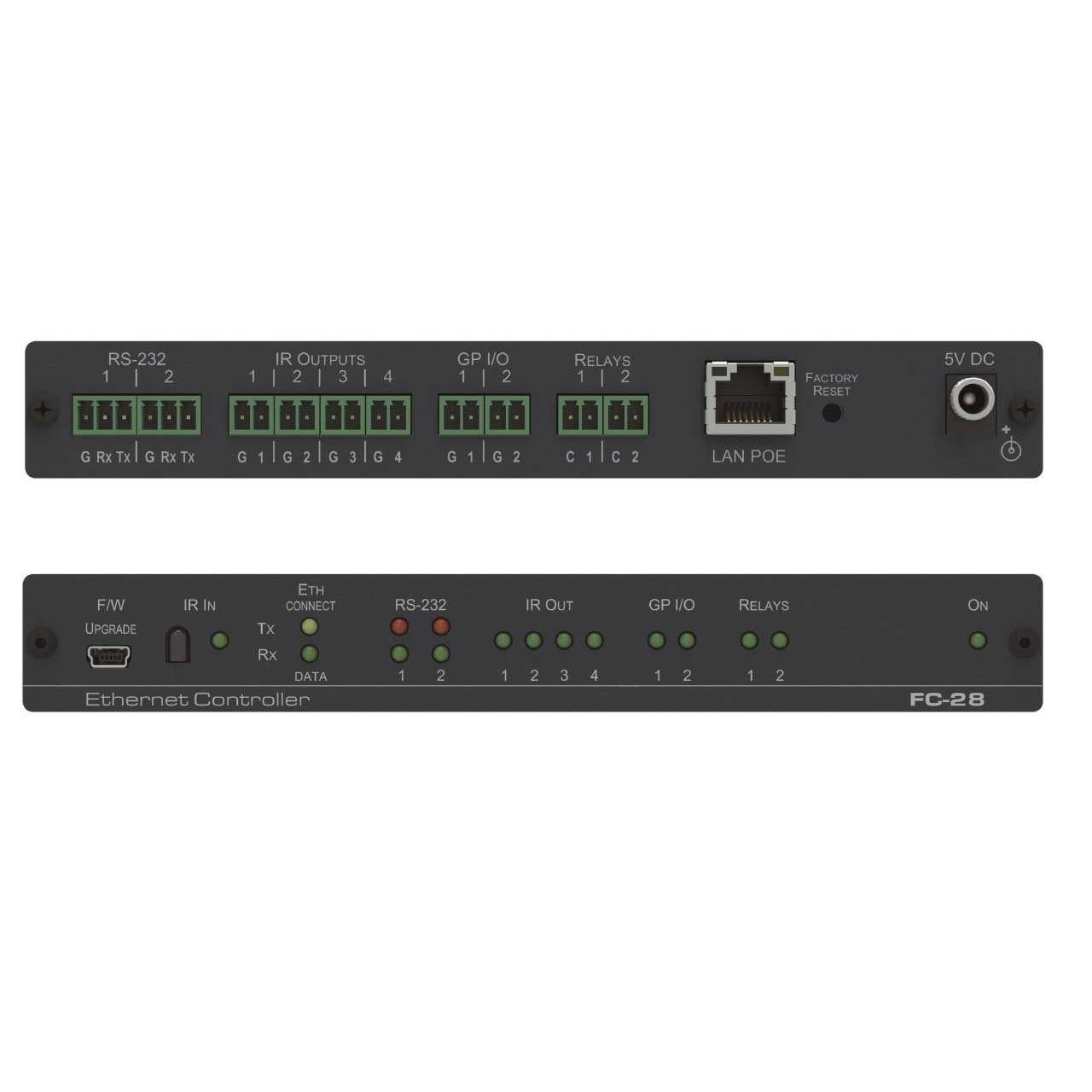

    • Specifications:

      • OUTPUTS
      • 4 IR & relays on 2-pin terminal blocks

      • PORTS
      • 2 RS-232 serial on 3-pin terminal blocks, 2 GPI/O on 2-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services, 1 built-in IR sensor (for learning)

      • SUPPORTED SERIAL PORT BAUD RATES
      • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps

      • RS-232 COMMUNICATION
      • Transparent up to 115200bps

      • IR EMITTER CABLE RANGE
      • 80m (260ft)

      • SUPPORTED IR INPUT FREQUENCIES
      • 20kHz to 60kHz

      • SUPPORTED IR OUTPUT FREQUENCIES
      • 20kHz to 1.2MHz

      • MAXIMUM DATA HANDLING OF DEVICE
      • Up to 150kbps summed on all ports

      • POWER CONSUMPTION
      • 5V DC, 230mA

      • OPERATING TEMPERATURE
      • 0° to +40°C (32° to 104°F)

      • STORAGE TEMPERATURE
      • -40° to +70°C (-40° to 158°F)

      • HUMIDITY
      • 10% to 90%, RHL non-condensing

      • COOLING
      • Convection

      • ENCLOSURE TYPE
      • Aluminum

    • Item Includes:

      • FC-28 Ethernet Controller
      • IR cable (C-A35M/RE-10) (1)
      • Bracket Set (1)
      • Power Supply 5V DC (1)
      • Rubber Feet (4)

    • Warranty:

      • Limited 7 year Warranty

    • GTIN:

      7291063076665
