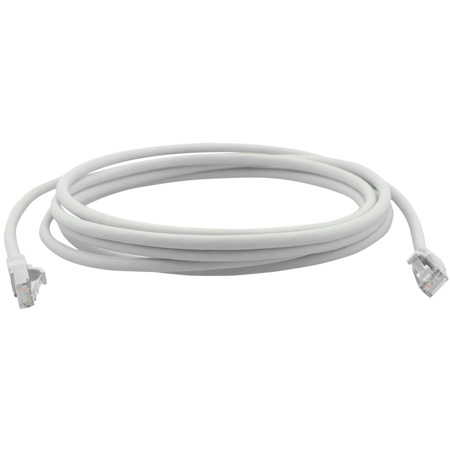

Kramer PC5E-100-10 CAT5E UTP 100MHz CM 4X2X24AWG Patch Cord - 10 Foot

PC5E-100-10 - Overview

• Features:

  • Quality Construction - 4 twisted pairs (U/UTP) of 24AWG stranded copper
  • RJ–45 Connector - Slim snagless RJ–45 connector, 50u gold plated contacts
  • Rated UL–CM
  • Varied Selection of Lengths - 0.15m to 4.6m (0.5 to 15ft)


• Specifications:

  • Construction
  • Conductor Material: Annealed copper
  • Diameter: 7x0.2 ±0.01mm
  • Insulation Material: HDPE
  • Diameter: 0.97 ±0.08mm
  • Color code: Blue/white blue, brown/white brown, orange/white orange, green/white green
  • Sheath Material: PVC
  • Color: Gray RAL 7046
  • Diameter: 5.5±0.20mm

    Electrical
  • Impedance: 1-100MHz 100±15Ω
  • Max. Conductor DC Resistance: < 94.7Ω/km
  • Propagation Velocity: 68%

    Physical
  • Mechanical Characteristics: Bending radius — installed: 35mm, during installation: 45mm
  • Connector Type: Snagless RJ-45 UTP CAT5E
  • Wiring: EIA/TIA 568B
  • Contact Plating: Gold 50µm

    Regulatory
  • Compliant Standards - Electrical: EIA/TIA 568B, ISO/IEC 11801


• GTIN:

  7291063081577
