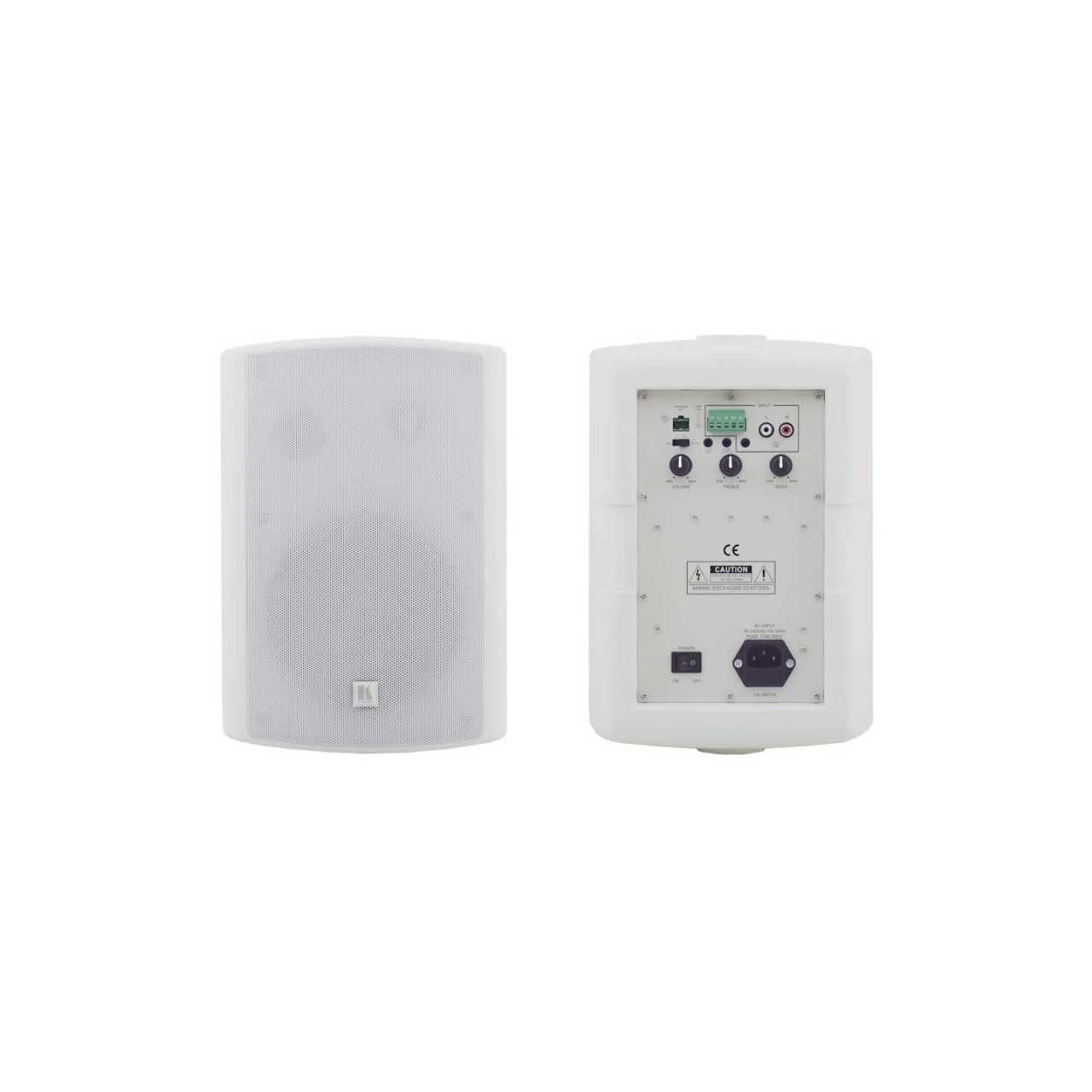

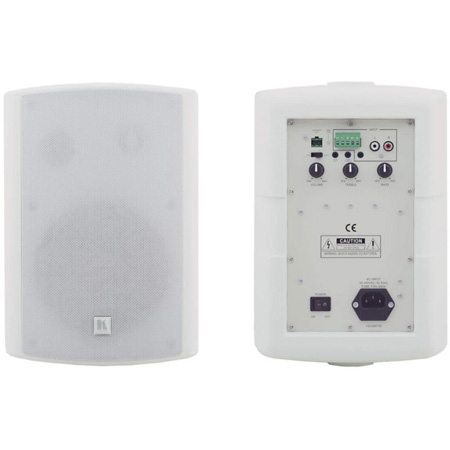

Kramer TAVOR 6-O 6.5 Inch 2 Way On Wall Powered Speakers - Pair - White

TAVOR6-0-WH - Overview

6.5-Inch, On-Wall 2-Way Powered Speakers

• Features:

  • Active Loudspeaker - Stereo 2x50W RMS, 2x140W continuous program built-in power amplifier.
  • Inputs - 1 unbalanced RCA, 1 unbalanced 3.5mm mini jack, 1 balanced on terminal block.
  • Audio Level Controls - Volume, treble and bass.
  • Magnetically Shielded.
  • Enhanced Bass Reflex.
  • Auto Power - Shuts off when system is not in use, indicated by a LED.
  • Automatic Input Voltage Selector - 90 to 240V AC, 50 to 60Hz.
  • Indoor Wall Mounting.
  • Mounting Configuration - Active speaker: left, passive speaker: right


• Specifications:

  • DESCRIPTION
  • 2-way powered speaker


  • BUILT-IN POWER AMPLIFIER
  • 2 X 50W RMS, 2 X 140W continuous program


  • FREQUENCY RESPONSE
  • 45Hz to 20kHz @-10dB, 50Hz to 20kHz @±3dB

    WOOFER
  • 6.5" polypropylene cone with rubber edge woofer


  • TWEETER
  • 1" silk dome tweeter


  • SENSITIVITY
  • 85dB SPL, 1W@1m


  • MAX SPL
  • Continuous: 100dB, peak:108dB


  • POWER SOURCE
  • 90-240V AC 50/60Hz


  • IMPEDANCE
  • 4Ω


  • CROSSOVER FREQUENCY
  • 8kHz


  • DIRECTIVITY FACTOR (Q)
  • 7.5 averaged 1kHz to 10kHz


  • DIRECTIVITY INDEX (DI)
  • 8.7dB averaged 1kHz to 10kHz


  • INPUT CONNECTORS
  • Line level unbalanced stereo audio on a 3.5mm mini jack, line level balanced stereo audio on a terminal block connector, line level unbalanced stereo audio on left and right RCA connectors


  • OUTPUT CONNECTORS
  • Speaker (to connect to the external passive speaker), 3.5mm mini jack line out for optional sub-woofer, 3.5mm mini jack loop output


  • DISPERSION COVERAGE
  • Vertical: 54 degrees @2000Hz, horizontal:65deg @2000Hz


  • DAMPING FACTOR
  • 19 @4Ω/1000Hz


  • S/N RATIO
  • 80-90dB


  • THD
  • Greater-than Or Equal To 0.15%


  • CONTROLS
  • Volume, bass and treble


  • INPUT POWER
  • ON or AUTO


  • STANDBY MODE POWER CONSUMPTION
  • 0.5W


  • INPUT LEVEL FOR SYSTEM "WAKE-UP" FROM STANDBY MODE
  • 12mV


  • MATERIALS
  • Aluminum grill, steel brackets, ABS cabinet


  • INSTALLATION CLEARANCE
  • 25cm (9.8") - front panel to wall (with mounting bracket)
  • 6.3cm (2.5") - back panel to wall (with mounting bracket)


  • OPERATING TEMPERATURE
  • -15° to +70°C (5° to 158°F)


  • STORAGE TEMPERAURE
  • -30° to +55°C (-22° to 131°F)


  • HUMIDITY
  • 25% to 90%, RHL non-condensing


• Item Includes:

  • TAVOR6-O speakers (1 pair)
  • U-shaped rotating mounting brackets (1 pair) with 4 mounting knobs
  • 4m (13.12ft) power cord
  • 4m (13.12ft) loudspeaker cable
  • 2m (6.6ft) 3.5mm to 2 RCA cable.


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063065317
