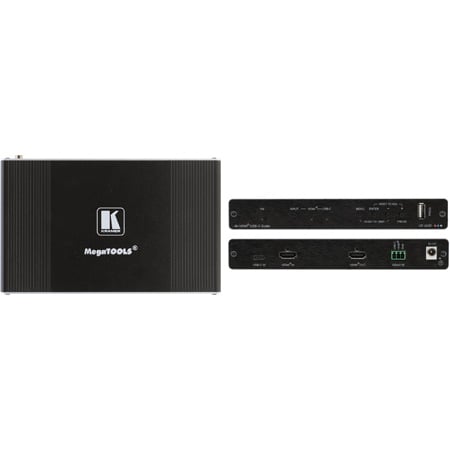

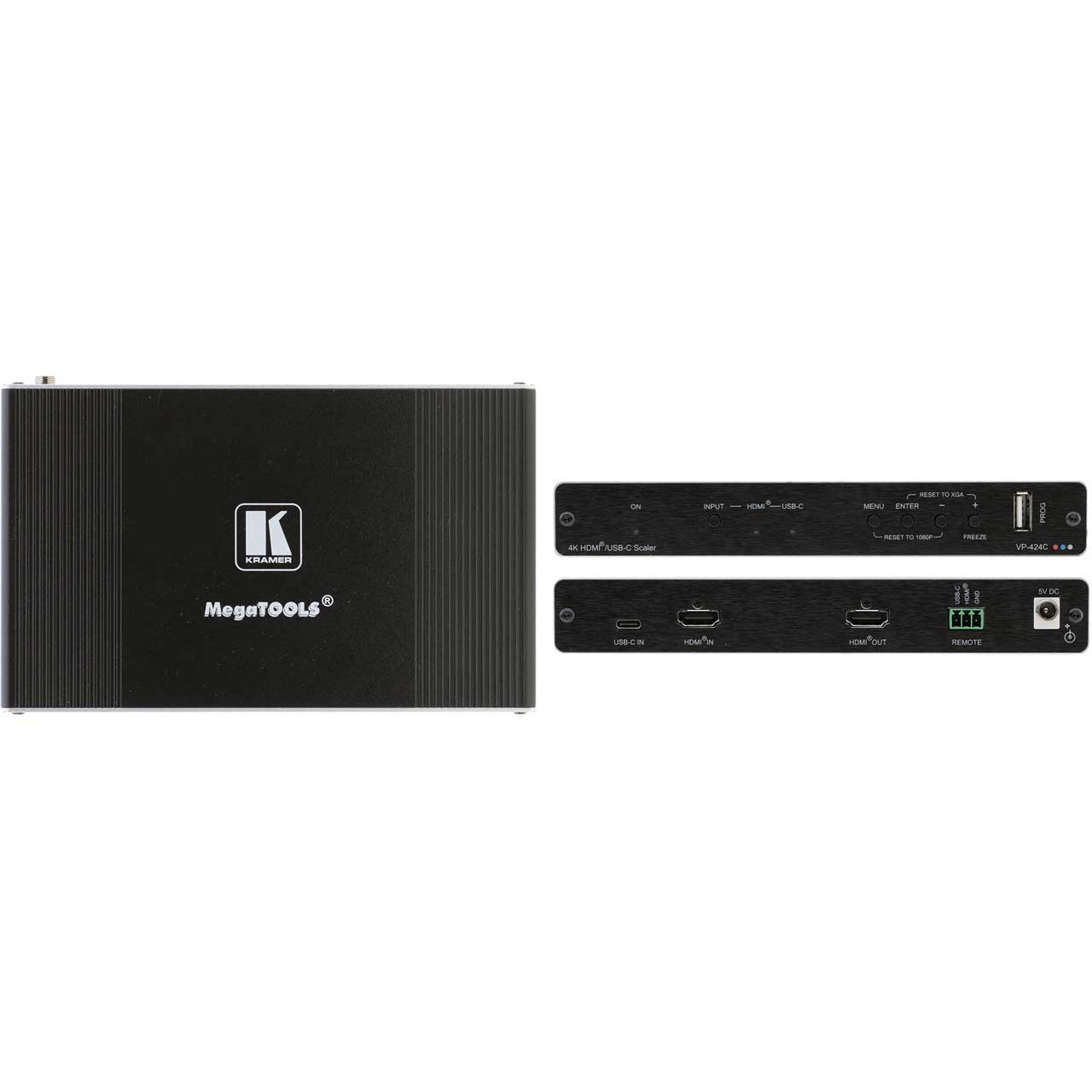

Kramer VP-424C 18G 4K HDMI to HDMI ProScale Digital Scaler with HDMI and USB-C Inputs

ITEM #: KR-VP-424C MFG #: VP-424C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$785.00

Our Price:

$628.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VP-424C - Overview

    HDCP 2.2 & 1.4 compliant

    Kramer's VP-424C is a high-performance digital scaler for HDMI and USB type-C signals. The unit up or down scales the selected video signal to resolutions up to 4K@60Hz (4:4:4) at a maximum data rate of 18Gbps (6Gbps per graphic channel). The user selects the HDMI or USB type-C input and the scaled output is sent to the HDMI output.

    Perfect for:
    Projection systems in conference rooms, boardrooms, hotels and churches
    Home theater up-scaling

    • Features:

      • High-Performance Professional Scaler - Up-scales or down-scales HDMI and USB type-C signals to any resolution up to 4K@60 (4:4:4). The scaler supports CEC as specified in HDMI 2.0 and HDCP 2.2/1.4, and features Input Auto-Switching, Constant Sync on the output even if the input video signal is lost or interrupted, and a built-in ProcAmp for convenient signal adjustment.
      • Fast, Smooth Manual and Auto Switching Between Sources - Select the HDMI or USB Type-C input, or, if no input is selected, the active source is automatically selected.
      • EDID Handling - Reading and storage of the video acceptor's EDID.
      • Convenient Control - Control the unit using an OSD (On-Screen Display) via front panel buttons and input selector, video freeze and resolution reset front panel buttons. Additionally, connect to the contact closure connector for remote switching of sources. All settings are saved in non-volatile memory.
      • User-Friendly Operation - LED indicator for active input and for power status. Local firmware upgrade via the USB type-A port ensures lasting, field-proven deployment.
      • Easy Installation - Compact MegaTOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

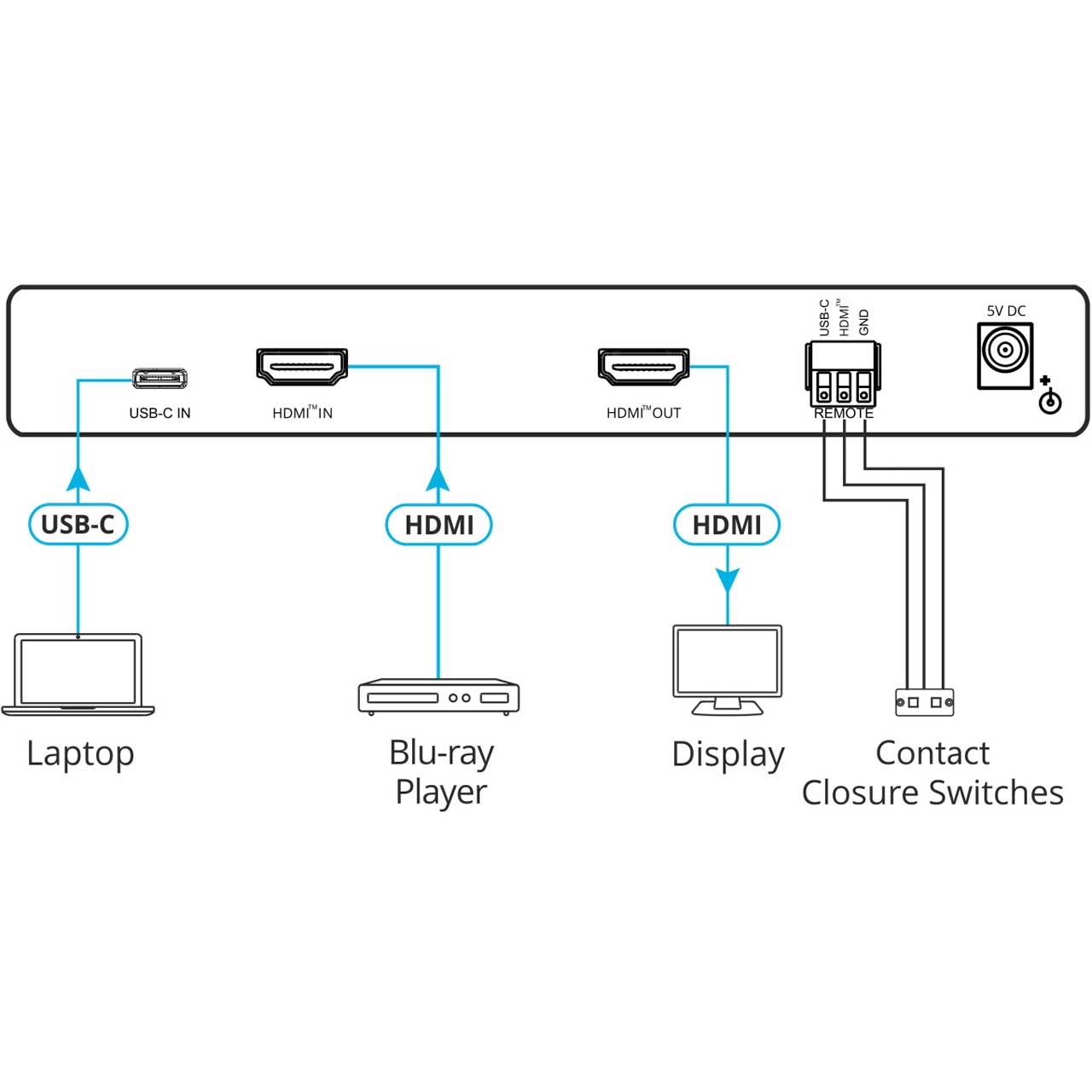

    • Specifications:

      • INPUTS
      • 1 HDMI: On a female HDMI connector
      • 1 USB-C: On a female USB-C connector (USB3.1/DP Alternate Mode)

        OUTPUTS
      • 1 HDMI: On a female HDMI connector

      • PORTS
      • Contact Closure Switches: On a 3-pin terminal block
      • USB: On a USB-A connector for firmware upgrade

        VIDEO
      • Max. Input Resolution: 4K@60Hz (4:4:4)
      • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
      • Input Resolutions:
      • 480i/576i, 480p/576p, 720p@60/50Hz, 1080i@60/50Hz,
      • 1080p@24/25/30/50/60Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz,
      • 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz,
      • 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz,
      • 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60 RB,
      • 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60 RB,
      • 2048x1080@24/25/30/50/60Hz, 2560x1440@60 RB, 2560x1600@60 RB,
      • 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4)
      • Output Resolutions:
      • 640x480@60Hz, 720x480p@60Hz, 720x576p@50Hz,
      • 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz,
      • 1280x720p@50/60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz,
      • 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz,
      • 1920x1080@60Hz, 1920x1080p@24/25/30/50/60Hz, 1920x1200 RB@60Hz,
      • 2048x1080@50/60Hz, 2560x1080p@50/60Hz, 2560x1440 RB@60Hz, 2560x1600
      • RB@60Hz, 4K/2K@24/25/30/50/60Hz
      • Latency: 1-2 frames
      • Content Protection: HDCP 2.2 & 1.4

        USER INTERFACE
      • Controls: Input selection and resolution reset front panel buttons, OSD menu
      • Indicators: Selected input and power LEDs
      • Power Source: 5V DC
      • Consumption: 1.8A
      • Enclosure Size: MegaTOOLS®
      • Type: Aluminum
      • Cooling: Convection ventilation

        ENVIRONMENT CONDITIONS
      • Operating Temperature: 32° to 104°F (0° to +40°C)
      • Storage Temperature: -40° to 158°F (-40° to +70°C)
      • Humidity (RHL): 10 to 90% (non-condensing)
      • Product:

    • Item Includes:

      • 1x VP-424C
      • 1x Power Adapter
      • 1x Bracket Set
      • 1x Rubber Feet

    • GTIN:

      7291063088590
