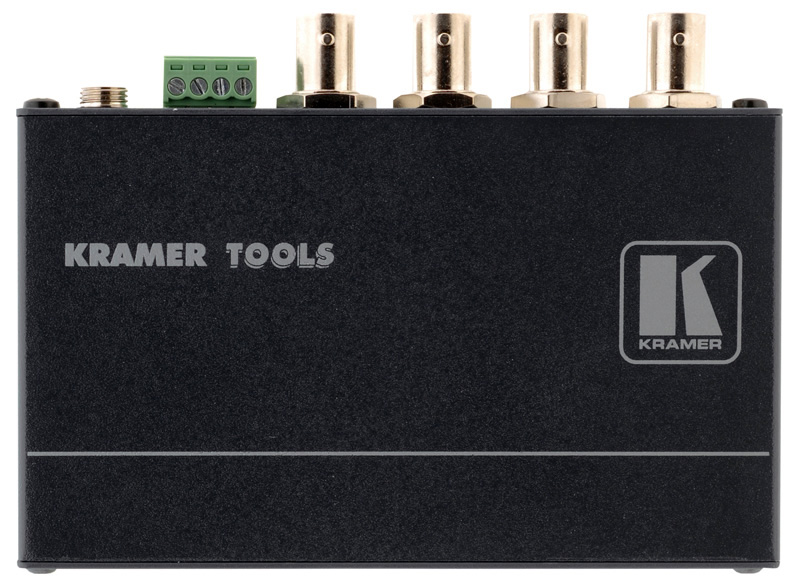

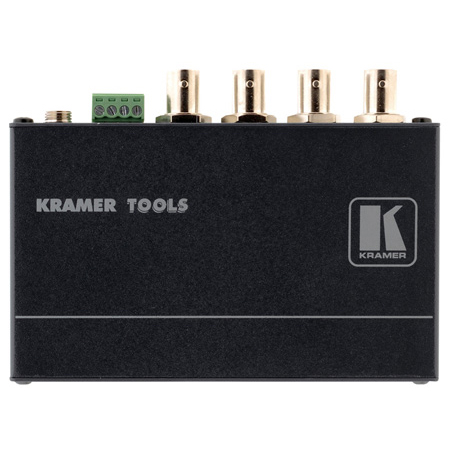

Kramer VS-33VXL 3x1 Video Switcher

ITEM #: KR-VS33VXL MFG #: VS-33VXL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VS33VXL

VS-33VXL - Overview

The VS-33Vxl is a high-performance switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

  • Features:

    • Bandwidth - 46MHz (-3dB).
      Vertical Interval Switching - Genlocks to input 1.
      Contact Closure Remote Switching Capability.
      Compact Kramer TOOLSª - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.


  • Specifications:

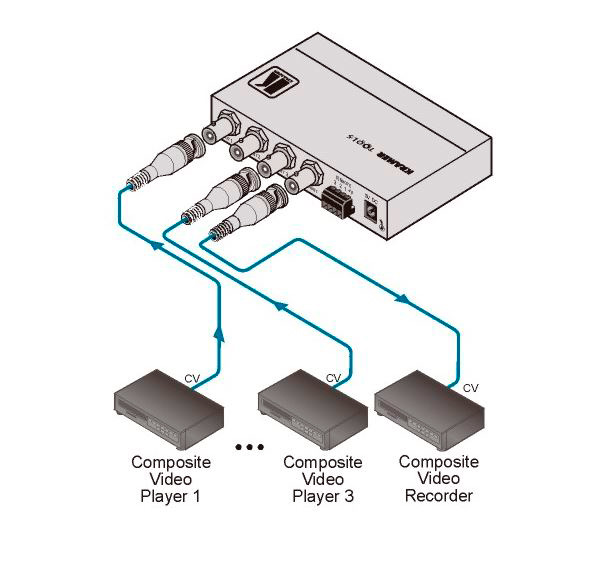

    • INPUTS: 3 composite video, 1Vpp/75Ω on BNC connectors.
    • OUTPUT: 1 composite video, 1Vpp/75Ω on a BNC connector.
    • MAX. VIDEO OUTPUT: 1.8Vpp/75Ω.
    • VIDEO BANDWIDTH (-3dB): 46MHz.
    • DIFF. GAIN: 1.25%.
    • DIFF. PHASE: 0.5Deg.
    • K-FACTOR: <0.05%.
    • VIDEO S/N RATIO: 73dB.
    • SWITCHING: Vertical interval.
    • CROSSTALK: -44dB @5MHz.
    • POWER CONSUMPTION: 5V DC, 22mA.
    • DIMENSIONS: 12cm x 6.95cm x 2.44cm (4.72" x 2.74" x 0.96") W, D, H.
    • WEIGHT: 0.3kg (0.66lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-3T 19” rack adapter.


  • GTIN:

    7291063029692
