Magewell 64430 Pro Convert IP to HDMI Decoder - NDI High Bandwidth - Up to 4 IP Streams - Supports HDR PQ / HLG

64430 - Overview

Decode up to four IP video streams and output them as a single HDMI signal!

• Features:

  • Supports a wide range of streaming protocols including NDI High Bandwidth, NDI|HX/HX2/HX3, SRT, RTSP, RTMP, HLS, MPEG-TS, RIST, and Zixi
  • Supports display configurations such as full-screen single-source viewing and Picture-in-Picture (PIP)
  • Four-channel quad-view monitoring
  • Outputs video at up to 2560 x 1440 (QHD) at 60 fps via HDMI
  • Supports embedded audio, HDR PQ/HLG formats, and web-based management
  • Can be powered using PoE+ over Ethernet or via USB-C power


• Specifications:

  Decoding
  • Support multiple output modes for decoding of different protocol signals
  • Single Screen:
     - Number of Decoding channels: 1
     - Supported Protocols: NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HTTP, HLS and ZIXI
     - Formats: H.264, H.265, SpeedHQ, MPEG2
     - Resolution: Up to 2560x1440p60
  • Picture-in-Picture:
     - Number of Decoding channels: 2
     - Supported Protocols: NDI High Bandwidth*, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HTTP, HLS and ZIXI
     - Formats: H.264, H.265, SpeedHQ, MPEG2*
     - Resolution: Up to 1920x1080p60
    *Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.
  • Quad Screen:
     - Number of Decoding Channels: 4
     - Supported Protocols: NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HTTP, HLS and ZIXI
     - Formats: H.264, H.265
     - Resolution: Up to 1920x1080p60
  • Support decoding of audio formats including AAC, MP3, AC3, Opus and G.711
  • Support NDI 6.3

    Output
  • Max Output: 2560x1440 60fps 4:4:4 8-bit or 4:2:2 12-bit
  • Commonly Supported Output Formats Include:
     - 2560x1440p60
     - 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
     - 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
     - 1920x1080i 50/59.94/60
     - 1280x720p 23.98/24/25/29.97/30/50/59.94/60
     - 720x576p50
     - 720x576i50
     - 720x480p59.94/60
     - 720x480i59.94/60
  • Support Color Space: BT.601/BT.709/BT.2020
  • Support HDR PQ/HLG
  • Support 48/96KHz 8-channel audio output
  • HDMI Interface: HDMI 2.0

    Configuration Management
  • Support registration with Control Hub and Zixi ZEN Master for remote centralized management
  • Provide WebUI tools
  • Provide comprehensive information regarding the device and decoded signals in real-time
  • Support preview of output images and PTZ control
  • Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, etc.
  • Support firmware upgrade
  • Support Ping test, configuration files import and export, network connection configuration, etc.
  • Support USB NET
  • Support Edge/Firefox/Chrome/Safari/Opera web browsers
  • Support HTTP APIs

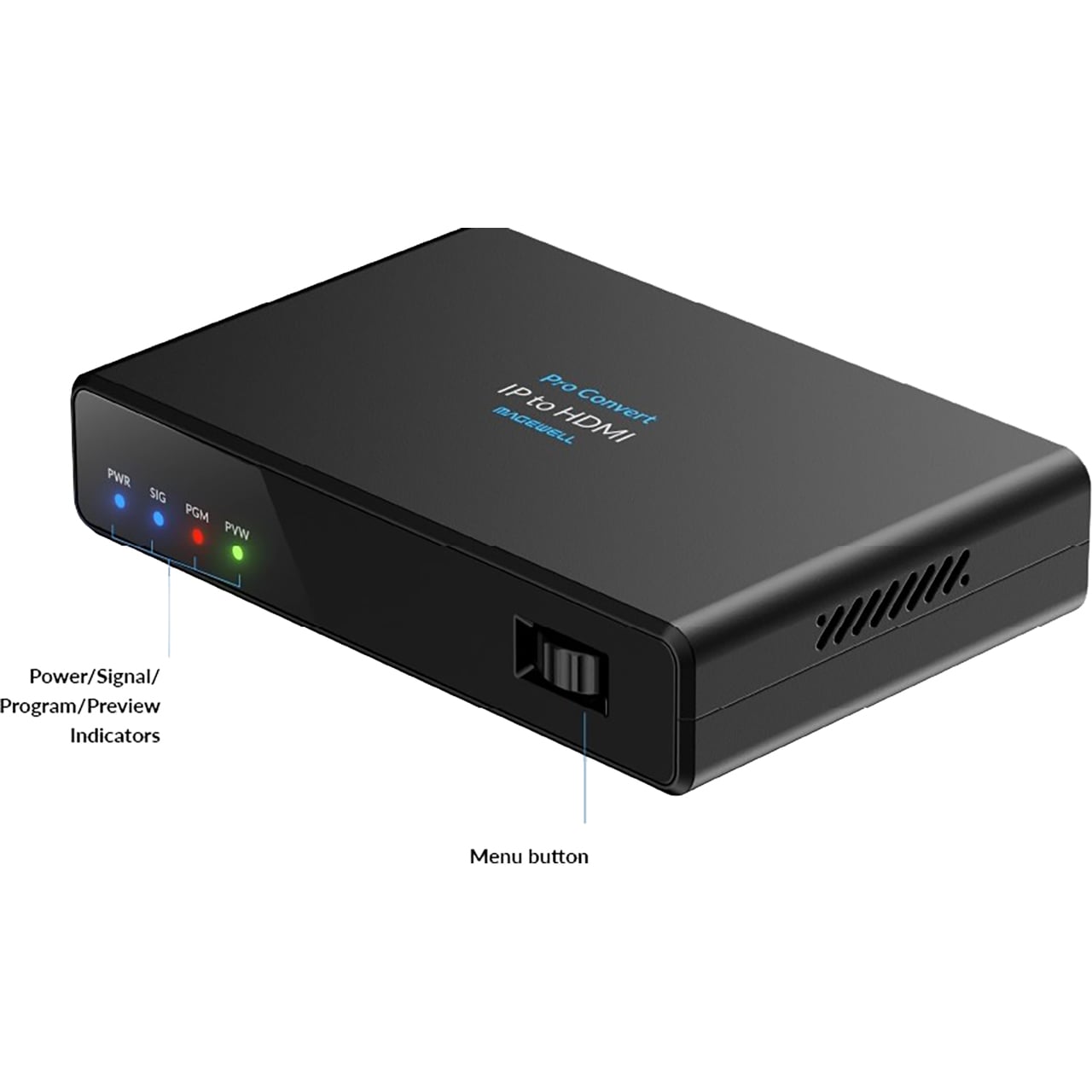

    On-Board Control Buttons
  • Rotary Encoder Button:
     - Rotate: Toggle options
     - Press: Bring up menu, enter current option, or confirm the selection

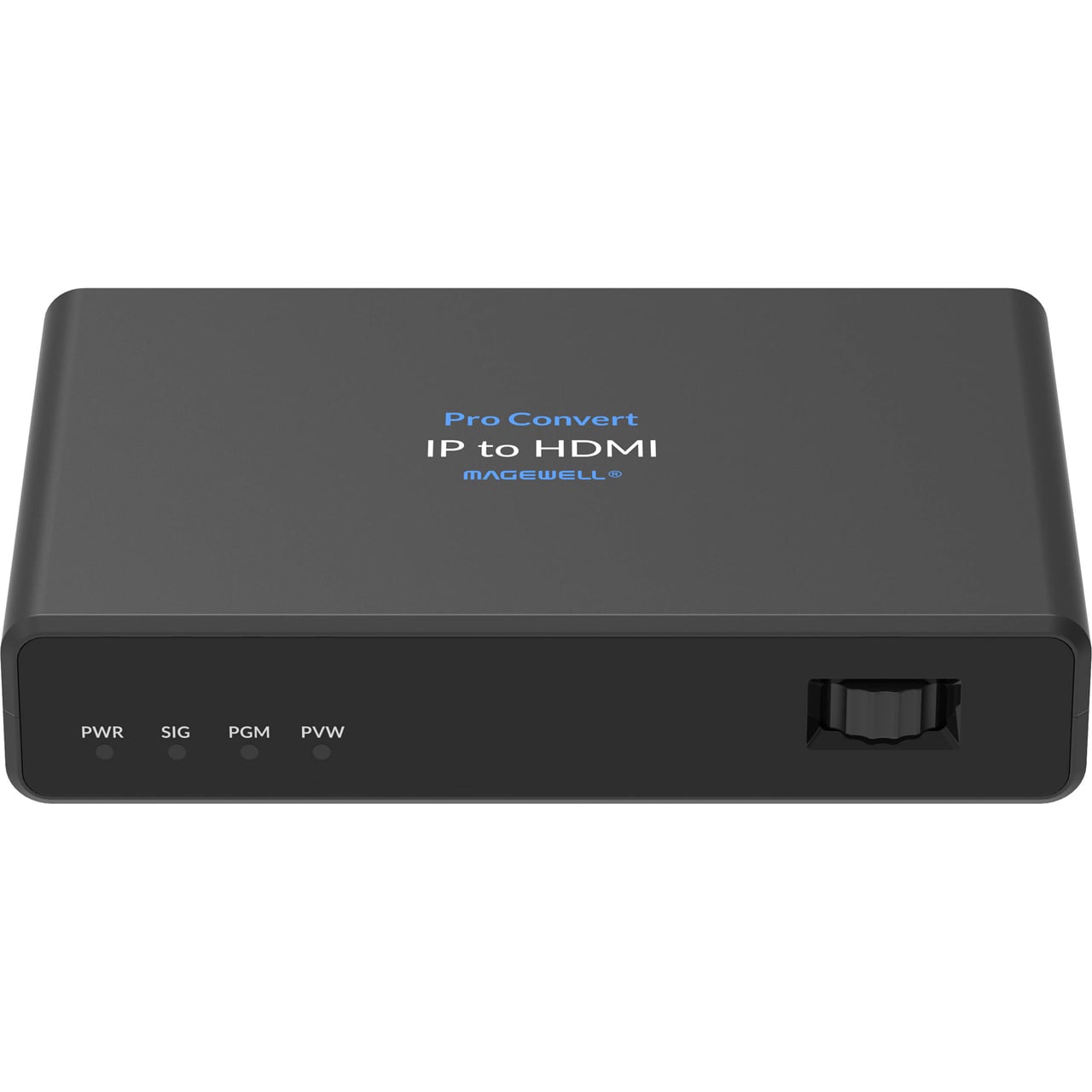

    LED Indicators
  • Power Indicator (PWR):
     - On: Power connected
     - Off: Power disconnected
  • Decoding Status Indicator (SIG):
     - Blue: All selected sources in single/multi-channel decoding are working normally
     - Red: All selected sources in single/multi-channel decoding are abnormal
     - Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
     - Off: No sources selected in single/multi-channel decoding
  • Tally Lights:
     - Program Tally (PGM): The connected NDI source is live when illuminating red
     - Preview Tally (PVW): The connected NDI source is in preview when illuminating green

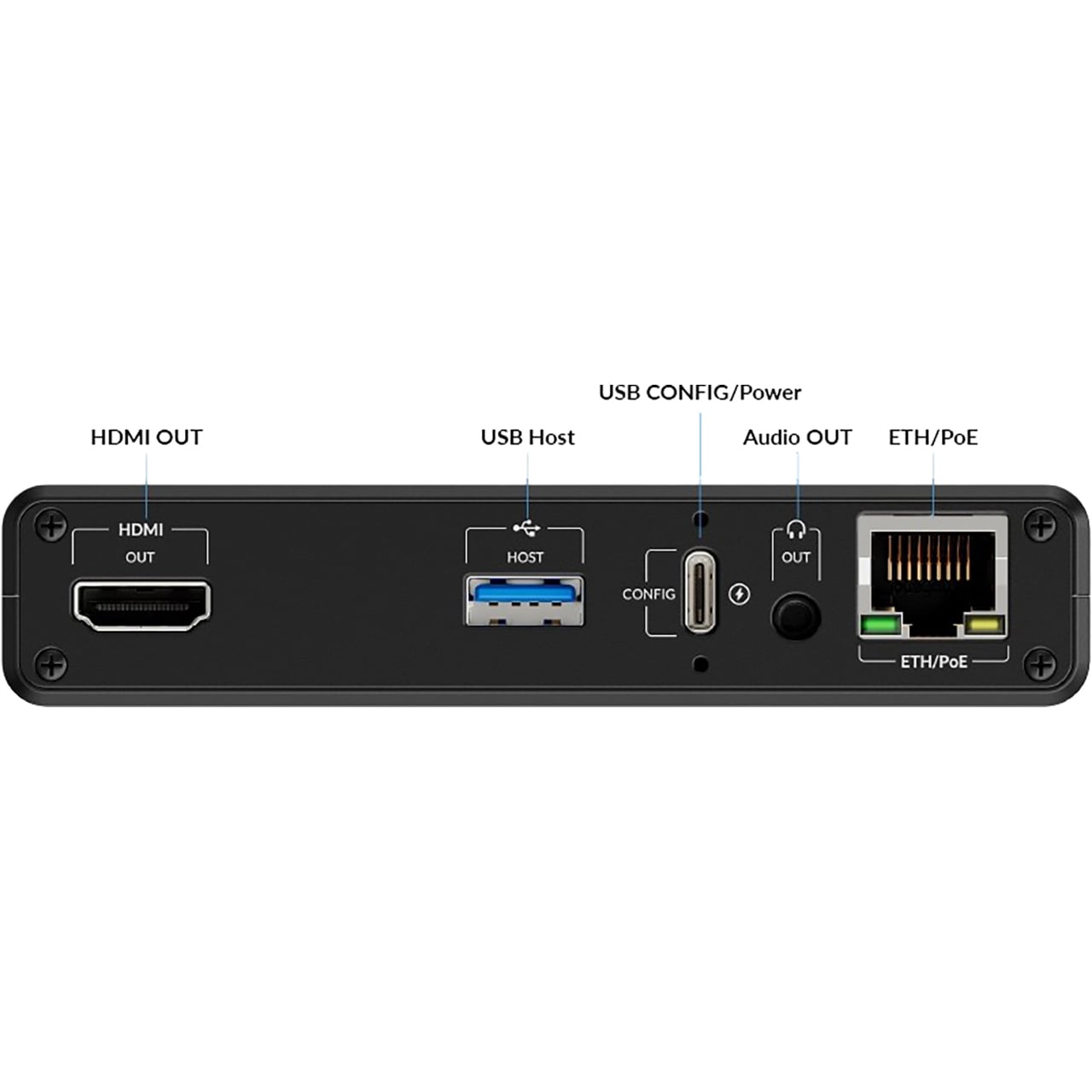

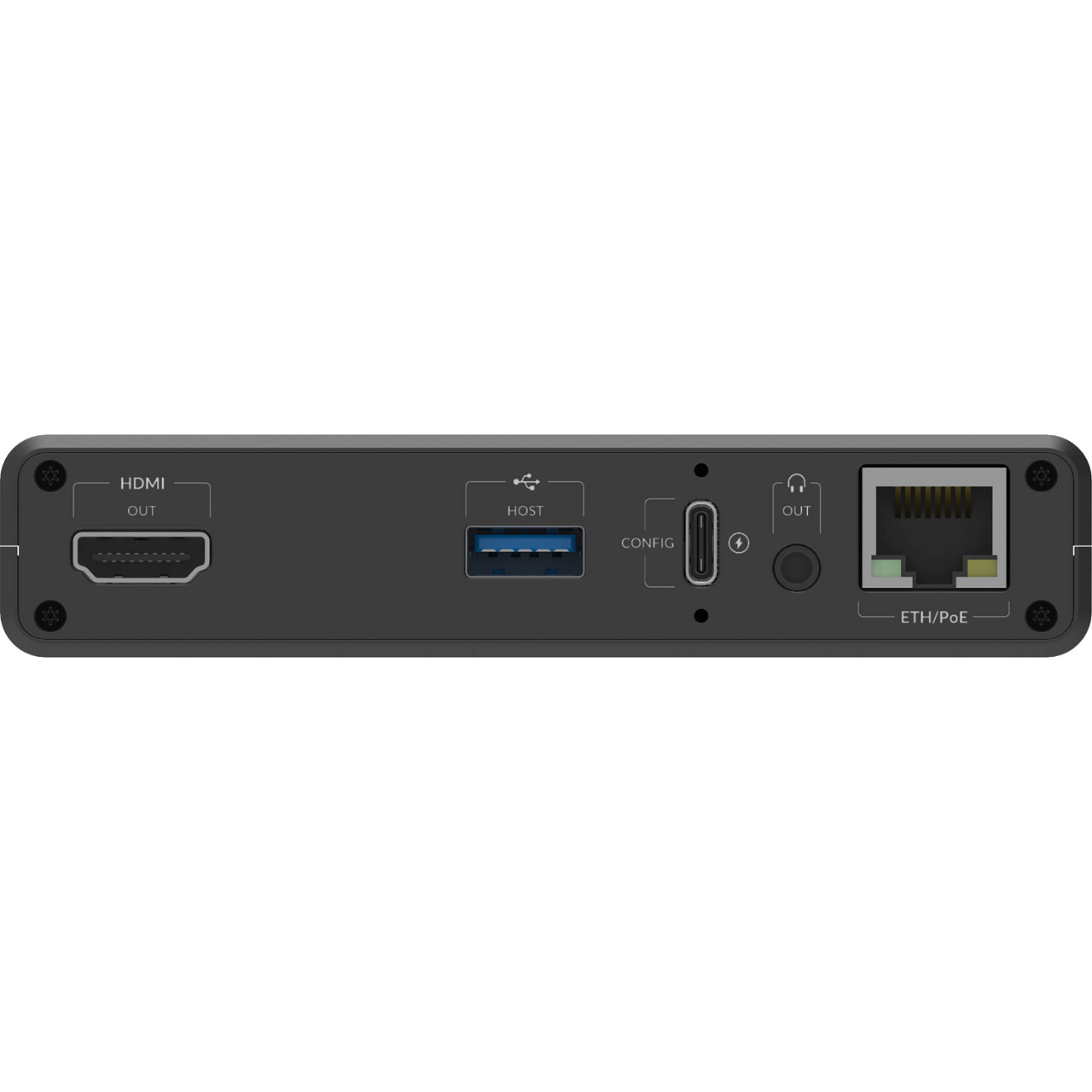

    USB Interfaces
  • USB 3.0 Type C:
     - 5V/12V 10W power supply
     - USB NET
  • USB 3.0 Type A:
     - Connecting peripherals (keyboard and/or mouse) to customize device settings


  • Network Interfaces: 10/100/1000Mbps Ethernet. Support IEEE 802.3af PoE and 802.3at PoE+.
  • 5V Maximum Current: ~1.324A
  • 12V Maximum Current: ~0.555A
  • Max Power Consumption: ~6.62W
  • Screw Mounting Holes: 1/4"-20 threaded hole
  • Dimensions (LxWxH): 4.72" x 3.12" x 0.96" (120mm x 79.3mm x 24.5mm)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Relative Humidity: 5% - 90%, non-condensing


• Item Includes:

  • 1x Pro Convert IP to HDMI (PN: 64430)
  • 1x USB Type C to Type C cable (PN: ELE00114)
  • 1x USB Type C to Type A cable (PN: ELE00066)
  • 1x Universal power adapter (PN: ELE00125)
  • 1x Fishtail Bracket (PN: STR00211)
  • 1x Bracket Fastener (PN: PAR10040)
  • 2x M4*12 Black Screws (PN: MECO0067)
  • 2x M4 Black Nuts (PN: MECO0068)
  • 1x Quick Start Guide
