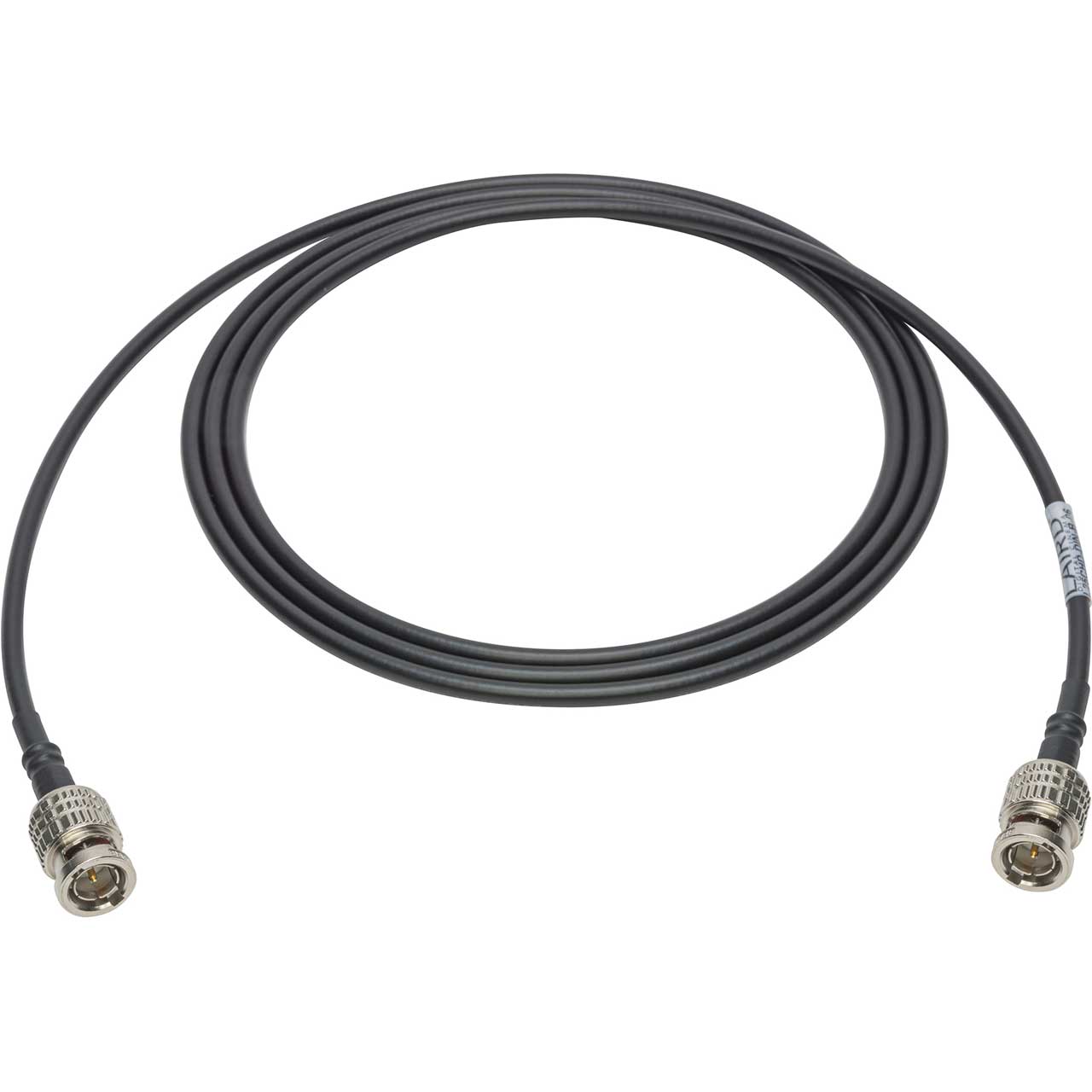

If you're looking for a thin profile 12G-SDI BNC patch cable, reach for the Laird L25CHD-B-B. The L25CHD-B-B is built around Canare L-2.5CHD Ultra Slim coax making it the perfect cable to use behind rack, in outside broadcast trucks and in patch environments. The slim profile cable reduces weight and strain on connectors and patch points. The Canare BNC used in the L25CHD-B-B cables features an elongated body for better finger tip gripping and twisting.

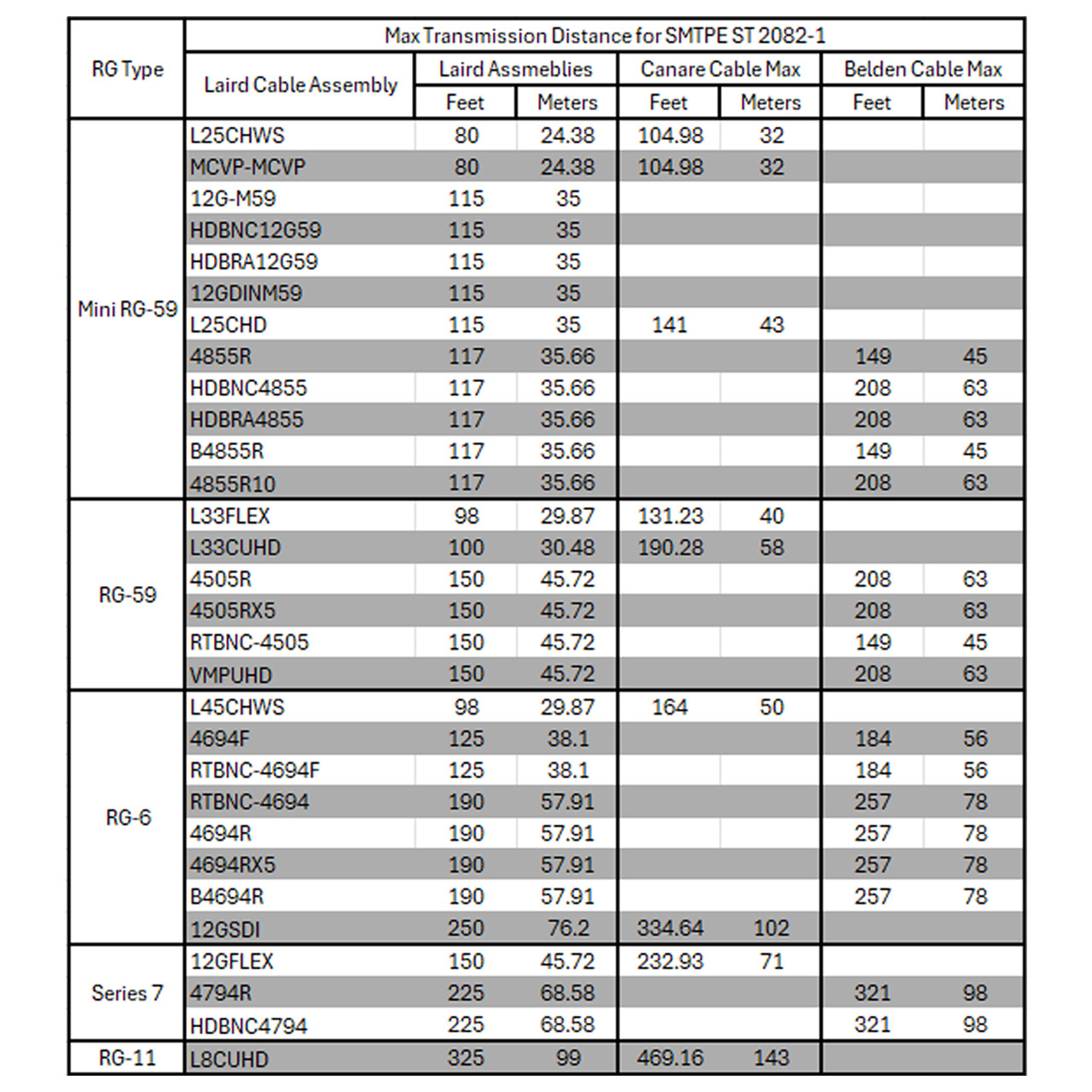

12G-SDI Maximum Distance
**Laird Certifies this cable to work at a Max Transmission Distance of 115 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.**
