Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 1 Foot

Name: Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 1 Foot
Brand: Laird Digital Cinema
SKU: L25CHD-DIN-01
Price: 23.49 USD
Availability: PreSale

ITEM #: L25CHD-DIN-01 MFG #: L25CHD-DIN-01

Laird Digital Cinema

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$25.95

Our Price:

$23.49

Add to Wish List Leasing Options

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

L25CHD-DIN-01 - Overview

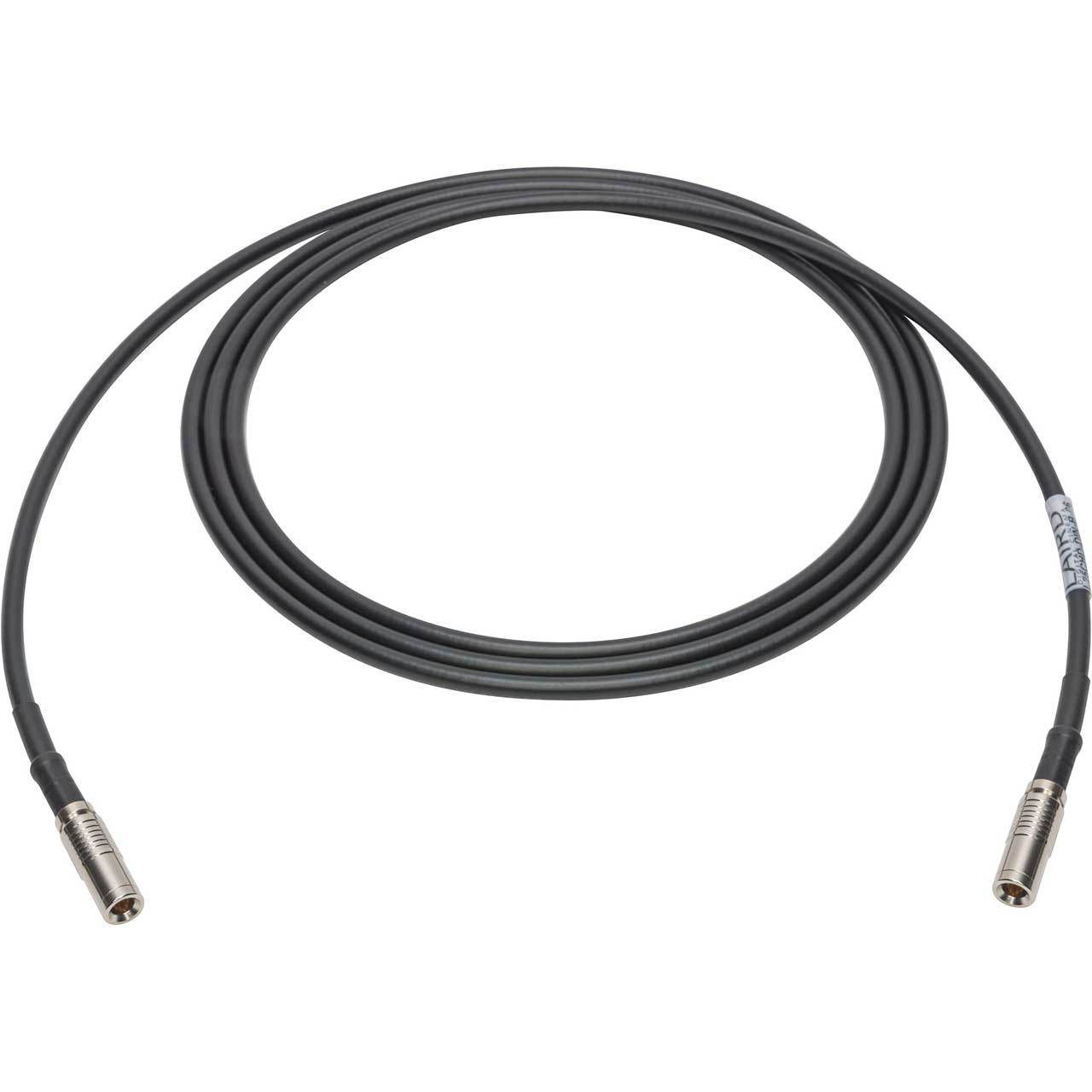

If you're looking for a thin profile 12G-SDI DIN 1.0/2.3 patch cable, reach for the Laird L25CHD-DIN. The L25CHD-DIN is built around Canare L-2.5CHD Ultra Slim coax making it the perfect cable to use behind rack, in outside broadcast trucks and in patch environments. The slim profile cable reduces weight and strain on connectors and patch points. The Canare DIN Connector used in the L25CHD-DIN cables features an elongated body for better finger tip gripping and twisting.

Features:
- Ideal for 12G-SDI / HD-SDI Distribution
- High Quality Canare Components
- Super Low Loss Coax Cable
- DIN Connector with Locking Mechanism
- Superior Pull Strength
- Elongated Connector Design for Stable Finger Grip
- Canare Cable Meets SMPTE 292M & 424M Compliance
- Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
Specifications:
- Canare L-2.5CHD:
- Outer Diameter: 0.30in (7.7mm)
- Inner Conductor Construction: 1/0.59A
- Inner Conductor Outer Diameter: 0.023in (0.59mm)
- Inner Conductor Material: Annealed Copper
- Inner Conductor AWG: 23
- Insulation Outer Diameter: 0.03in (1.00mm)
- Insulation Thickness: 0.10in (2.59mm)
- Insulation Material: Foamed Polyethylene
- Outer Conductor 1 Thickness: 0.002in (0.06mm)
- Outer Conductor 1 Outer Diameter: 0.10in (2.7mm)
- Outer Conductor 1 Material: Aluminum Tape
- Outer Conductor 2 Construction: 16/ 7/0.12TA
- Outer conductor 2 Pitch: ≤0.94in (≤24mm)
- Outer Conductor 2 Outer Diameter: 0.12in (3.2mm)
- Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/95%
- Sheath Thickness: 0.01in (0.5mm)
- Sheath Material: Flame Retardant Polyvinyl Chloride
- Weight: 0.017lbs/ft (2.6kg/100m)
- Rated Voltage: AC 60Vrms
- Temperature Range: -4°F to 167°F (-20°C to 75°C)
- Inner Conductor DC Resistance: ≤ 66.9Ω/km
- Outer Conductor DC Resistance: ≤ 16.9Ω/km
- Insulation Resistance: ≥ 1000MΩ-km
- Characteristic Impedance: 75±3Ω
- Nom Capacitance: 54.5nF/km (1kHz)
- Tensile Strength: ≥ 13.8 MPa
- Elongation: ≥ 150%
- Permission Tension: ≤ 18 N
- Bend Radius (Installed): 1.81in
- Bend Radius (Flexing): 4.54in

  Canare DCP-C25HD connector:
- Nom Impedance: 75Ω unbalanced
- Insulation Resistance: 1000MΩ or more
- Voltage Standing Wave Ratio: 1.2 or less (0 ~ 3GHz)
- Contact Resistance between Center Contacts: 6mΩ or less
- Contact Resistance between External contacts: 3mΩ or less
Warranty:
- 1 Year

L25CHD-DIN-01 - Recommended Accessories

Kings 206H-034-00001N 1.0/2.3 DIN Female To BNC Male Inline Adapter - Nickel
KNG-206H-034-1N
Our Price: $15.05
Kings 206G-034-00001N BNC DIN 1.0/2.3 Adapter Connector 1.0/2.3 DIN-Female To BNC-Female Inline - Nickel
KNG-206G-034-1N
Our Price: $11.38
Coax Connectors 52-503-D66 DIN 1.0/2.3 Insulated Bulkhead Jack to Jack Adaptor - 75 Ohm 12Ghz
COA-52-503-D66
Our Price: $9.99
Kings 034G-034-00002H 1.0/2.3 DIN-Jack To 1.0/2.3 DIN-Jack Bulkhead Isolated - Gold
KNG-034G-034-2H
Our Price: $24.29
Allen Avionics HEC-2000 75 Ohm Hum Eliminator
HEC-2000
Our Price: $145.91
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95

L25CHD-DIN-01 - Reviews

L25CHD-DIN-01 - Attachments

Download the L25CHD-DIN Series Datasheet

Overview

L25CHD-DIN-01 - Overview

Features:
- Ideal for 12G-SDI / HD-SDI Distribution
- High Quality Canare Components
- Super Low Loss Coax Cable
- DIN Connector with Locking Mechanism
- Superior Pull Strength
- Elongated Connector Design for Stable Finger Grip
- Canare Cable Meets SMPTE 292M & 424M Compliance
- Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
Specifications:
- Canare L-2.5CHD:
- Outer Diameter: 0.30in (7.7mm)
- Inner Conductor Construction: 1/0.59A
- Inner Conductor Outer Diameter: 0.023in (0.59mm)
- Inner Conductor Material: Annealed Copper
- Inner Conductor AWG: 23
- Insulation Outer Diameter: 0.03in (1.00mm)
- Insulation Thickness: 0.10in (2.59mm)
- Insulation Material: Foamed Polyethylene
- Outer Conductor 1 Thickness: 0.002in (0.06mm)
- Outer Conductor 1 Outer Diameter: 0.10in (2.7mm)
- Outer Conductor 1 Material: Aluminum Tape
- Outer Conductor 2 Construction: 16/ 7/0.12TA
- Outer conductor 2 Pitch: ≤0.94in (≤24mm)
- Outer Conductor 2 Outer Diameter: 0.12in (3.2mm)
- Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/95%
- Sheath Thickness: 0.01in (0.5mm)
- Sheath Material: Flame Retardant Polyvinyl Chloride
- Weight: 0.017lbs/ft (2.6kg/100m)
- Rated Voltage: AC 60Vrms
- Temperature Range: -4°F to 167°F (-20°C to 75°C)
- Inner Conductor DC Resistance: ≤ 66.9Ω/km
- Outer Conductor DC Resistance: ≤ 16.9Ω/km
- Insulation Resistance: ≥ 1000MΩ-km
- Characteristic Impedance: 75±3Ω
- Nom Capacitance: 54.5nF/km (1kHz)
- Tensile Strength: ≥ 13.8 MPa
- Elongation: ≥ 150%
- Permission Tension: ≤ 18 N
- Bend Radius (Installed): 1.81in
- Bend Radius (Flexing): 4.54in

  Canare DCP-C25HD connector:
- Nom Impedance: 75Ω unbalanced
- Insulation Resistance: 1000MΩ or more
- Voltage Standing Wave Ratio: 1.2 or less (0 ~ 3GHz)
- Contact Resistance between Center Contacts: 6mΩ or less
- Contact Resistance between External contacts: 3mΩ or less
Warranty:
- 1 Year
