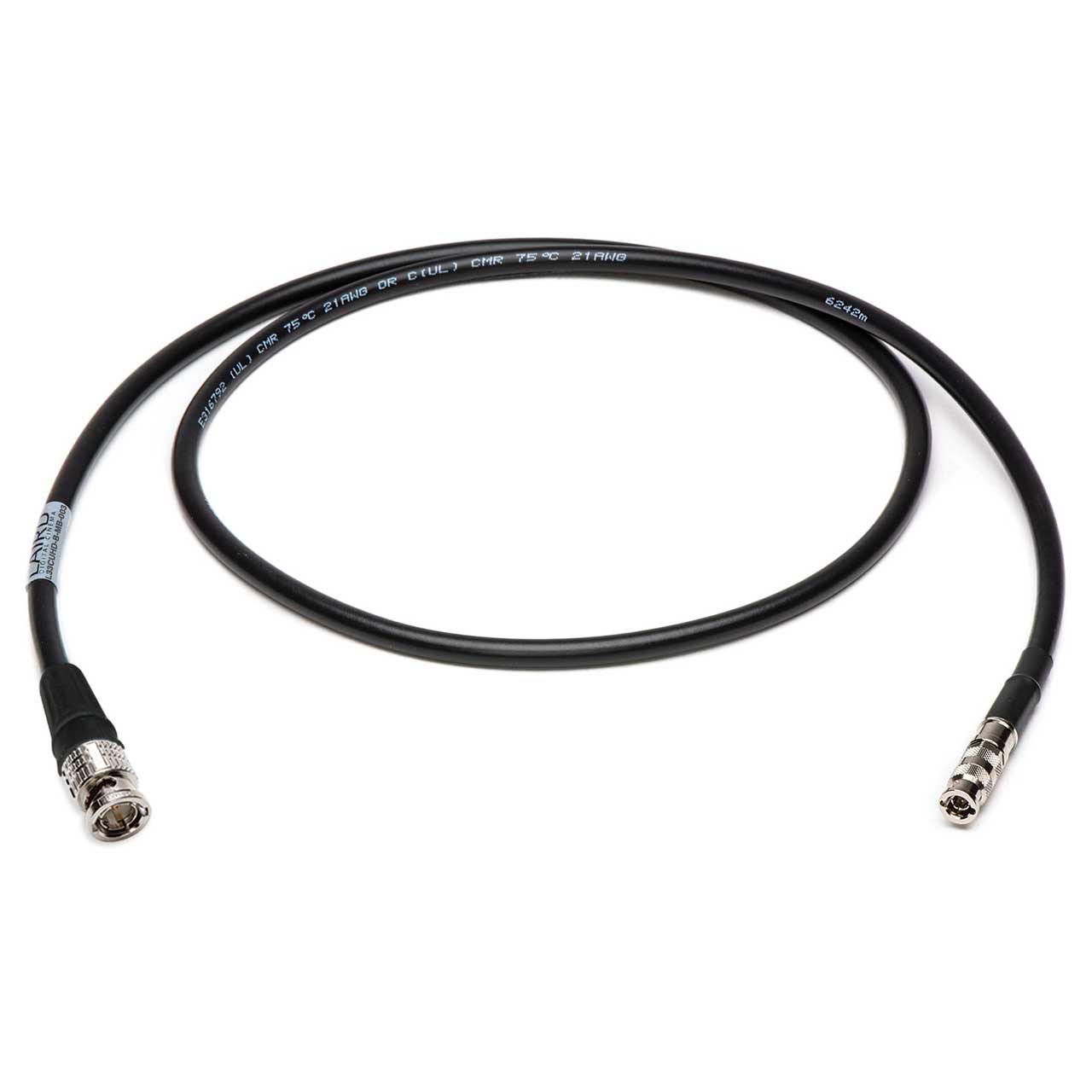

Laird 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 1 Foot

ITEM #: L33CUHD-B-MB-001 MFG #: L33CUHD-B-MB-001

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$26.49

Our Price:

$23.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    L33CUHD-B-MB-001 - Overview

    As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Laird delivers the most advanced BNC cables on the market for effectively transmitting 12G-SDI signals up to 100 feet. Utilizing Canare L-3.3CUHD coaxial, these 12G-SDI BNC cables are the right choice to future-proof new rack to rack studio builds, OB truck layouts, patching and content delivery networks as a permanent install solution. Its light weight and small diameter makes it an excellent option for camera to recorder and similar support interface products where 12G-SDI is run. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-3.3CUHD miniature coaxial and BCP-D33UHD connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.

    12G-SDI Maximum Distance
    Laird Certifies this cable to work at a Max Transmission Distance of 100 Feet for 12G-SDI even though Canare may show this distance as 190 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

    • Features:

      • Compliant with SMPTE ST-2082-1 Standards
      • Designed for Low Attenuation 3G/6G/12G-SDI Transmission
      • Copper Foil and High-Density Tinned Copper Braided Shielding
      • Flame Retardant Polyvinyl Sheath
      • Highly-Foamed, Multi-Layer PE Insulation

    • Specifications:

      • Canare L-3.3CUHD 75Ω Coaxial Cable
      • Canare Certified Max Transmission Distance: 190 Feet for 12G/4K
      • Laird Certified Max Transmission Distance: 100 Feet for 12G/4K
      • Center Conductor = Annealed Copper 21 AWG
      • Outer Conductor = 1/0.75A Cu Foil with TC Braid
      • Attenuation dB/100m @ 6GHz = 68.5
      • OD 5.5mm
      • Tensile Strength: >=12.8Mpa
      • Nominal Capacitance: 55nF/km (1kHz)
      • Canare BCP-D33UHD BNC Plugs
      • Return Loss: 3GHz - 26.4dB/ 6GHz - 20dB/ 12GHz - 15dB
      • Nominal Impedance: 75Ω Unbalanced
      • Insulation Resistance: 5000mΩ or More
      • Contact Resistance: Between External Contacts: 3mΩ or less; Between Center Contacts: 6mΩ or less
      • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

    • Warranty:

      • 1 Year
