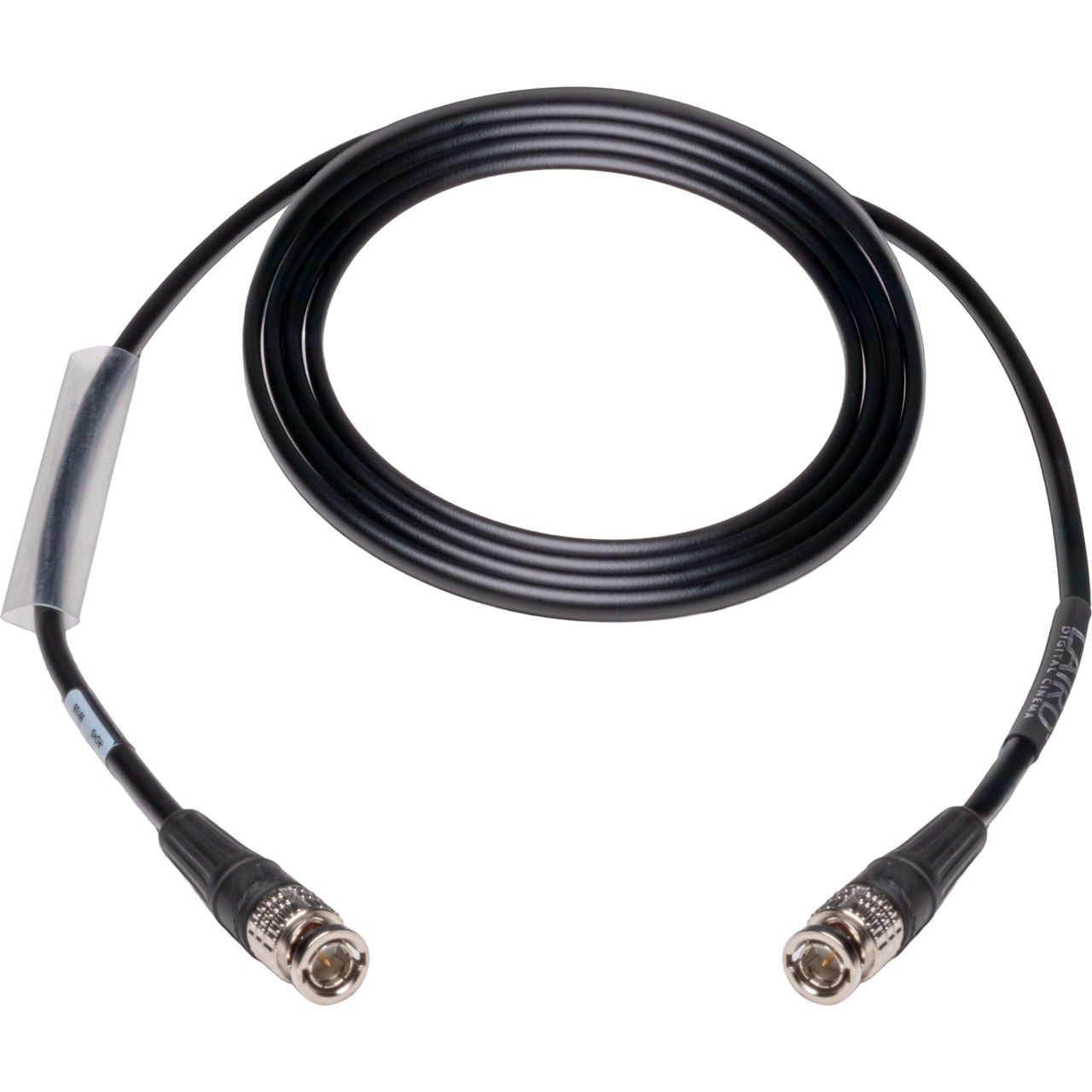

Laird's L33FLEX-B-B series of flexible 12G-SDI mini-coaxial cable assemblies are designed for UHD video transmission up to 12GHz, with minimal signal loss. Featuring Canare L-3.3CUHWS insulation and BCP-D33UHW 75 Ohm BNC connectors, this low-loss, 12G-rated assembly is ideal for professional broadcast and video production.
These cables support 4K video at 60Hz with low latency, maintaining signal integrity over long distances to reduce attenuation, interference, and degradation. This results in clearer transmission, fewer repeaters, and lower maintenance costs, making them perfect for demanding environments like live events and large-scale studios. For multi-camera setups, they ensure high-quality, synchronized video signals over long runs, minimizing artifacts or syncing issues.
Laird's L33FLEX-B-B series of flexible 12G-SDI mini-coaxial cable assemblies is designed for UHD video signal transmission, in high-frequency applications up to 12 GHz with minimal signal degradation. Taking advantage of the Canare L-3.3CUHWS's highly foamed insulation and Canare BCP-D33UHW 75 Ohm BNC connectors, this series provides a durable yet flexible low-loss 12G-rated cable assembly. The L33FLEX-B-B is ideal for professional broadcast and video production environments.

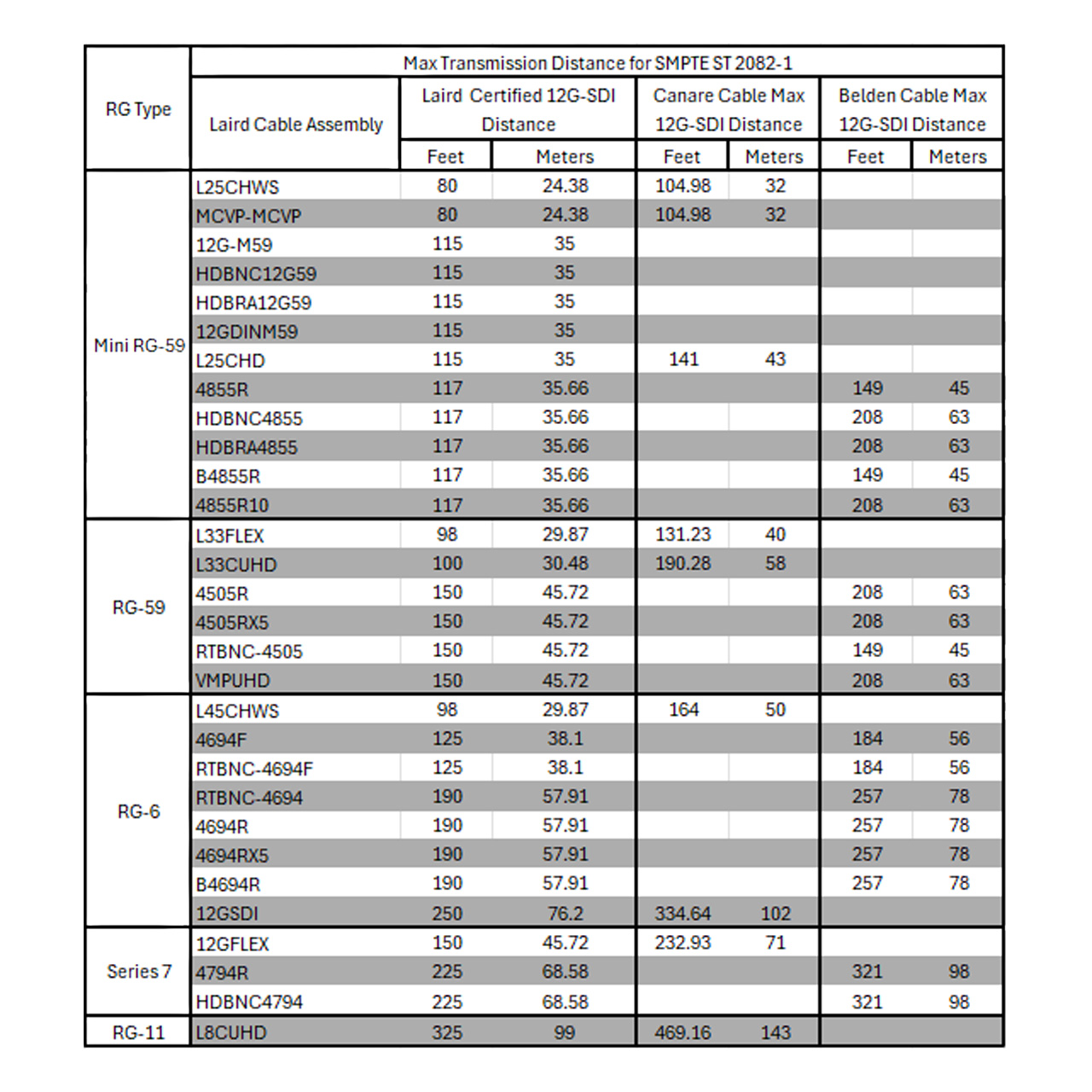

12G-SDI Maximum Distance
**Laird Certifies this cable to work at a Max Transmission Distance of 98 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.**
