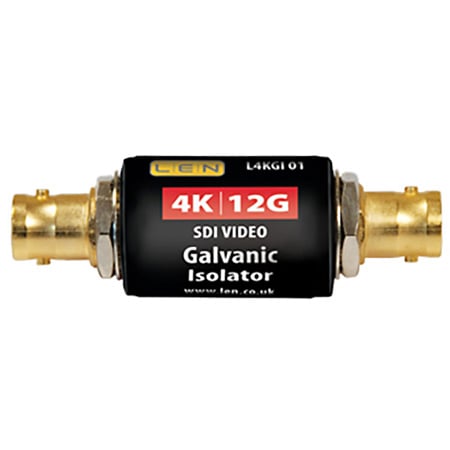

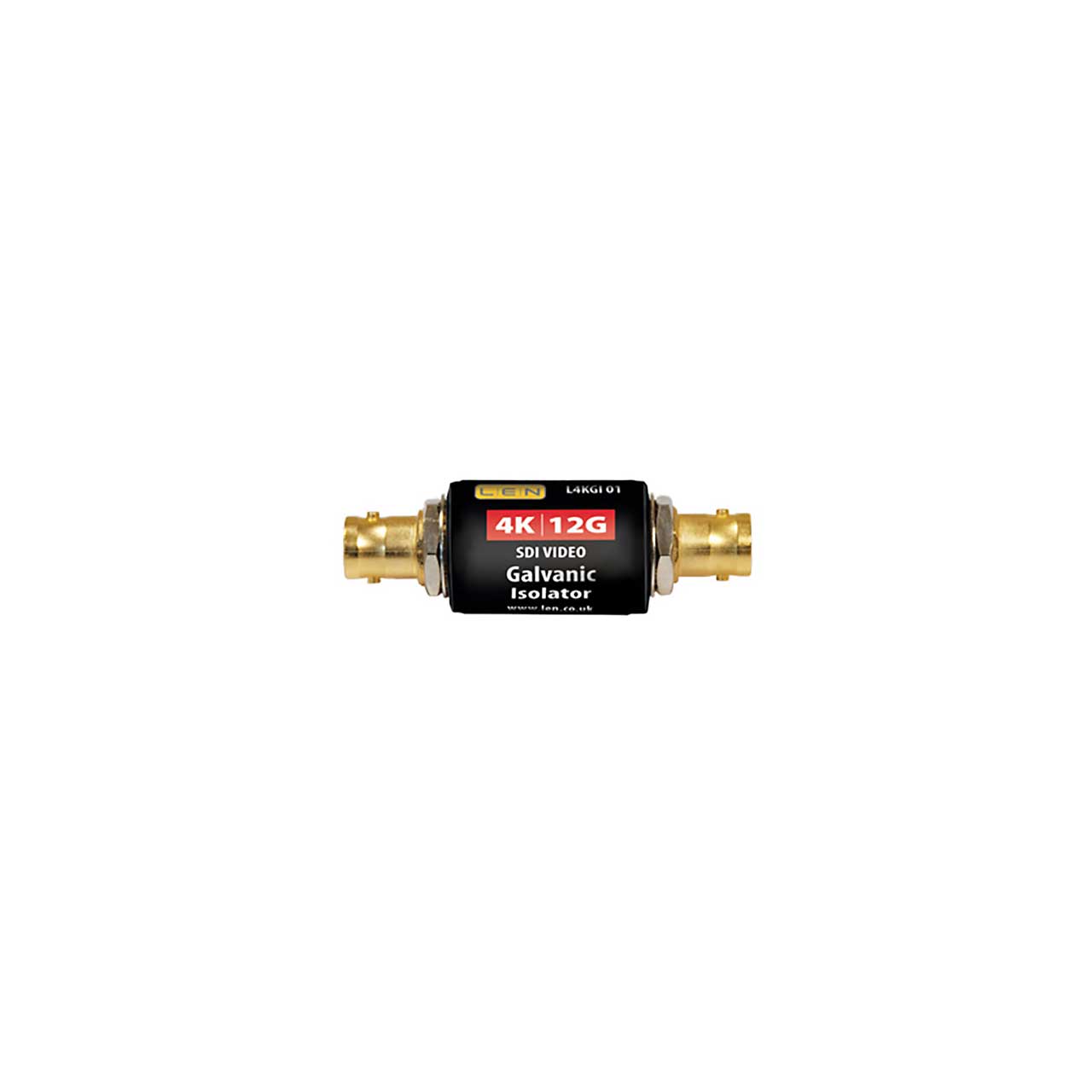

LEN L4KGI01 4K/12G Galvanic Video Isolator - In Line / Tubular Model

ITEM #: LEN-L4KGI01 MFG #: L4KGI01

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$660.00

Our Price:

$628.00

Availability: In Stock
iAvailability Description Popup


    L4KGI01 - Overview

    The LEN L4KGI0 ground isolators use broadband high-pass filters to provide complete galvanic isolation of DC currents between two pieces of equipment, while permitting the full bandwidth of SDI signal to pass, thus avoiding problems of signal distortion and operator shocks caused by a voltage difference. This method out-performs broadband transformers for SDI signals. Both the signal and ground paths between equipment are isolated, there is no distortion of the signal. They are suitable for ASI format.

    There are three ranges with different housings; one range has encapsulated enclosures which may be rack-mounted with an accessory panel, one has in-line 'barrels', with or without a mounting flange, the third offers designs with higher breakdown voltage for medical grade applications, and are available both constructed in ABS boxes with mounting flanges and as 'barrel' versions, with or without a mounting flange.

    The L4KGI01 is for use with full 12G/4K UHD SDI video and all lower standards including 6G, 3G, HD and SD SDI. The L3GGI01 may be used with 3G, HD or SD SDI signals while the LHDGI01 may be used with HD or SD SDI.. They are built in cylindrical plastic (for isolation) enclosures, fitted with a BNC connector at each end. They are ideal for carrying in a toolbox, to cure interference issues.

    • Specifications:

      • Input and Output Impedance: 75 ohms
      • Return loss: Better than 20dB
      • ASI Format Bandwidth: 0.5 MHz to 12000 MHz, - 0.25dB
      • Voltage: 100V
      • Dimensions (L x W x H): 1.7" x 1.2" x 0.6" (45 x 30 x 15 mm)
      • Weight: 1 oz (26 g)

    • Item Includes:

      • 1x LEN L4KGI01 4K/12G Galvanic Isolator - In Line / Tubular Model
