Ikan LBX16-POE-3MIX-1S Lyra POE Low Pro Bi-Color Led Lights with Netgear PoE++ Switch Bundle

ITEM #: LBX16-POE3MIX-1S MFG #: LBX16-POE-3MIX-1S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,299.00

Our Price:

$5,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


LBX16-POE-3MIX-1S - Overview

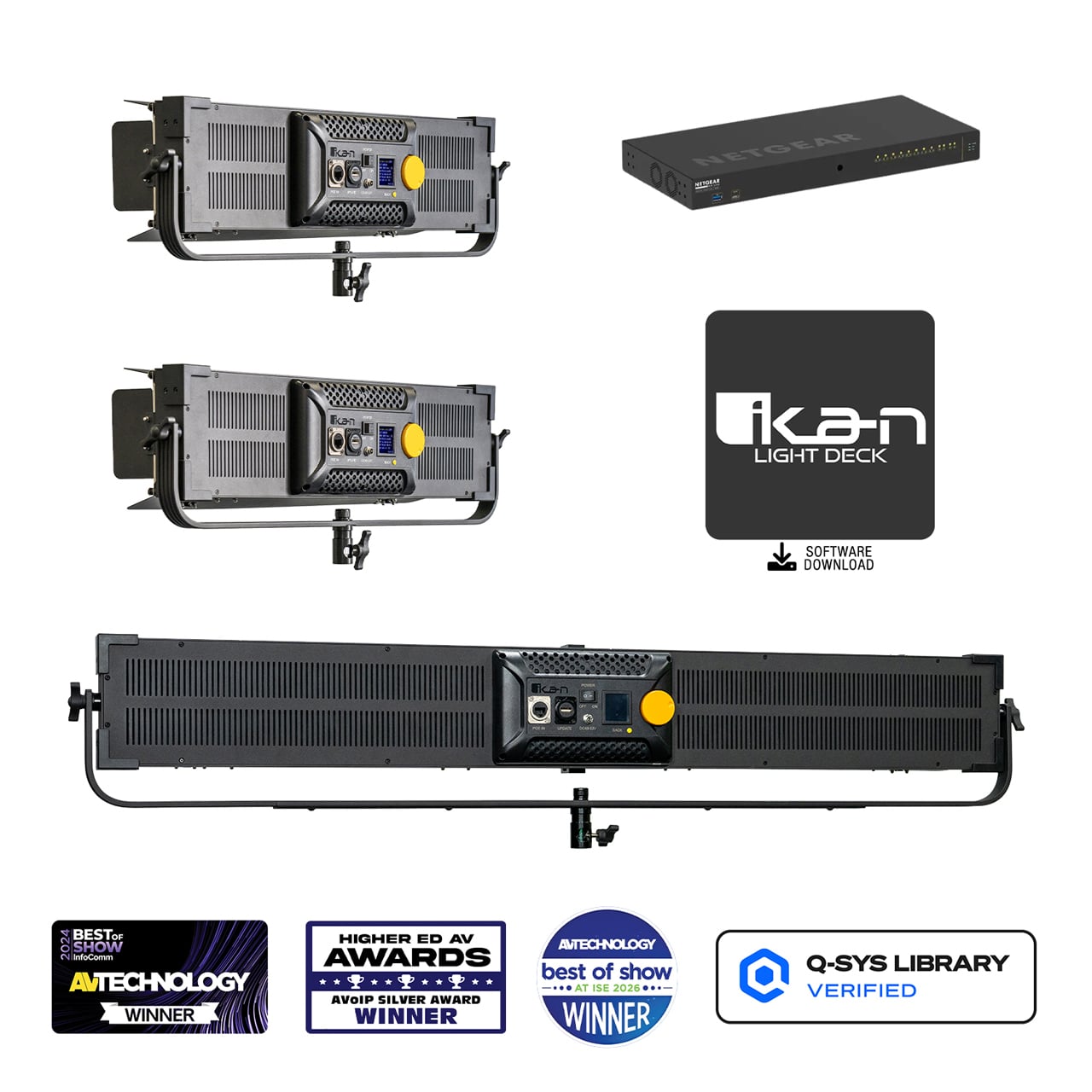

The Ikan LBX16-POE-3MIX-1S is a bundle with 1x LBX16-POE, 2x LBX8-POE, and 1x Netgear PoE++ 802.3bt 720W Switch.

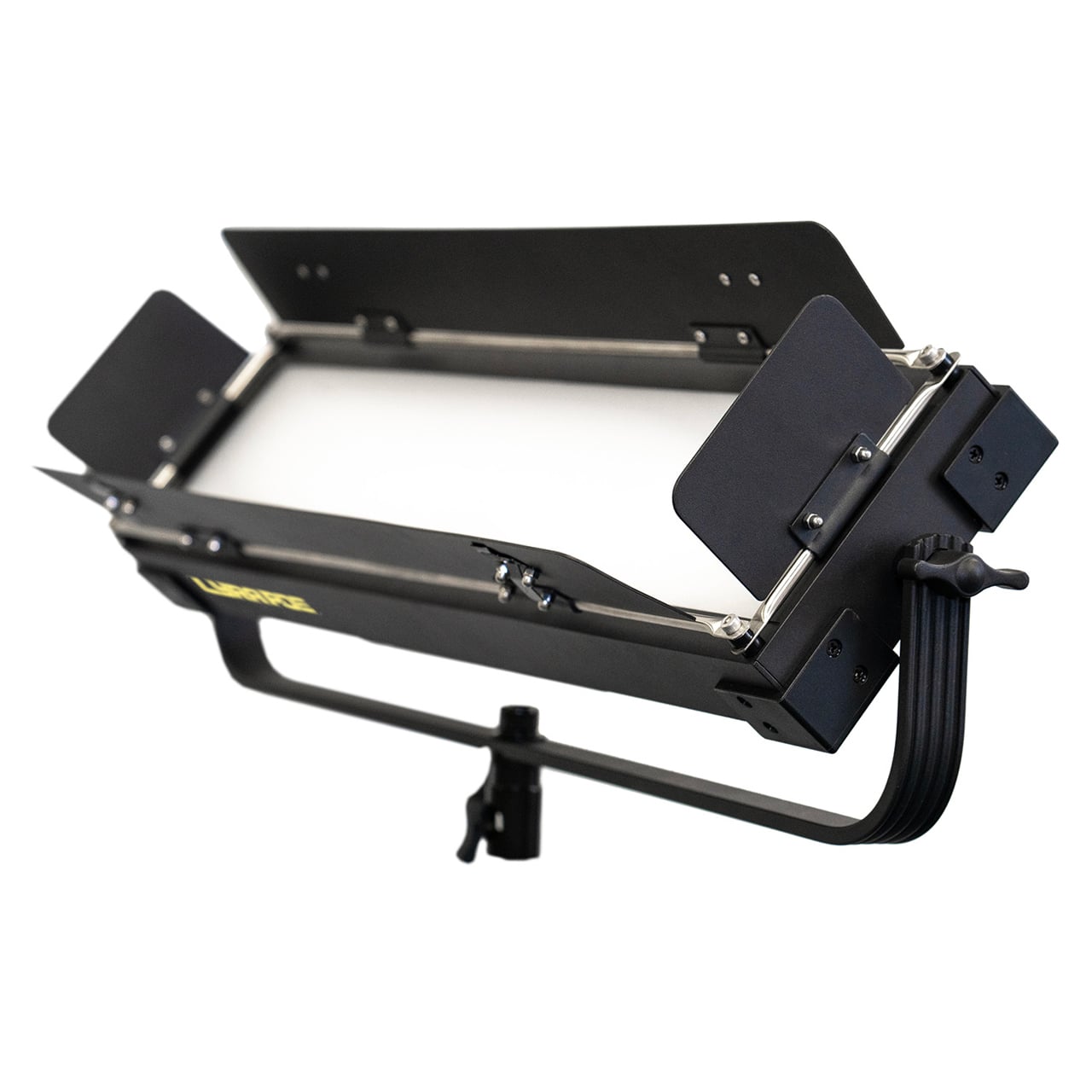

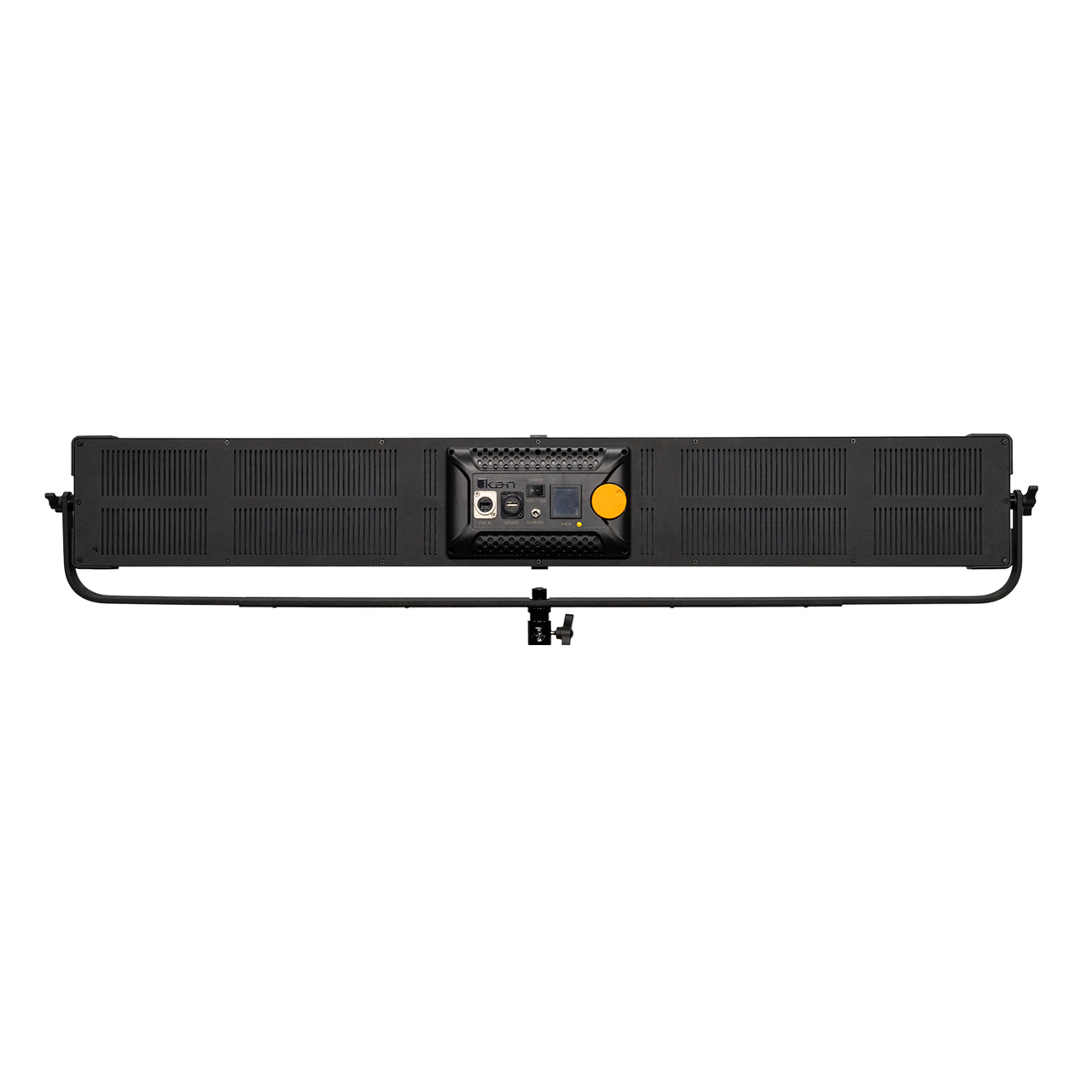

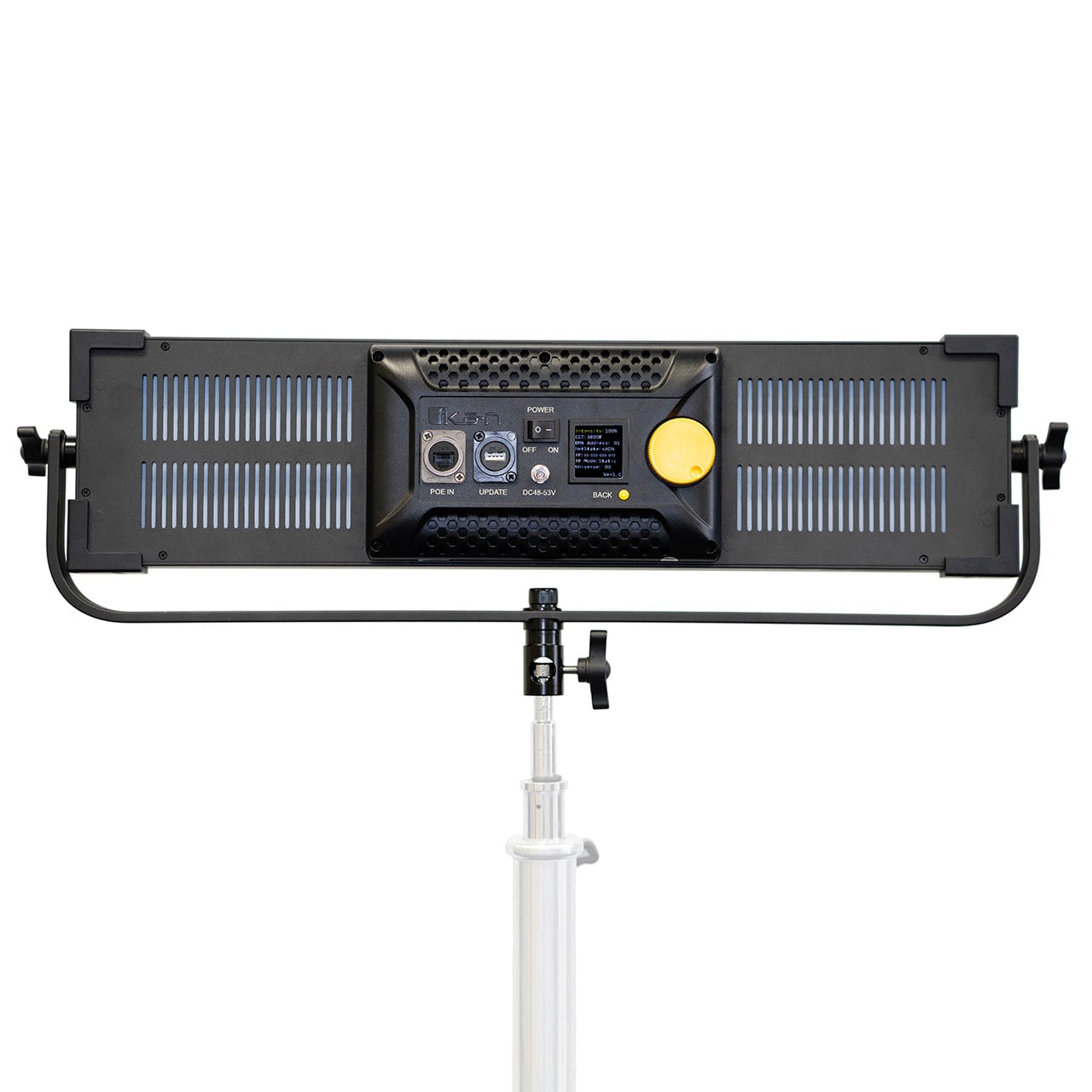

LBX16-POE
The Ikan Panoramic Low Profile PoE Light is an extended soft panel LED designed for broadcast studios, podcast studios, conference rooms, classrooms, and any space where low ceiling clearance demands wider coverage without sacrificing light quality. Powered and DMX controlled through a single ethernet (RJ45) cable via PoE++, it installs cleanly into existing network infrastructure and integrates natively with ArtNet, sACN, and Q-SYS ecosystems via the Q-SYS Designer Plugin. At 85W with high CRI LEDs and a 110° beam angle, the Panoramic Low Profile PoE Light produces a soft, wraparound light across a large area with minimal harsh shadows. Color temperature adjusts from 2700K to 6500K to suit any production environment. The sturdy yoke with tension knobs allows precise positioning at any angle, while the rear control knob and LED readout make it easy to dial in brightness, color temperature, and DMX channels on the fly. Built-in barn doors with integrated clips support standard light modifiers, and the baby 5/8" and junior 1-1/8" combo pin ensures compatibility with standard light stands.

LBX8-POE
The Ikan LBX8-POE is a cutting-edge and compact soft panel LED light that is designed specifically for studios, conference rooms, classrooms and various spaces with low ceiling clearance. Engineered for easy installation, this light is simultaneously powered (via PoE++) and DMX controlled (via ArtNet or sACN) through a single Ethernet (RJ45) cable. For seamless integration into Q-SYS ecosystems, the LBX10-POE is compatible with the Q-SYS Designer Plugin, offering enhanced control and efficiency alongside ArtNet and sACN protocols. Boasting high CRI LED chips and a soft panel, the LBX8-POE emits a gentle, wraparound light, crafting artifact-free shadows. Its color temperature range, from 3200K to 5600K, adapts seamlessly to various lighting productions. With a broad 110° beam angle, coverage is extensive, and the sturdy yoke, featuring tension knobs, ensures effortless adjustments and secure placement at any angle. The intuitive yellow control knob on the back, paired with the LED readout, simplifies fine-tuning of brightness, color temperature, and DMX channels. Enhance your creative toolkit with built-in barn doors featuring integrated clips for easy addition of light modifiers. The LBX8-POE's compatibility extends with a baby 5/8" and junior 1-1/8" combo pin, allowing versatile use on standard light stands. Elevate your studio lighting experience with the Ikan LBX8-POE.

  • Features:

    • Included Netgear PoE++ 802.3bt 720W Switch
    • 85W PoE++ Light
    • Art-Net & sACN DMX-Over-IP
    • Q-SYS Control Compatible
    • Low Profile for Low Clearance Areas
    • 97 CRI COB LEDs With 1/2 Stop Soft Diffusion Panel
    • Silent Fanless Fixture
    • Bi-Color Adjustable 2700K-6500K
    • Consistent Light Across All Color Temperatures
    • Beam Angle 110 Degrees
    • Built-in Barndoors With Integrated Clips
    • Artifact Free Clean Shadow
    • Combo Pin

  • Specifications:

      LBX16-POE
    • Beam Angle: 110°
    • Fixture Dimensions: 44" x 7" x 3" (111.76cm x 17.8cm x 7.6cm)
    • Fixture Weight: 10lbs (4.5kg)
    • Illumination Dimensions: 40.5" x 4" (102cm x 4.5cm)
    • Build Material: Heavy Duty Resin Plastic/Metal
    • Lens: Permanent 1/2 Stop Soft Diffusion Panel
    • Mounting: Yoke, Supports Standard Stage Clamps Stand Use, Baby 5/8" & Junior 1-1/8" Combo Pin with 90° Offset
    • Barn Doors: Optional
    • Power Input: 110V - 220VAC
    • Operating Voltage: 48VDC
    • Frequency: 50/60Hz
    • Max Power Consumption: 85W
    • Color Temperature: Bi-Color 2700K - 6500K
    • Power Loss: Last Scene Hold
    • LED Type: COB
    • CRI: 98
    • TLCI: 99
    • Power Supply:
      - Input: 110V - 220VAC
      - Output: 48VDC @ 3.12A (Not Included)
    • Input/Output Ports: RJ45, USB Type A
    • DMX: ArtNet, sACN (RJ45)
    • Dimming Range: 0% - 100% (1% Increments)
    • Cooling: Active
    • LED Lifetime: 70,000 Hours
    • Display: LCD Screen

      LBX8-POE
    • Beam Angle: 110°
    • Fixture Dimensions: 24.5" x 7" x 1.9" (62.2cm x 17.8cm x 4.8cm)
    • Fixture Weight: 4.9lbs (1.8kg)
    • Illumination Dimensions: 20" x 4" (50.8cm x 10.2cm)
    • Build Material: Heavy Duty Resin Plastic/Metal
    • Lens: Permanent 1/2 Stop Soft Diffusion Panel
    • Mounting: Yoke, Supports Standard Stage Clamps Stand Use, Baby 5/8" & Junior 1-1/8" Combo Pin with 90° Offset
    • Barn Doors: Installed
    • Power Input: 110V - 220VAC
    • Operating Voltage: 48VDC
    • Frequency: 50/60Hz
    • Max Power Consumption: 50W
    • Color Temperature: Bi-Color 3200K - 5600K
    • Power Loss: Last Scene Hold
    • LED Type: Chip LEDs
    • CRI: 97
    • TLCI: 99
    • Power Supply:
      - Input: 110V - 220VAC
      - Output: 48VDC @ 1.25A (Not Included)
    • Input/Output Ports: RJ45 USB Type A Threaded Barrel Coaxial (Power)
    • DMX: ArtNet or sACN
    • Dimming Range: 0% - 100%
    • Cooling: Passive
    • LED Lifetime: 70,000 Hours
    • Display: LCD Screen

      Netgear Managed Switch I/O
    • Inputs/Outputs:
      - 8x RJ45 Gigabit Ethernet PoE++ (Type 4)
      - 2x SFP+ 10 GbE
      - 2x RJ45 Gigabit Ethernet (LAN)
      - 2x USB-C (LAN)
      - 1x USB-A
    • PoE Power Budget: 720W
    • PoE Per Port: 90W

  • Item Includes:

    • 1x LBX16-POE
    • 2x LBX8-POE
    • 1x PoE++ Switch
    • 3x Yoke (Installed)
    • 3x Combo Pin
    • 3x Safety Wire

  • Warranty:

    • 1 Year Limited Warranty
