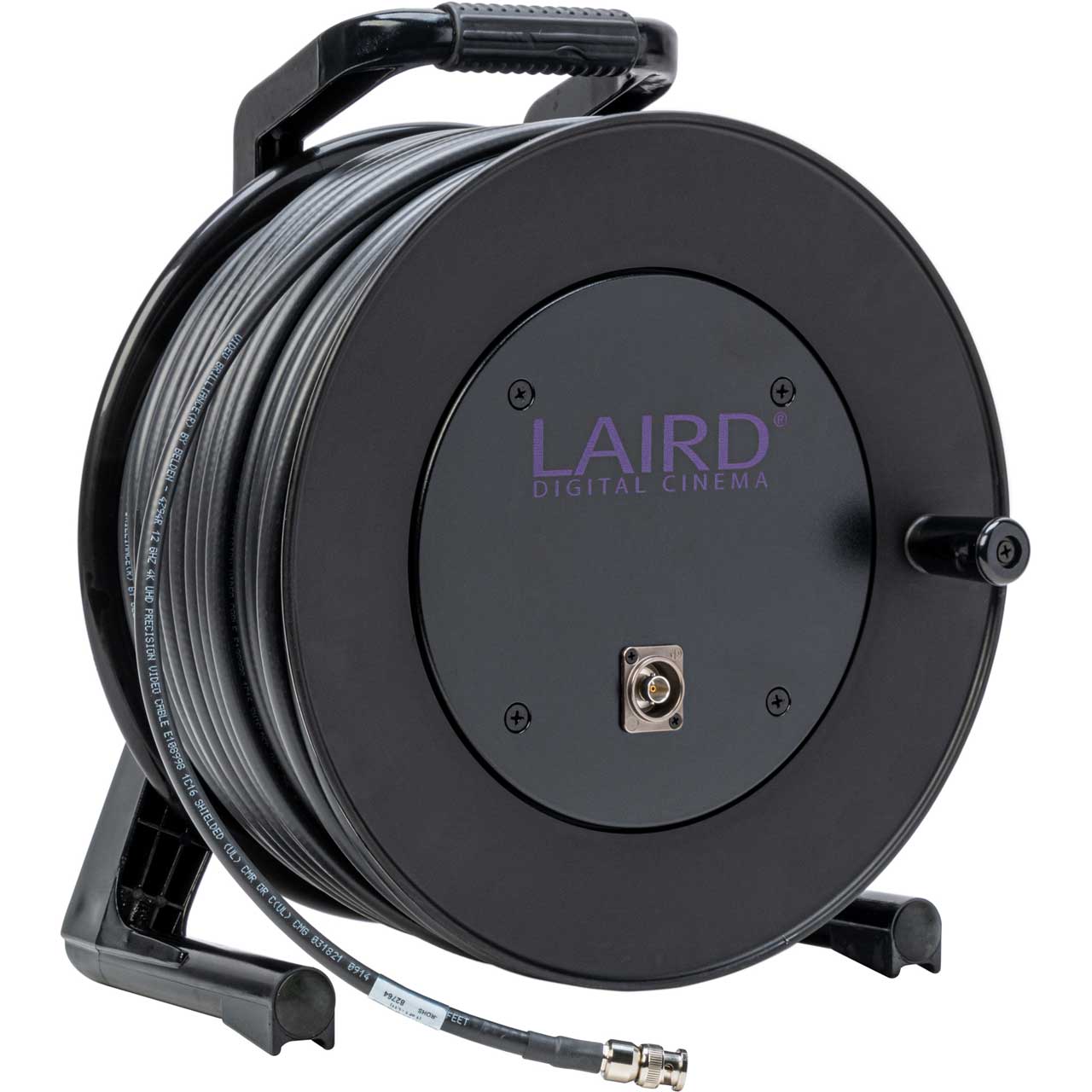

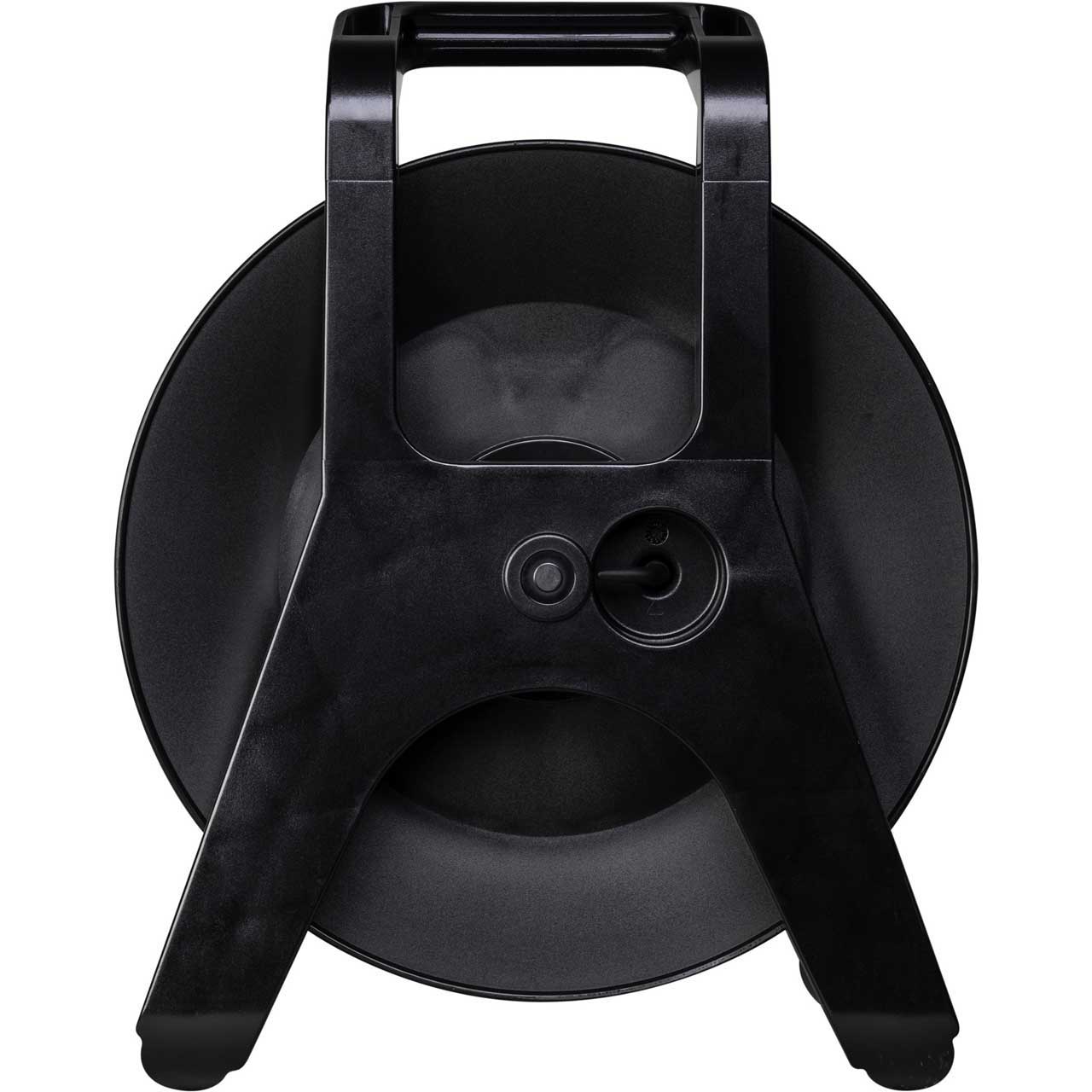

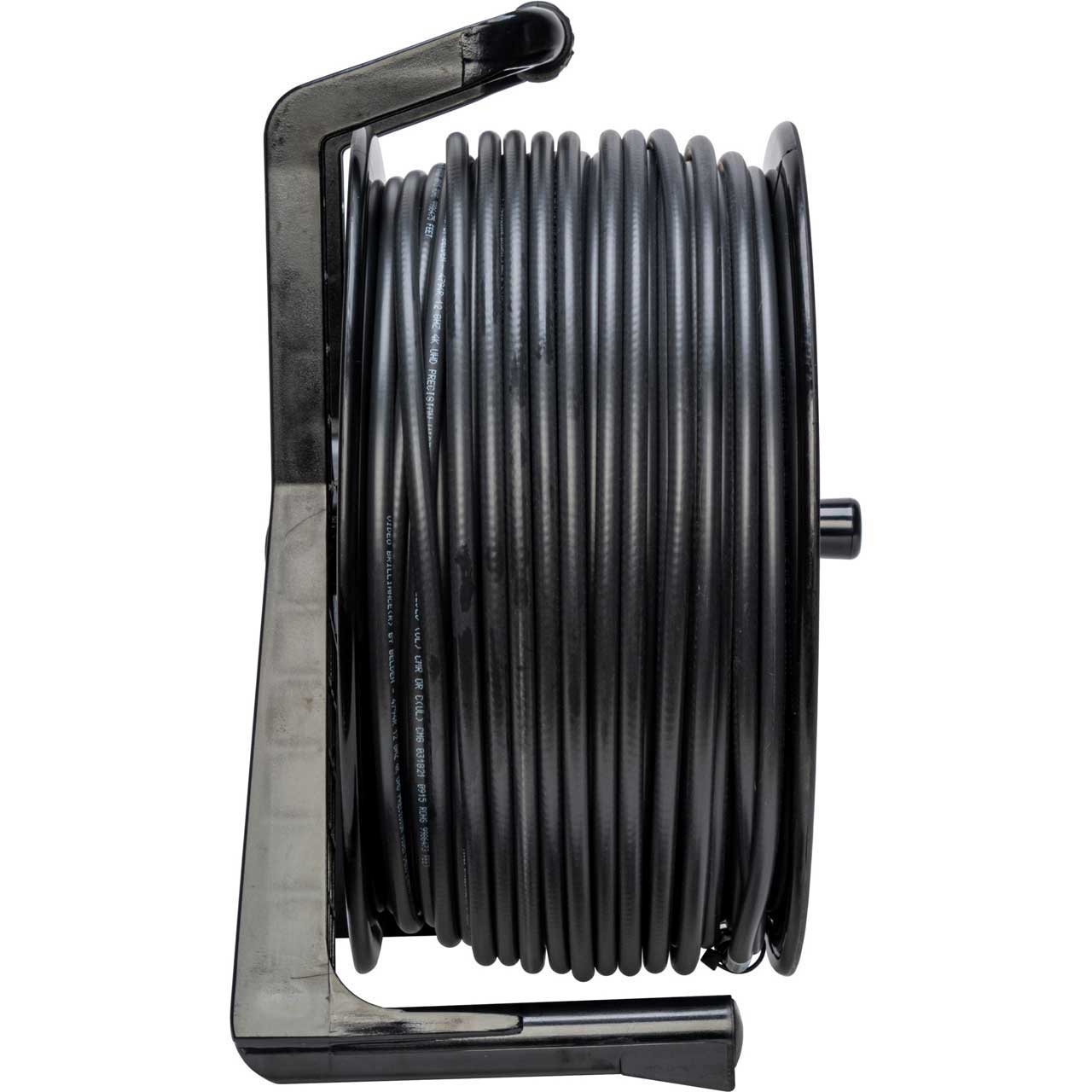

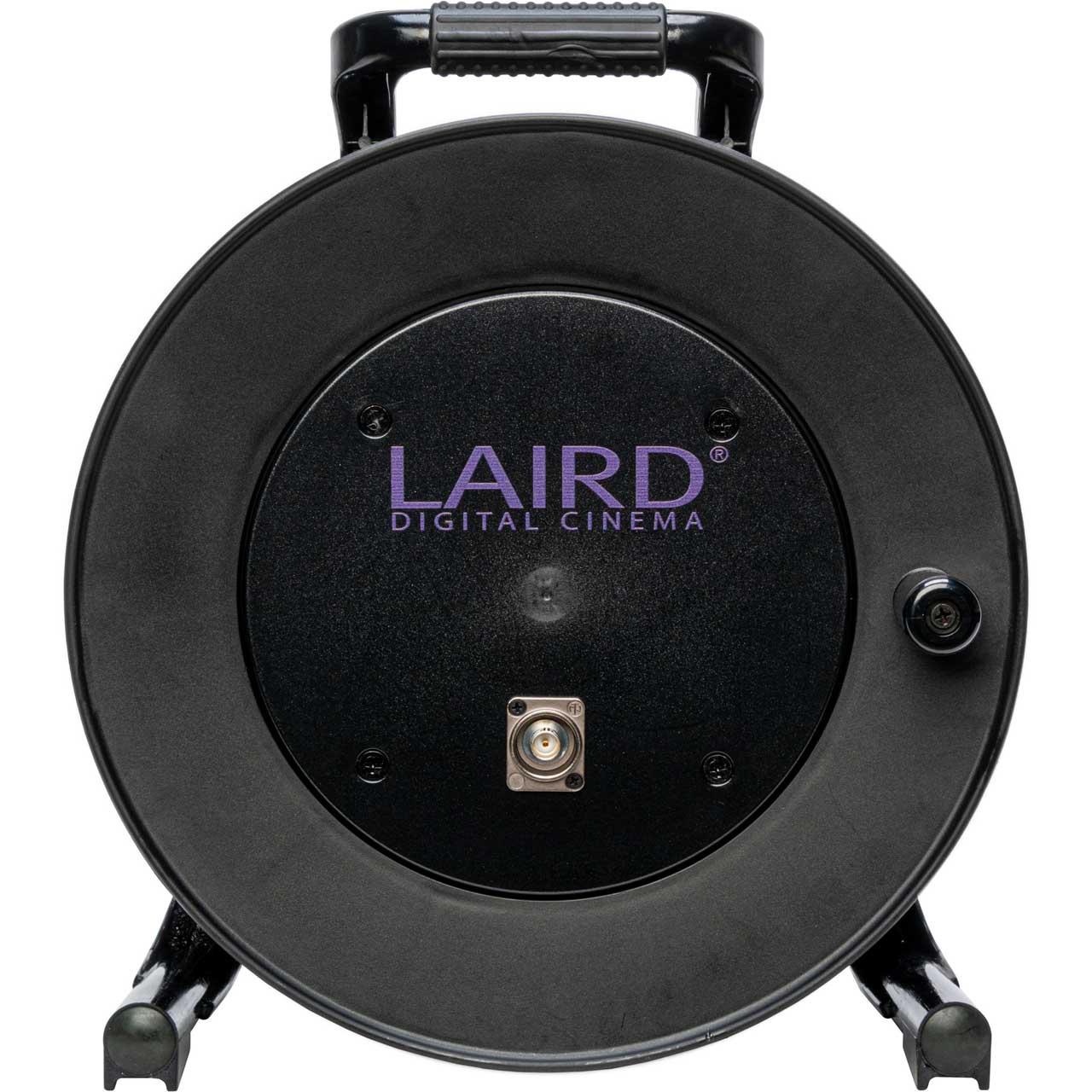

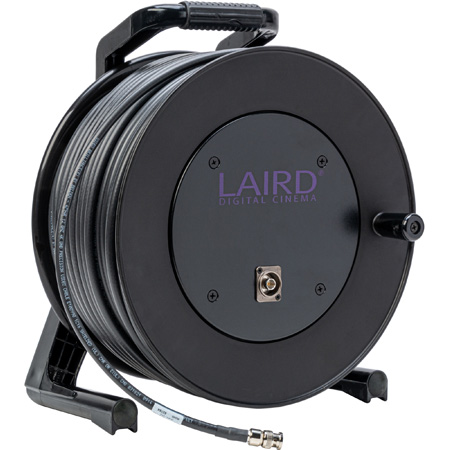

Laird BNC cable reels break the 12GHz 4K UHD coax barrier! These next-gen RG7 BNC cable reels are designed to handle 12GHz 4K UHD signals up to 225 feet (3G-SDI up to 680 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted 4794R 4K Ultra-High-Definition RG7 coaxial cable assemblies are integrated with a high impact cable reel making it the first choice for field and live event deployment. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for long hauls. Custom lengths are always available.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 225 Feet for 12G-SDI even though Belden may show this distance as 321 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
