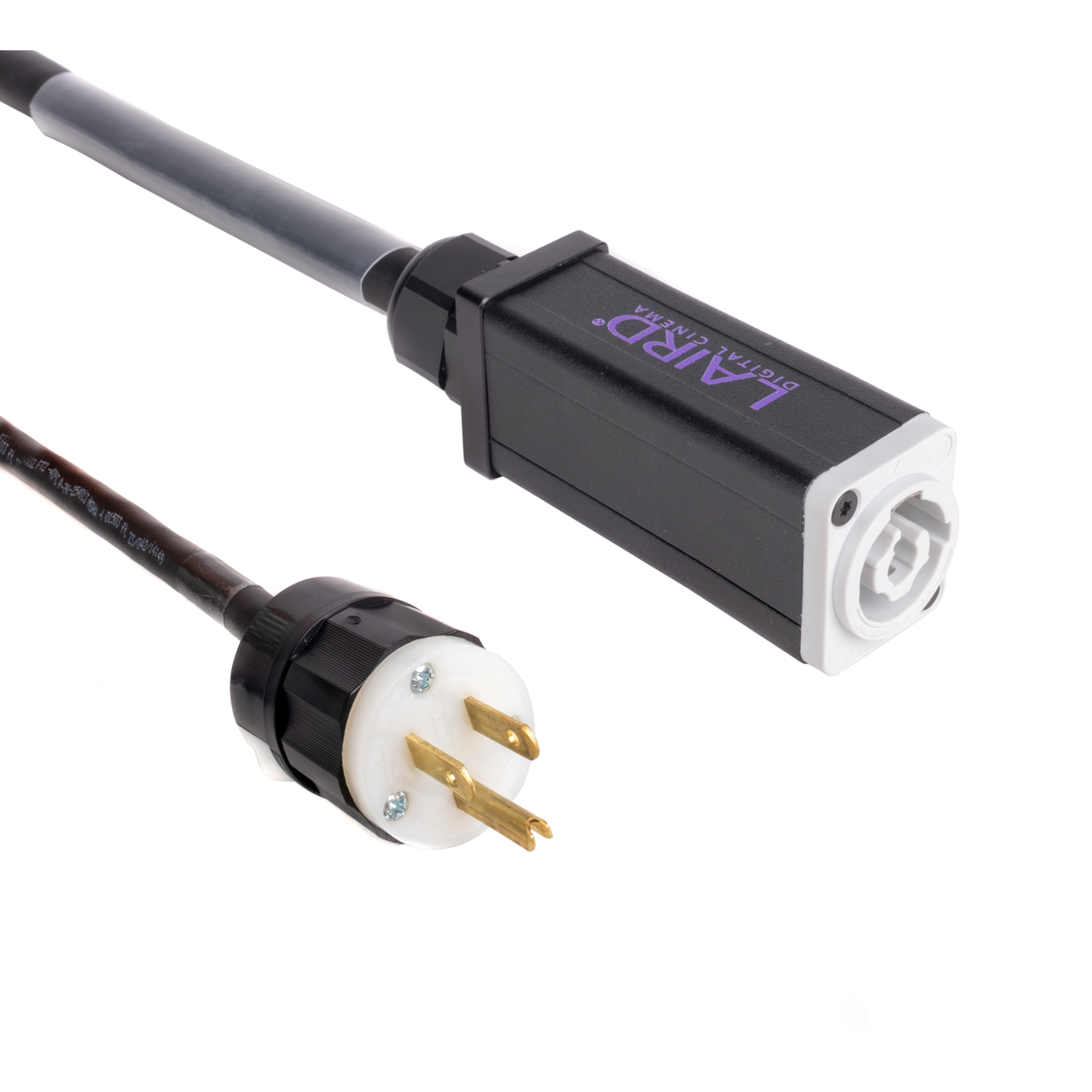

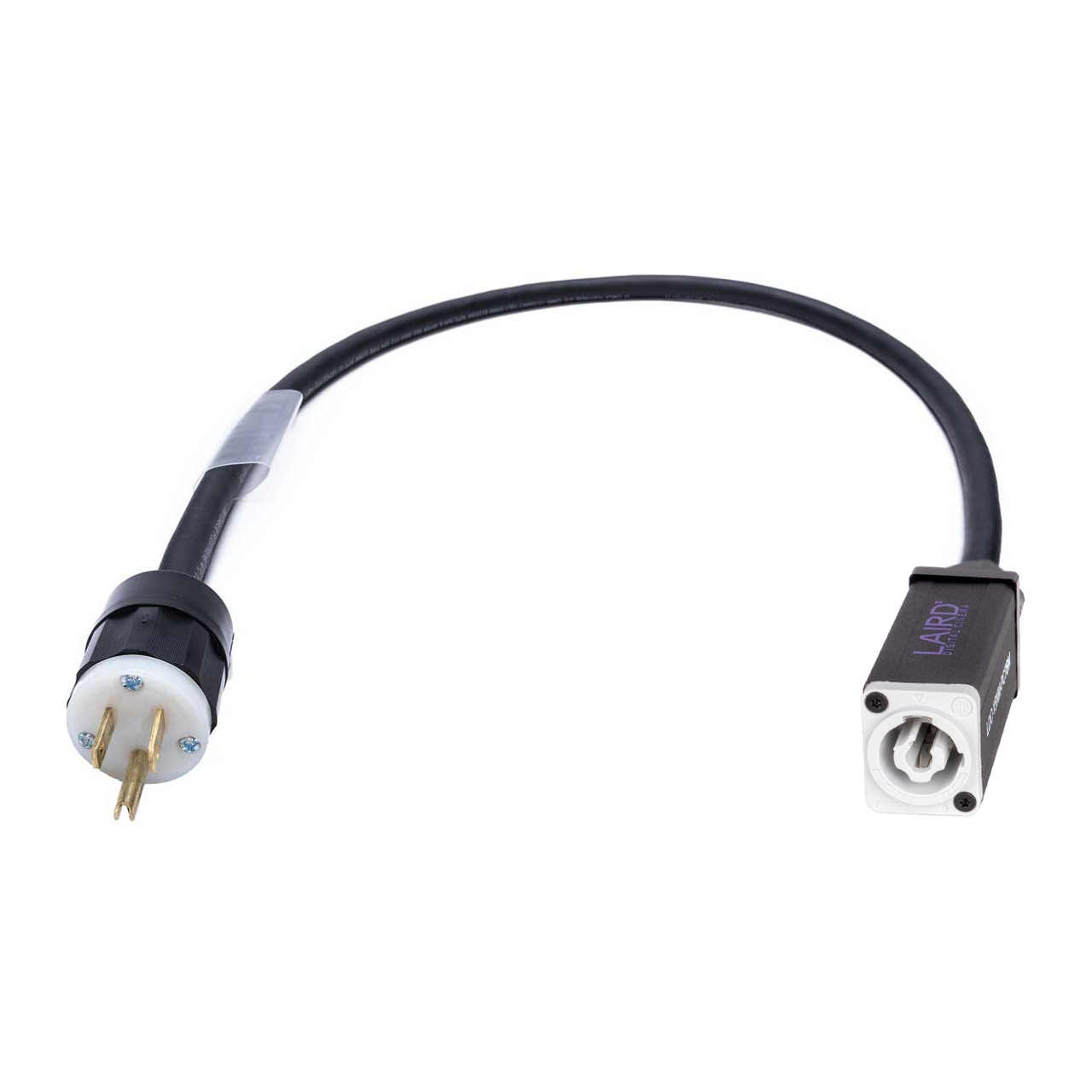

Laird 15 Amp NEMA Male to powerCON Type B NAC3MPXXB AC Power Adapter - 2 Foot

ITEM #: LDC-15NM-PCTBM MFG #: LDC-15NM-PCTBM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$89.49

Our Price:

$78.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDC-15NM-PCTBM - Overview

The Laird LDC-15NM series of heavy-duty power cable assemblies adapts your standard NEMA 5-15 plug to your choice of a female 20-amp NEMA socket, female NEMA 20-amp Twist lock socket, 20-amp female Bates connector, or powerCON Type B chassis connector. The LDC-15NM series is designed to provide a secure AC connection to audio gear, video gear, and power lighting in the studio or harsh environments.

The Laird 15NM-PCTBM combines a 15 Amp NEMA Male power connector with the Neutrik powerCON Type B NAC3MPXXB AC Power Adapter. Great for live touring settings, studios where rugged connections are necessary, or if you're trying to save wear and tear from constantly plugging and unplugging.

15A NEMA Male Connector
The 15 Amp Male NEMA Connector is a reliable, heavy duty industrial grade 125 volt power connector. It features one piece contacts that reduces friction and overheating, as well as rugged nylon construction that resists impact, sunlight, chemicals and rough use.

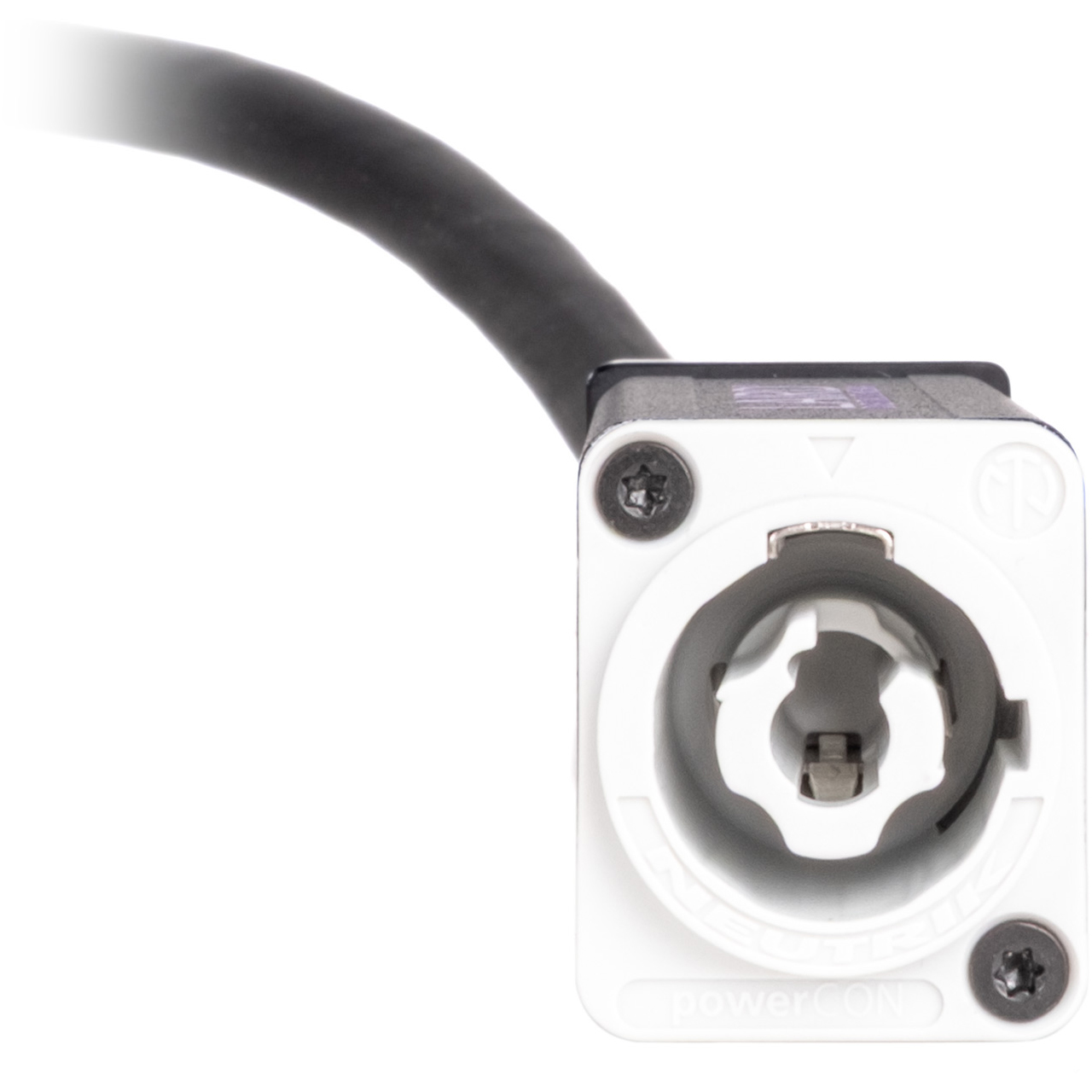

Neutrik powerCON Type B NAC3MPXXB
The Neutrik Type B NAC3MPXXB powerCON connector is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. It features a lockable single phase connector, 3 contacts for line, neutral, and premating safety ground, and is extremely robust and reliable for everyday use.

  • Features:

    • Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
    • High-quality Neutrik powerCON connectors
    • Rugged 15-amp and 20-amp connectors
    • UL-recognized components

  • Specifications:

      Laird PWR-12/3-TP
    • Cable Type: SJOOW
    • Number of Conductors x AWG: 3x12
    • Conductor Insulation: Rubber (EPR)
    • Outer Jacket Material: Rubber (CPE)
    • Current Carrying Capacity: 25 Amps
    • Outer Diameter: 0.425" - 0.476"
    • Nom. Voltage: AC U 300V
    • Temperature:
      - Flexing: -4°F - 194°F (-20°C - 90°C)
      - Static: -40°F - 194°F (-40°C - 90°C)
    • Min Bend Radius:
      - Flexing: 4.76"
      - Static: 2.85"
    • Weight: 0.14lbs/ft

      Neutrik NAC3MPXXB powerCON Grey Chassis Connector
    • Contact Resistance: ≤ 2mΩ
    • Amperage: 20 Amps
    • Voltage: 250V AC
    • Dielectric Strength: 4kVdc/2.8kVac
    • Insulation Resistance: > 1GΩ
    • Lifetime: > 5000 mating cycles

      Leviton Connector
    • Amperage: 15 Amps
    • Voltage: 125V AC
    • Blade/Contact Material: Solid Brass
    • Body Material: Impact Modified Nylon
