Laird LDC-PBK-15A-04 Edison 15-Amp Power Distribution Box to Five (5) Outputs

ITEM #: LDC-PBK-15A-04 MFG #: LDC-PBK-15A-04

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$306.49

Our Price:

$267.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDC-PBK-15A-04 - Overview

The Laird LDC-PBK-15A-04 is a 15 Amp power distribution splitter box that provide power to your NEMA 5-15 connectors. Feed-thru connectors allow for daisy-chaining of multiple boxes, ensuring uninterrupted power delivery across various setups. Encased in a rugged aluminum enclosure, it also features an M10 threaded insert that enables versatile and easy integration with other equipment or truss systems. The LDC-PBK-15A is ideal for professional audio and lighting rigging and live events.

Leviton Edison Plug
The LDC-PBK-15A-04 features a Leviton Edison 15A NEMA 5-15P three prong plug. It features a rugged nylon construction that is resistant against sunlight, chemicals and rough use. Coupled with the heavy duty Laird PWR-12/3-TP power cable, this plug is tough even against heavy wear and tear.

  • Features:

    • Laird's PWR-12/3-TP Rugged yet flexible power cable
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

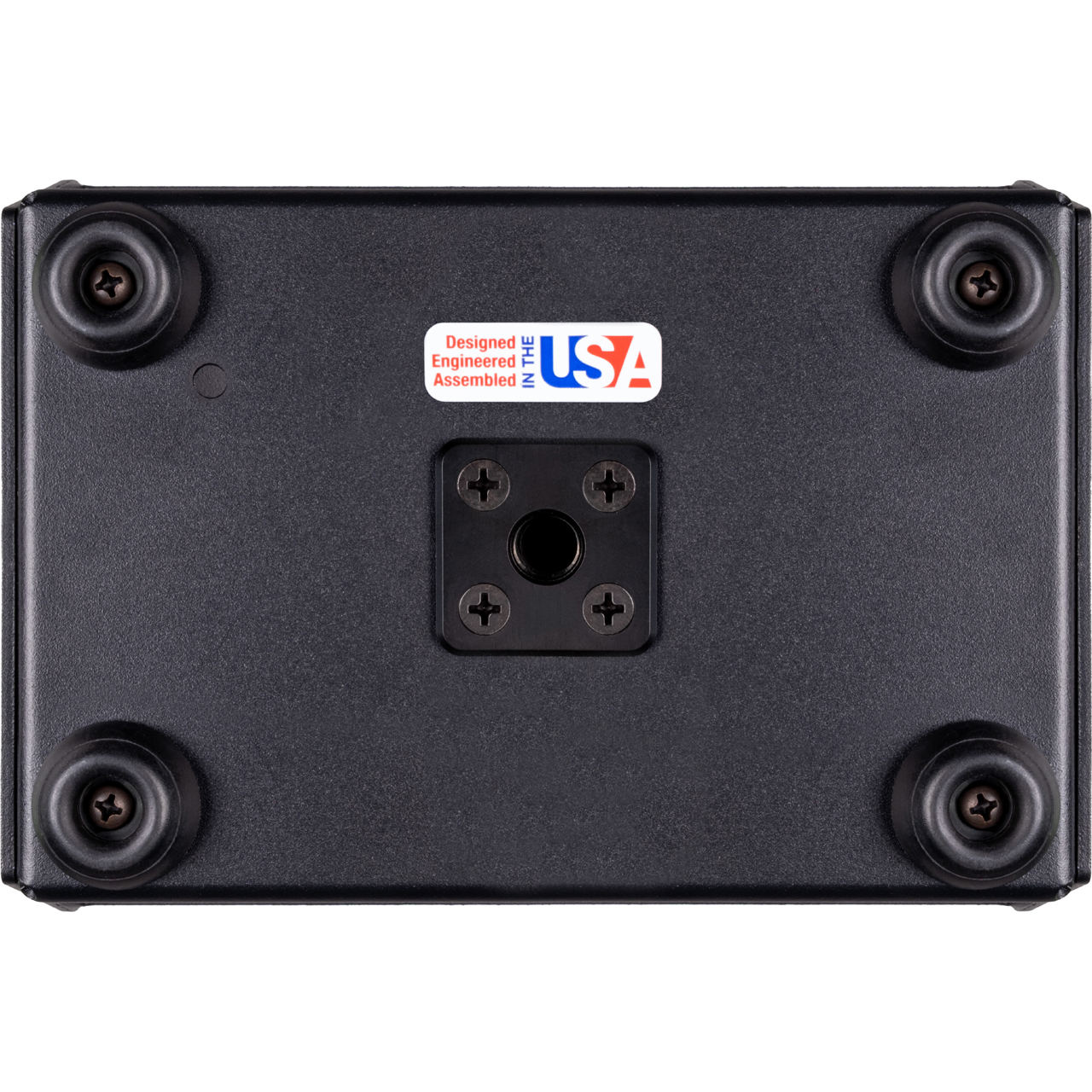

    • M10 Truss mounting insert that enables easy mounting

  • Specifications:

      Box Specifitaions:
    • Dimensions: 6.5" x 4.875" x 2.625"
    • Rated Amperage: 15 Amps
    • Input:
      • x1 Leviton NEMA 5-15 Edison Plug
    • Output:
      • x5 NEMA 5-15 Edison Receptacles

      Laird PWR-12/3-TP:
    • Cable Type: SJOOW
    • Number of Conductors x AWG: 3x12
    • Current Carrying Capacity: 25 Amps
    • Nom Outer Diameter: .42in (10.8mm) - .47in (12.1mm)
    • Outer Jacket: Rubber (CPE) Black
    • Cable Insulation: Rubber (EPR)

      Leviton Plug:
    • Voltage: 125 V AC
    • Dielectric Voltage: Withstands 2000V per UL498
    • Blade Material: Solid Brass
    • Body Material: Impact Modified Nylon
    • NEMA Rating: 5-15P

      Edison Receptacles:
    • Voltage Rating: 125 V AC
    • NEMA Rating: 5-15

  • Warranty:

    • Limited Lifetime
