Laird PCTAM-15NF powerCON Neutrik Type A NAC3MPXXA to 15 Amp NEMA Female AC Power Adapter - 2 Foot

ITEM #: LDC-PCTAM-15NF MFG #: LDC-PCTAM-15NF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$92.95

Our Price:

$81.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDC-PCTAM-15NF - Overview

The Laird PTCAM Series of powerCON adapters that enable conversions from Neutrik's powerCON to various connectors, such as Neutrik powerCON TRUE1 connectors, Edison plugs, and IEC plugs. This series allows for `plug-and-play' interconnection between Neutrik powerCON and more common IEC and NEMA 5-15 connectors, offering applicational adaptability and flexibility with the ability to power your lighting, audio, and video gear in a new or existing system.

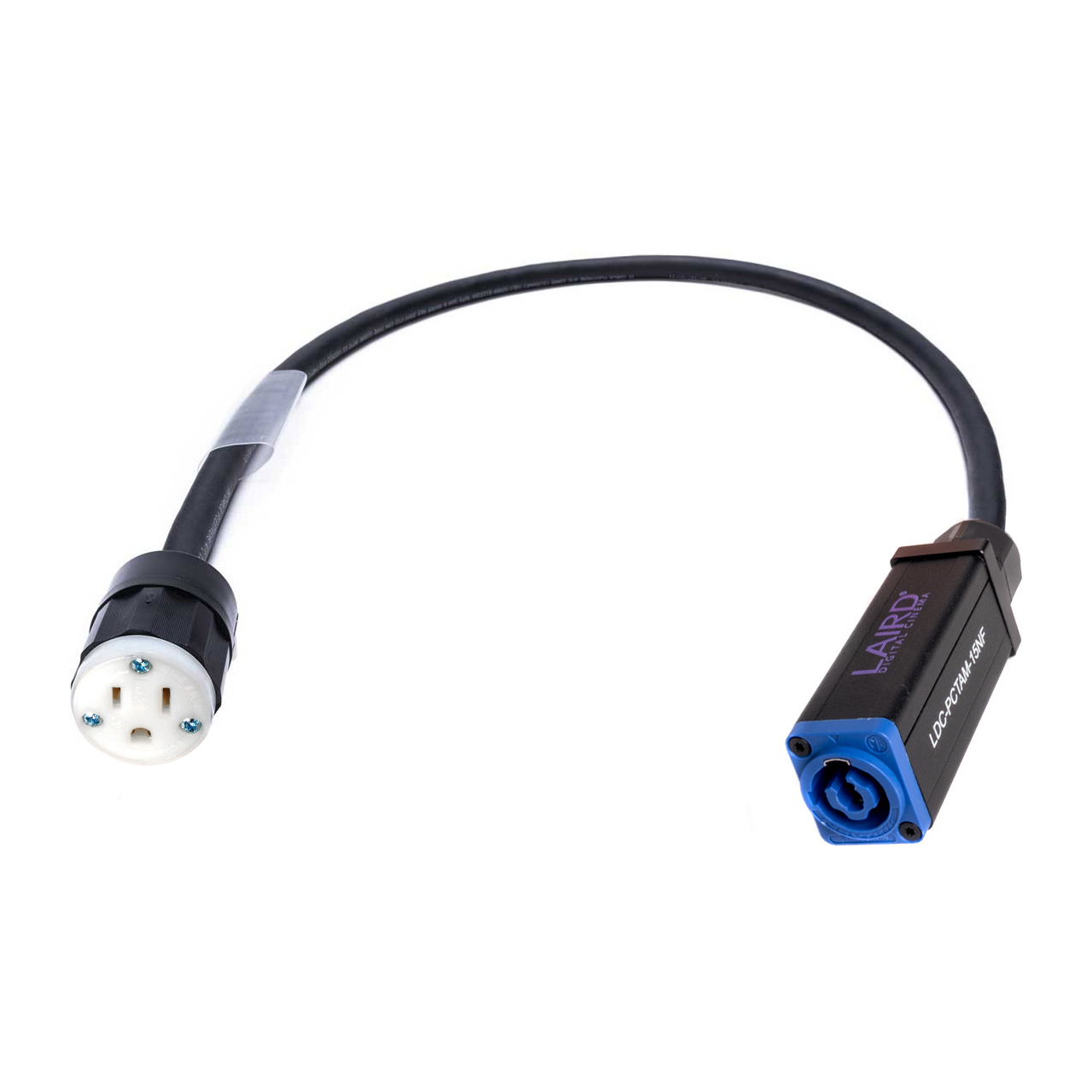

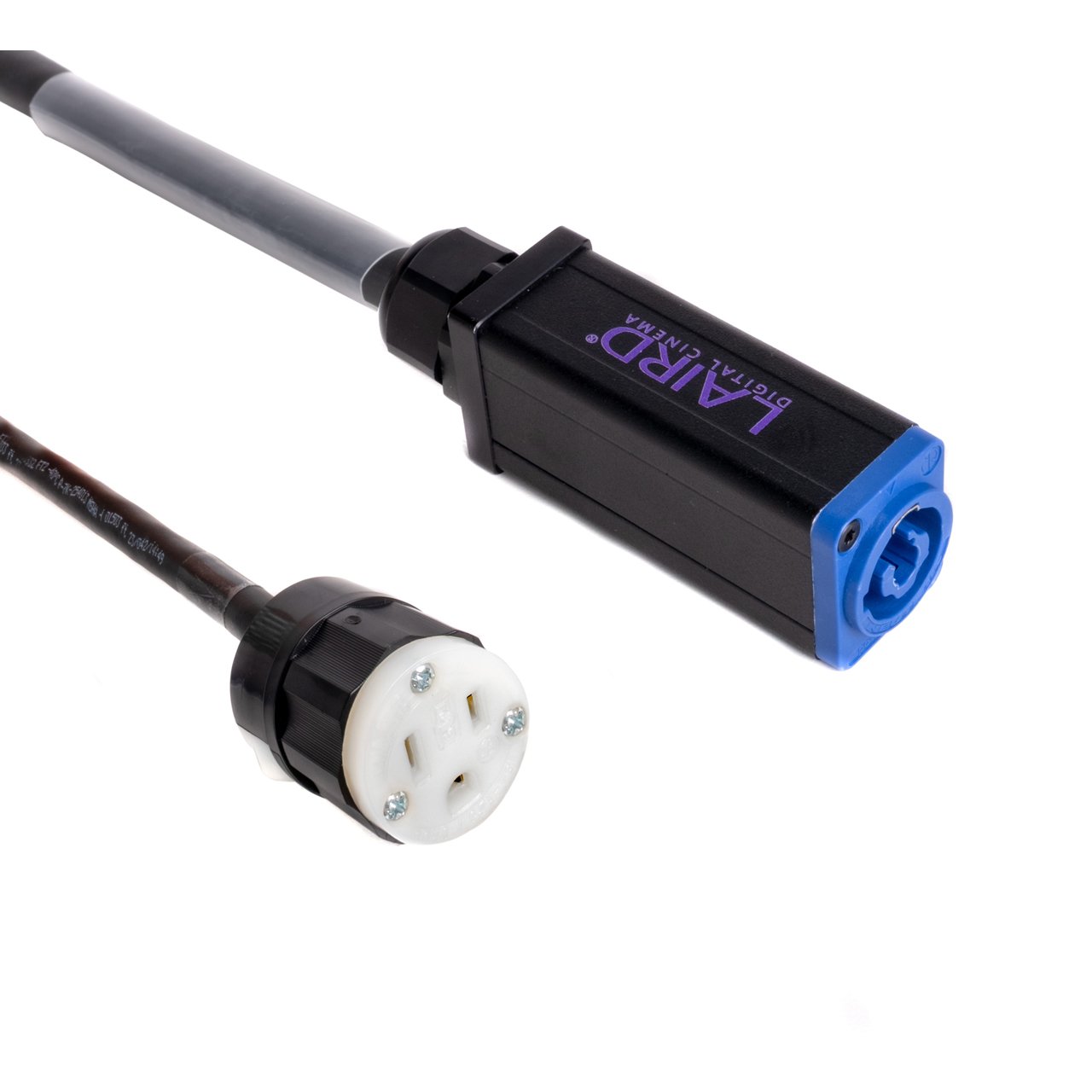

The Laird PCTAM-15NF combines the Neutrik powerCON connector with a 15 Amp Female NEMA Connector. Great for live touring settings, studios where rugged connections are necessary, or if you're trying to save wear and tear from constantly plugging and unplugging.

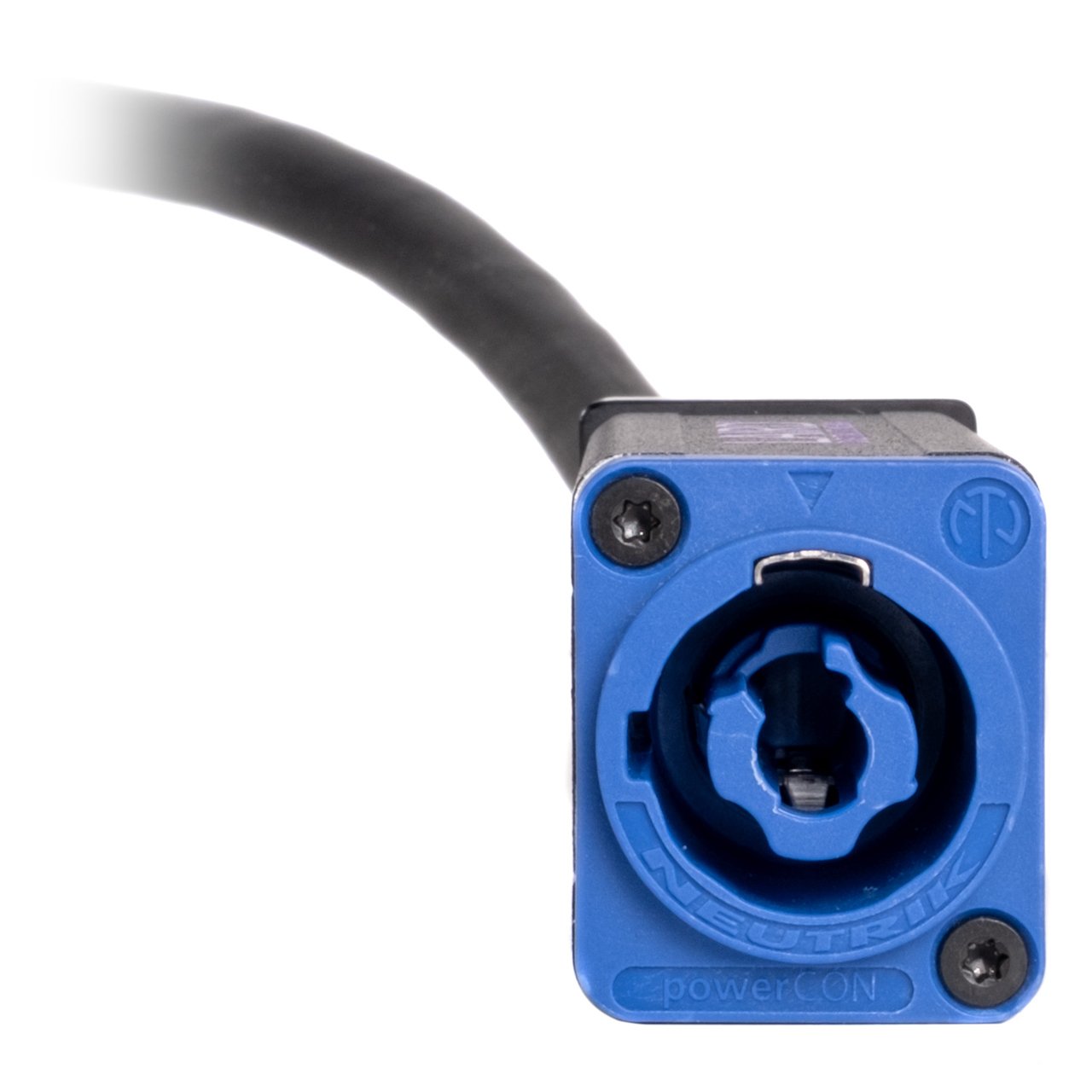

Neutrik powerCON Type A NAC3MPXXA
The Neutrik Type A NAC3MPXXA powerCON connector is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection. It features a lockable single phase connector, 3 contacts for line, neutral, and premating safety ground, and is extremely robust and reliable for everyday use.

15A NEMA Female Connector
The 15 Amp Female NEMA Connector is a reliable, heavy duty industrial grade 125 volt power connector. It features one piece contacts that reduces friction and overheating, as well as a unique cord clamp that accepts a wide range of cord sizes.

  • Features:

    • Laird's flexible SJOOW PWR-12/3-TP Cable
    • Rugged Neutrik connectors and industry-standard IEC Plug, NEMA 5-15 rated Plug
    • Various connector types are available to suit most applications
    • UL-recognized components

  • Specifications:

      Laird PWR-12/3-TP Cable
    • Conductor Material: Bare Copper Wire
    • Number of Conductors x AWG: 3x12
    • Outer Jacket Material: Rubber (CPE)
    • Outer Diameter: 0.425" - 0.476"
    • Bend Radius:
      - Flexing: 4.76"
      - Static: 2.85"

      Neutrik powerCON Chassis Connector
    • Contact Resistance: ≤ 2mΩ
    • Dielectric Strength: 4kV DC/2.8kV AC
    • Insulation Resistance: > 1GΩ
    • Lifetime: > 5000 mating cycles
    • Protection Class: IP 20

      Leviton 5269C 3-Prong Jack:
    • Amperage: 15
    • Pole: 2
    • Voltage: 125V AC
    • NEMA: 5-15R

  • Warranty:

    • 1 Year


LDC-PCTAM-15NF - Required Accessories
