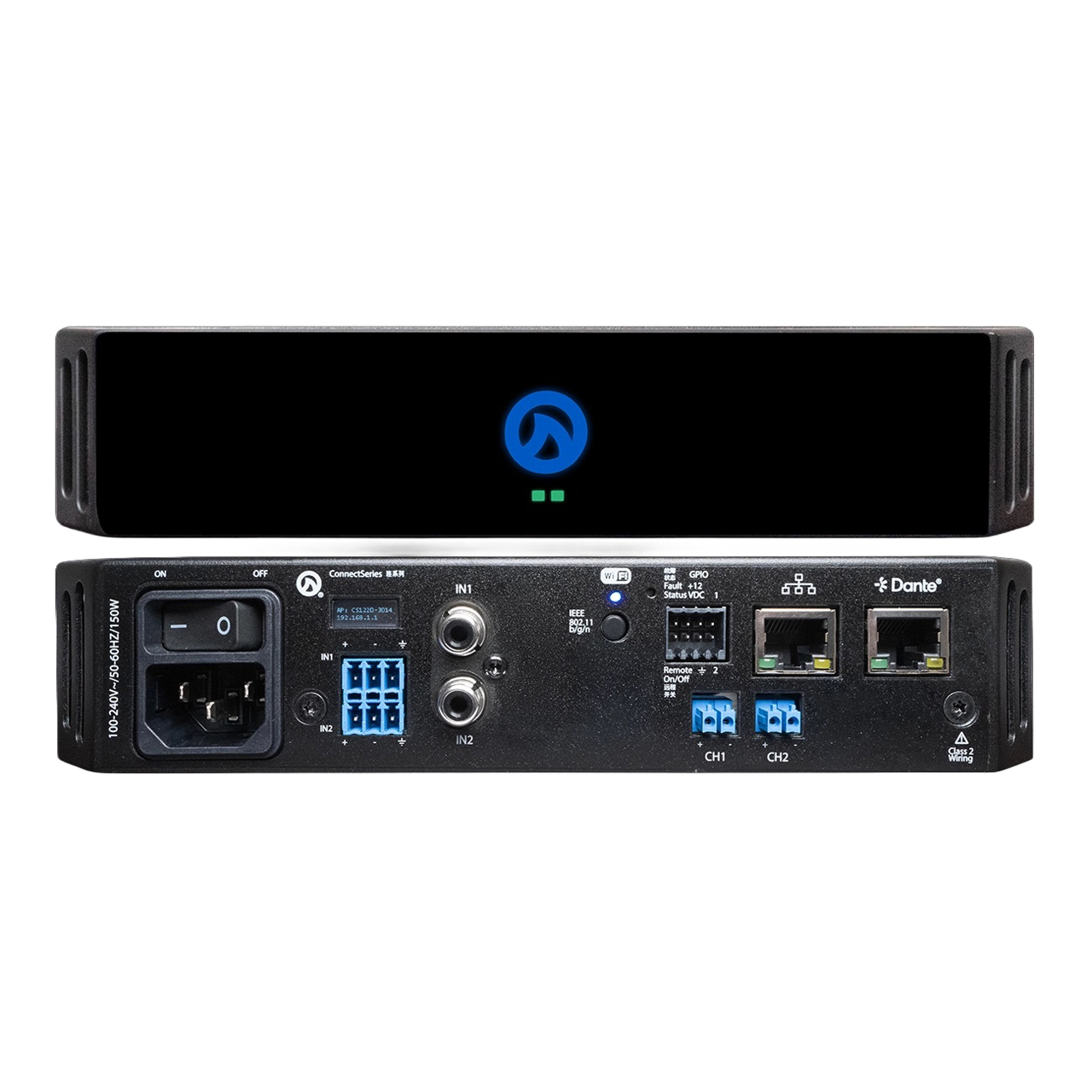

LEA Pro Connect Series 122D Half-Rack 2-Channel Smart Amp - 120W Per Channel - 96kHz DSP / WebUI / SharkWare / LEA Cloud

CS122D - Overview

Half the Size - All the Features!

• Features:

  • Web Browser-based UI works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge double the output power of any single channel without sacrificing other channels on the amplifier
  • Three Ways to Connect to the amplifier:
    1.) Built in WiFi Access Point
    2.) Connects to existing WiFi network
    3.) Local Area Network Ethernet connection
  • 3rd Party API support for most of the industry leading system processors on the market
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ\filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC - 240VAC +/-10%
  • Analog fully routable inputs with backup capabilities
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw


• Specifications:

  Audio Spec
  • Output Power: 2x 120 WRMS @ 4Ω, 8Ω, 70V, 100V (60W at 2Ω)
  • Inputs: Analog: 2 Balanced analog Inputs with user-selectable 26dB, 34dB, and mic level input sensitivity 2 Unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
    **Note - Balanced and Unbalanced (RCA) inputs share the same analog input channel Dante: 2x2 Dante at 48kHz, Multicast, or Unicast AES 67: Configurable via the Dante Controller Software
  • THD+N: 0.1% (20Hz to 20kHz)
  • Frequency Response: +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
  • Signal to Noise Level: 102dB (20Hz to 20kHz referenced to 8Ω)
  • Crosstalk: 70dB (20Hz to 20kHz)
  • I/O Latency: 1 ms DSP latency under any condition
  • Load Impedance: LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
  • Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
  • DC Offset: +/- 3mV
  • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters

    DSP
  • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
  • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
  • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel
  • Parametric EQ: 8 Band Parametric EQ per channel
  • Output Delay: 100ms per channel
  • Output Protection: DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection
  • Limiting: Peak Voltage and RMS Voltage
  • Load MonitoringL Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

    Control, Monitoring, Network
  • Network Connectivity: Wi-Fi or 100MB Ethernet with PoE or Built-in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP)
  • User Interface: Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
  • Operating Systems: MAC, iOS, PC, Android
  • Event Reporting: User Downloadable and Viewable Event and Fault log - POE allows for enhanced error monitoring
  • External I/O:
    - External I/O In: Toggles Remote On/Off
    - External I/O Out: Indicates Amplifier Health 2 general-purpose Input and Output pins for general input

    OPS Data
  • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
  • Temperature:
    - Storage: -4°F to 194°F
    - Operating: 32°F to 140°F
  • Power Supply: Universal Switch Mode Power Supply
  • Safety Approvals: UL, CSA, CE, ETL, FCC, CCC, KETI, NOM, ROHS, PSE

    Physical
  • Dimensions (L x W x H):
    - Product: 11.82" x 8.58" x 1.71"
    - Shipping: 18" x 11" x 2.75"
  • Weight: 7lbs
  • Cooling:
    - Front to Rear Variable Fan Speed Cooling, Fan Noise at idle is 50dB @1m
    - Fan Noise at 50% is 57dB @1m, Fan Noise at full speed is 63dB @1m

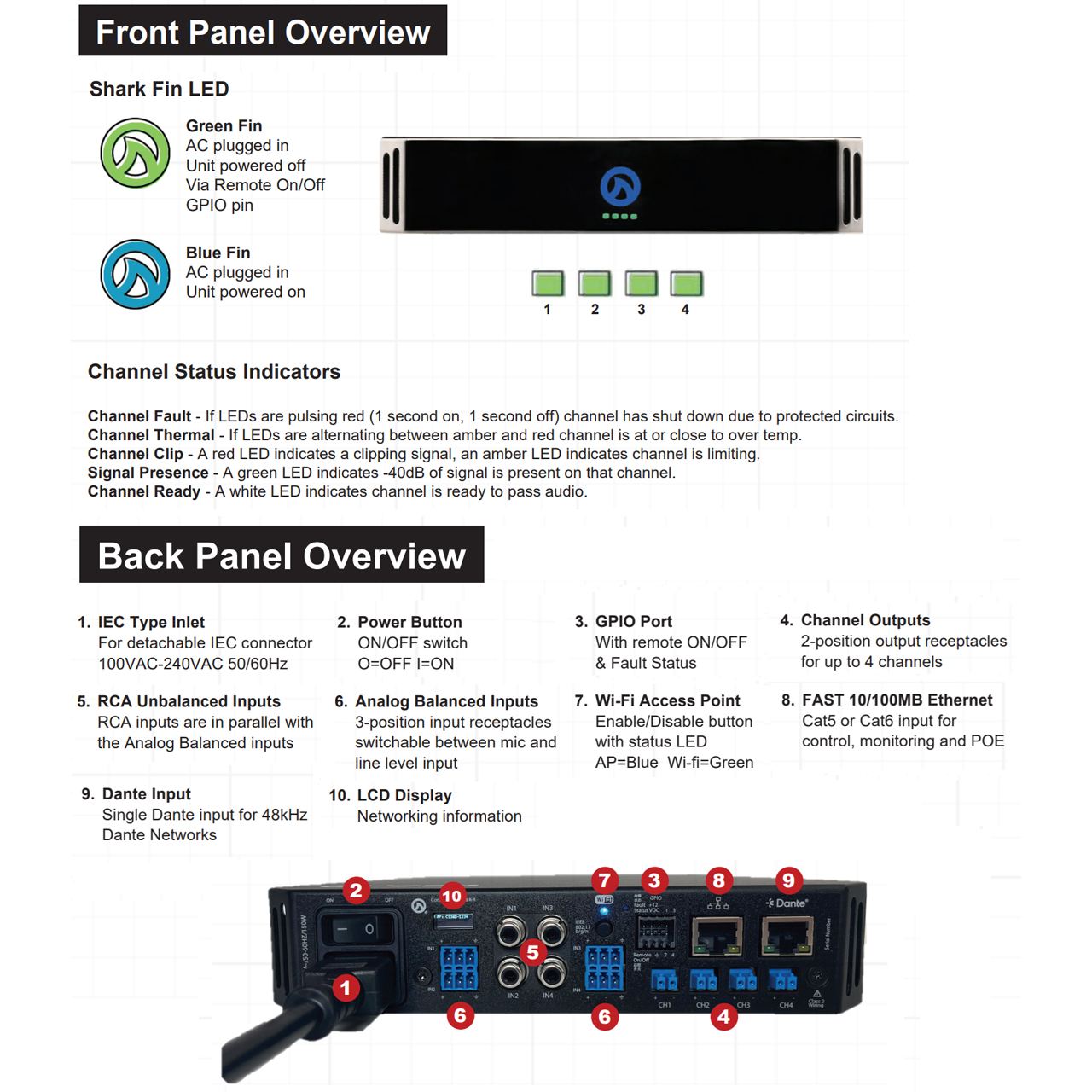

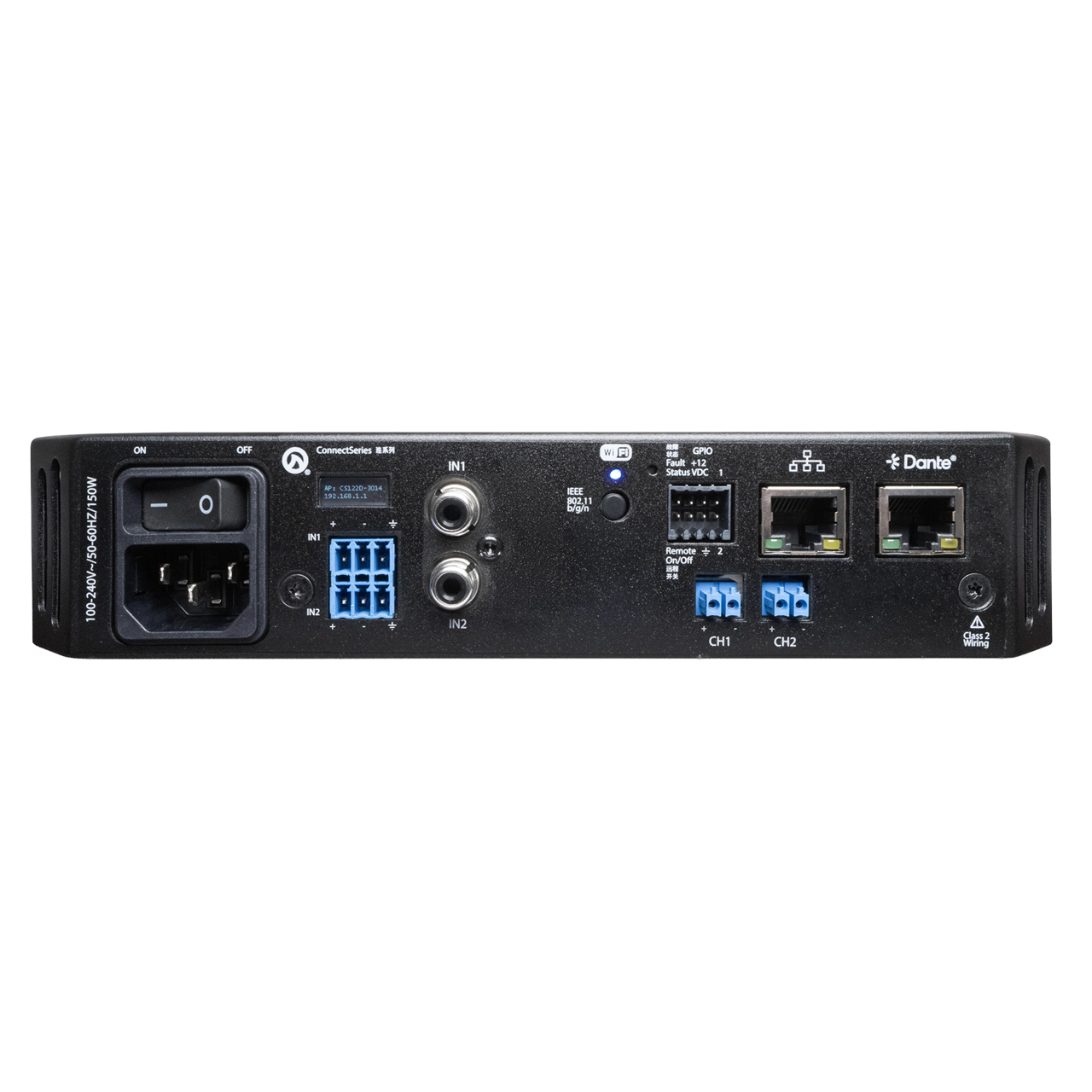

  • Connectors:
    - Analog Input: 3 pin Amphenol Anytek, Output: 2 pin Amphenol Anytek,
    - External IO: 8 pin Amphenol Anytek, Power in: IEC, Ethernet RJ45 In for Dante, and RCA input
