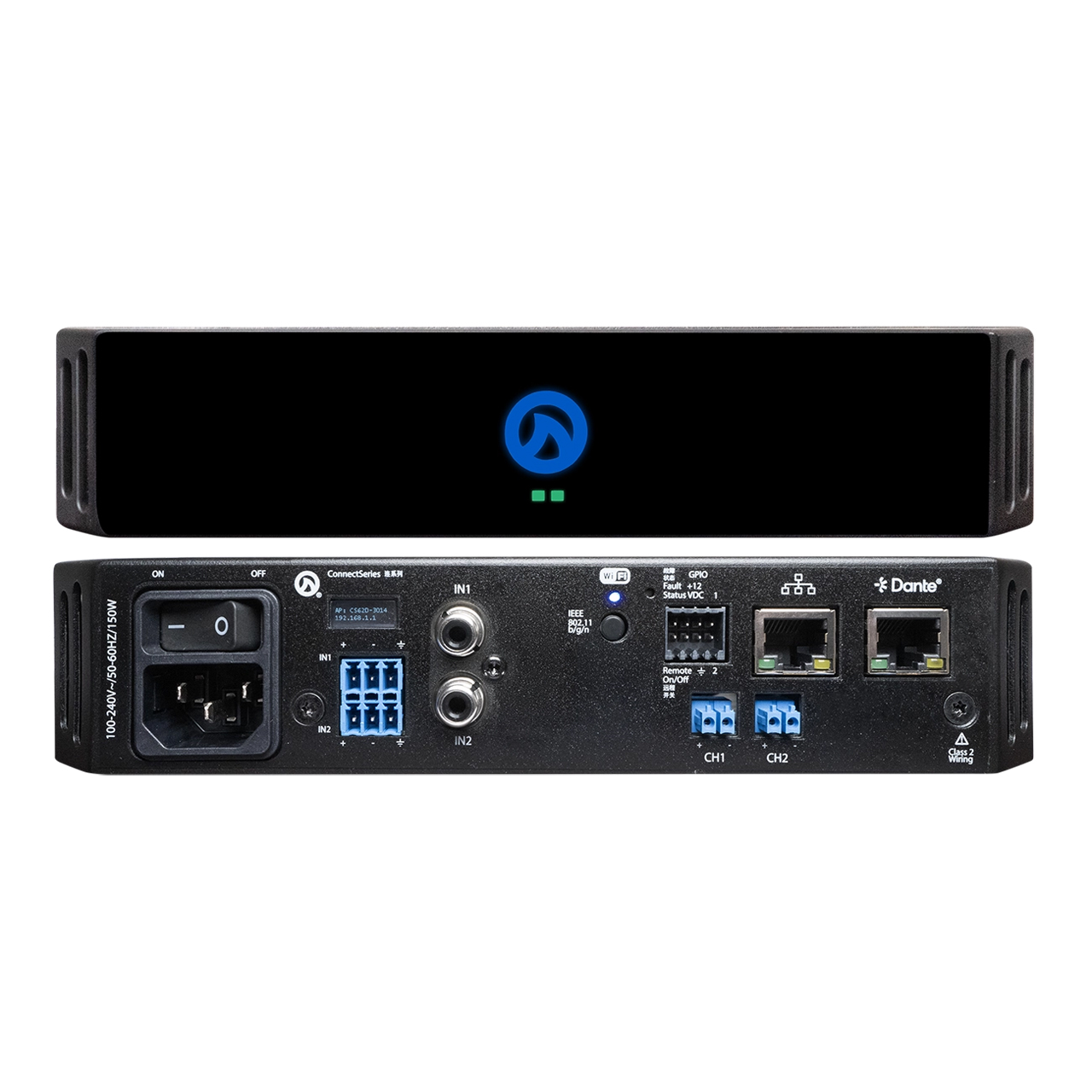

LEA Pro Connect Series 62D Half-Rack 2-Channel Smart Amp - 60W Per Channel - 96kHz DSP / WebUI / SharkWare / LEA Cloud

CS62D - Overview

Dante and AES67 connectivity

• Features:

  • The Web UI is browser-based and works on any device - no software to download
  • LEA Professional Cloud allows remote control and monitoring from anywhere in the world - no additional costs required
  • A vast selection of third-party API's for ultimate system integration
  • SharkWave Control Platform simplifies control across large audio installs and includes offline mode
  • 96kHz DSP processing that allows for enhanced audio quality and more precise sound
  • Dante simplifies system installations with scalable, high-resolution audio over IP (AoIP)
  • A vast range of tunings makes the install quicker and protects speakers from damage
  • Real-time load monitoring ensures the amplifier operates safely with preventative maintenance
  • Event Fault Monitoring contributes to enhanced system performance and long-term reliability
  • Lo-Z/70V/100V by Channel eliminates the need for separate amplifiers for different speaker impedances
  • Smart Power Bridge doubles power on one channel without sacrificing a channel, maximizing performance and flexibility
  • High Efficiency Power Design ensures that the amplifiers operate efficiently, reducing energy waste and cooling costs


• Specifications:

  Audio
  • Output Power: 2 x 60 WRMS @ 4Ω, 8Ω, 70V, 100V (30W at 2Ω)
  • Inputs:
    - Analog: 2x Balanced analog Inputs with user-selectable 26dB, 34dB, and mic level input sensitivity, 2x Unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
    *Note - Balanced and Unbalanced (RCA) inputs share the same analog input channel.
    - Dante: 2x2 Dante at 48kHz, Multicast, or Unicast
    - AES 67: Configurable via the Dante Controller Software
  • THD+N: 0.1% (20Hz - 20kHz)
  • Frequency Response: ±0.5dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
  • Signal to Noise Level: 102dB (20Hz - 20kHz referenced to 8Ω)
  • Crosstalk: 70dB (20Hz - 20kHz)
  • I/O Latency: 1 ms DSP latency under any condition
  • Load Impedance: Lo-Z down to 2Ω, 70V direct, and 100V Direct per channel
  • Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality
  • without sacrificing an amplifier channel
  • DC Offset: ±3mV

    DSP
  • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
  • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
  • Crossovers: Up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel
  • Parametric EQ: 8-Band Parametric EQ per channel
  • Output Delay: 100ms per channel
  • Output Protection: DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection
  • Limiting: Peak Voltage and RMS Voltage
  • Load Monitoring: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

    Control, Monitoring, Network
  • Network Connectivity: Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP)
  • User Interface: Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
  • Operating Systems: MAC, iOS, PC, Android
  • Event Reporting: User Downloadable and Viewable Event and Fault log - POE allows for enhanced error monitoring
  • External I/O: 2 general-purpose Input and Output pins for general input
    - External I/O In: Toggles Remote On/Off
    - External I/O Out: Indicates Amplifier Health
  • Cloud IoT: AWS Cloud-based IoT functionality

    Ops Data
  • AC Mains: 100VAC - 240VAC ±15% 50Hz or 60Hz
  • Temperature:
    - Storage: -4°F - 194°F (-20°C - 90°C)
    - Operating: 32°F - 140°F (0°C - 60°C)
  • Power Supply: Universal Switch Mode Power Supply
  • Safety Approvals: UL, CSA, CE, ETL, FCC, CCC, KETI, NOM, ROHS, PSE

    Physical
  • Dimensions (LxWxH):
    - Product: 11.82" x 8.58" x 1.71" (300.11mm x 278mm x 43.5mm)
    - Shipping: 18" x 11" x 2.75" (457.2mm x 300mm x 69.85mm)
  • Weight: 7lbs (3.1kg)
  • Cooling: Front to Rear Variable Fan Speed Cooling
    - Fan Noise at idle is 50dB @ 1m
    - Fan Noise at 50% is 57dB @ 1m
    - Fan Noise at full speed is 63dB @ 1m
  • Connectors:
    - Analog Input: 3-pin Amphenol Anytek
    - Analog Output: 2-pin Amphenol Anytek
    - External IO: 8-pin Amphenol Anytek
    - Power In: IEC, Ethernet RJ45 In for Dante, and RCA input


• Warranty:

  • 5 Year Warranty
