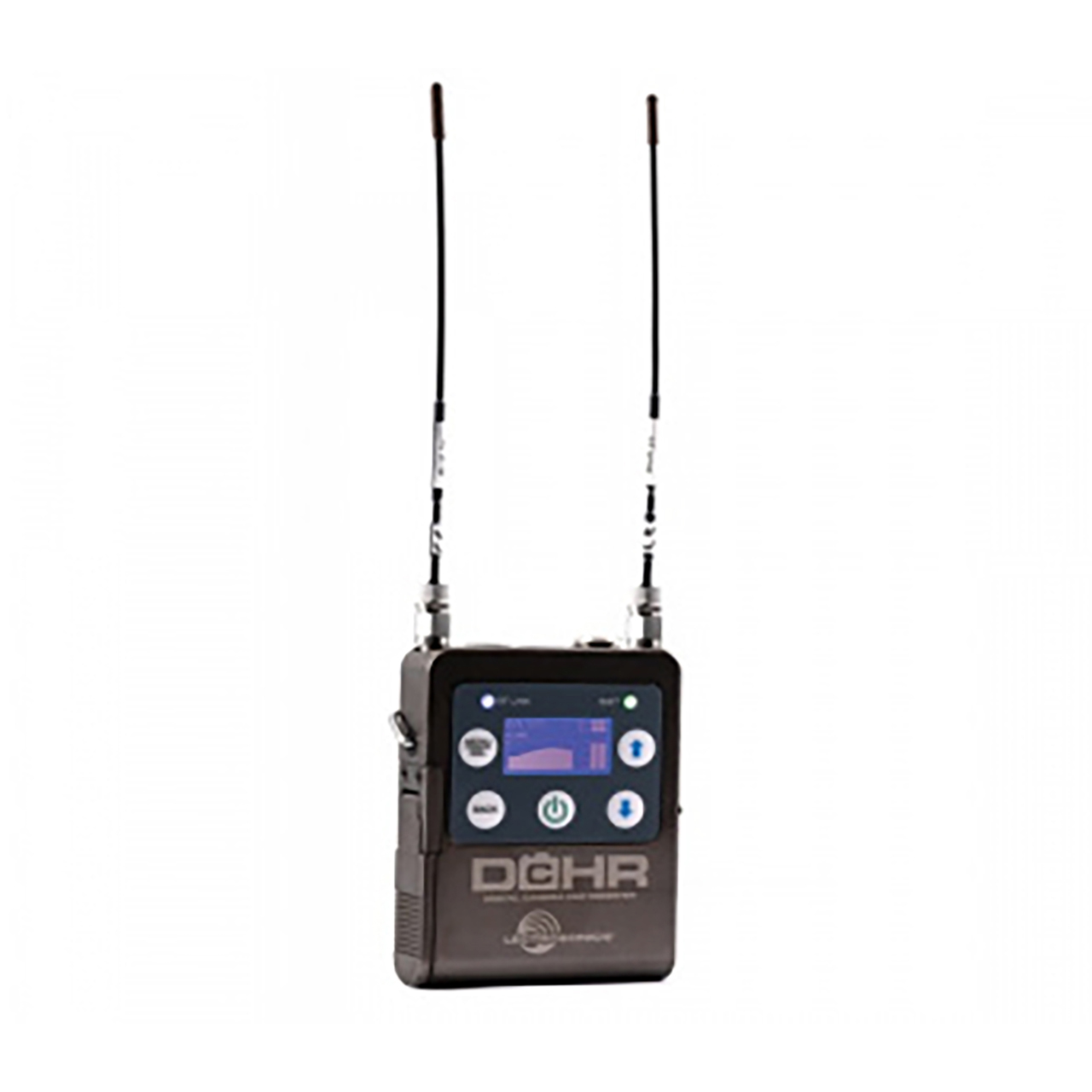

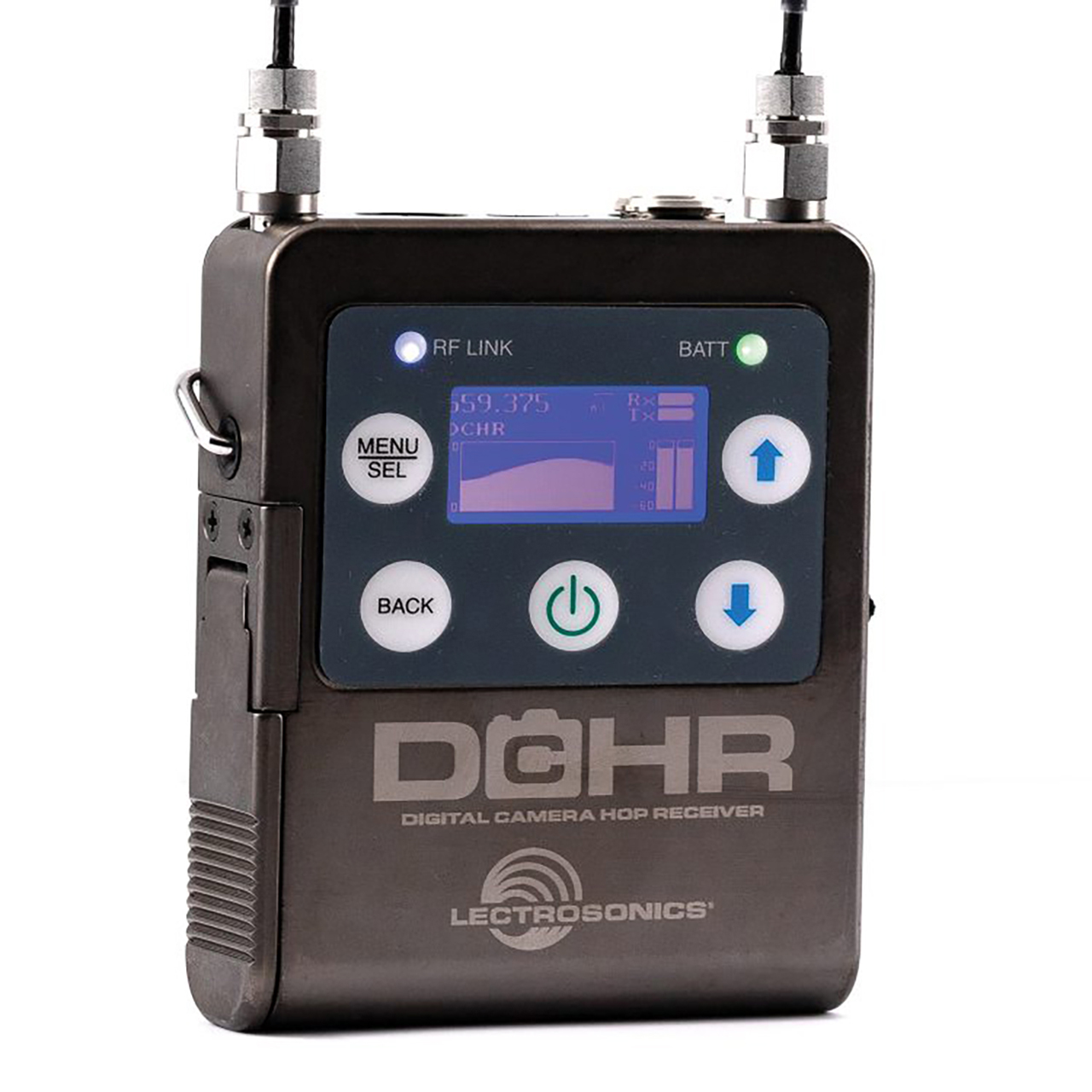

The Lectrosonics DCHR portable digital stereo receiver is designed for use in film and TV production as both a wireless stereo audio link from a bag or cart system to cameras using a DCHT or M2T transmitter, or as a stand-alone miniature receiver for use with D Squared series mono transmitters. The DCHR provides 2 channels of mic or line level analog signals or an AES3 digital signal via a locking TA5M connector. The digital architecture of the DCHR is a 4th-generation design with specially developed, high-efficiency circuitry for extended operating time on two AA batteries.
The DCHR can tune across the available UHF TV band from 470MHz to 614MHz (470MHz - 608MHz when NA Locale is selected) in 100kHz or 25kHz steps, offering more than 6000 frequencies. The digital architecture allows for AES256-CTR encryption for applications where content security is a concern, and provides four different encryption key policies for a variety of applications. The DCHR can be camera mounted using the optional LRSHOE accessory.
