LEX DB20PC-SBPC-TI 20 Amp Quad Box powerCON to Duplex Receptacles - NEMA 5-20 Receptacles - Feed Thru

ITEM #: LEX-DB20PCSBPCTI MFG #: DB20PC-SBPC-TI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,000.00

Our Price:

$892.11

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DB20PC-SBPC-TI - Overview

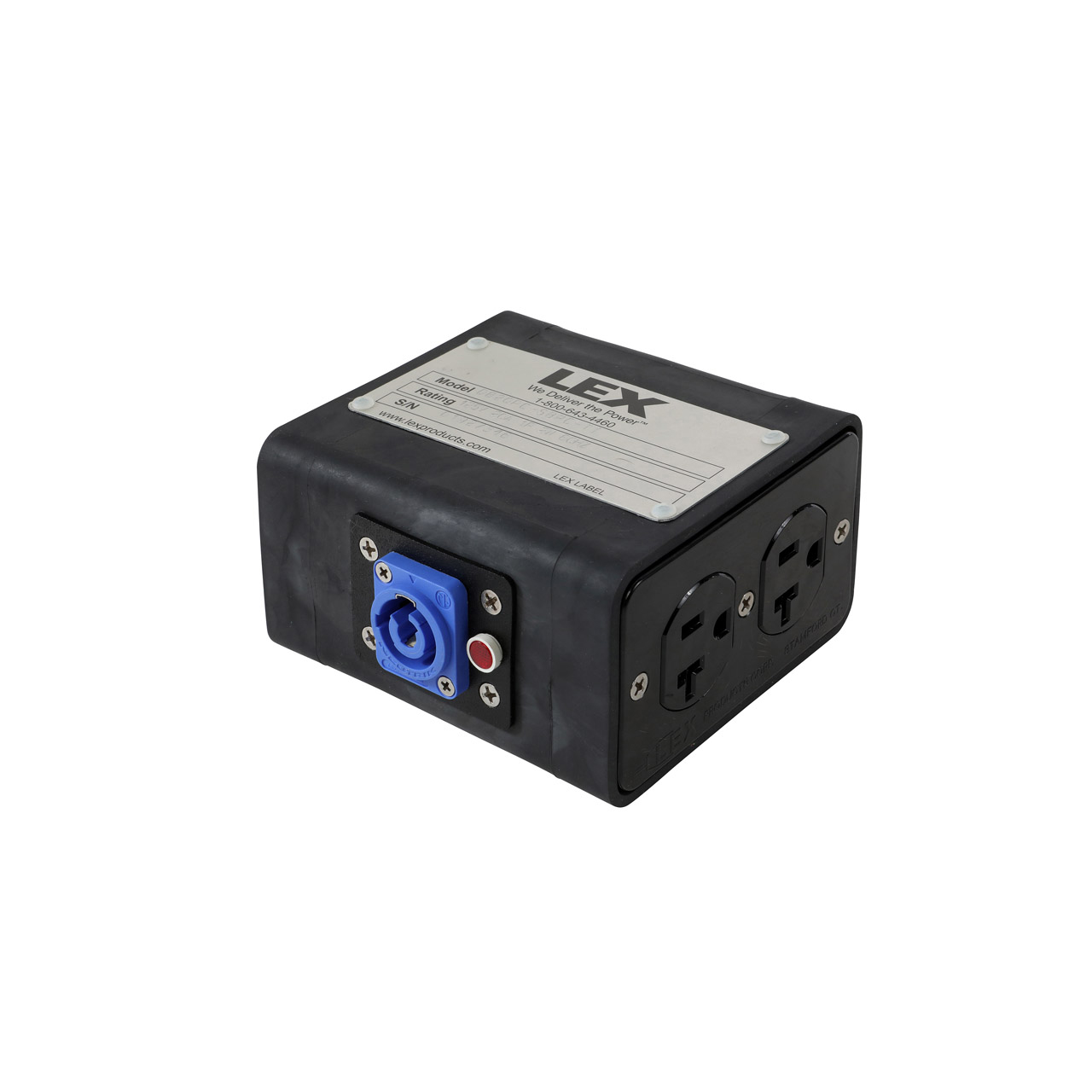

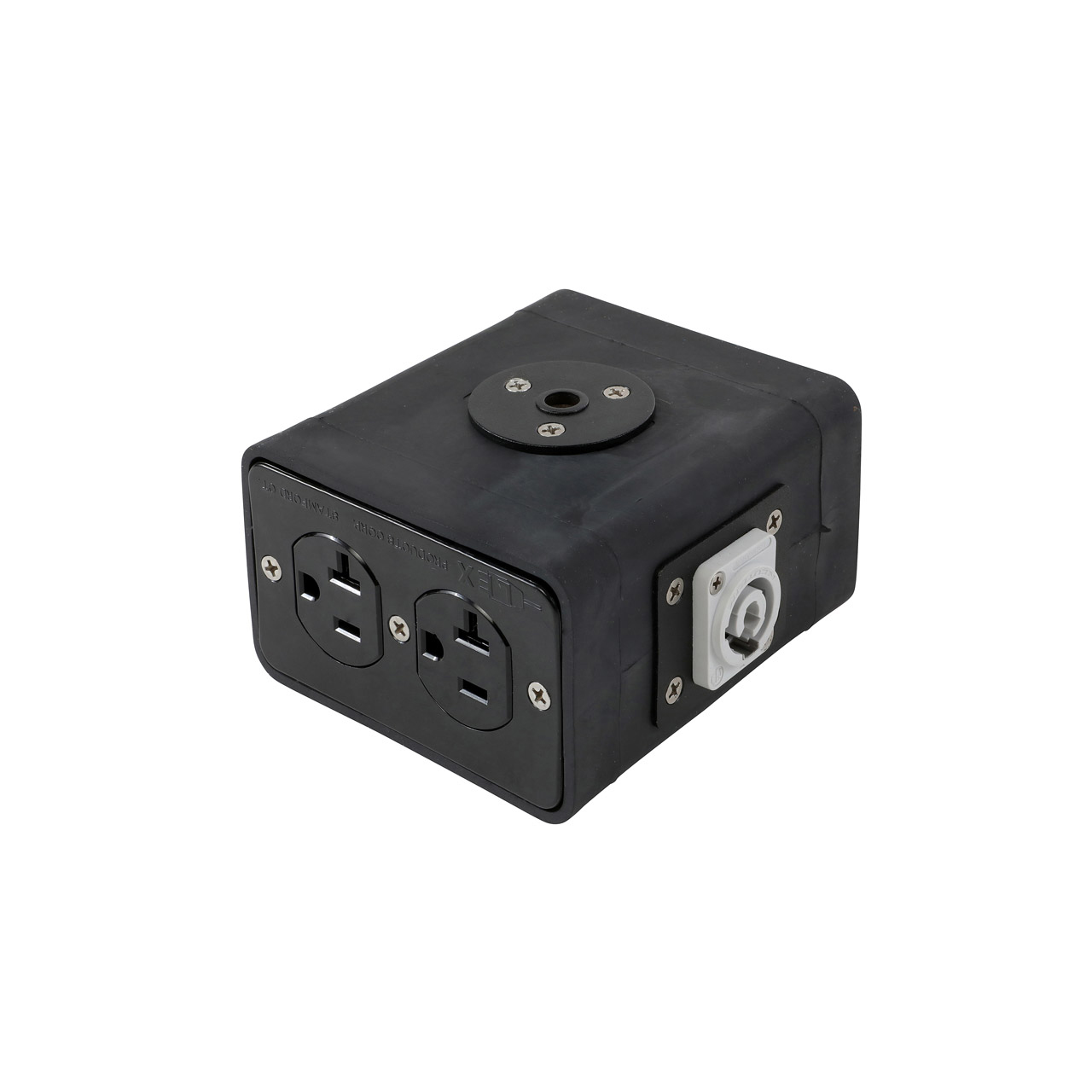

The LEX Products DB20PC-SBPC-TI is a portable 20-amp power distribution box that converts a Neutrik powerCON input into two standard NEMA 5-20 (Edison-style) outlets, with a feed-through connector so you can daisy-chain multiple boxes. It also includes a threaded insert ("TI") so you can mount or clamp it to truss, pipe, or other structures. A tough little box that takes a 20A powerCON feed and gives you two regular outlets, plus a pass-through, so you can drop power exactly where you need it on a stage or job site.

Applications:
• Convention Centers
• Live Events
• Concert Touring
• Industrial Maintenance and Repair

  • Features:

    • This exceptionally versatile quad box is used for placing convenient duplex receptacles exactly where they are needed
    • The quad box enables the user to create receptacle stringers using powerCON extensions of various lengths
    • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
    • Compact and convenient way to place 20 Amp duplex receptacles where they are needed
    • Feed thru option allows multiple boxes to be placed along the same feed

  • Specifications:

    • Rating: 20A, Single-phase (H,N,G), 2-pole, 3-wire, 125VAC, 60Hz
    • Environmental Rating: NEMA Type 1 (Indoor Use)
    • Input: 1x powerCON NAC3MPA-1 (Blue), 20A, 2-pole, 3-wire, 250VAC, locking inlet, panel mount
    • Feed Thru: Yes
    • Main Breaker: None
    • Output: 2x NEMA 5-20 (Edison), 20A, 2-pole, 3-wire, 125VAC, straight blade duplex receptacles, panel mount
    • Overcurrent Protection: None
    • Enclosure Type: Quad Box
    • Dimensions (LxWxH): 4.70" x 2.50" x 4.20"
    • Weight: 1.5lbs
