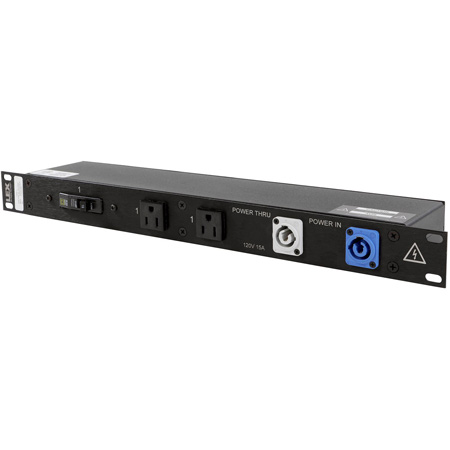

Lex PRM1UN-8CA 20 Amp 1RU Enclosed Rack with PowerCon to Duplex Receptacles

PRM1UN-8CA - Overview

• Features:

  • Modules mount in standard 19" permanent and rolling racks
  • Modules are fully enclosed making them portable
  • Easy to install for range of needs
  • Branch-rated circuit protection
  • Indicator lights included for clear presence of power
  • Laser etched numbers for easy circuit identification
  • Anodized black metal construction is lightweight and durable to withstand years of use


• Specifications:

  • Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: (1) powerCON® NAC3MPA-1 (Blue), 20 Amp, 2-pole, 3-wire, 250 VAC, locking inlet, panel mount
  • Feed Thru: Yes
  • Main Breaker: None
  • Output: (8) NEMA 5-15, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade single receptacles, panel mount
  • Overcurrent Protection: (1) 15 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breaker
  • Enclosure Type: Rack Mount Box
  • Dimensions: 3.75"L x 19.00"W x 1.75"H
  • Weight: 4.0 lbs
  • Agency Approval: cETLus Listed


• Item Includes:

  • 1x Lex PRM1UN-8CA 20 Amp 1RU Enclosed Rack with PowerCon Duplex Receptacles
