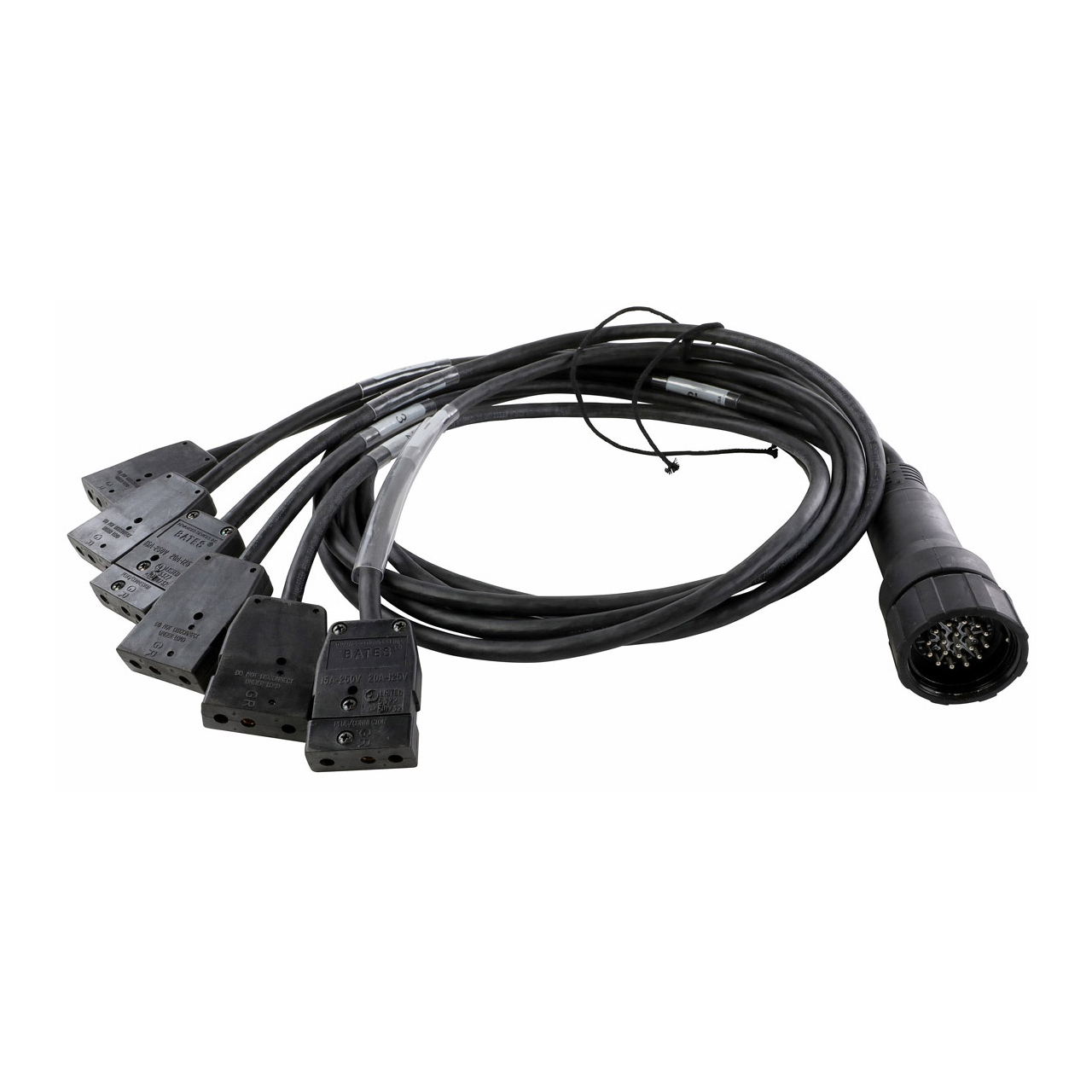

LEX EGBO100-6-SP EverGrip Male LSC19 to Female Stage Pin Break-Out Cable - Bates Connector - 6 Foot

EGBO100-6-SP - Overview

• Features:

  • Provides power to (6) Stage Pin (Bates) connectors from (1) molded 6-circuit LSC19 plug
  • Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
  • Pins and sockets cannot push back, extending the life of the connectors
  • Rugged construction helps prevent broken conductors and loose or damaged ground rings
  • Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
  • Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
  • Silver-plated brass contacts for high conductivity
  • All black construction blends into scenery and is ideal for stage or studio lighting applications


• Specifications:

  • Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125V AC, 60Hz
    Note: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
  • Male Plug: 1x Molded 20A 19-Pin Male (Plug), Black
  • Cable/Cord: 6x #12/3 Type SJOOW, Black
  • Length: 6' Stock Length
  • Female Connector: 6x Stage Pin (Bates) Females (Connectors), Black


• Item Includes:

  • 1x LEX EGBO100-6-SP EverGrip Male LSC19 to Female Stage Pin Break-Out - 6 Foot
