LEX EGBO100-6-515 EverGrip Male LSC19 to Female Edison Break-Out Cable - 6 Foot

ITEM #: LEX-EGBO100-6515 MFG #: EGBO100-6-515

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$411.25

Our Price:

$380.62

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EGBO100-6-515 - Overview

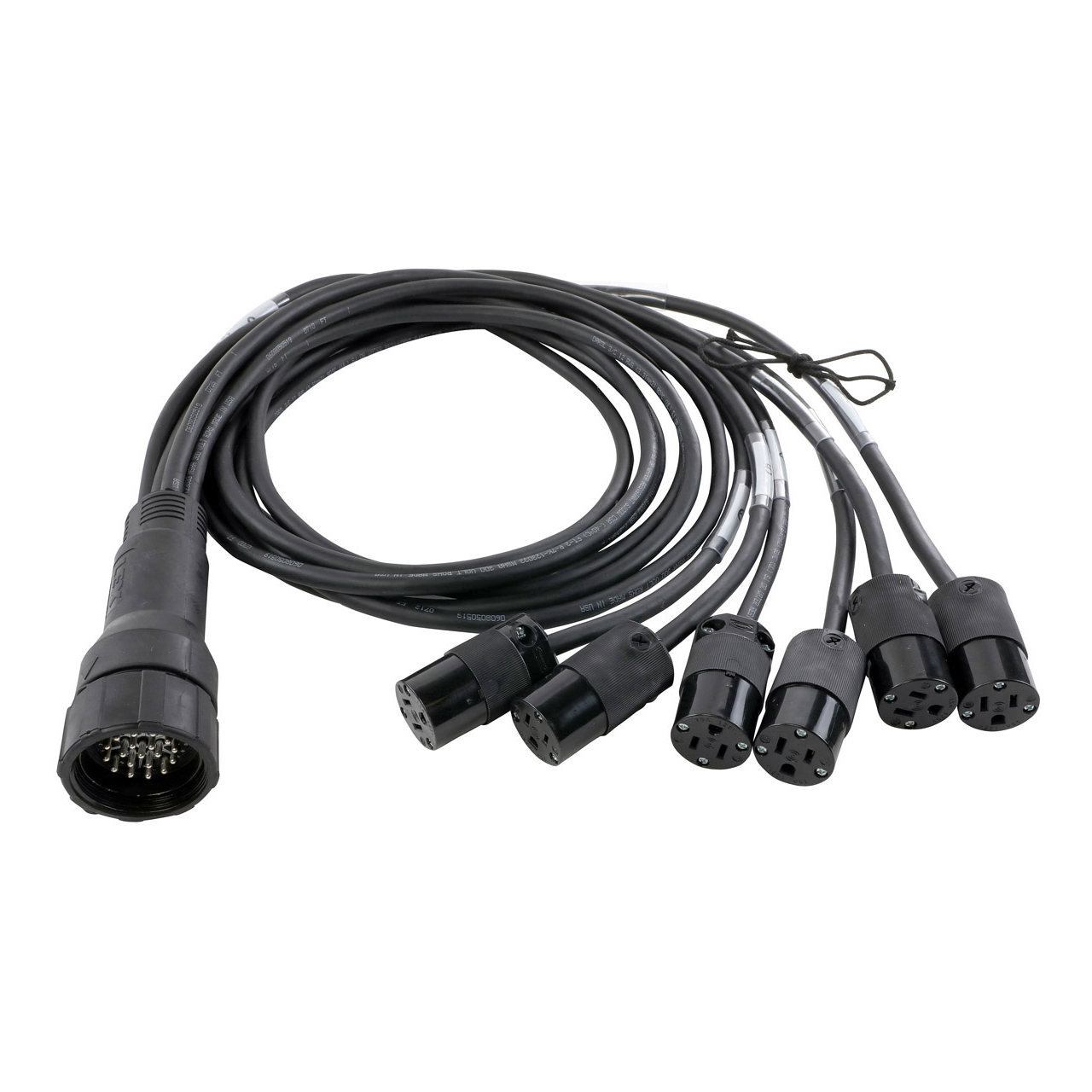

LEX EverGrip EGBO100-6-515 break-out 15A 125 VAC, (1) Molded LSC19 19-Pin Male (Plug) to (6) 15A NEMA 5-15 Females (Connectors), #12/3 Type SJOOW Cord, Adapter. It provides power to (6) NEMA 5-15 connectors from (1) molded 6-circuit LSC19 plug.

Markets Served:
- Motion Picture and Television Production
- Theatrical Production
- Concert Touring
- Live Events
- Convention Centers

  • Features:

    • Provides power to (6) NEMA 5-15 connectors from (1) molded 6-circuit LSC19 plug
    • Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
    • Pins and sockets cannot push back, extending the life of the connectors
    • Rugged construction helps prevent broken conductors and loose or damaged ground rings
    • Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
    • Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
    • Silver-plated brass contacts for high conductivity
    • All black construction blends into scenery and is ideal for stage or studio lighting applications

  • Specifications:

    • Rating: 15 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
      Note: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
    • Male Plug: 1x LSC19, 6x 10 Amp, 2-pole, 3-wire, 120/208Y VAC, molded 19-pin locking device
    • Cable/Cord: (6) #12/3 Type SJOOW Cord
    • Length: 6' Stock Length
    • Female Connector: 6x NEMA 5-15, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade inline device, black

  • Item Includes:

    • 1x LEX EGBO100-6-515 EverGrip Male LSC19 to Female Edison Break-Out - 6 Foot
