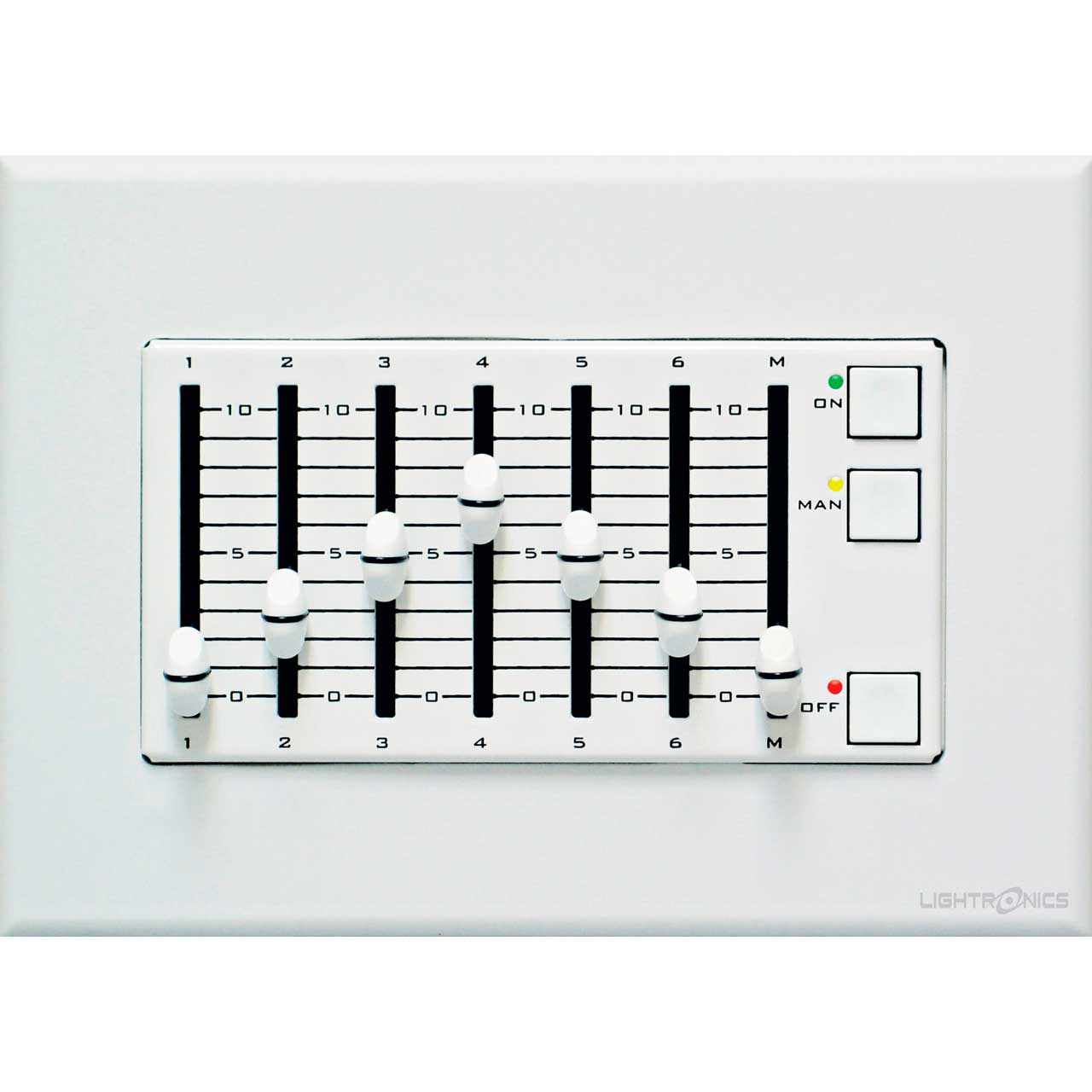

The AF3107 is a 6 scene, wall mount remote control unit intended for use with the Lightronics AR1202 Architectural dimmer. The
unit fits in a standard three gang wall switch box. All power and data connections are via a 4 wire communication bus between
itself and the AR1202 dimmer. The unit provides manual fader control of 6 scenes. A 7th fader is provided as a master control
for all six scenes. Pushbutton switches are provided to activate a blackout and all full on selection. LED indicators provide status
feedback. Multiple units may be chained together to provide dimmer control from various locations. The AF3107 may also be
used with other Lightronics architectural remote stations.
