    AF5113 - Overview

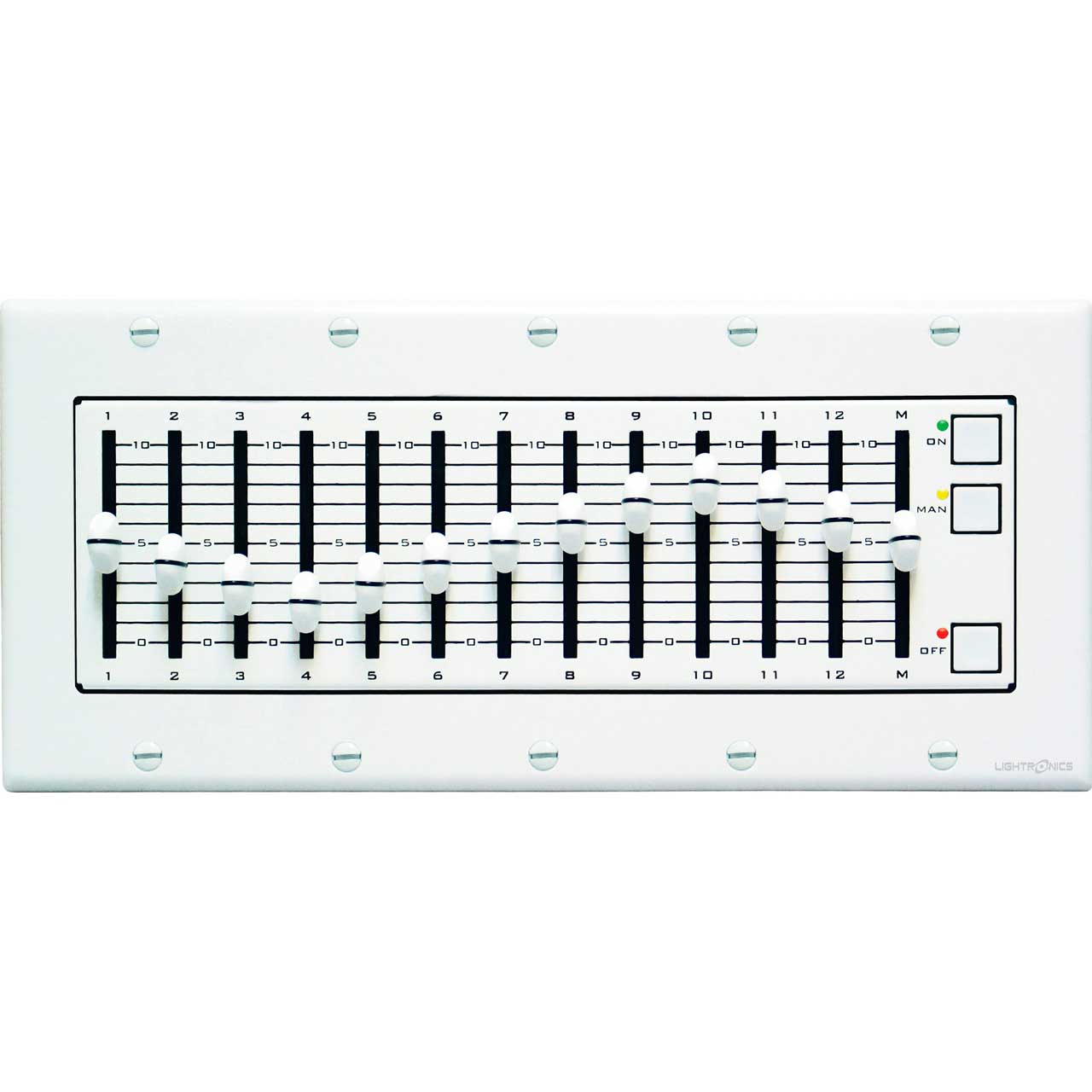

    The AF5113 is a twelve scene, wall mount remote control unit intended for use with the Lightronics AR1202 Architectural
    dimmer. The unit fits in a standard five gang wall switch box. All power and data connections are via a 4 wire communication bus
    between itself and the AR1202 dimmer. In addition to manual fader control of twelve scenes, a master fader is provided. The
    master fader enables intensity control for all twelve scenes. Pushbutton switches are included to activate a blackout and full on
    selection. LED indicators provide status feedback. Multiple units may be chained together to provide dimmer control from various
    locations. The AF5113 may also be used with other Lightronics architectural remote stations.

    • Features:

      • 12 Scene Fader Station with Master
      • Fader Scene Control
      • Available in White
      • Status LEDs
      • Blackout
      • RS-485
      • Five Gang Box
      • Low Voltage
    • Specifications:

      • Scenes: 12 + Master Fader
      • Communication Bus: Bidirectional RS-485
      • Wiring: Dual Twisted Pair Data Cable
      • Power Input: 18VDC provided by AR1202
      • Size: 9.125”W x 4”H x 2.5”D
      • Weight: 1.1 Pounds
