ALX S4 - Overview

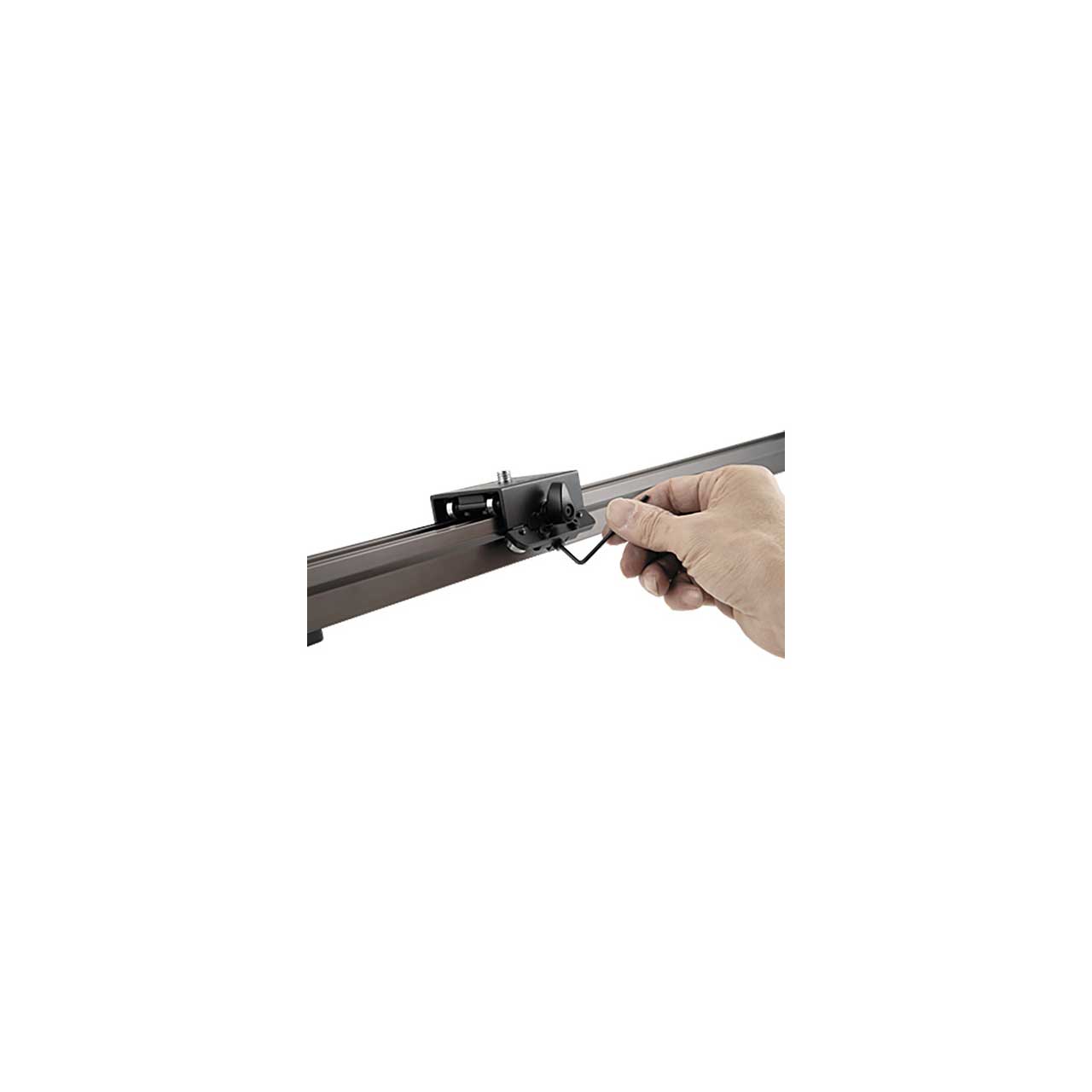

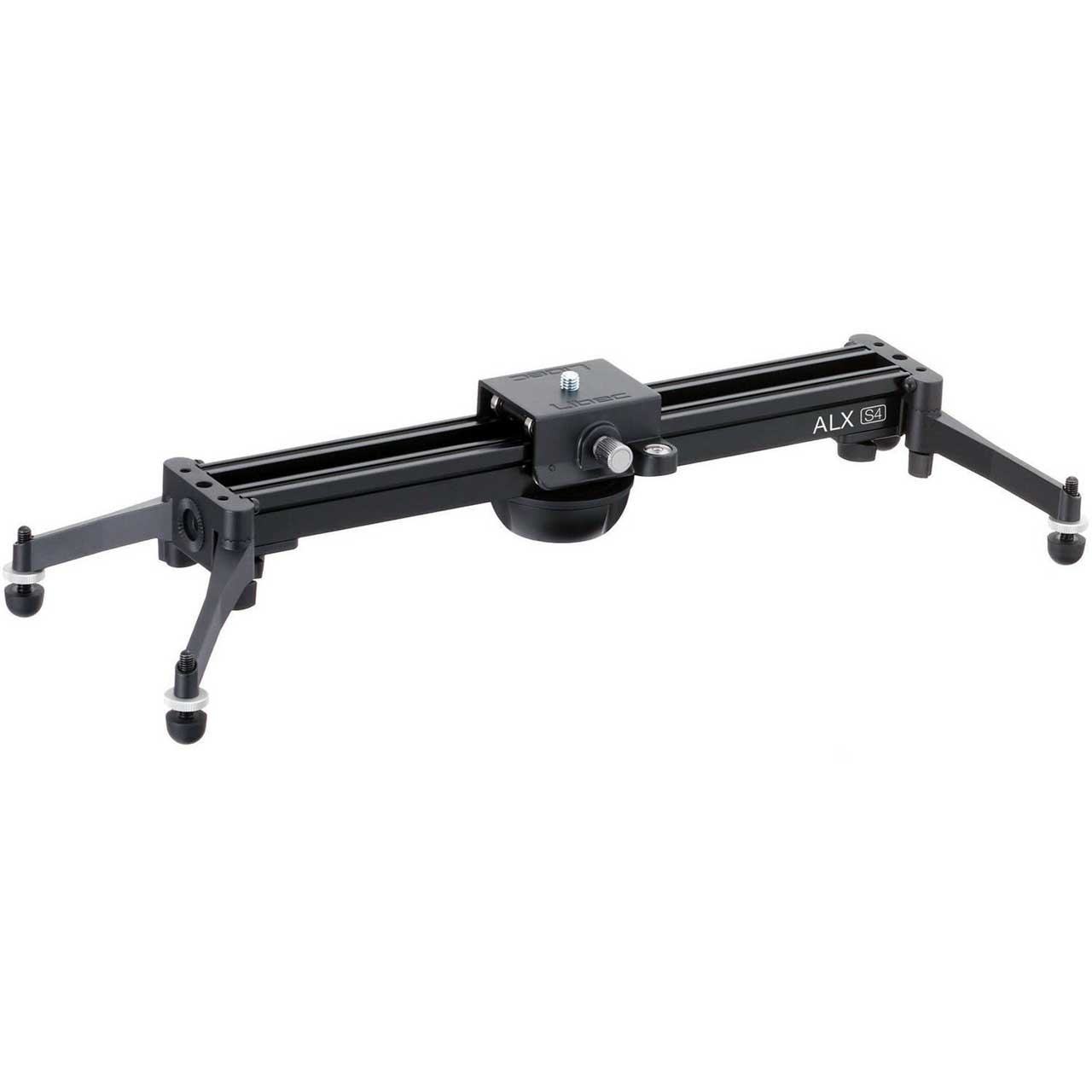

The Libec ALX S4 is the perfect slider shooting with a smooth and delicate controllability. ALX S4 allows you to slide your camera on a 75mm or flat base tripod or on a tabletop. The sliding range is 12" and payload is 15kg / 33 lb. when used on a tabletop. This is achieved by the eight high-performance ball bearings applied with a special grease, which are installed in the slider platform. The ball bearings are positioned efficiently on the rail top and at an angle on both sides, hugging the rail to prevent wobbling during operation. The spring-equipped friction knob enables precise weight adjustment for a smooth sliding movement. The friction knob allows you to adjust sliding tension, and a brake knob sets the sliding rail in one place. Using the supplied hexagon wrench, pushing force of the ball bearing against the rail can be easily adjusted.

A dual base tripod mount adapter, featuring a 75mm ball base design with a flat bottom, allows direct compatibility with the ALX T tripod as well as other flat base tripods. A bubble level conveniently sticks out on the side for easy leveling. 1/4"-20 and 3/8"-16 threads are available on the top ends for attaching articulating arms with lights and other gear. Rosette adapters are available on both sides for attaching rosette accessories. If you'll be using the slider on the ground or tabletop, you'll be able to adjust the height of the feet on either side if necessary. The feet simply screw in or out to be adjusted, and are tightened in position by knobs above them. Slider has collapsible tabletop legs for easy setup and storage.

All components are modular allowing users to have multi style configurations for any shooting environment. The ALX SP slider platform has a 3/8"-16 threaded mounting stud, which directly supports the flat bottom of the dual base ALX H head. Adding an extra ALX H Head allows users to pan, tilt, and slide along the rail. The rail length is adjustable thanks to its detachable design. The rail can be easily detached and replaced with slider rails ALX SR8 or ALX SR12 by simply removing the leg lock knobs. Includes Padded Carrying Case with strap, tripod mount adapter and bowl clamp for flat base / 75mm ball diameter tripods, and a maintenance kit for longevity.

  • Features:

    • Has a 12” slide range with a 15kg / 33lb Payload when used on a tabletop
    • 8 high-performance ball-bearings on the top and sides to allow for smooth, wobble-free motion
    • Tension / Friction knob, Brake knob, and bubble level
    • Equipped friction knob enables precise weight adjustments for a smooth sliding movement
    • Dual base tripod mount adapter and bowl clamp for flat base / 75mm ball diameter tripods
    • Components are modular and can be used with slider rails ALX SR8, ALX SR12
    • Slider rail can be easily detached and replaced by using the leg lock knob

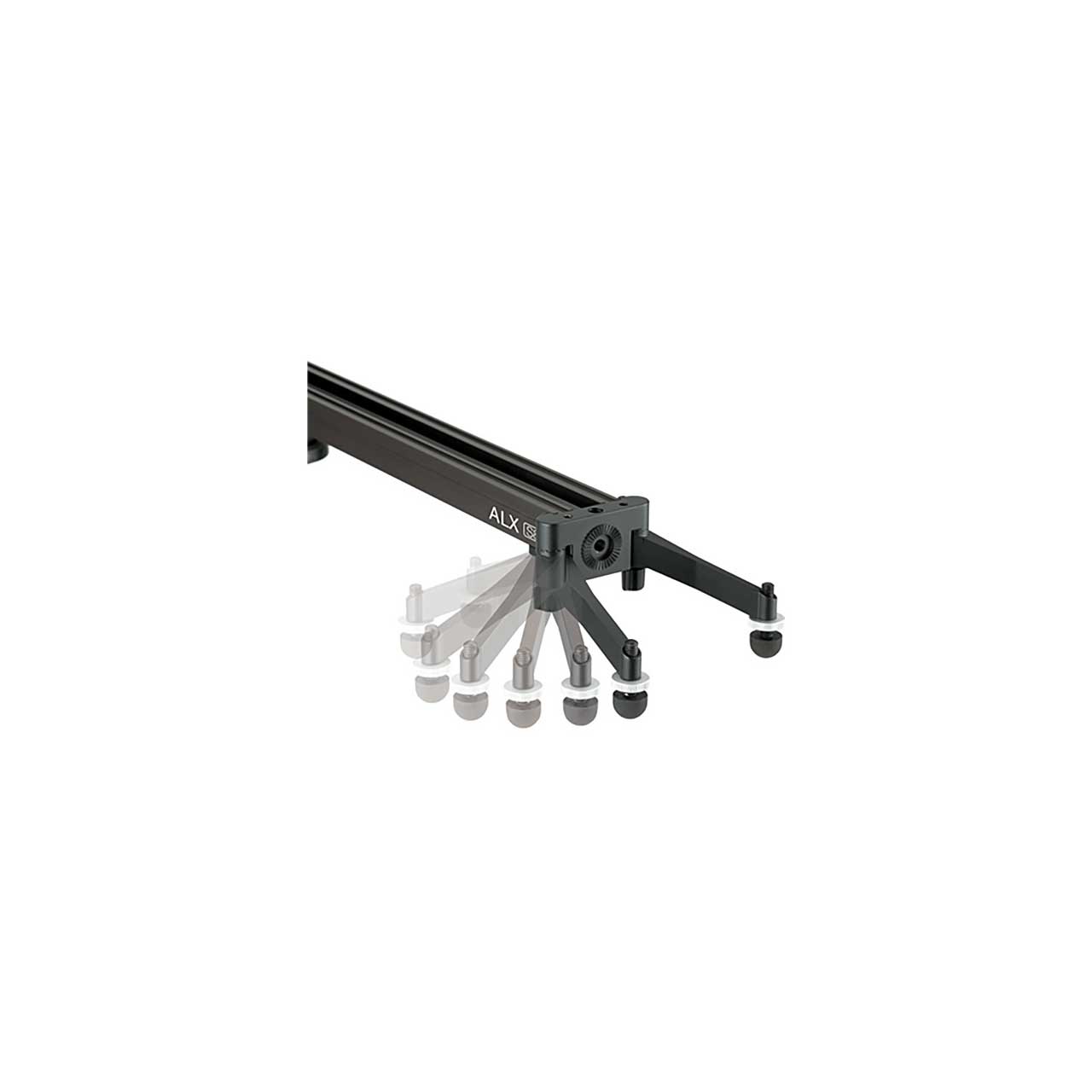

    • Collapsible tabletop legs for easy setup and storage.
    • Height adjustable feet
    • Includes Padded Carrying Case with fixing handle and maintenance kit

  • Specifications:

    • Sliding Range 12" (71 cm)
    • Payload 33 lb. (15 kg)
    • Mount Types 3/8"-16 threaded head mounting stud
    • 3/8"-16 thread on bottom of tripod dual base adapter
    • 1/4"-20 and 3/8"-16 accessory mount threads
    • Rosette adapters on the sides
    • Material Slider: Aluminum alloy and engineering plastic; Carry Case: Nylon
    • Tripod dual base adapter 75mm ball base/flat base (3/8"-16 thread on bottom)
    • Length 15.5" (400mm)
    • Weight 3.1 lb. (1.4 kg)
    • Package Weight 7.0 lb.
    • Box Dimensions (LxWxH) 17.0 x 13.5 x 7.0"

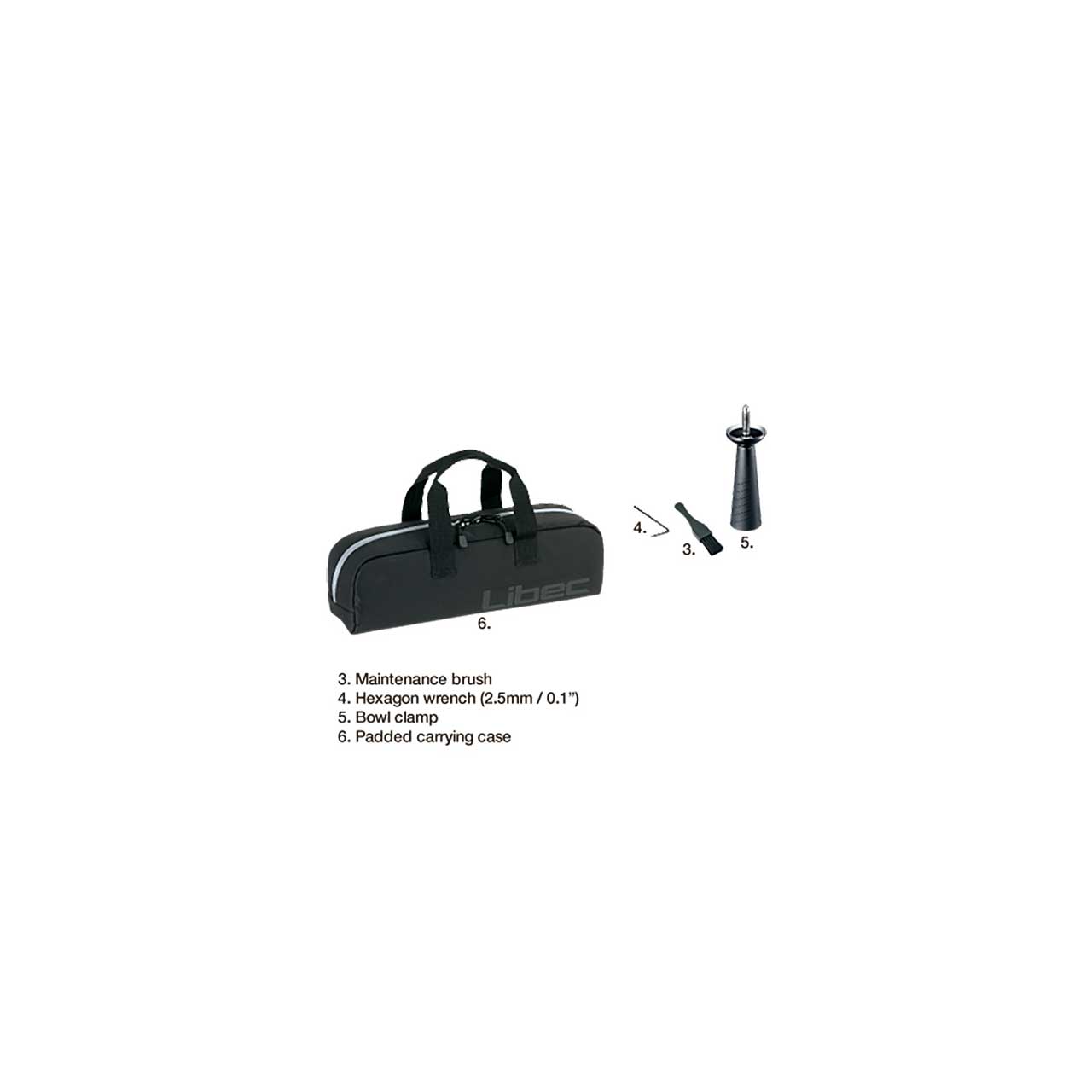

  • Item Includes:

    • Slider with ALX SP Slider Platform with Friction knob, Brake knob, and bubble level
    • Dual Base Tripod Mount Adapter
    • Tripod Mount Fixing Handle
    • Collapsible / removable tabletop legs
    • Padded Carry Case for Slider
    • Maintenance kit
    • 3-Year Limited Warranty
