Lilliput A13 13.3 Inch 4K Ultra HD OLED Broadcast Monitor - HDMI / 3G-SDI / DisplayPort

A13 - Overview

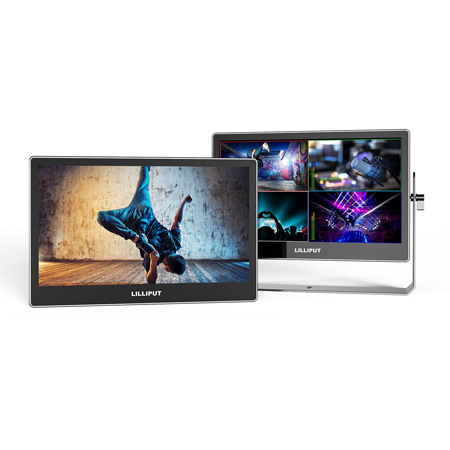

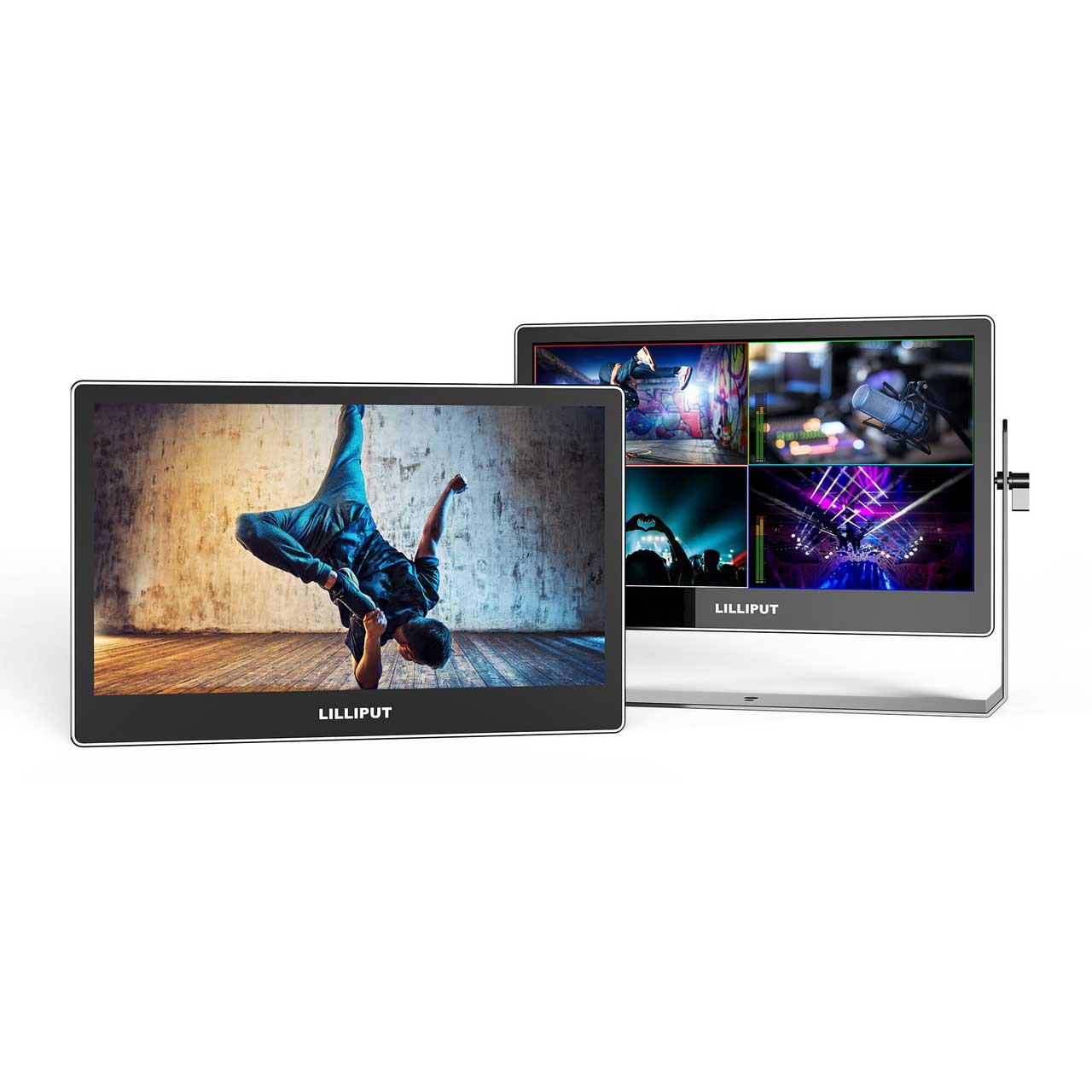

LILLIPUT 13.3 inch 4K OLED Broadcast Monitor

• Features:

  • Display: 13.3 inch, 3840x2160 OLED
  • Input: 3G-SDI x1; HDMI x4; DP x1
  • Output: 3G-SDI x1
  • Feature:OLED 100000:1, 100% DCI-P3, 4K screen panel, Quad-split


• Specifications:

  • Display
  • Panel: 13.3" OLED
  • Physical Resolution: 3840x2160
  • Aspect Ratio: 16:9
  • Brightness: 400 nits
  • Contrast: 100000:1
  • Viewing Angle: 170°/ 170°(H/V)
  • Color Space: 100% DCI-P3
  • HDR Supported: PQ

    Signal Input
  • SDI: 1
  • DP: 1
  • HDMI: 1x HDMI 2.0, 3x HDMI1.4b

    Signal
  • Loop Output: SDI: 1x 3G-SDI

    Support
  • Formats: SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60.
  • DP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
  • HDMI 2.0: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
  • HDMI 1.4b: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.

    Audio In/Out
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
  • Built-in Speakers: 2

    Power
  • Input Voltage: DC 7-24V
  • Power Consumption: ≤20W (12V)

    Environment
  • Operating Temperature: 0°C~50°C
  • Storage Temperature: -20°C~60°C

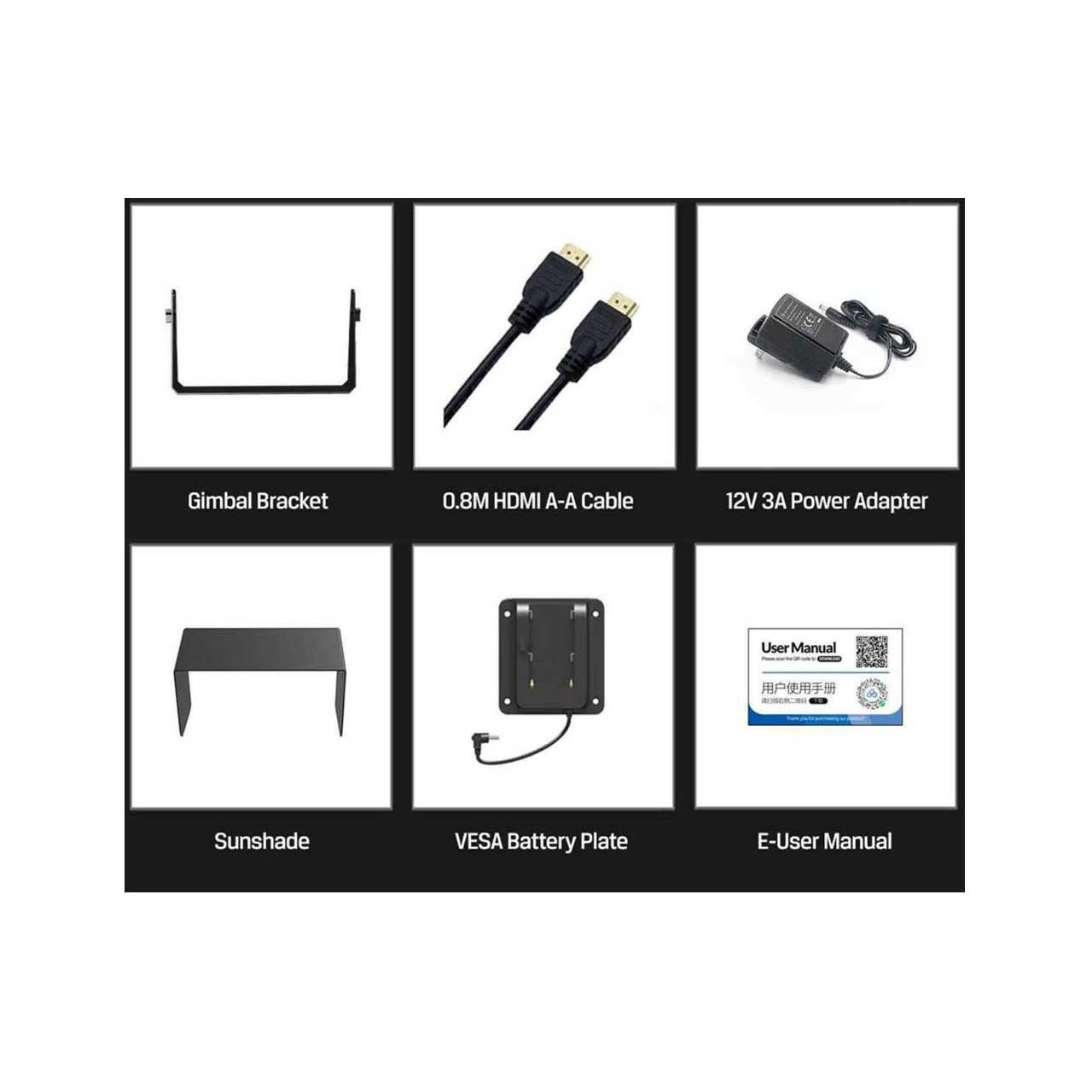

• Item Includes:

  • 1x Lilliput A13 13.3 Inch 4K Ultra HD OLED Broadcast Monitor.
  • 1x: 2 Foot HDMI Cable.
  • 1x: 12v 3A Power Adapter
  • 1x: Sunshade.
  • 1x: VESA Battery Plate.
  • 1x: E-User Manual.
