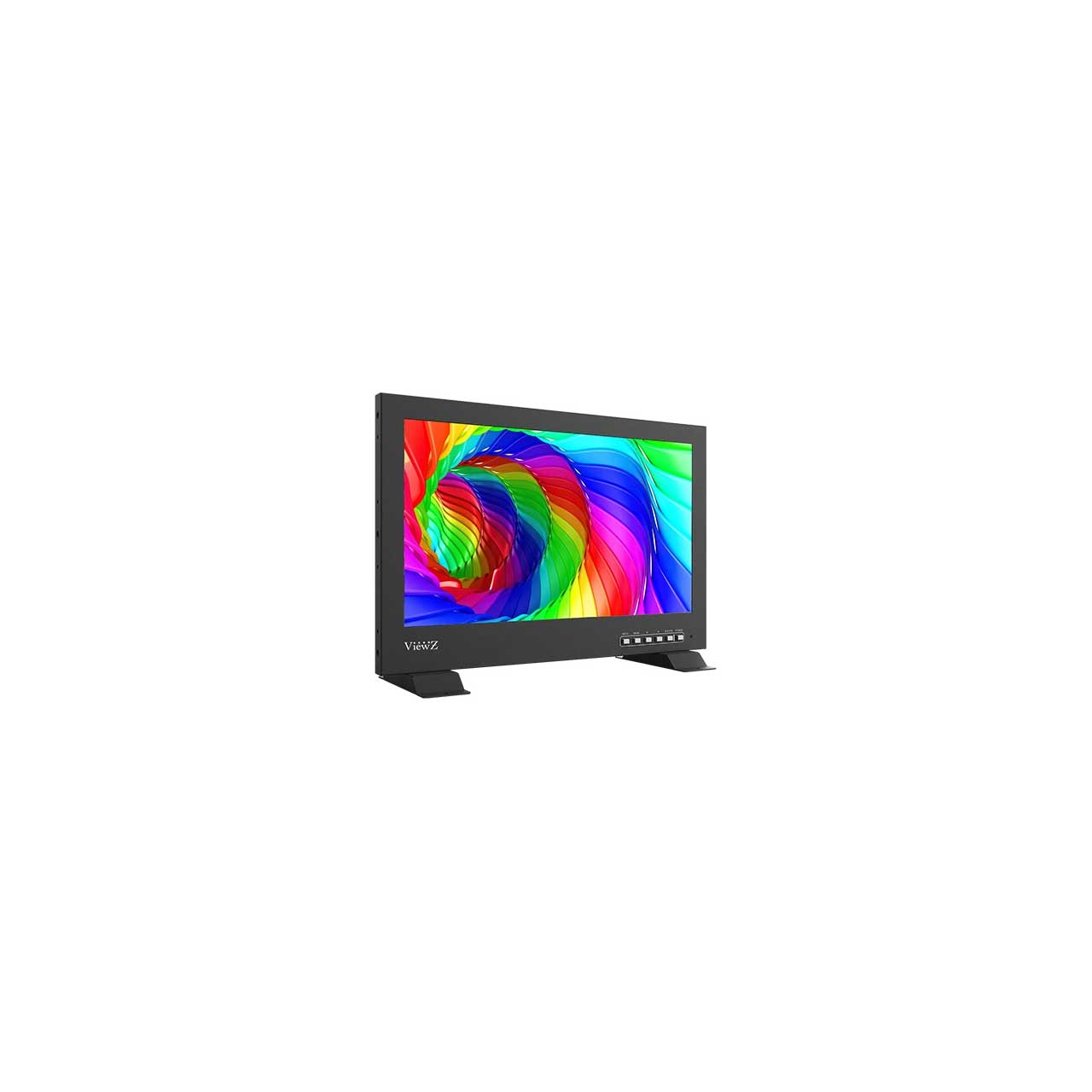

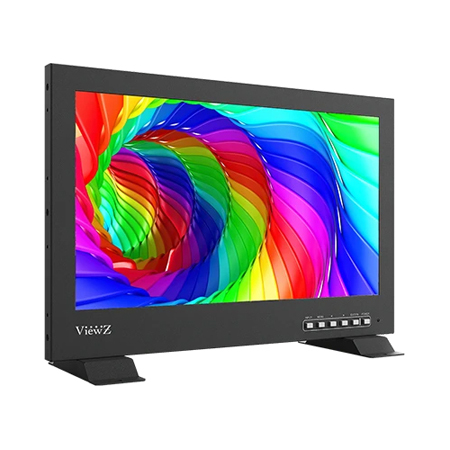

ViewZ VZ-156LED-HDR 15.6 Inch Broadcast SDI Monitor - 1000nits - 1080p Resolution - 3G-SDI/HDMI/VGA/AV

VZ-156LED-HDR - Overview

• Features:

  • HDR (HDMI) PQ supported
  • 3G-SDI 1 input and output loop-through
  • Center Marker, Safety Area
  • 1000 cd/m2 High Brightness
  • Multiple Video Interface (3G-SDI, HDMI, VGA and Analog Video)
  • VESA Mount


• Specifications:

  • Display
  • Screen Size: 15.6"
  • Max Resolution: 1920 x 1080 (Full HD) IPS pixel
  • Pixel Pitch: 0.17925 x 0.17925 mm
  • Brightness: 1000 cd/m² (Typical)
  • Contrast Ratio: 1000 : 1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 16.7 M
  • Color Space: 101% Rec. 709
  • HDR: ST2084 300/1000/10000/HLG

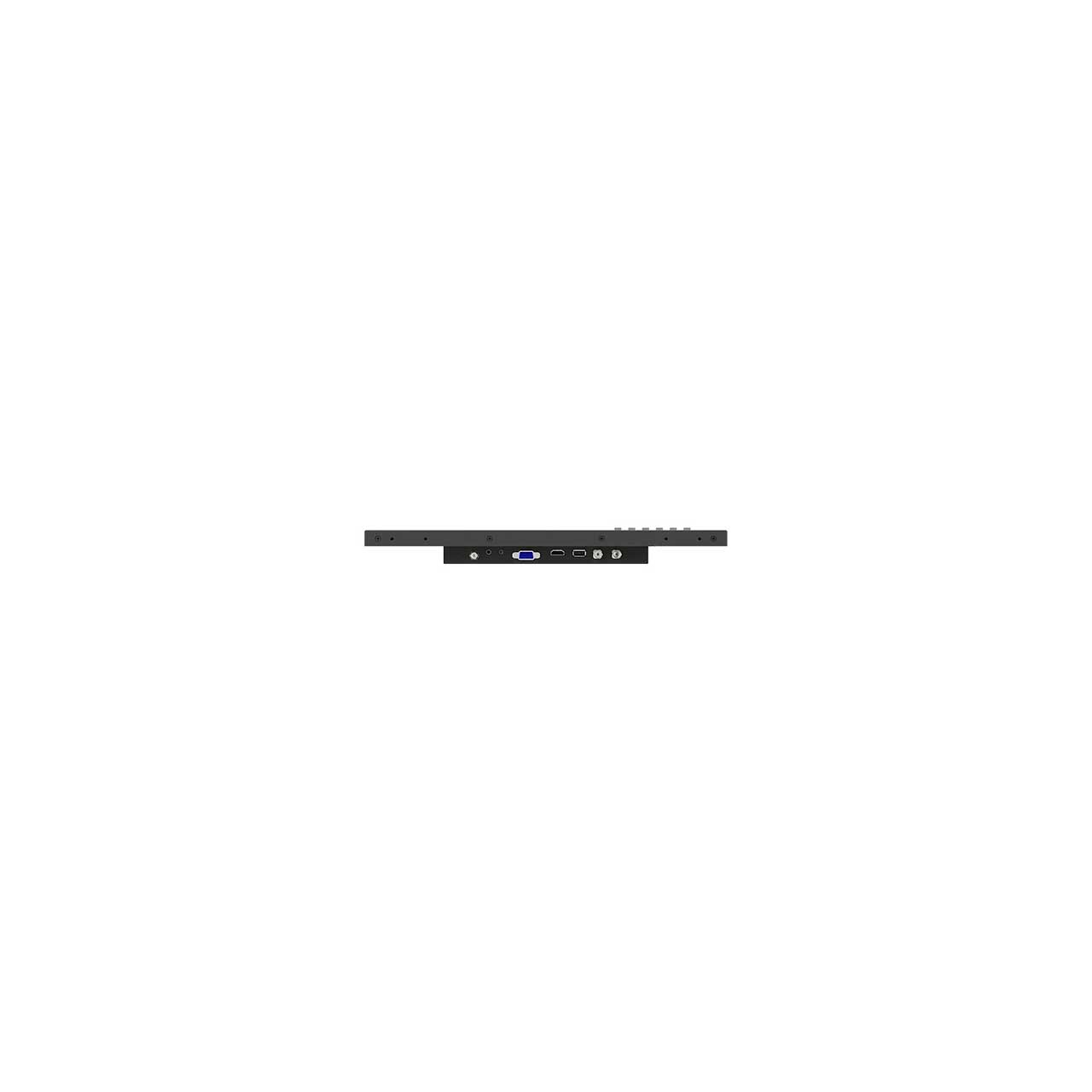

    Interface
  • 3G-SDI In / Out: 1 / 1 (Loop-through)
  • HDMI (1.4) In: 1
  • VGA In: 1
  • USB: 1

    Audio
  • Built in speaker: 1W x 2
  • SDI: 16ch 48kHz 24 bit
  • HDMI: 8ch 24 bit
  • Ear Jack: 3.5 mm - 2ch 48kHz 24 bit

    Dimensions & Weight
  • Outline Dimension (W x H x D): 15.31 x 10.23 x 1.48" / 389 x 260 x 37.6 mm
  • Net Weight: 6.32 lbs / 2.87 kg

    Input Format
  • SD-SDI/HD-SDI/3G-SDI (Level A&B): 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p)
  • HDMI: 2160p (24/25/30p), 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p)

    General Summary
  • Power - Electrical Ratings: DC 12~24V
  • Power - Consumption: ≤ 24 W (15V)
  • Warranty: 2 Years
  • Operating Temperature: -22 ~ 158°F / -30 ~ 70°C
  • Operating Humidity: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -4 ~ 140°F / -20 ~ 60°C
  • Battery Plate: V-mount / Anton Bauer Mount (Option)


• Item Includes:

  • 1x 12V DC Adapter
  • 1x Manual
  • 1x VGA Cable
  • 1x HDMI A/A Cable
  • 1x AV Cable
  • 1x Rack Mount Bracket Set
  • 1x Desktop Stand Set


• Warranty:

  • 2 Years
