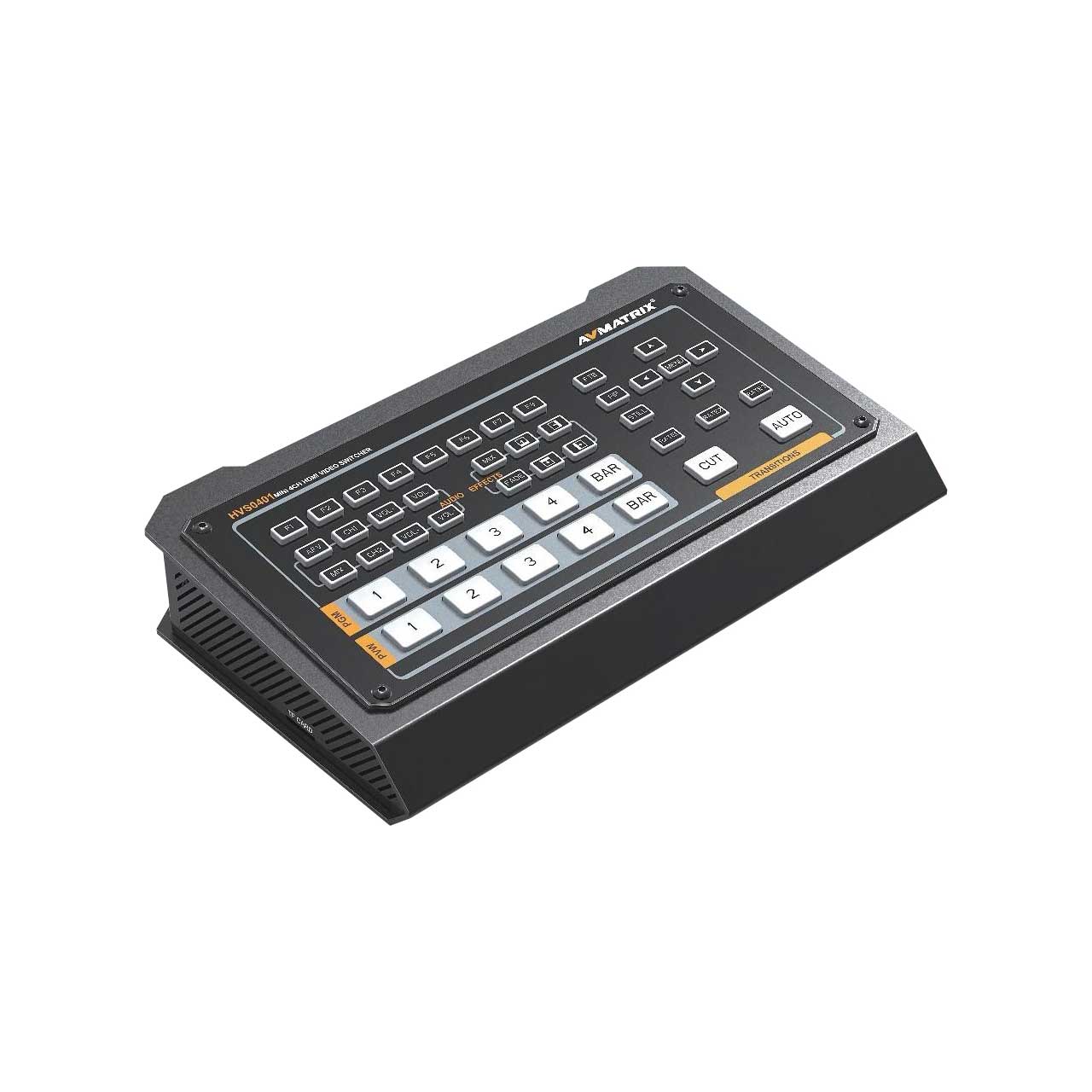

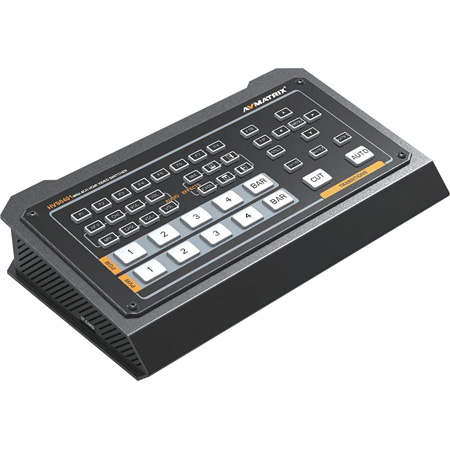

AVMatrix HVS0401 4 Channel HDMI Live Streaming Video Switcher
  • AVMatrix HVS0401 4 Channel HDMI Live Streaming Video Switcher
  • AVMatrix HVS0401 4 Channel HDMI Live Streaming Video Switcher
  • AVMatrix HVS0401 4 Channel HDMI Live Streaming Video Switcher


AVMatrix HVS0401 4 Channel HDMI Live Streaming Video Switcher

Manufacturer: AVMATRIX

Item #: LIL-HVS0401   •   MFG #: HVS0401



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the LIL-HVS0401

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

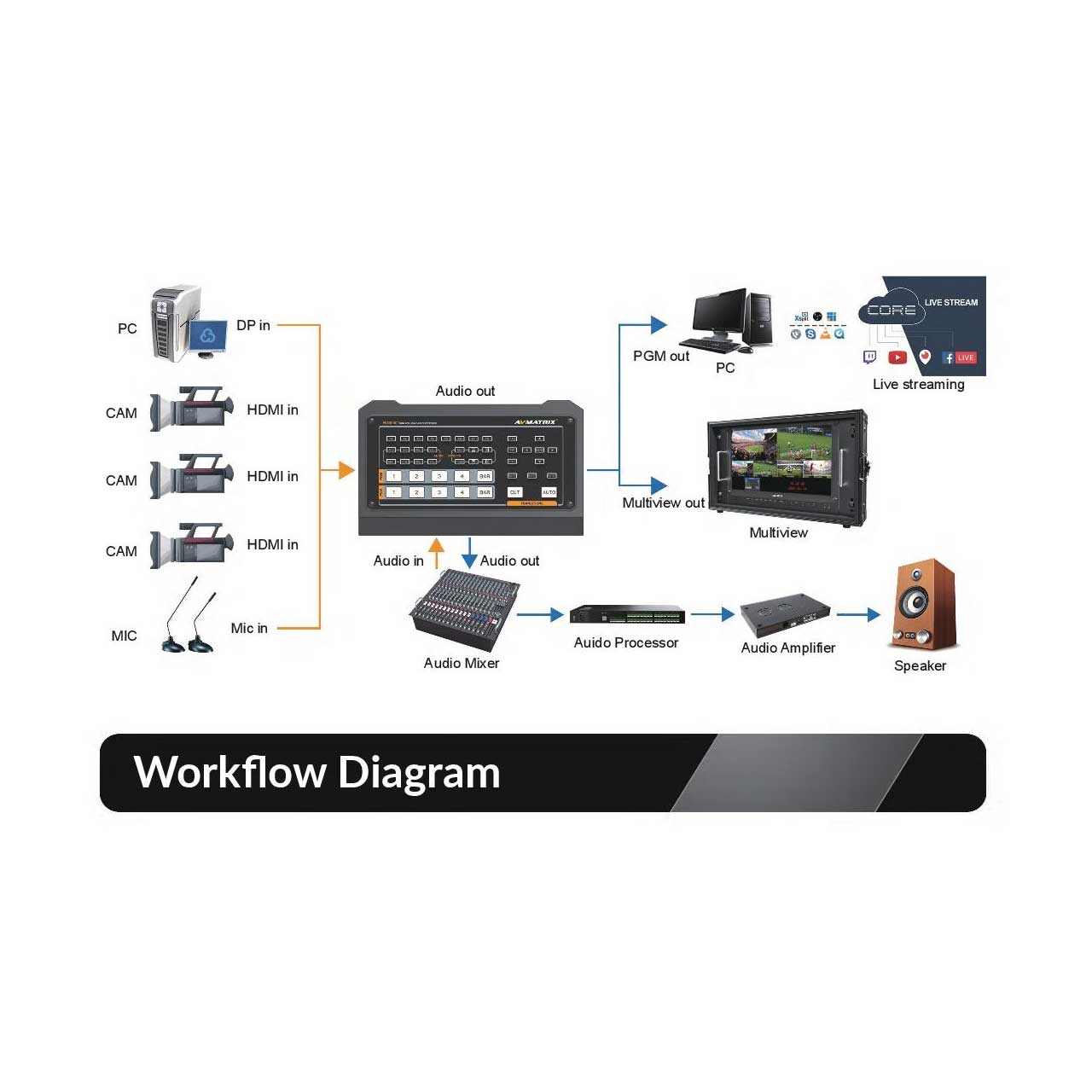

The AVMatrix HVS0401 is a 4 Channel HDMI Video Switcher. It features Multiview Monitoring, USB Capture for Streaming, Multi-Format and Scaler, Audio Mixer and PIP Mode.

Multiview Monitoring
Multiview output makes it easy to monitor 4-channel sources as well as PVW and PGM at the same time on one display. Besides, menu list is located in the bottom of the multiview.

USB Capture for Streaming
Built-In video capture function, with a simple USB type-B high speed transmission port, easily to use PC or Android phone to live streaming to Twitch, Youtube, OBS, Potplayer and VLC and no driver needed. Compatible with Linux, Mac OS, Windows 7/8/10 and Android.

Multi-Format and Scaler
Flexible to accept 4 input sources with different formats and frame rates. The PGM output can be updown cross scaled to between 1080i and 1080p.

Audio Mixer
A built-in audio mixer can mix 2-channel audios from external stereo 3.5mm input, RCA audio input and 4 embedded audio of HDMI/DP inputs.

PiP Mode
To insert a second picture into the main picture. Simply adjust its size and position, then apply to program.

Applications
Live Gaming
Remote Education
Wedding
Live Sports
Church
Teleconference
Broadcast
Concert


  • Features

    • Inputs 1 to 3: HDMI, Input 4: HDMI or DP
    • Outputs: 2XHDMI PGM,1xFIDMI multiview
    • USB capture video complying with UVC for live streaming
    • Auto/ Cut transitions and Mix / Fade effects
    • PiP function, adjustable size and position
    • Audio mixer: 3.5mm stereo / RCA audio & HDMI
    • GPIO interface for live tally system
    • FTB for emergency situation

  • Specifications

    • Connection
    • Video Inputs: CH1-CH3: HDMI Type-A (100Ω)x3, CH4: HDMI Type-A(100Ω)/Display Portx1
    • Video Outputs:
      PGM: HDMI Type-A (100Ω) x 2
      Multiview: HDMI Type-A (100Ω) x 1
      USB Cam: USB Type B x 1
      RJ45 x 1: Reserved for Live Stream
    • Analog Audio Inputs: 3.5mm stereo audio(line in) x 2, RCA (L/R) x 1
    • Analog Audio Outputs: 3.5mm stereo audio(line out) x 1
    • PC Control Port: RJ45 x 1
    • Tally: DB-15 Port x 1

      Functions
    • Transitions: Auto/Cut
    • Functions: Wipe/Mix/Fade/FTB
    • Layouts: PiP/Multiview

      Standards
    • HDMI Input Format Support:
      1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
      1080i 50/59.94/60
      720p 60/59.94/50/30/29.97/25/24/23.98
      576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
    • PC HDMI/DP Input Format Support
      1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768
      1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600
      1152x864, 1024x768, 800x600
    • HDMI PGM Output Format: 1080p 60/50/30/25/24, 1080i 60/50
    • USB Capture Output Format: Up to 1920x1080
    • Multiview Output: 1080p 60
    • HDMI Color Space: RGB 444/ YUV 444/ YUV 422

      Others
    • Current: 12V 1.5A 18W
    • Voltage: 12V

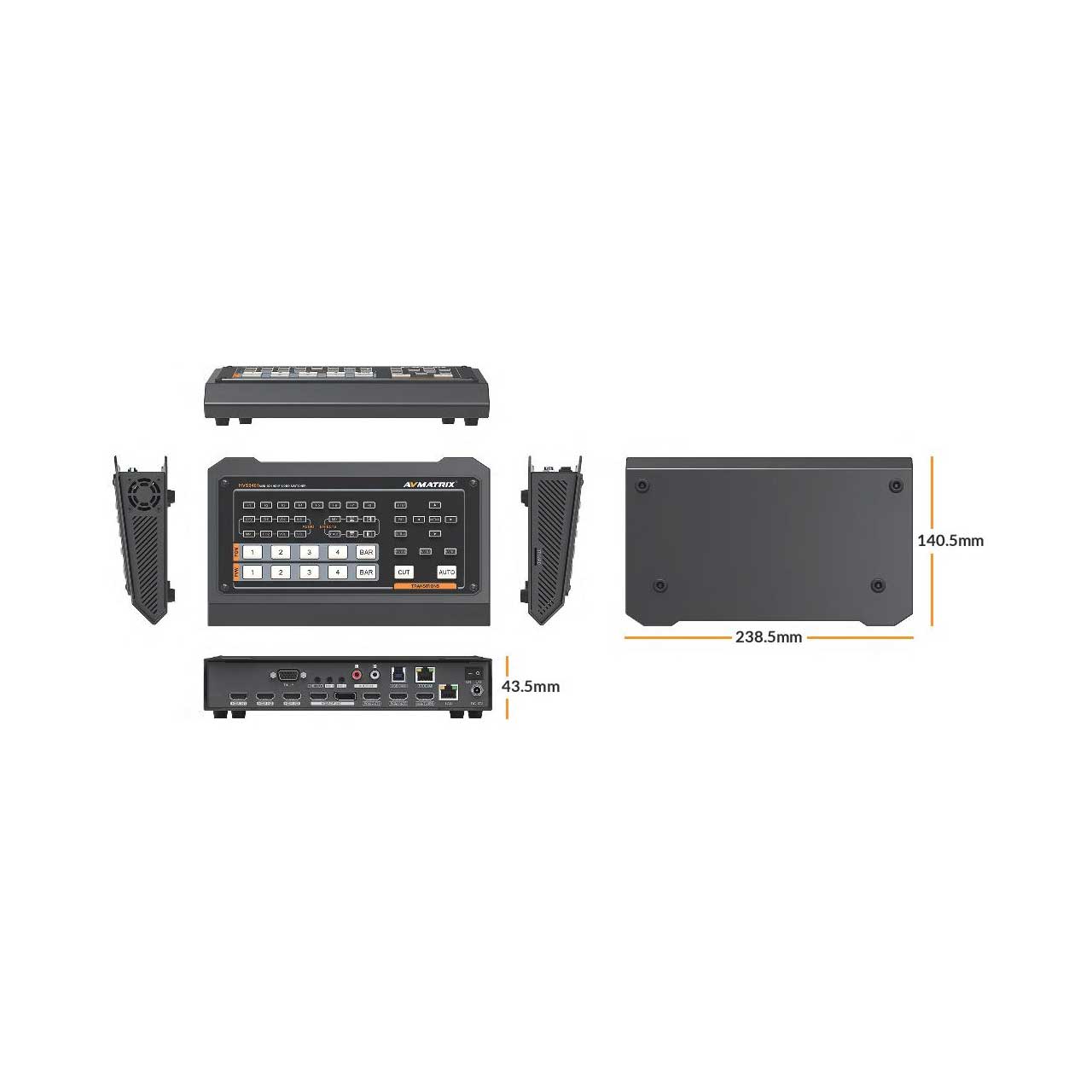

    • Dimensions (LWD): 9.38 x 5.53 x 1.71 Inches
    • Weight: 2.03 Lbs
    • Working Temperature: -4°F - 140°F
    • Storage Temperature: -22°F - 158°F
