    ACSPR-RPC1-1509 - Overview

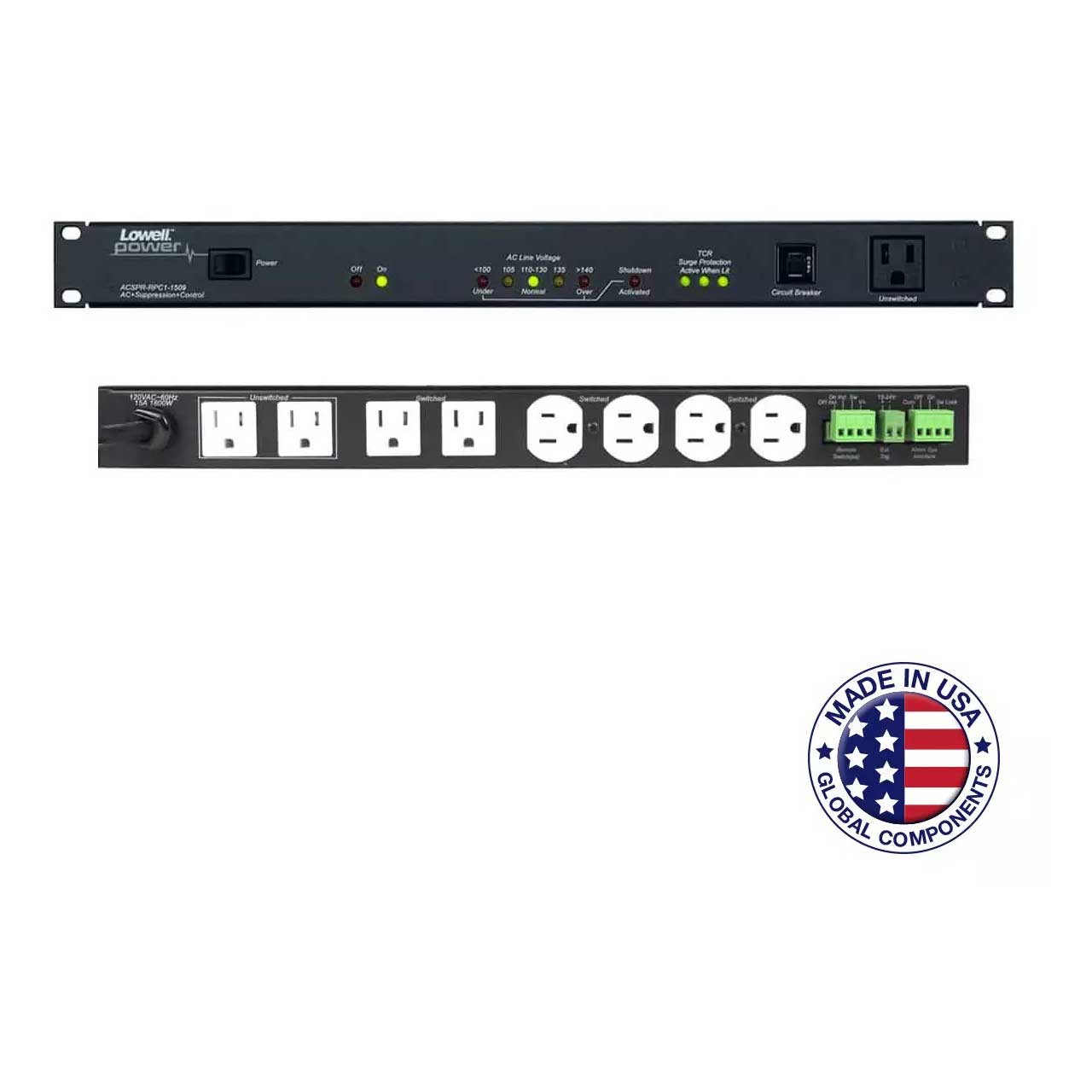

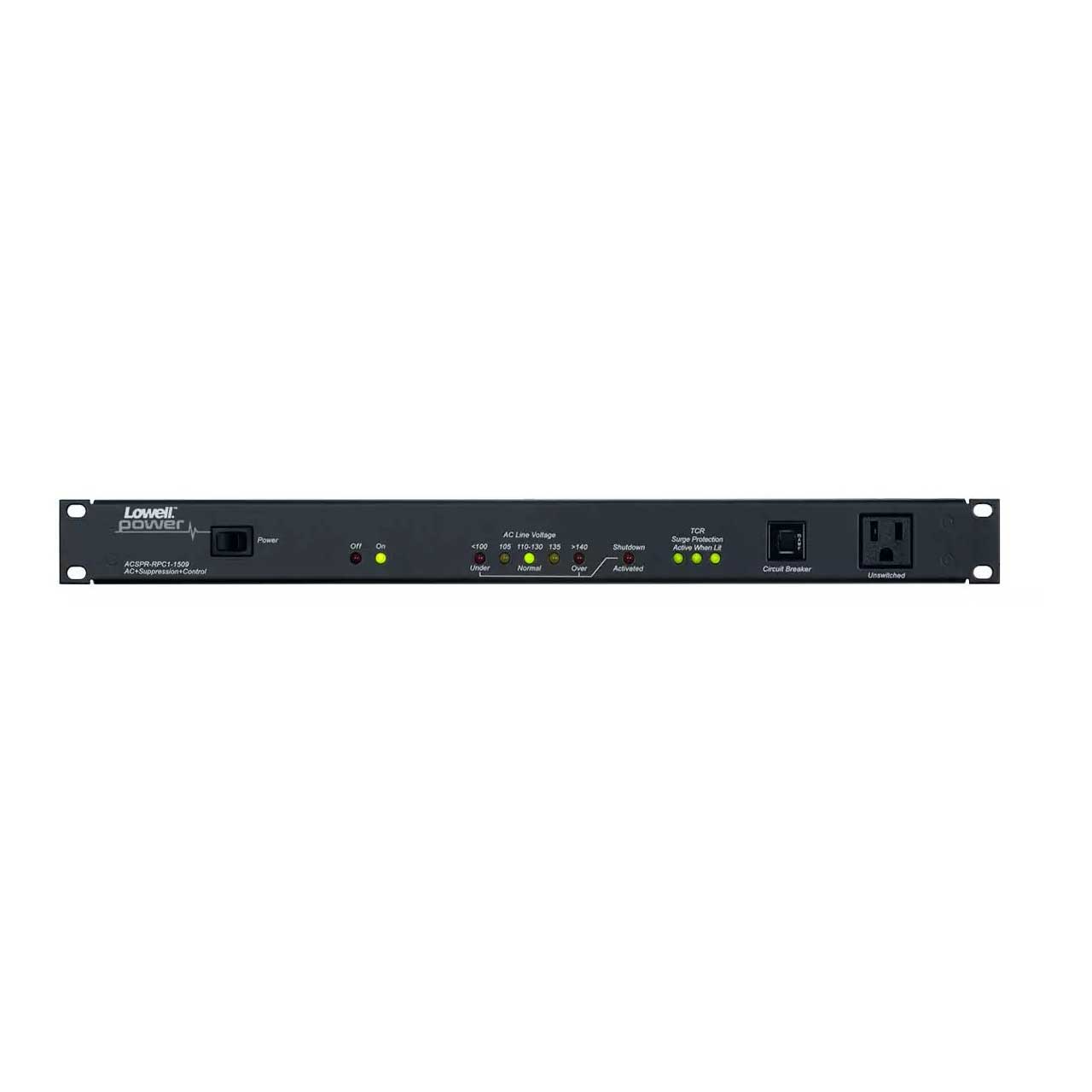

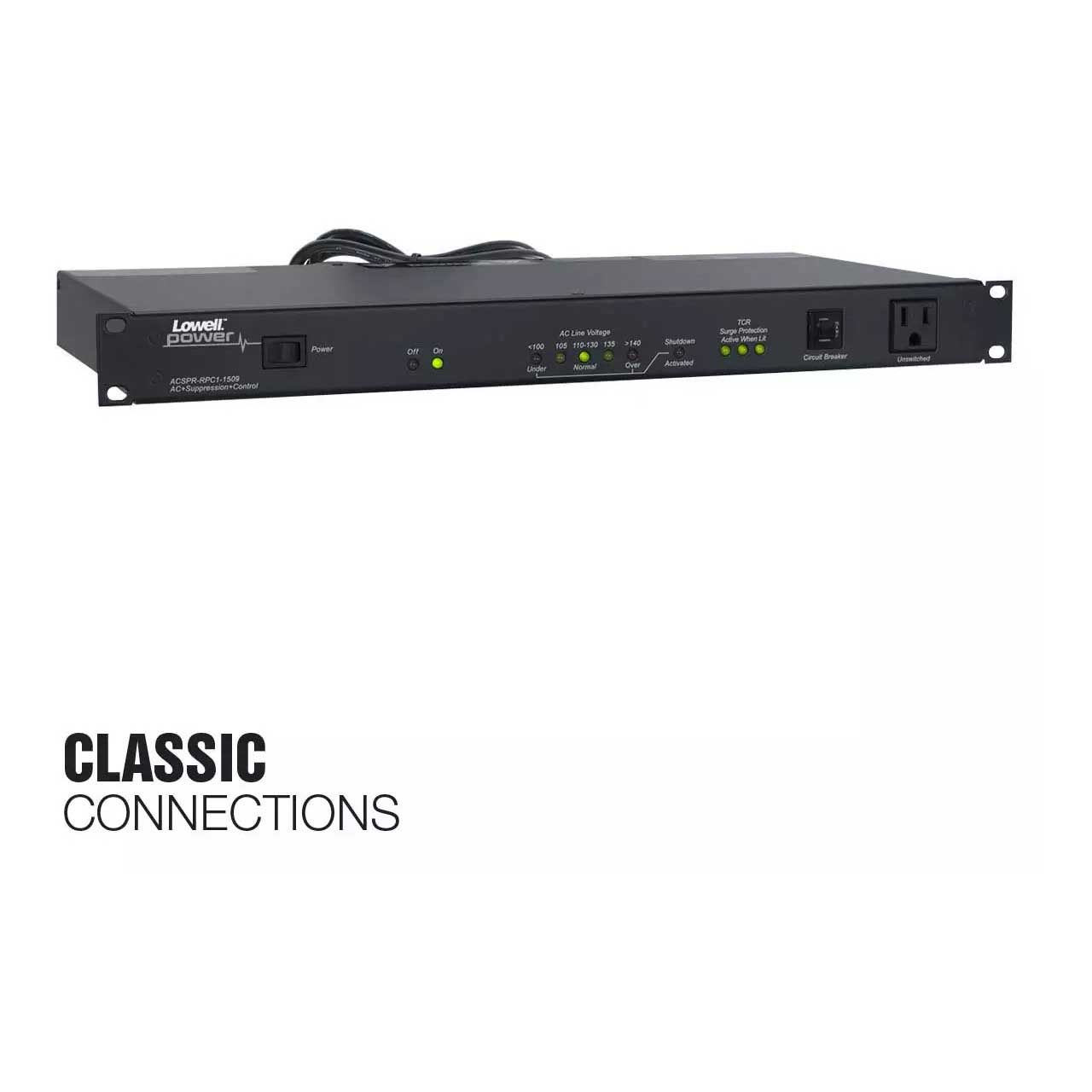

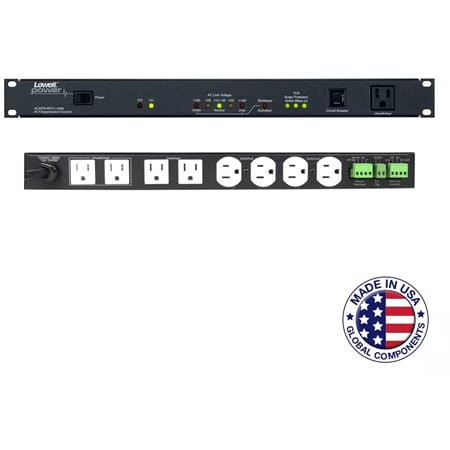

    The Lowell ACSPR-RPC1-1509 features Advanced Surge Protection to protect against power surges/spikes up to 72,000A. This model also includes the Voltage Tolerance Envelope monitor for over/under voltage protection. It has a rocker switch and nine NEMA 5-15R receptacles—a combination of switched (controlled by switch) and un-switched (always on).  The panel can be activated/deactivated by an external remote switch, trigger voltage, alarm system, or sequencer connected to rear terminal blocks.

    • Features:

      • Advanced surge protection to 72,000A
      • Remote power control circuitry (RPC) allows for on/off control by external DSP timed events. Rear termination blocks are available for connecting remote switches (momentary) and remote triggers (maintained) for on/off functions.
      • Integral override facilitates use in life safety applications where fire code mandates an alarm interface.


    • Specifications:

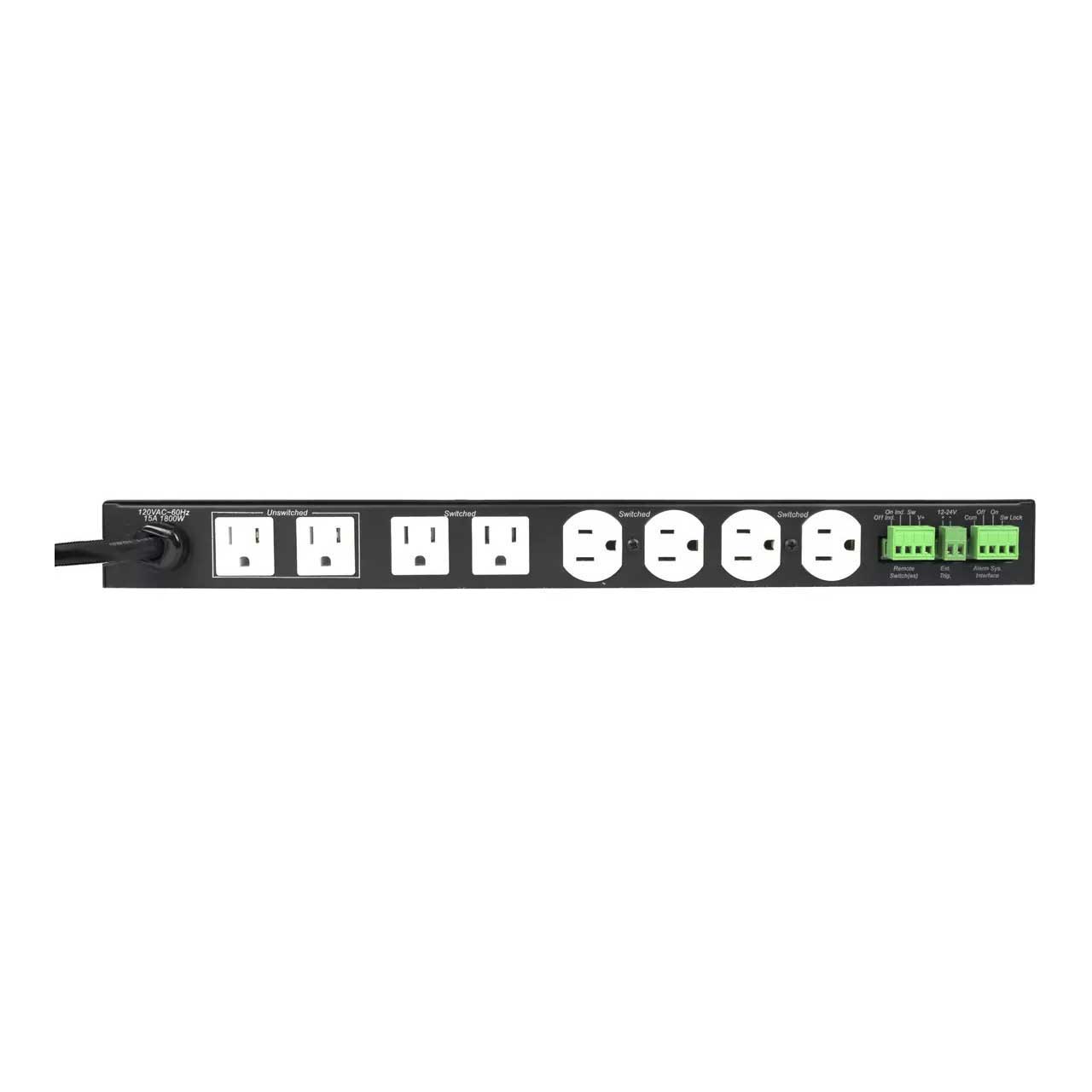

      • Outlets: 9 outlets (1 front un-switched, 2 rear un-switched, 6 rear switched)
      • Power Rating: 120VAC, 60Hz, 15A
      • Termination: 9 ft. attached cord with NEMA 5-15P plug
      • Voltage Tolerance Envelope Monitor with Auto Reset: Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
      • Steel Chassis: 19 in. x 9.00 in. x 1.75 in. (1U)
      • Activation: Rocker switch


    • Item Includes:

      • 1x 15A Power Panel
      • 6x Switched Outlets, 1U
      • 3x Unswitched Outlets, 1U
      • 1x Surge Supp, RPC, Over/Under Protection


    • Warranty:

      • 1 year
