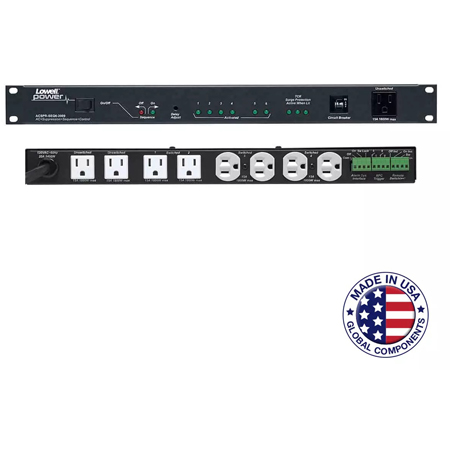

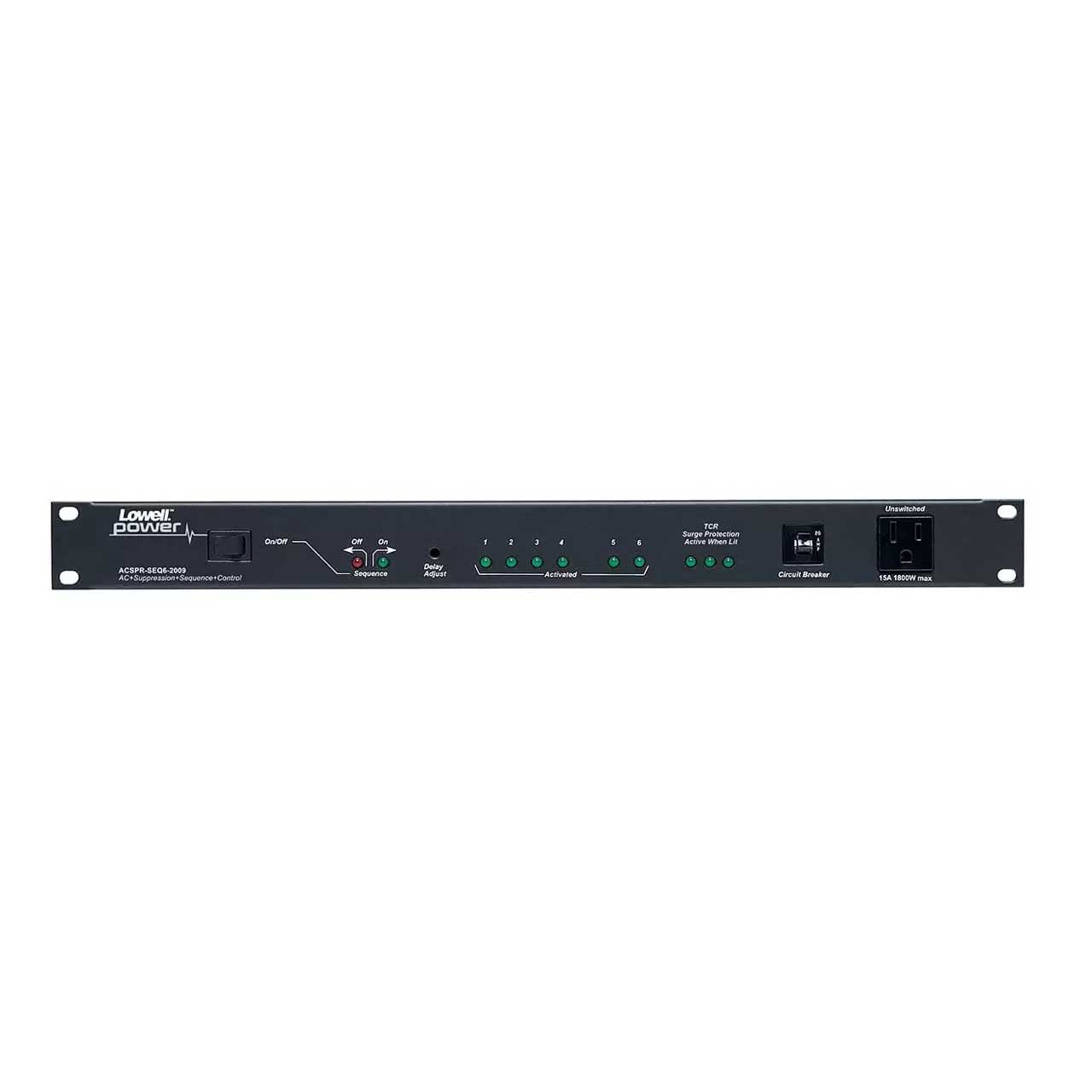

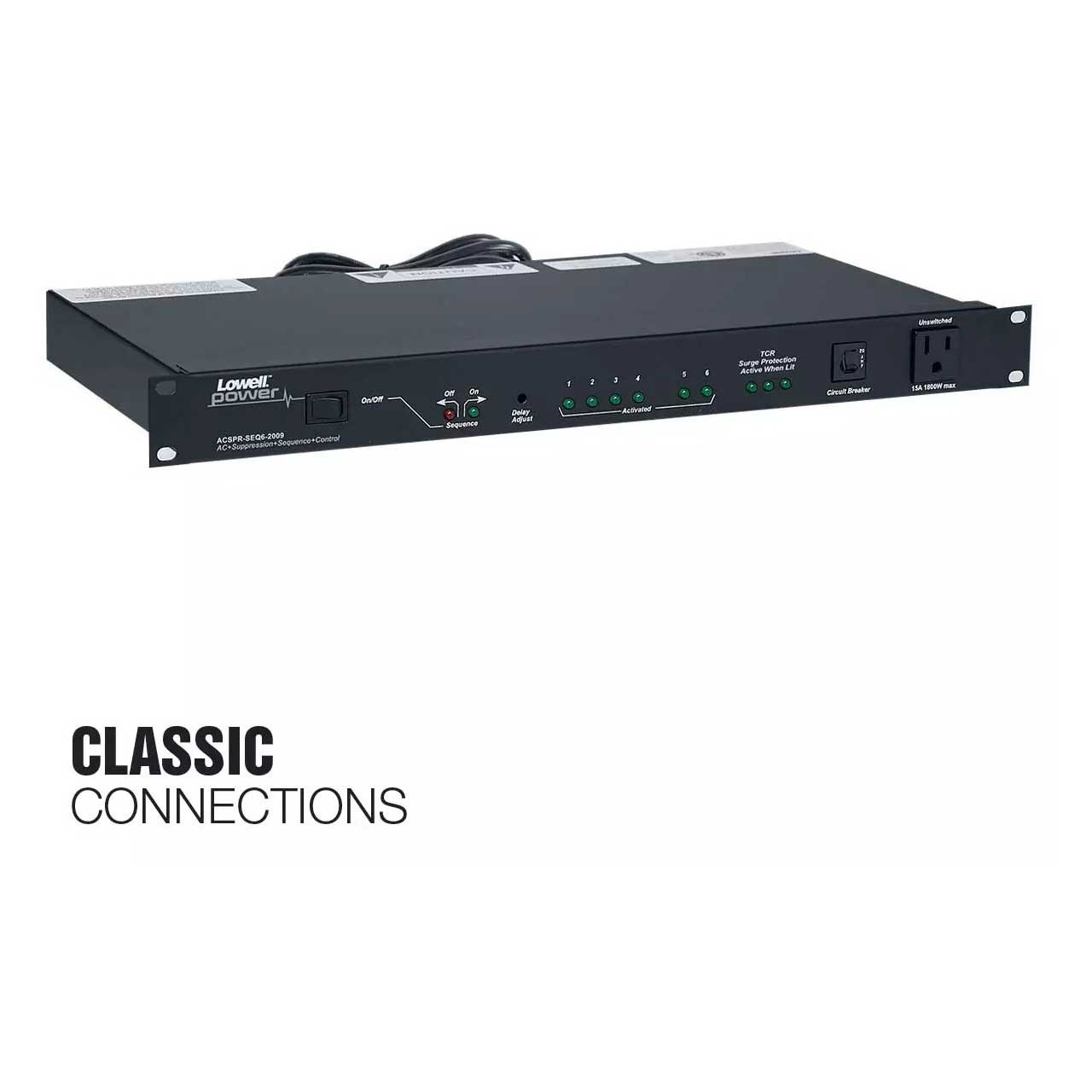

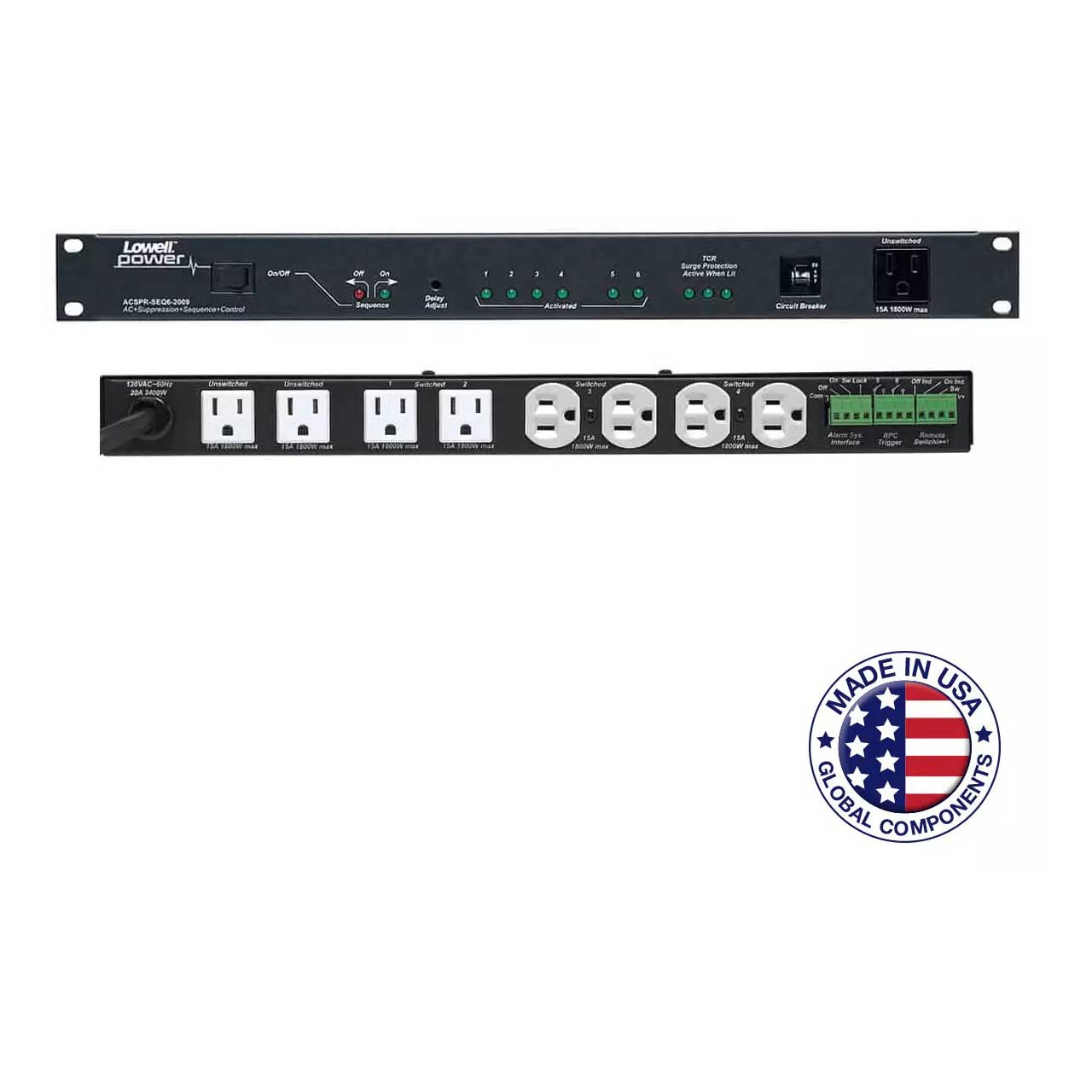

Lowell ACSPR-SEQ6-2009 Remote-Controllable 20A Power Sequencer w/ Advanced Surge Protection

ITEM #: LMCACSPRSEQ62009 MFG #: ACSPR-SEQ6-2009

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,290.00

Our Price:

$1,135.20

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ACSPR-SEQ6-2009 - Overview

    The Lowell ACSPR-SEQ6-2009 features Advanced Surge Protection to protect against power surges/spikes up to 72,000A. The panel features a four-step sequencer plus two-remote steps. Though the panel has a 20A rating it features NEMA 5-15R receptacles. Six receptacles are controlled by the front switch, which begins a delayed start (or shut down) of steps one through four as well as any RPC units connected to the rear output terminal block (steps five and six). The unit can also be controlled remotely by connecting an external switch or alarm system to the rear terminal blocks.

    • Features:

      • Color coded LED status indicators
      • Advanced surge protection to 72,000A
      • Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
      • Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.
      • Two dry contact closures (steps 5 and 6) trigger remote power control units (order separately).

    • Specifications:

      • Power Rating: 120VAC 60Hz, 20A

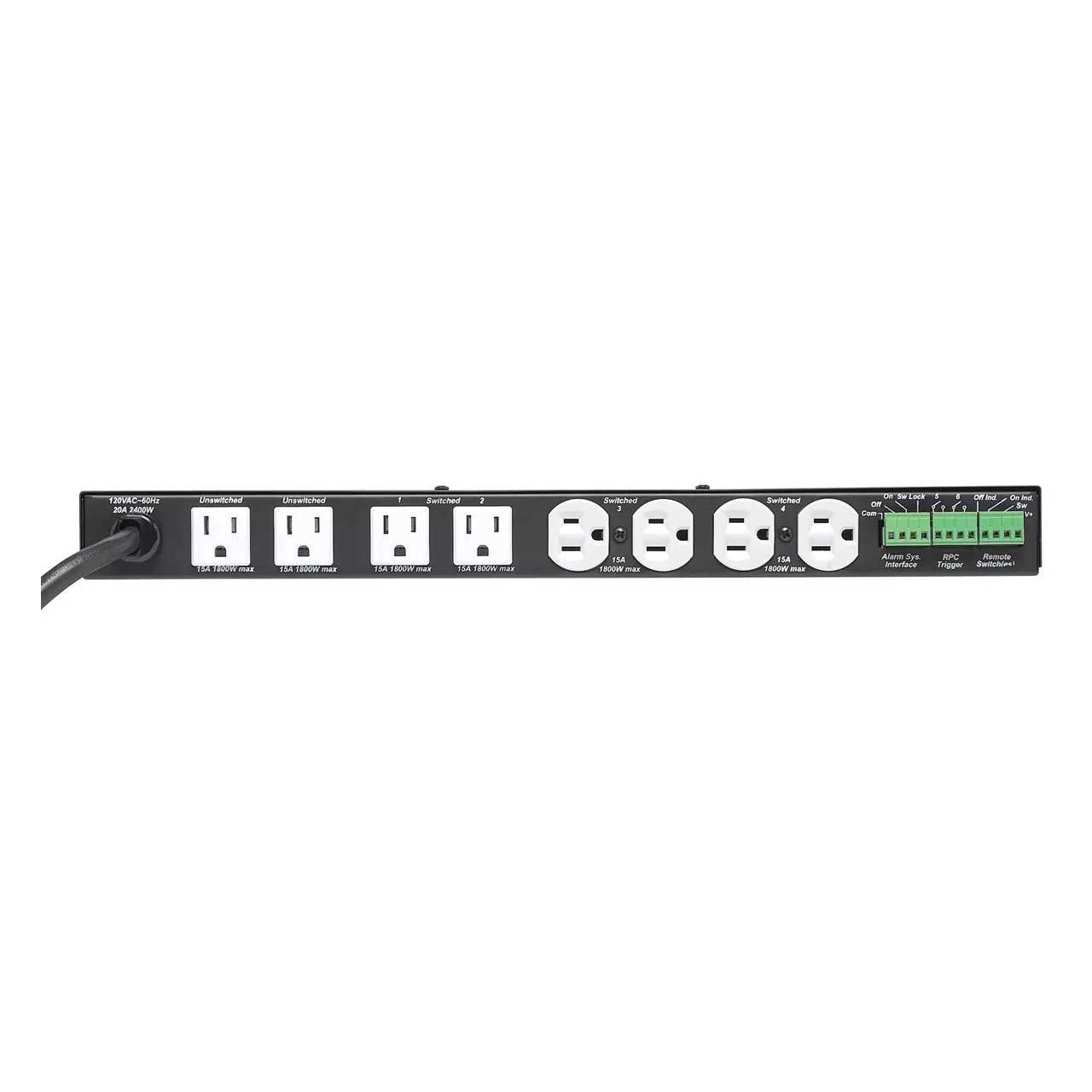

      • Outlets: 9 (15A) outlets—1 front (un-switched), 2 rear (un-switched), 6 rear (switched)
      • Actuation Switch: Front panel rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches.
      • Alarm Interface: Lock on, lock off and switch lock functions for alarm system or master control panel applications.
      • Chassis: 19 in. x 9 in. x 1.75 in. (1U)
      • Termination: 9 ft. attached cord with NEMA 5-20P plug

    • Item Includes:

      • 1x 20A Power Panel
      • 6x Switched Outlets (15A)
      • 3x Unswitched Outlets (15A)
      • 1x 4-Step and 2-Remote Seq
      • 1x Surge Supp, Cord, 1U

    • Warranty:

      • 1 year
