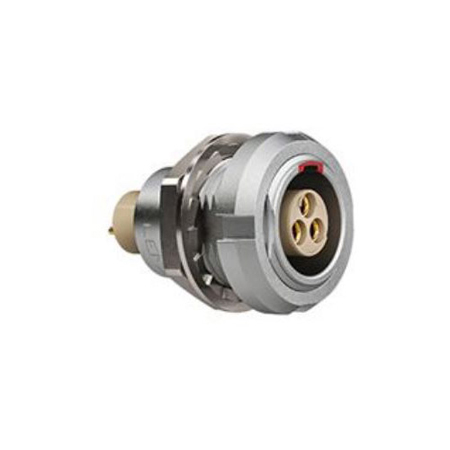

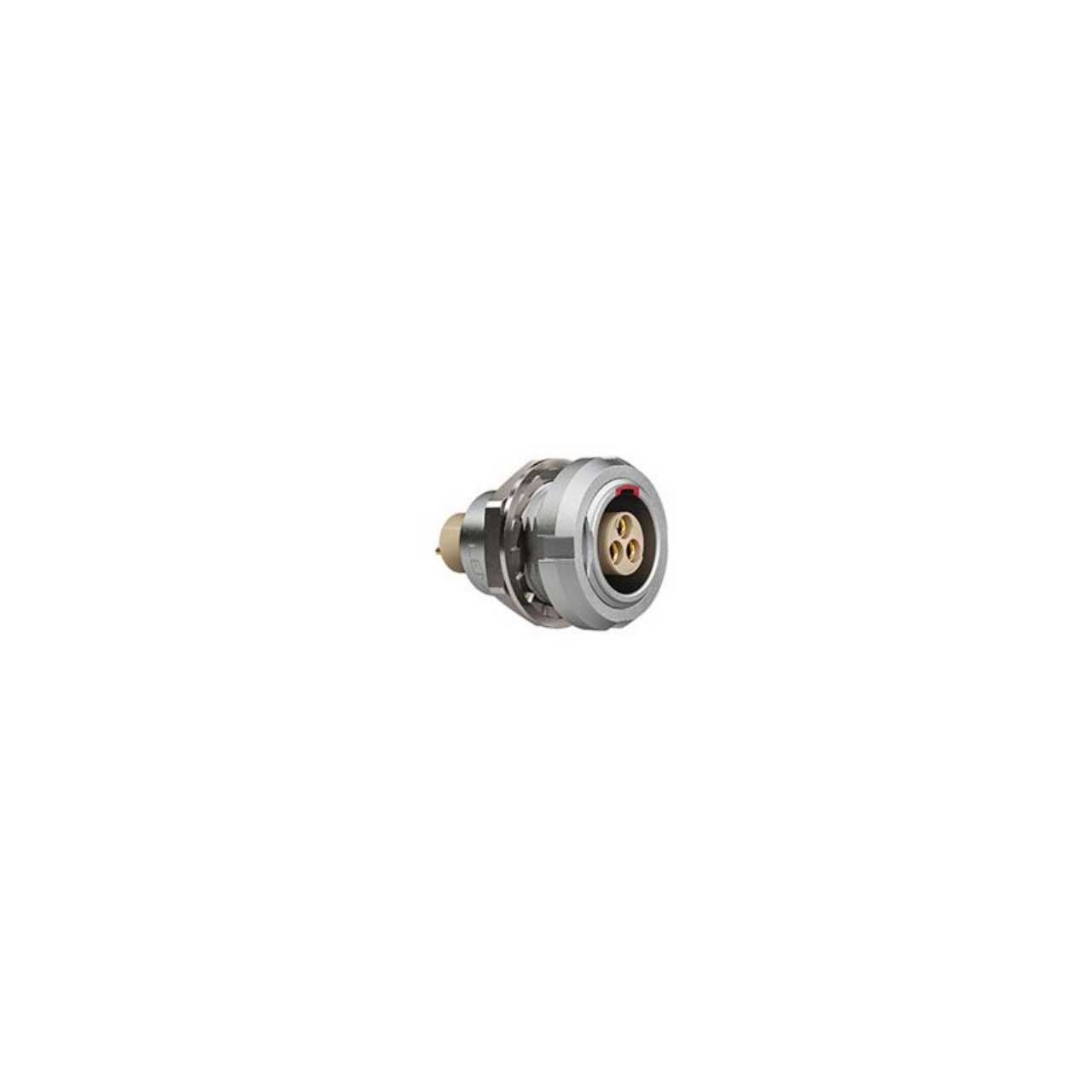

Lemo ECG.0B.303.CLN IP50 3 Position Circular Push Pull Connector with Female Socket

ECG.0B.303.CLN - Overview

• Specifications:

  • AWG wire size: 28.00 - 20.00
  • Number of Contacts: 3 Contact
  • Mounting Style: PCB Mount
  • Termination Style: Female Print (Straight)
  • IP Rating: IP50
  • Current Rating: 8 A
  • Shell Style/Model: EC*: Fixed receptacle with two nuts and straight contacts for printed circuit (back panel mounting)
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
  • Weight: 5.05 g
  • Configuration: 0B.303 : 3 Low Voltage
  • Insulator: L: PEEK (UL 94 / V-0/1.5)
  • Rated Current: 8 Amps
  • Contact Type: Print (straight)
  • Contact Dia.: 0.9 mm (0.035in)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 900 V (AC), 1270 V (DC)
  • Vtest (contact-contact): 1200 V (AC), 1700 V (DC)
  • Endurance (Shell): 5000
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • Salt Spray Corrosion: >1000 hr


• Item Includes:

  • 1x Lemo ECG.0B.303.CLN IP50 3 Position Circular Push Pull Connector with Female Socket
