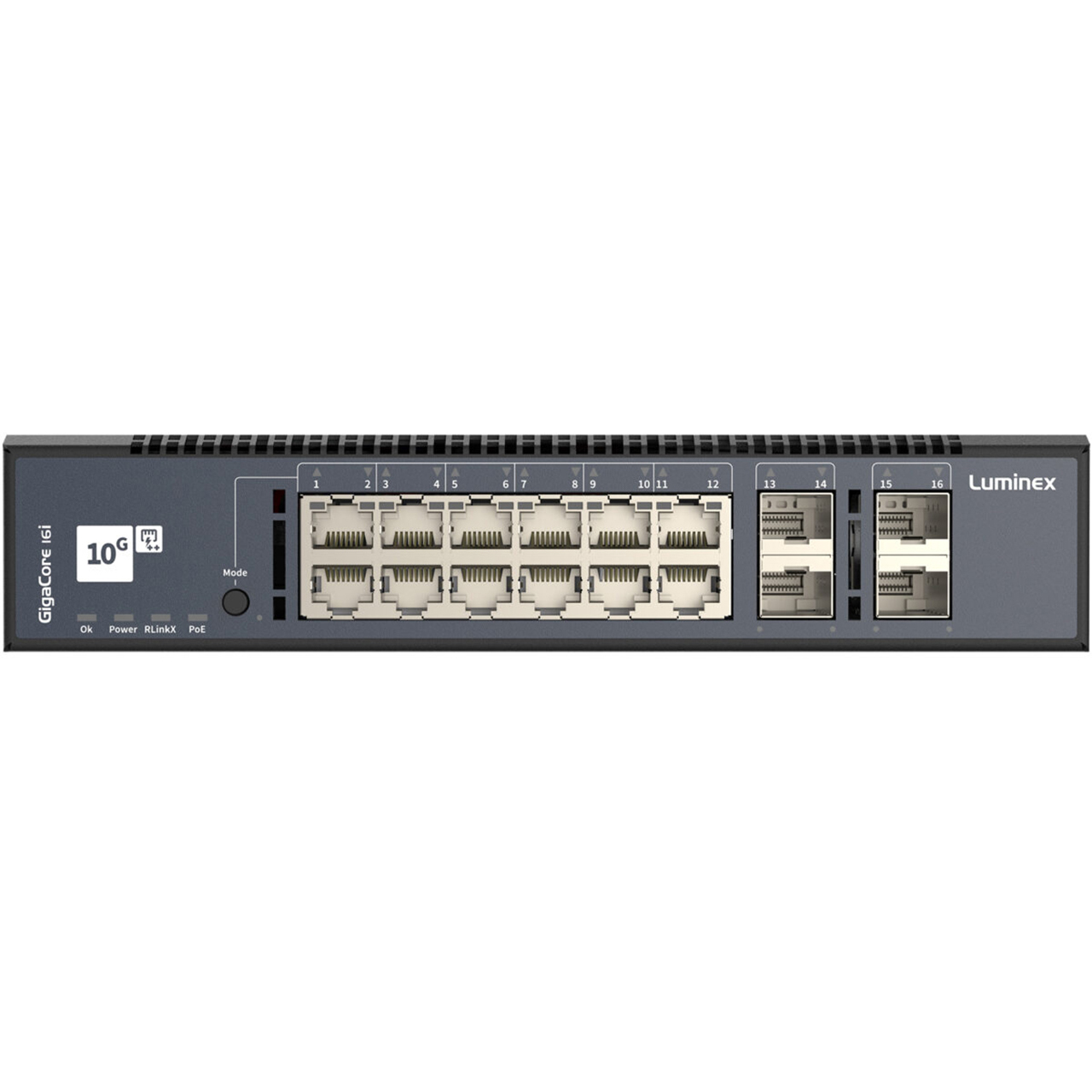

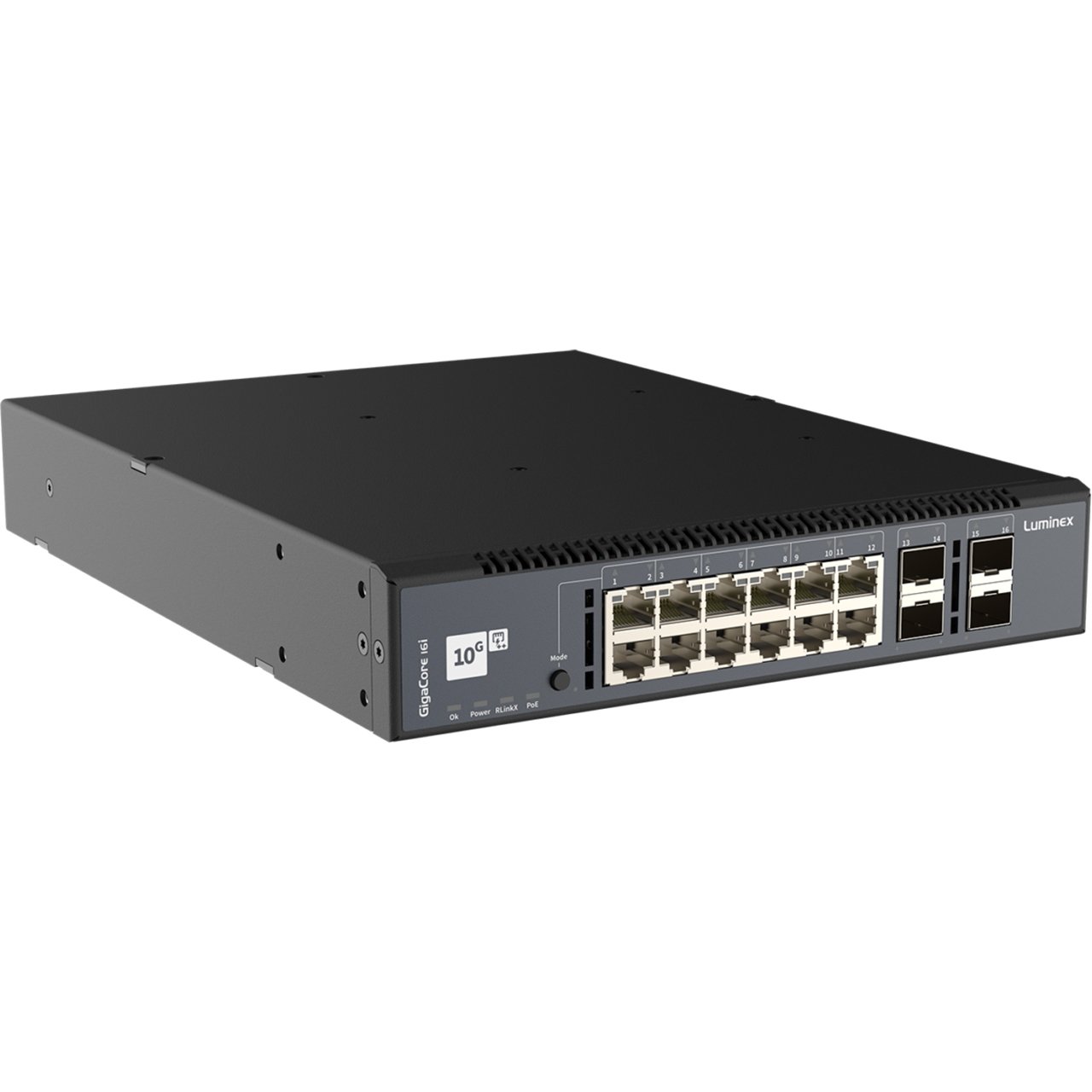

The Luminex GigaCore 16i is a 10 Gigabit Ethernet switch in a ½ 19 inch package, dedicated to AV integration and installations where there are specific requirements to available space and mounting. It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb Connectivity

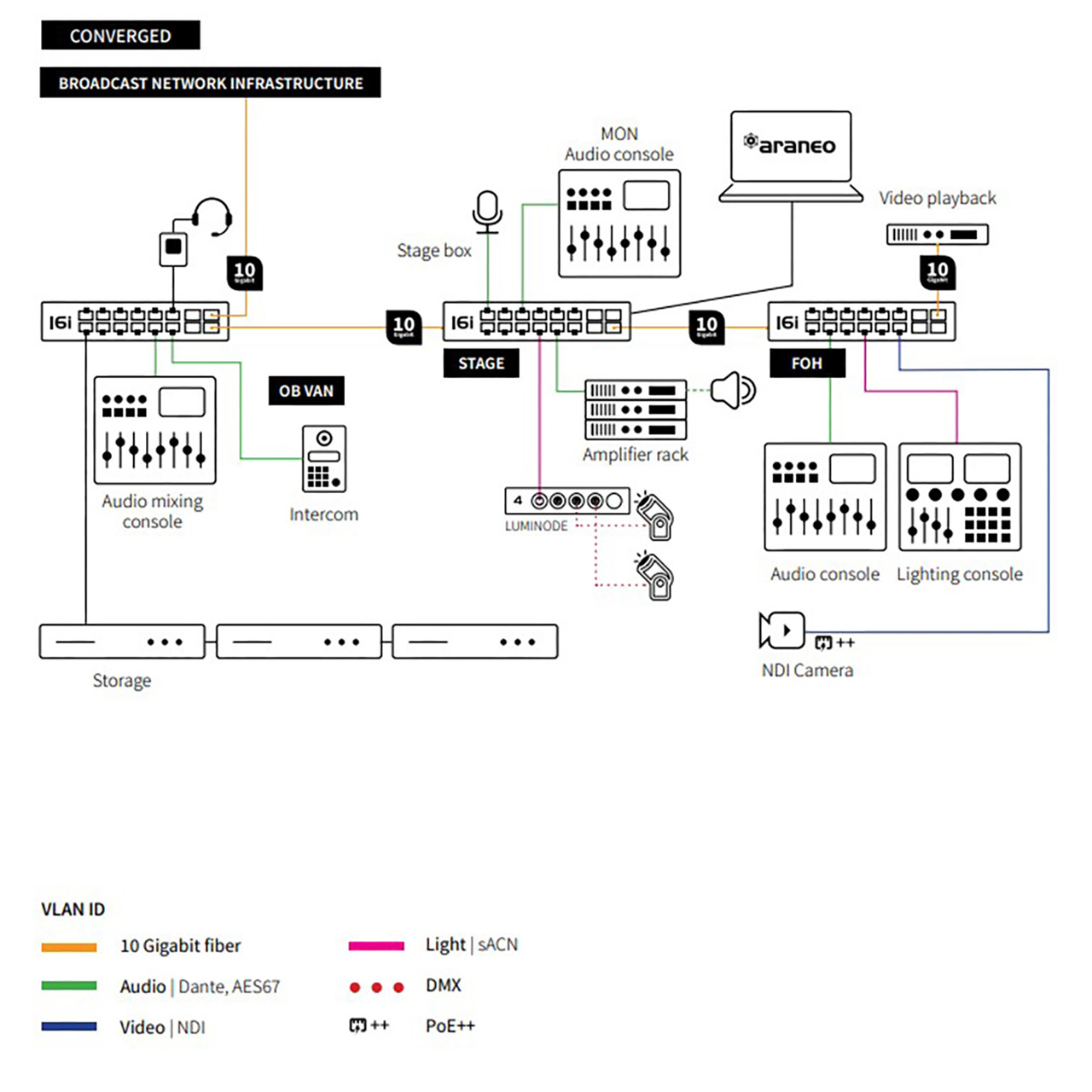

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today. Today's PoE standards (802.3af, 802.3at and 802.3bt) are all met. GigaCore 16i can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.
AV Validated For Real Applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDIT, DanteT, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more. We don't just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence. Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
Manage and Monitor Your Complete System with Araneo
For optimized consistency, all GigaCore switches can be managed with a single network-wide tool: Araneo. Araneo's online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore.
Monitor your network with confidence and act before the show gets interrupted! In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button. Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.
Intuitive Web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
