PVD 1400 - Overview

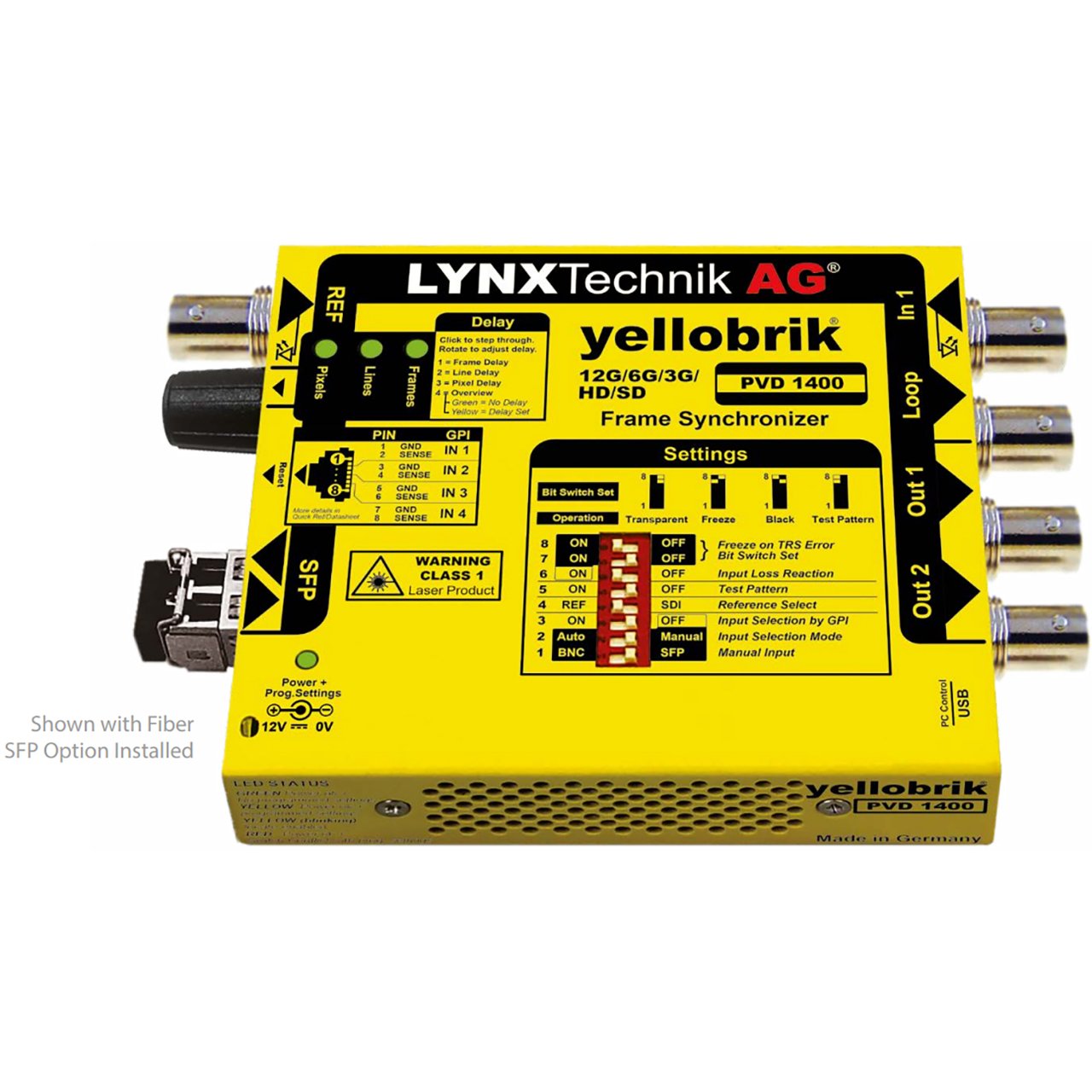

The LYNX Technik PVD 1400 is a broadcast quality compact 12G-SDI frame synchronizer for professional applications in the Broadcast and Post Production industry. It can buffer up to 30 frames and generate Test patterns.

The frame synchronizer utilizes robust "flywheel" algorithms that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. The PVD 1400 provides up to 30 frames of programmable output delay adjustable in frames, lines and pixels.

The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.

Please Note! SFP Module sold seperately!

Features:
- Supports 12G/6G/3G/1.5G-SDI Standards
- Up to 4K YCbCr/RGB 4:4:4 10/12-Bit
- Robust "flywheel" Synchronization
- "Cross Lock" Compatible Reference Input
- Integrated Test Pattern Generator
- Up to 30 frames of programmable delay
Specifications:
- 4K 4096x2160p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080PsF: 23.98, 24, 25, 29.97, 30
- HD 1920x1080i: 50, 59.94, 60
- HD 1280x720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i: 50
- SD 720x525i: 59.94

  Supported Standards
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
- Color Precision YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10, 12-bit

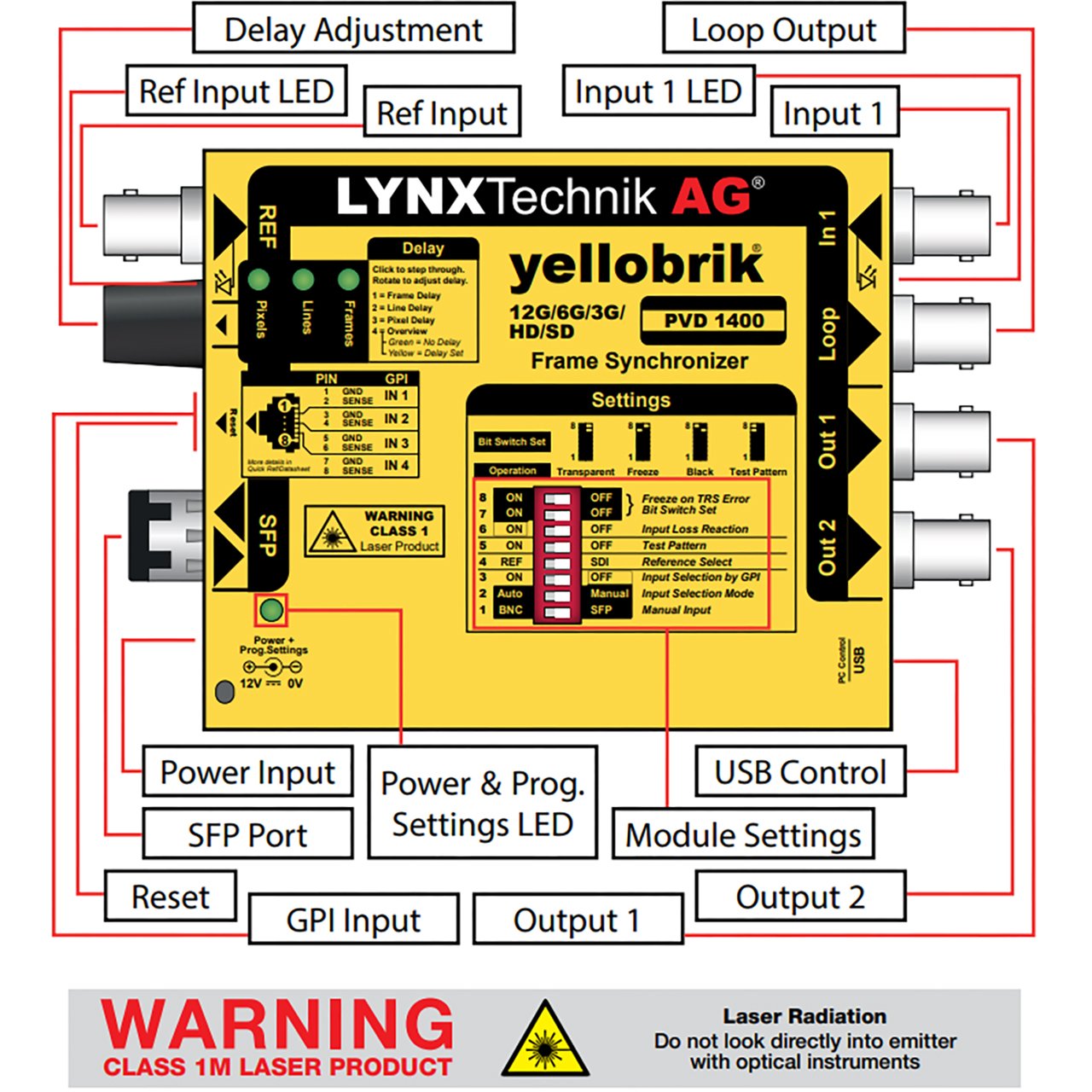

  SDI Input
- 1x 75 Ohm BNC electrical SDI input + 1x optional fiber SDI input
- Automatic cable EQ SD: 340m HD: 140m 3G:130m 12G: 80m

  SDI Outputs
- 2x SDI video, 75 Ohm BNC (both have the same signal - NOT dual link)

  Electrical Return Loss
- Input: to 1.5GHz, to 3GHz, to 6GHz, to 12GHz
- Output: >15dB, >10dB, >7dB, >4dB

  Fiber In-/Output
- Optional plug in SFP for optical SDI in-/output (see fiber options table)
- SMPTE 297 - 2006

  Reference Input
- SDTV: Analog 525 or 625 bi-level sync, black burst or colorbars
- HDTV: All tri-level sync standards
- SMPTE 274M, SMPTE 296M - 75 Ohm BNC connector

  Frame Synchronizer
- Valid reference reccomended, otherwise operates in free run (async) mode
- Fully cross lock compatible across standards.
- Up to one frame adjustable delay (line & pixel) using LynxCentraal or yelloGUI

  General
- Power: +12V DC @ 10.0W (excl. SFP) nominal - (supports 10 - 24V DC input range)
- Physical Size (incl. connectors): 5.51" x 3.54" x 0.86" (140mm x 90mm x 22mm)
- Weight (excl. SFP):0 .46lbs (207g)
- Ambient: 41 - 104°F (5 - 40°C) 90% Humidity (non condensing)
Item Includes:
- 1x 12G-SDI Frame Synchronizer
  **Fiber SFP sold separately.
Warranty:
- 3 Year
GTIN:
0425047932947
