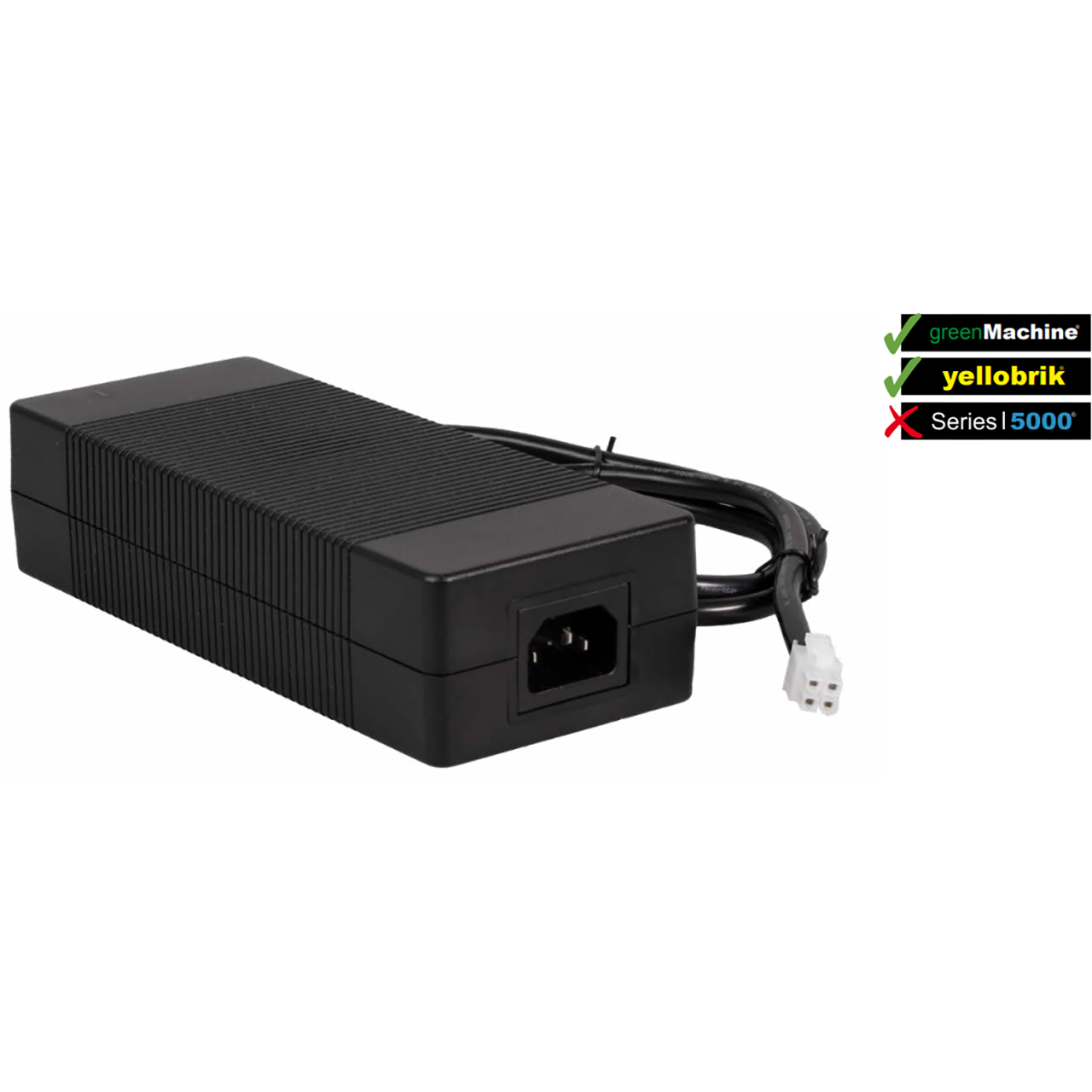

LYNX Technik RPS A200-US AC to DC 200 Watt DC Desktop Power Supply Unit for Yellobrik Rack Frame

RPS A200-US - Overview

• Features:

  • Wide Operating Voltage 100 to 240 VAC / 50 to 60 Hz
  • 200W Output Power
  • Short Circuit, OverVoltage and Over Current Protection
  • Active Power Factor Correction (PFC) function
  • Energy efficiency level VI or CoC Tier II


• Specifications:

  • Dimensions: 7" x 3" x 1.8" (180mm x 75mm x 44.5mm)
  • Weight: (950g)
  • DC Voltage: 12V
  • Rated Current: 16.67A
  • Rated Power: 200W (Max.)
  • Ripple & Noise: 120mVp-p
  • Line Regulation: ±1.0%
  • Load Regulation: ±4.0%
  • Voltage Range: 100~240VAC
  • Frequency Range: 47Hz-63Hz
  • Input Current: 2.5A (Max.)
  • Inrush Current: ? 120A/240VAC
  • Over Voltage Protection: Latch-Off
  • Over Current Protection: Latch-Off


• Item Includes:

  • 1x RPS A200-US AC to DC 200 Watt DC Desktop Power Supply Unit


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  4250479329263
