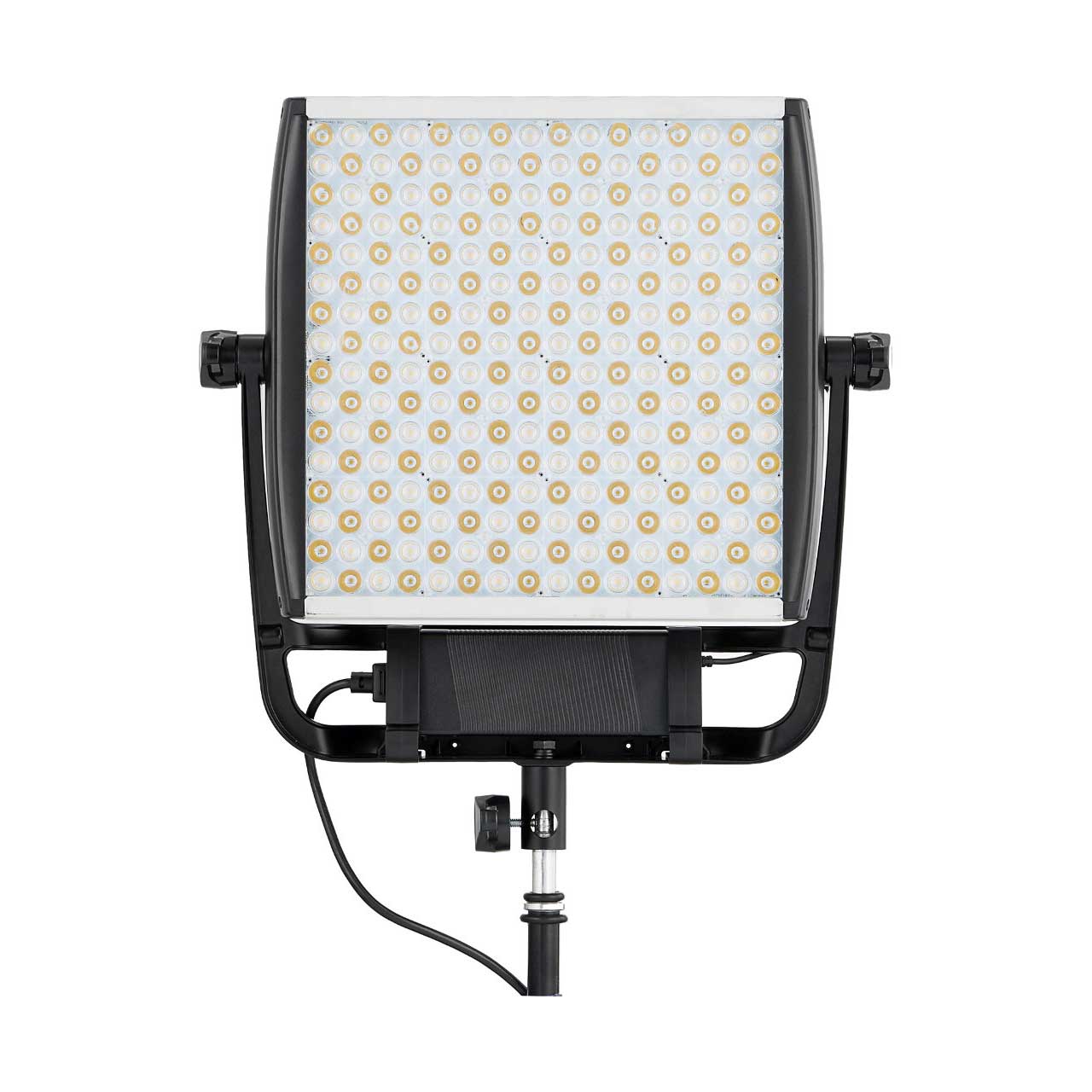

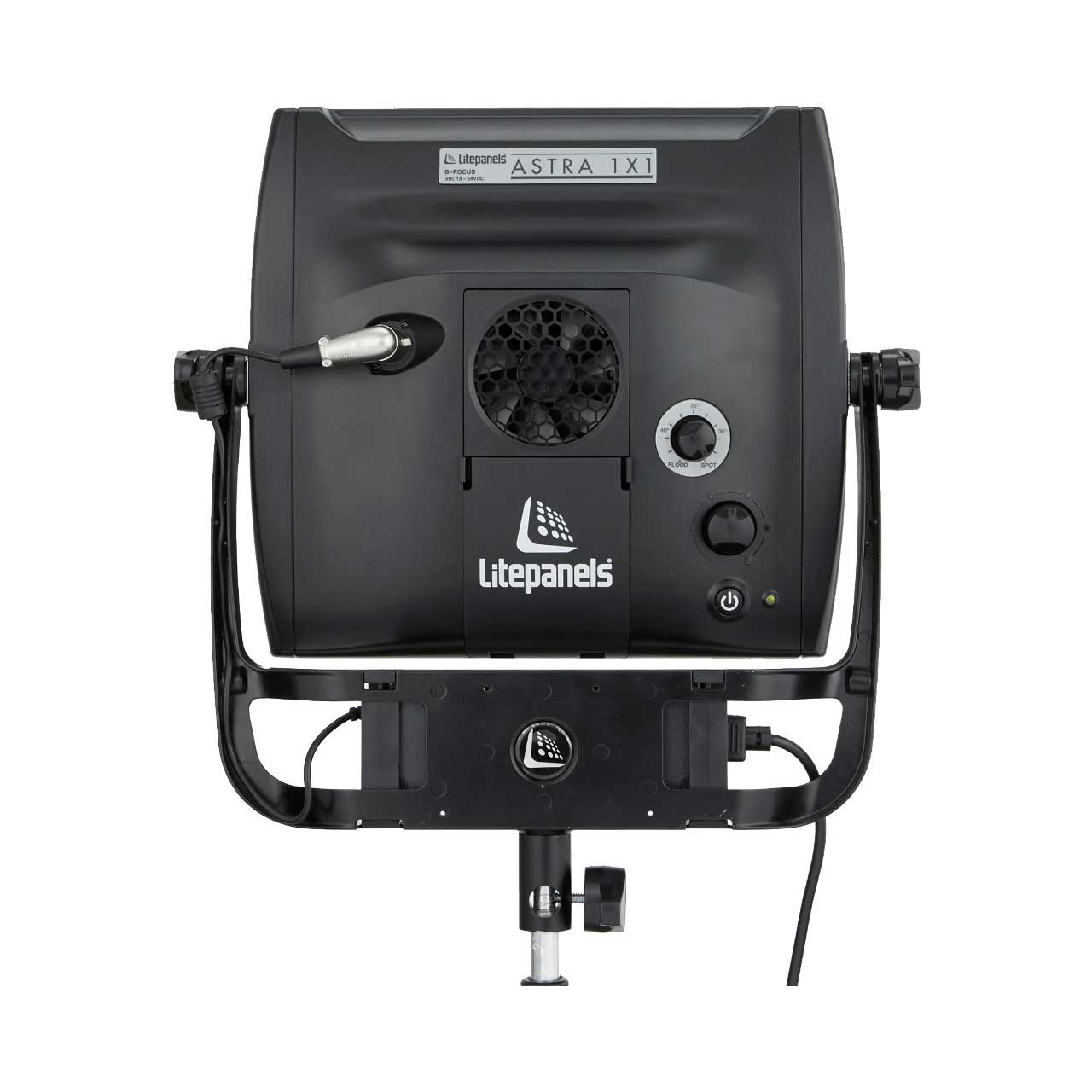

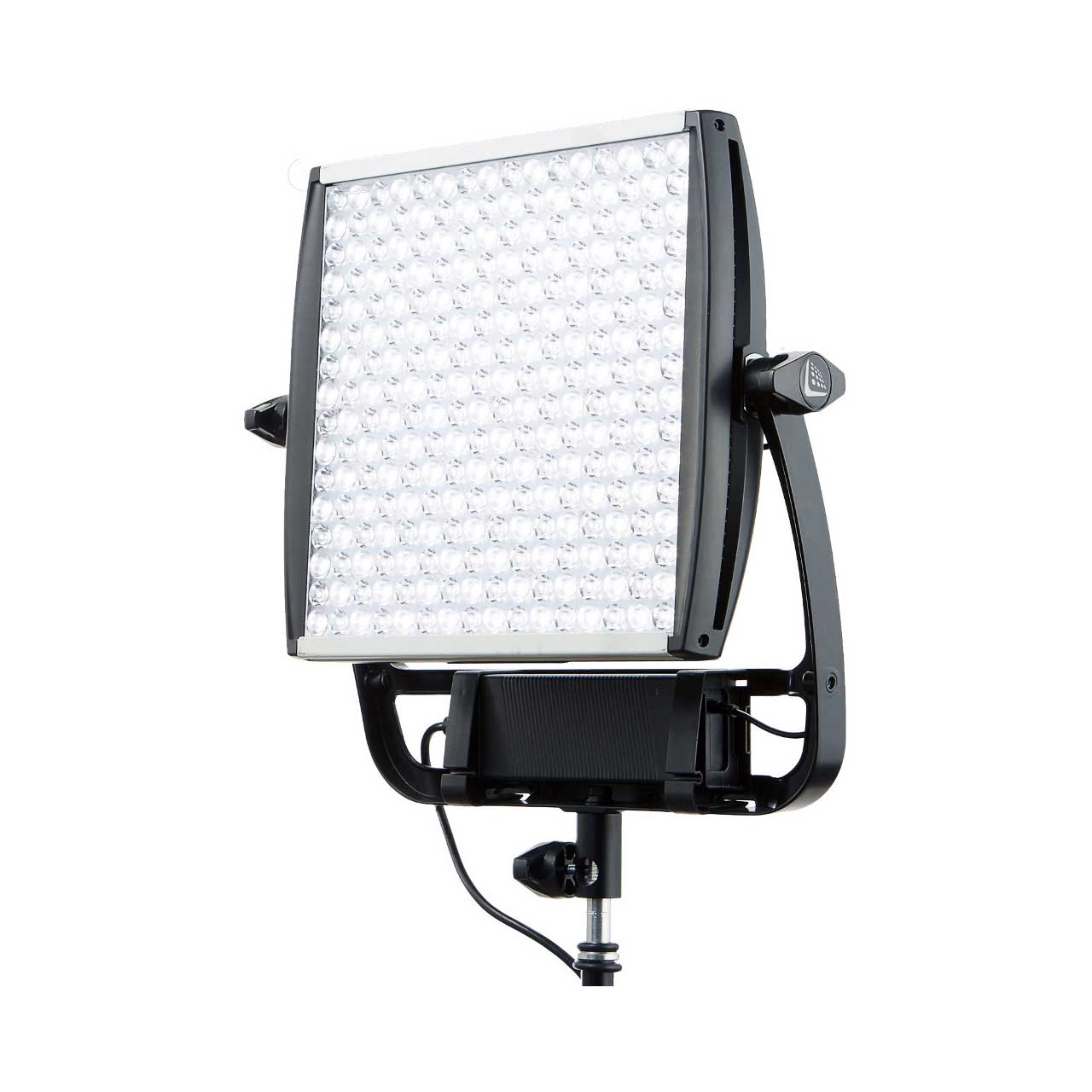

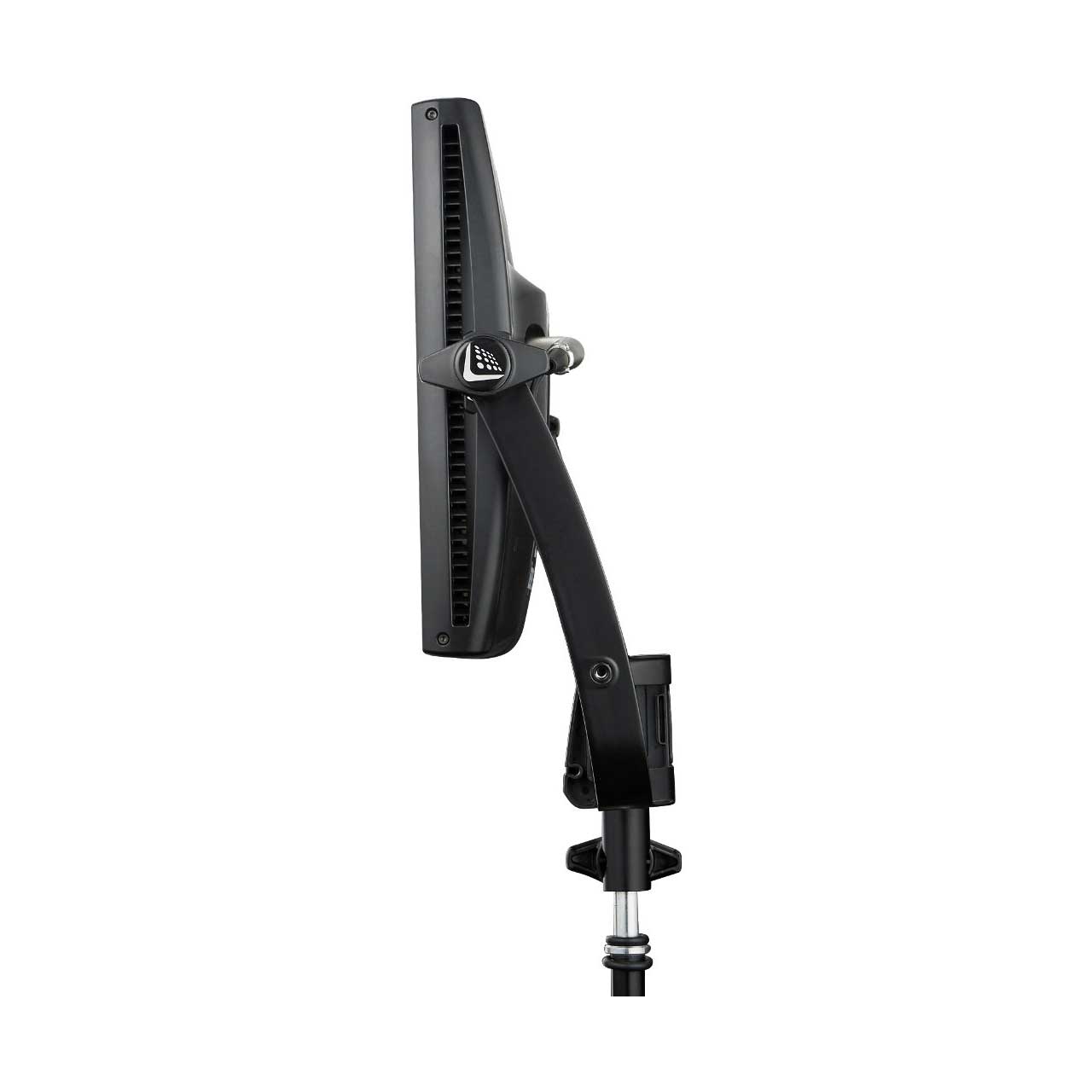

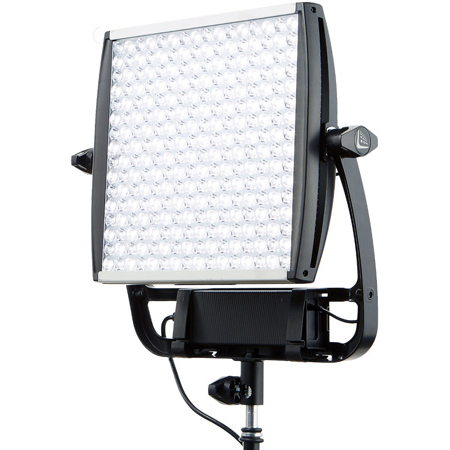

Litepanels 935-6000 Astra Bi-Focus Daylight Fixture LED Panel

ITEM #: LPAN-935-6000 MFG #: 935-6000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,195.00

Our Price:

$1,135.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    935-6000 - Overview

    The Litepanels Astra Bi-Focus is a versatile, lightweight, LED panel and newest addition to the popular Astra family of LED panels which provides the ability to adjust from a 48° flood to a 15° concentrated quality of light with a turn of a dial.

    The Astra Bi-Focus is for those whose need the punch of a spot which is perfect for when shooting on location and when working with natural sunlight who also want to flexibly to adjust the beam angle on the go.

    Featuring custom optics with two lens sets in the familiar Litepanels 1x1 form, the Astra Bi-Focus is compatible with Astra family accessories such as DMX communications modules and light shaping tools such as softboxes, grids and barn door sets. Users can easily achieve beam angles from flood to an intense spot for a longer throw of illumination.

    Drawing just 105W, the Astra Bi-Focus can be powered with professional 14.4V camera batteries for a mobile lighting set up.

    • Features:

      • Flexible, modular concept
      • Optional communications module allows the brightness, focus and cooling mode to be controlled via DMX or Bluetooth.
      • Optional yoke mounts Gold Mount® or V-mount battery plates.
      • Field replaceable fan module and external power supplies.

        Modern fixture design
      • Easily identifiable and ergonomic manual controls for dimming, color and power status.
      • Aluminium I-beam core construction to provide maximum durability and superior thermal management.
      • Aluminium accessory mounting points and lens/filter rails.
      • End cap exhaust vents angle downward to direct airflow away from the fixture and prevent foreign material from entering.
      • Durable, industry-standard 3-pin XLR locking power connector.

        Custom curved yoke design
      • Wide, unobstructed tilt range.
      • Yoke mounted power supply and optional battery plates with dual integrated cable guides.
      • Removable TVMP connector for flexible mounting options.
      • Two alternate 1/4 - 20 mounting points.

        Advantages
      • Output is brighter than traditional LED panels
      • Superior color reproduction
      • Efficient thermal management with user-selectable dual cooling modes.
      • Ultra-smooth dimming
      • Focusable spot to flood

    • Specifications:

      • Beam angle (degrees): 90
      • Max. power draw (Watts): 110
      • Optics: Medium diffusion panel
      • Remote Control: Optional (DMX or Bluetooth)
      • Weight: 7.4 lbs
      • Power supply: 13-24VDC 120-240VAC
      • CRI: 96 Daylight
      • Fixture type: Panel Lights
      • Colour temperature: Daylight

    • Item Includes:

      • Astra 1x1 Bi-Focus light
      • Manual Yoke
      • Power Supply and US & EU Power Cords

    • GTIN:

      5060520682556
