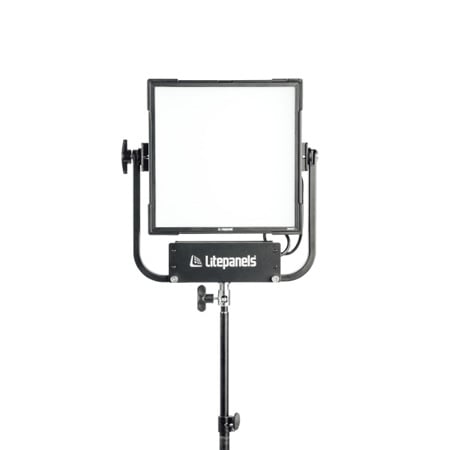

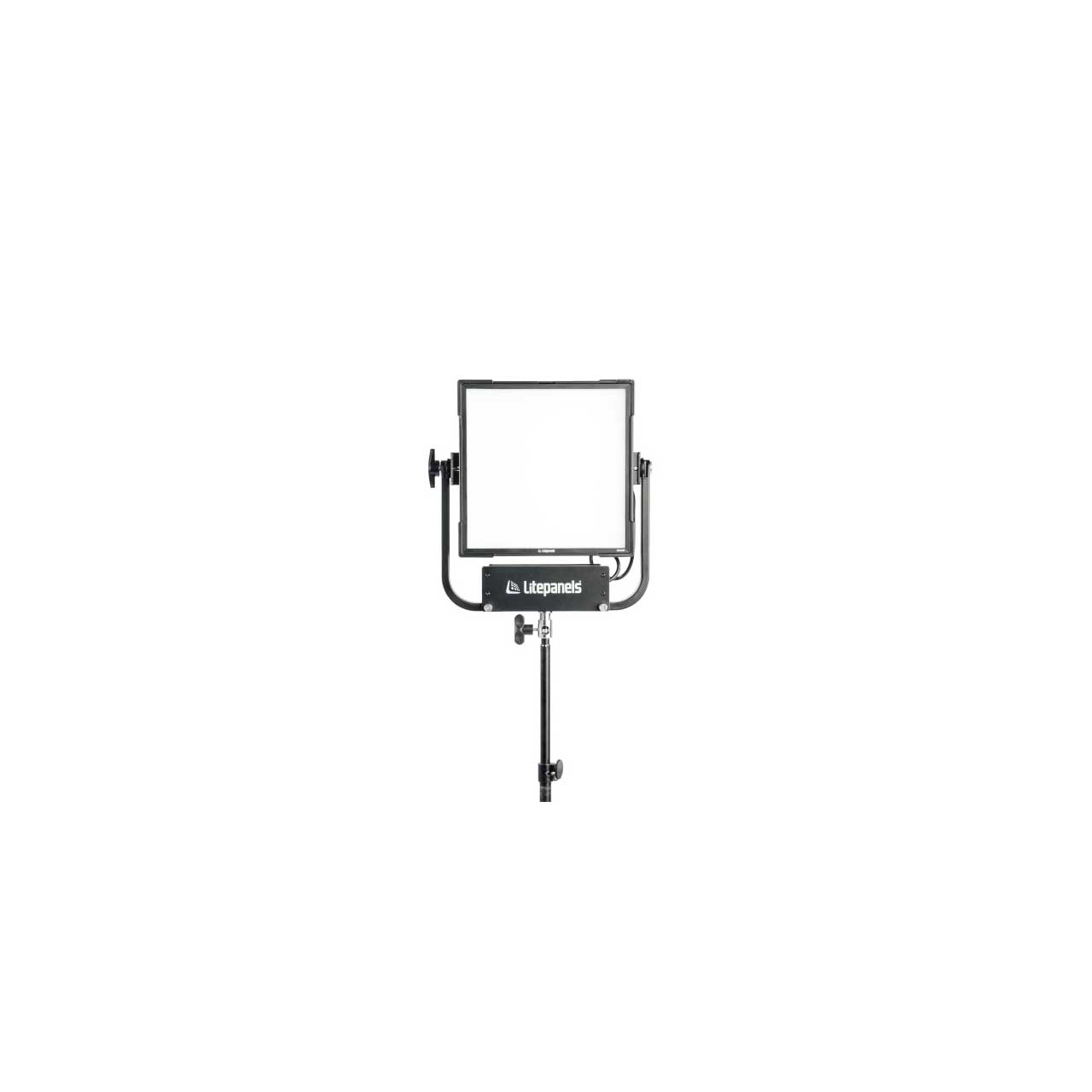

Litepanels 945-1301 Gemini 1x1 LED Full Soft Panel with Yoke and US Power Cable

ITEM #: LPAN-945-1301 MFG #: 945-1301

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


After Savings:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Over $1000 in Savings!Save up to $1100 on select Litepanel models for a limited time only! Contact us today.

    945-1301 - Overview

    The Industry's Most Accurate And Versatile 1x1 Soft Panel!

    Light your scene faster and brighter on location or in the studio with the Gemini 1x1 Soft RGBWW LED panel from Litepanels. The 945-1301 Gemini is a 1x1 LED panel that provides a nice, soft source of color accurate illumination. Staying true to the Litepanels legacy, the Gemini has accurate full spectrum Daylight and Tungsten lighting. The Gemini also allows for additional quick and easy adjustment by offering full-featured lighting modes for effects, full color with hue and saturation control all which allow for the intensity to be controlled anywhere from 100% - 0% at all times.

    The Gemini is truly versatile with its manual and remote control via standard DMX 512 protocol or wirelessly with the option of wireless DMX or Bluetooth and can adapt to any lighting situation today's Cinematographers and lighting professionals will find themselves in. The manual control knobs are sensitive to the speed of rotation and can either be finely tuned or when ramped up can adjust very quickly. With its lightweight design, the Gemini allows for additional versatility with mobile power operation via 3pin XLR, making it a perfect location light.

    • Features:

      • Perfect light instantly available Every color at your fingertips.
      • Total control of light with four lighting modes; CCT Mode for true Daylight and Tungsten with fine tuning; HSI Mode to create any color in the 360° color wheel; Gel Mode to quickly dial up many popular gels, and Effects Mode for a dazzling array of creative lighting effects at your fingertips

        Instantly accessible and easy to rig - No parts to assemble, Gemini is ready to start work immediately
      • Ready to go straight out of the box with no assembly required. Easy to reach, on-board controls and remote-control options via DMX, wireless DMX or Bluetooth for easy integration into your existing lighting set up.

        Easily switch between battery and AC - The industry's most agile light on the go.
      • A Lightweight design for rapid rigging with fewer cables and full-intensity mobile power from XLR, V-Mount or Gold Mount batteries - drawing just 200W - makes Gemini 1x1 Soft the perfect location light

        Serious Stability - Flicker Free Light with no color shift.
      • Flicker-free light at any frame rate or shutter angle and at any intensity level perfect for creating slow motion shots with Ultra-smooth dimming from 100 to 0.1%.
    • Specifications:

      • Voltage Range: 100 - 240VAC, 13 - 28VDC
      • Power Consumption: 200W (nominal)
      • LED Technology: RGBWW
      • Color Temperature: 2700K - 10,000K
      • Lighting Intensity: 3.2k @ 10ft/3m = 557 LUX, 5.6k @ 10ft/3m = 614 LUX
      • CRI / TLCI: Daylight: 97, Tungsten: 94
      • Beam and Field Angle: 95°/157°

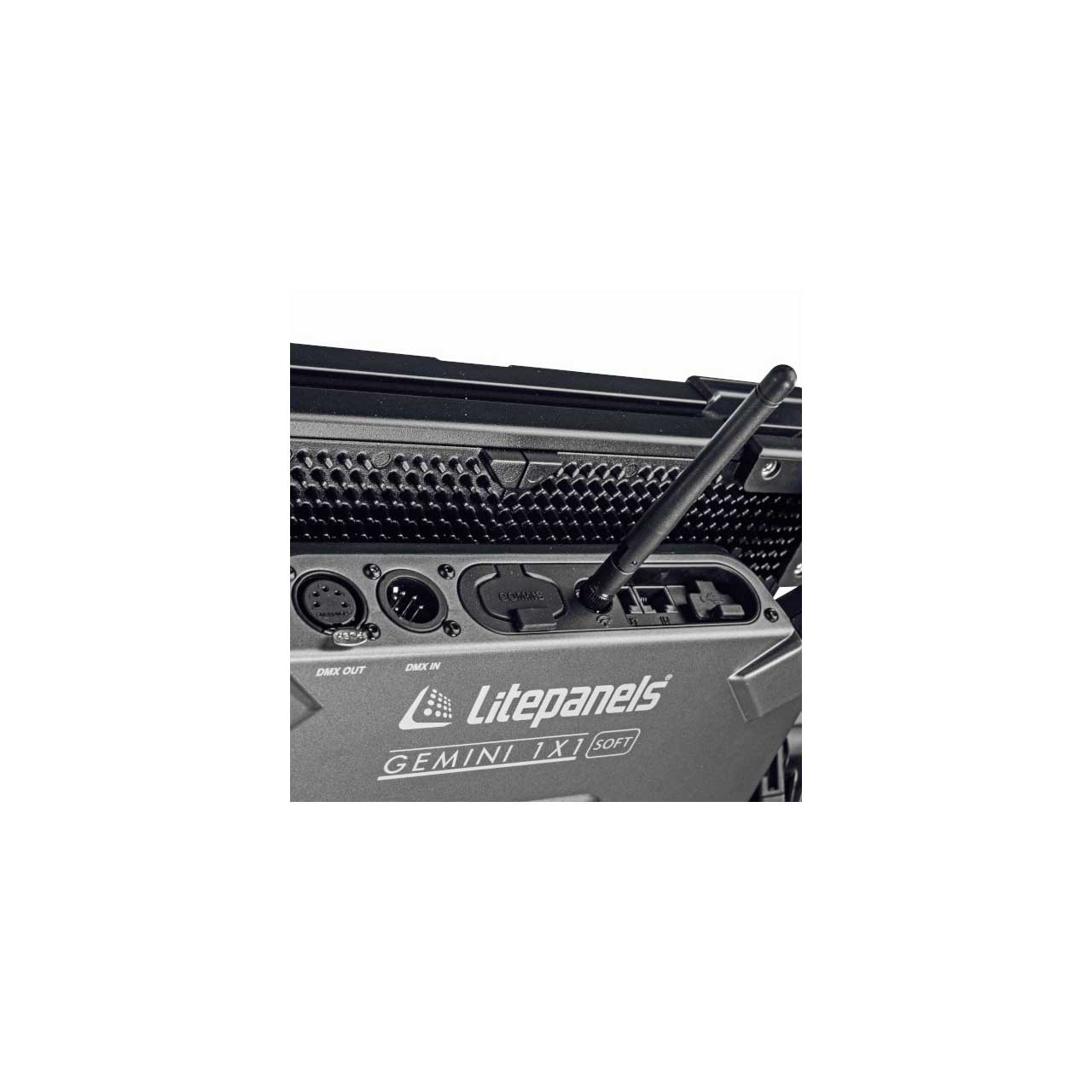

      • Control: Built-in WIFI, DMX (5 PIN & RJ45), Optional Wireless DMX, Bluetooth, SmartLite Director App
      • Color Controls: Kelvin Temperature, plus/minus green, Hue, Saturation, Intensity, Gel Presets
      • Low End Dimming: From 0.1%
      • Battery Powered: Optional plates available, runs at 90% output on single 14.4V battery, or 100% on 26V or dual 14.4V batteries
      • Cooling: Fan, at 50% output when disabled. Fan delayed start option
      • Mount: 1-1/8" (28mm) pin, Standard Yoke, stackable as 2 & 4 units
      • Fixture Dimensions: 12.6" x 12.6" x 4.6" (320mm x 320mm x 119mm)
      • Weight: 11.7lbs (5.31kg)
    • Item Includes:

      • Gemini 1x1 Soft Panel including yoke and US Power Cable
    • GTIN:
