LeaderPhabrix LPX500ISE 3RU SD/HD/2K 10GbE IP/SDI Multi-Channel Waveform Monitor/Analyzer with Eye/Jitter

ITEM #: LR-LPX500ISE MFG #: LPX500ISE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


LPX500ISE - Overview

Multi-channel Waveform Monitor with Dual-independent Displays for Hybrid IP/SDI Workflows
The LeaderPhabrix LPX500 Hybrid IP/SDI waveform monitor is the first in a powerful new family of video analysis and generation instruments, encompassing next generation technology from the renowned Leader and PHABRIX Test and Measurement brands. The LPX500 offers a bank of four independent analyzers, enabling the simultaneous display and monitoring of up to 4x 12G-SDI and 2x 100GE-IP inputs.

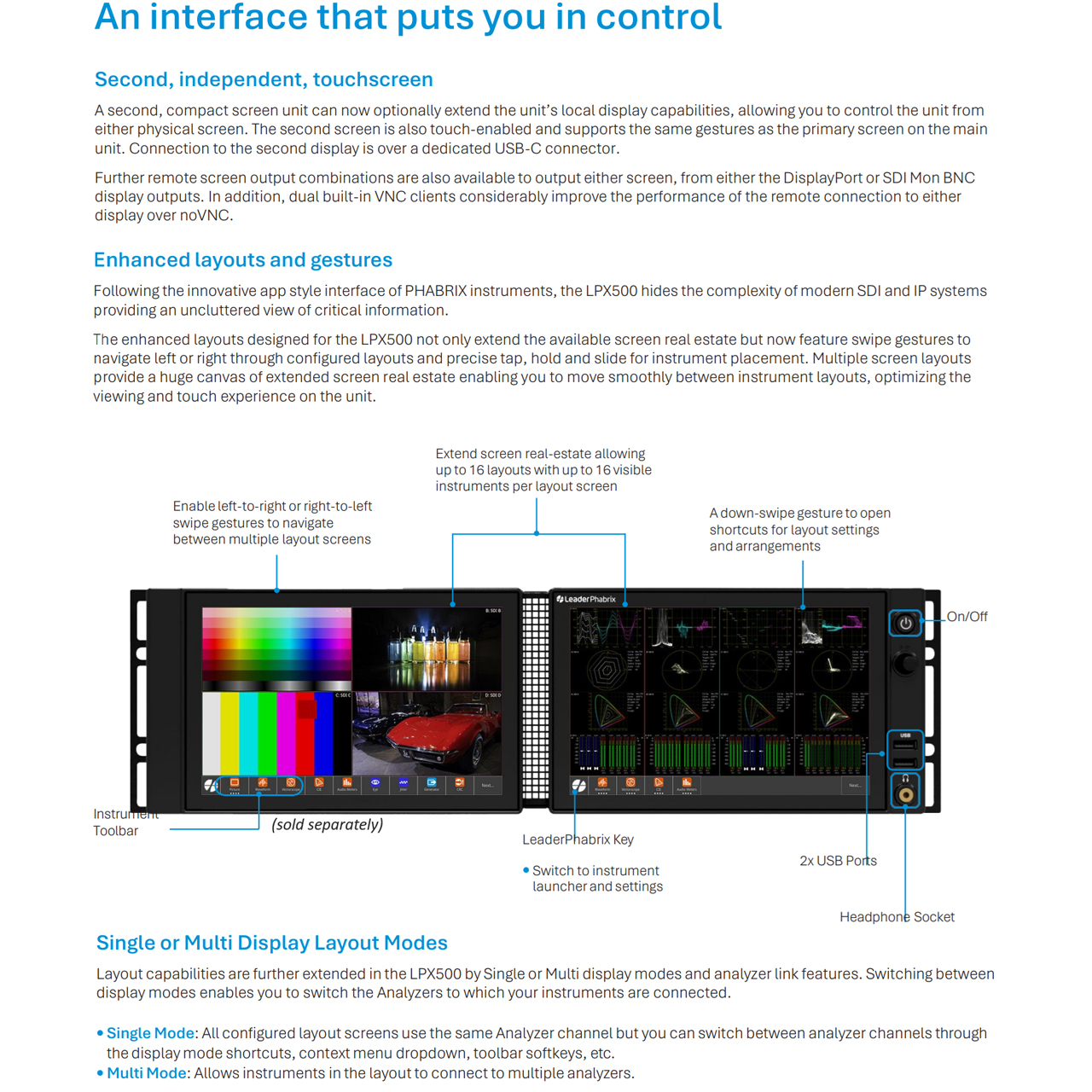

Single or Multi Display Layout Modes
A second, compact screen unit can now optionally extend the unit's local display capabilities, allowing you to control the unit from either physical screen. The second screen is also touch-enabled and supports the same gestures as the primary screen on the main unit. Connection to the second display is over a dedicated USB-C connector. Further remote screen output combinations are also available to output either screen, from either the DisplayPort or SDI Mon BNC display outputs. In addition, dual built-in VNC clients considerably improve the performance of the remote connection to either display over noVNC.

Following the innovative app style interface of PHABRIX instruments, the LPX500 hides the complexity of modern SDI and IP systems providing an uncluttered view of critical information. The enhanced layouts designed for the LPX500 not only extend the available screen real estate but now feature swipe gestures to navigate left or right through configured layouts and precise tap, hold and slide for instrument placement. Multiple screen layouts provide a huge canvas of extended screen real estate enabling you to move smoothly between instrument layouts, optimizing the viewing and touch experience on the unit.

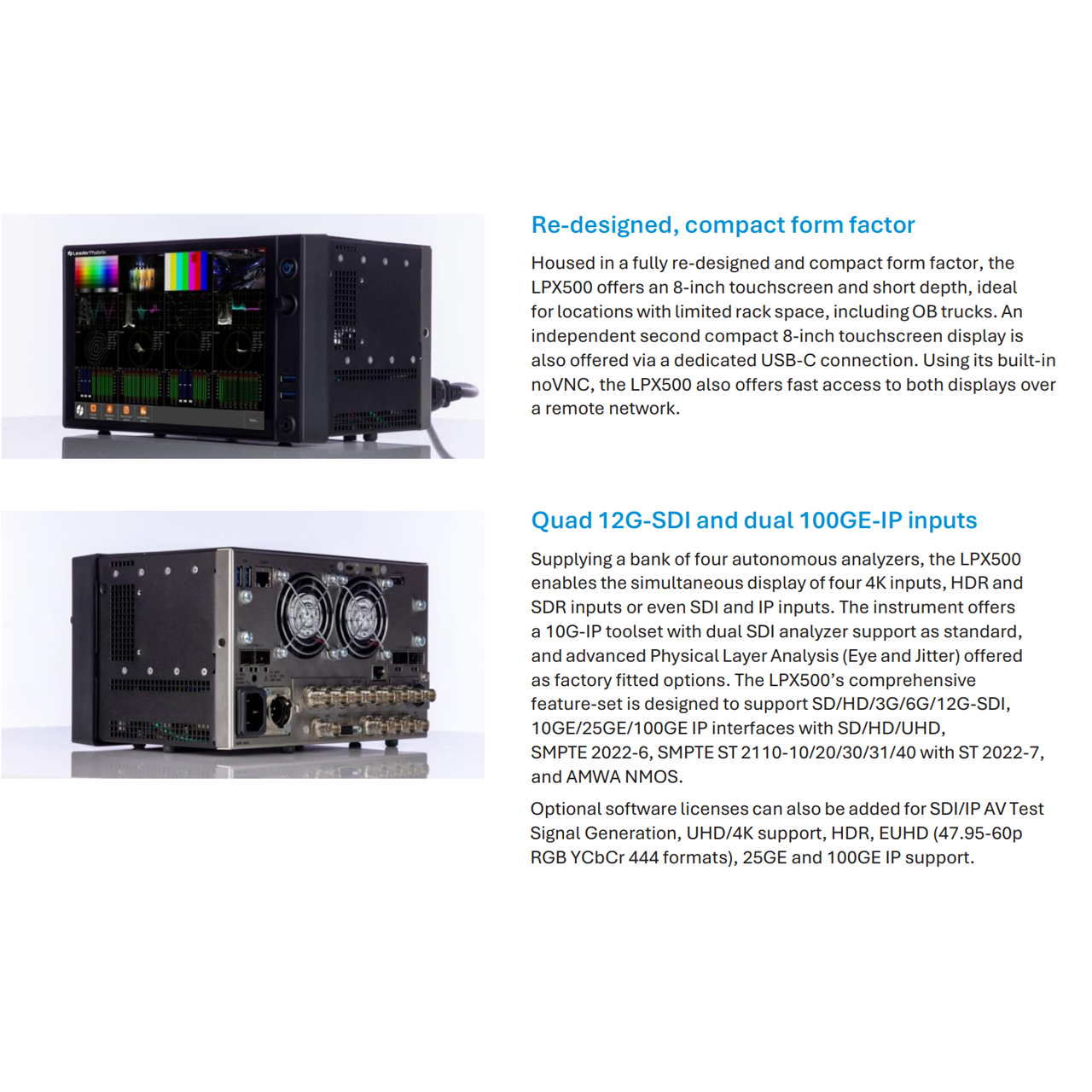

A completely Re-designed, Compact Form Factor for Modern Workflows
Housed in a fully re-designed and compact form factor, the LPX500 offers an 8-inch touchscreen and short depth, ideal for locations with limited rack space, including OB trucks. An independent second compact 8-inch touchscreen display is also offered via a dedicated USB-C connection. Using its built-in noVNC, the LPX500 also offers fast access to both displays over a remote network.

Supports 4x 12G-SDI and 2x 100GE-IP Inputs
Supplying a bank of four independent analyzers, the LPX500 enables the simultaneous display of four 4K inputs, HDR and SDR inputs or even SDI and IP inputs. The instrument offers a 10G-IP toolset with dual SDI analyzer support as standard, and advanced Physical Layer Analysis (Eye and Jitter) offered as factory fitted options. The LPX500's comprehensive feature-set is designed to support SD/HD/3G/6G/12G-SDI, 10GE/25GE/100GE IP interfaces with SD/HD/UHD, SMPTE 2022-6, SMPTE ST 2110-10/20/30/31/40 with ST 2022-7, and AMWA NMOS. Optional software licenses can also be added for SDI/IP AV Test Signal Generation, UHD/4K support, HDR, EUHD (47.95-60p RGB YCbCr 444 formats), 25GE and 100GE IP support.

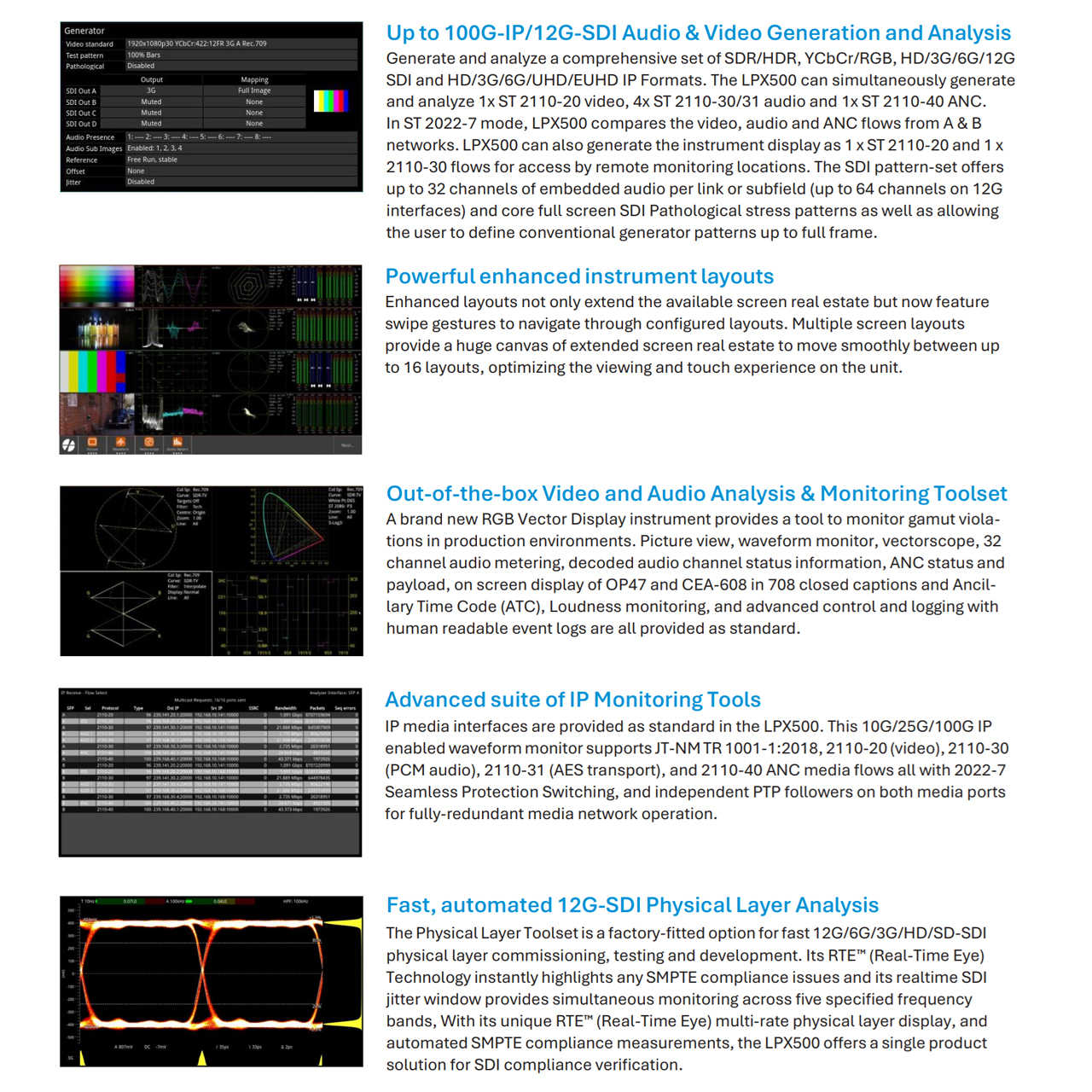

Up to 100G-IP/12G-SDI Audio & Video Generation and Analysis
Generate and analyze a comprehensive set of SDR/HDR, YCbCr/RGB, HD/3G/6G/12G SDI and HD/3G/6G/UHD/EUHD IP Formats. The LPX500 can simultaneously generate and analyze 1x ST 2110-20 video, 4x ST 2110-30/31 audio and 1x ST 2110-40 ANC. In ST 2022-7 mode, LPX500 compares the video, audio and ANC flows from A & B networks.

  • Features:

    • Supports 4 x 12G-SDI and 2 x 100GE-IP inputs
    • Up to 100G-IP/12G-SDI Audio & Video Generation and Analysis
    • Enhanced layouts not only extend the available screen real estate but now feature swipe gestures to navigate through configured layouts
    • Out-of-the-box Video and Audio Analysis & Monitoring Toolset
    • Advanced suite of IP Monitoring Tools
    • Fast, automated 12G-SDI Physical Layer Analysis

  • Specifications:

      Formats Supported - Standard/Optional
    • ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Analysis over 10G Ethernet - Standard
    • ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Analysis over 25G Ethernet - Optional
    • ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Analysis over 100G Ethernet - Optional
    • ST 2110-20/-30/-31/-40 / 2022-7 / 2022-6 Generation - Optional
    • SDI IO: Factory Option
    • 270M / 1.5G / 3G-SDI HD / SD Analysis - Factory Option
    • 1.5G / 3G-SDI HD Generation - Optional
    • 1.5G / 3G / 6G / 12G-SDI UHD Over SDI - Optional
    • 25G IP Link Rates Over SFP28: - Optional
    • 100G IP Link Rates Over QSFP28 - Optional

      Hardware and Software Options Supported - Standard/Optional
    • Audio/Video Generator (SDI, ST 2022-6, ST 2110) - Optional
    • RTET Real-Time Eye input (12G/6G/3G/HD/SD-SDI) x1 (SDI in 1) BNC - Factory Option
    • UHD/4K Upgrade - Optional (SDI, 2110)
    • Data View Analyzer with ANC Inspector - Standard
    • 32 Channel Audio Metering and 5.1/2.0 Loudness Measurement - Standard
    • 64 Channel Audio Metering and 5.1/2.0 Loudness Measurement - Optional
    • (Requires LPX500-Quad)
    • HDR/WCG Support - Optional
    • ST 2022-6, ST 2110/20/30/31/40 Decap with Class C Audio, ST 2022-7, Single PTP - Standard
    • ST 2110-20/30/31/40 Generator Toolset with Class C Audio, ST 2022-7 - Optional
    • EUHD Formats over 25G 2110-20 - Optional

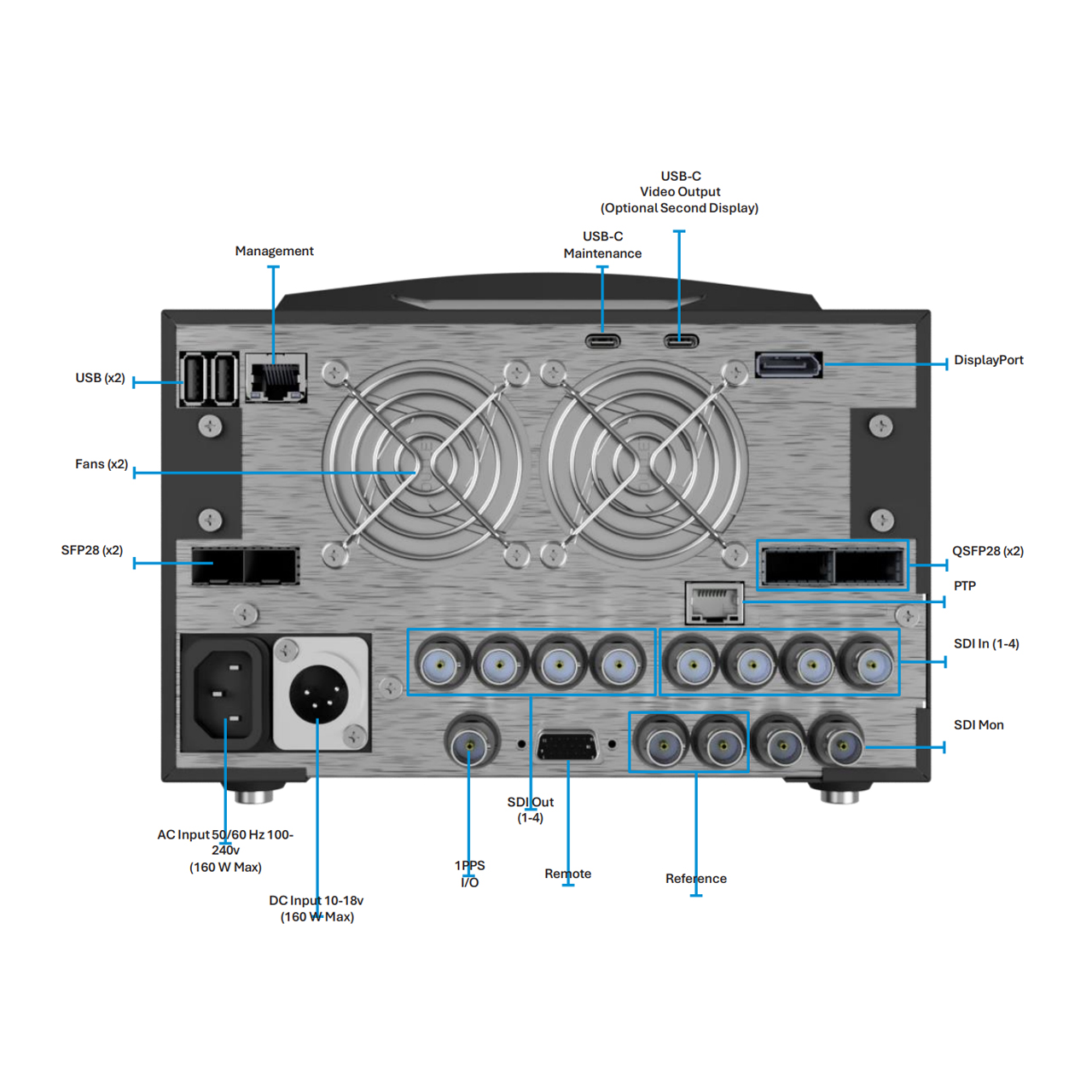

      SDI Inputs/Outputs: Standard/Optional
    • 4x SDI inputs, SD / HD / 3G / 6G / 12G, 75 ohm terminated BNC - Factory Option
    • 4x SDI outputs, HD / 3G / 6G / 12G, 75 ohm BNC - Factory Option

      Ethernet IP inputs/outputs (accepts generic SFPs) - Standard/Optional
    • 2x SFP28, supporting 10G (standard) and 25G cages (optional): Standard (25G license optional)
    • 2x QSFP28 100G cages: Standard (100G license optional)

    • Audio Inputs/Outputs - Standard/Optional
    • 2-channel 48 kHz PCM audio on DisplayPort and SDI Instrument output - Standard

      User Interface

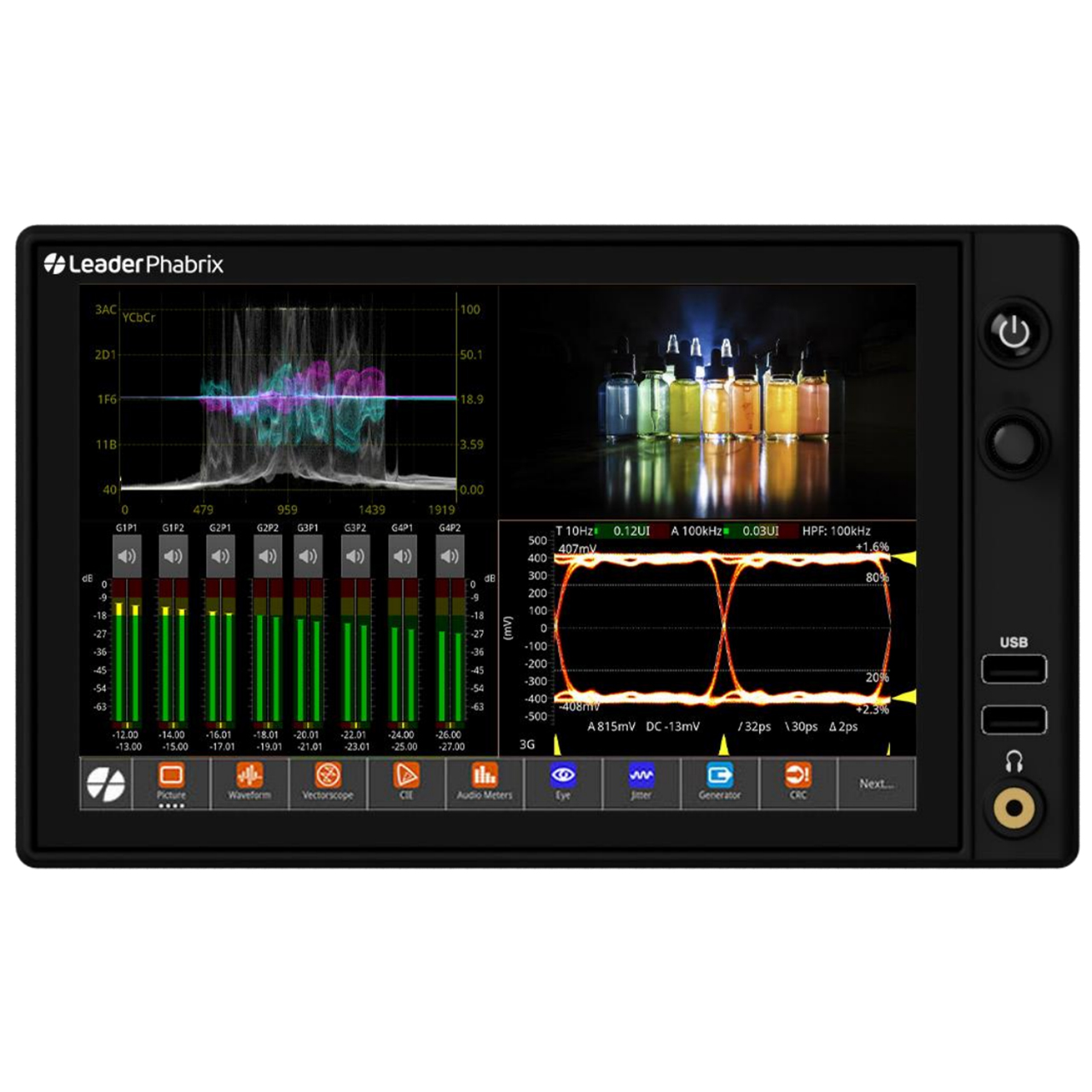

    • Integrated 1920 x 1200 8 inch LCD multitouch touchscreen - Standard
    • USB-C DisplayPort Alt Mode for secondary 8-inch touchscreen - Optional
    • DisplayPort instrument output, 1920 x 1080, 4:4:4 RGB, Type A*: DisplayPort
    • SDI 3Gbit instrument out, 1920 x 1080, 4:2:2 YCbCr*: BNC
    • ST 2110-20, ST 2110-30 instrument out, 1920 x 1080, 4:2:2 YCbCr* - Standard
    • Remote Browser GUI access (noVNC)* - Standard

      Reference
    • 1x 75 ohm BNC reference input, tri-level or B&B with cross lock - Standard

      Networking & Control
    • 10/100/1000 BASE-T - Standard
    • Leader Remote Interface (15 pin high-density D-Type socket) - Standard

      Audio Monitoring
    • Headphone Socket (3.5mm) - Standard

      Form Factor
    • LPX500 Size (Excluding Display Bezel): 8.27" x 5.00" x 5.91" / 210mm x 127.3mm x 150 mm
    • LPX500 Size (Including Display Bezel): 8.66" x 5.24" x 6.02" / 220mm x 133mm x 153mm
    • LPX500 Weight: 7.94lbs / 3.6KG

      Electrical
    • 4 pin XLR DC power connector: 12v - 16v, Typ. 85W, Max. 120W
    • Internal AC power supply with IEC connector: 100-240 VAC, Typ. 77W, Max. 110W

  • Item Includes:

    • 1x LPX500ISE
    • 1x IEC power cord
    • 1x USB stick containing users manual
