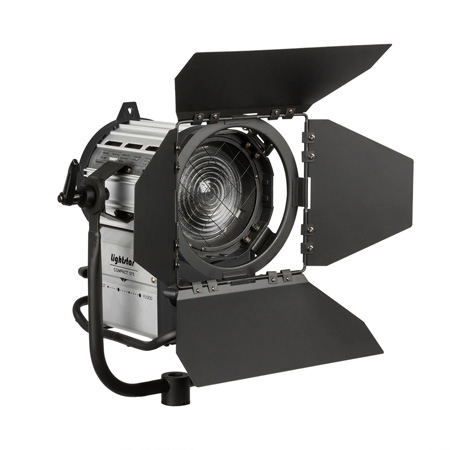

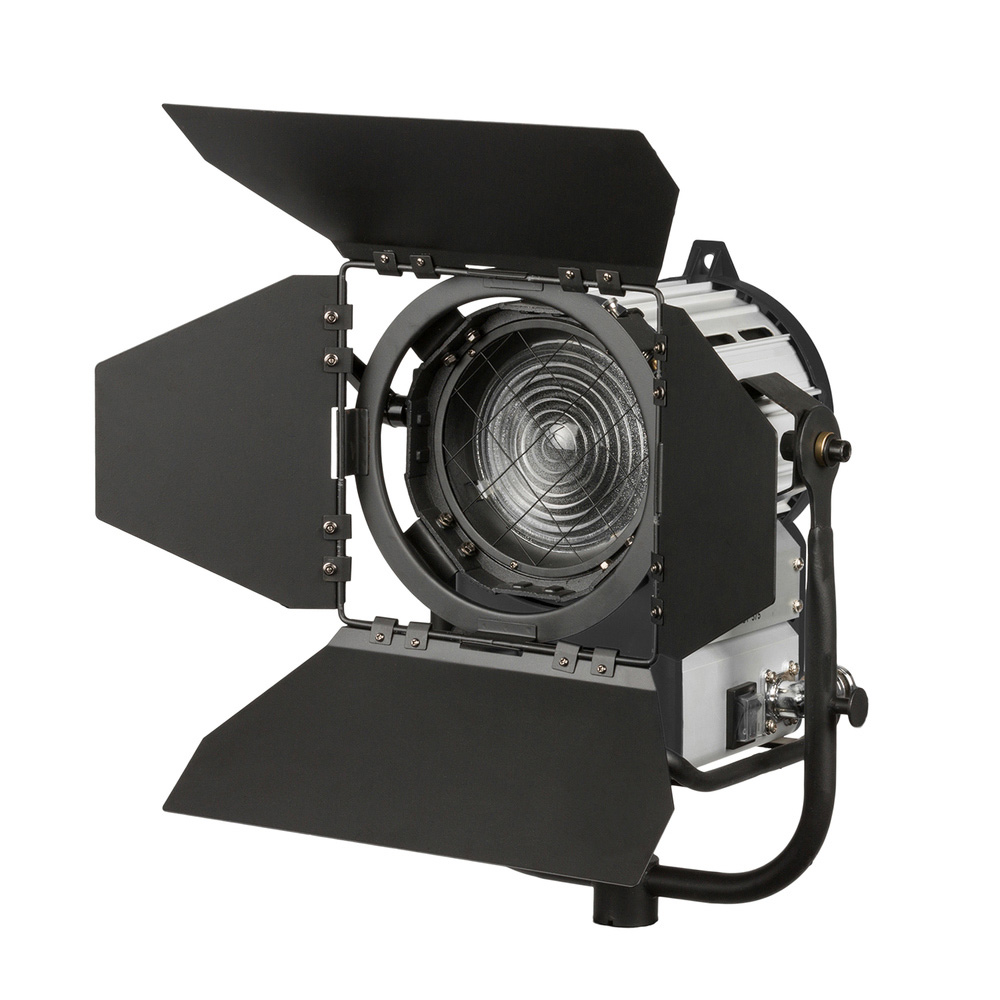

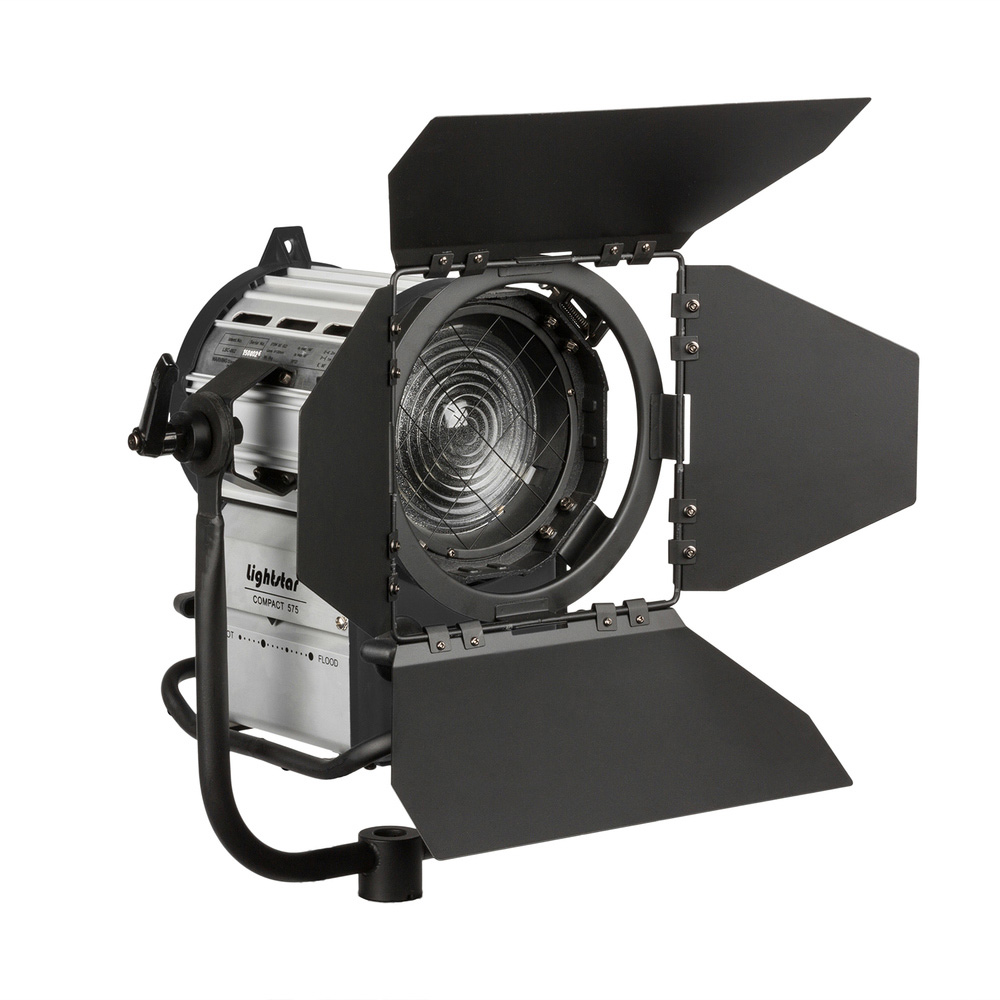

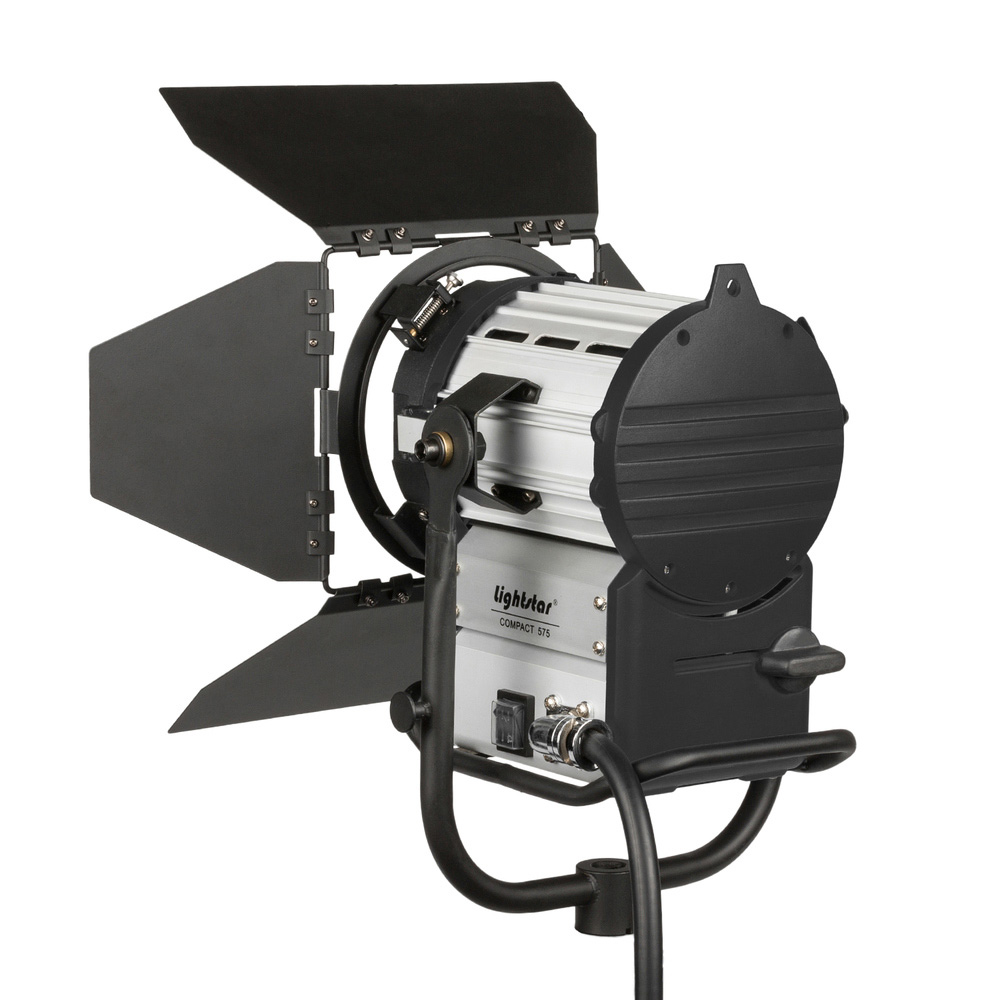

Lightstar LS-575TE 575 Watt HMI Fresnel Kit

ITEM #: LSTR-LS-575TE MFG #: LS-575TE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LSTR-LS-575TE

LS-575TE - Overview

The Light Star 575 Watt HMI Freshnel Kit delivers the color of the sun to your fingertips! From spot to flood lighting, it provides all the necessary daylight control. The kit’s heavy-duty aluminum alloy fixture allows heat to dissipate quickly. The Fresnel lens lets you control the spread of the light while the onboard dimming feature adjusts the level of brightness. With its durable coating and industrial connectors, the 8-meter long Head to Ballast cable enables it to endure the most demanding environments with ease. The 575/1200W Electronic Ballast can handle Flicker free shooting up to 10,000 fps. Best of all, it is much smaller and lighter than the standard magnetic ballast!

  • Features:

    • Aluminum alloy light fixture
    • 575 watt/12 watt Electronic Ballast
    • 8 meter Head to Ballast cable
    • Barn door included

  • Specifications:

    • LS-575TE FIXTURE SPECIFICATIONS
    • Light Source: Metal Halide 575W/SE
    • Head Type: HMI Fresnel 575W
    • Lens Size: Fresnel 5.1" lens
    • Lamp Base: HMI 575/95V/G22
    • Beam Angle: 8 degree to 60 degree
    • Control/Dimming: 50%-100%
    • Focusing: Knob Controlled
    • Build Material: Aluminum
    • Cooling System: Air Cooled
    • Yoke: Cast Aluminum w/1 1/8" pin
    • IP Class: IP23
    • Fixture Size: 18.5 x 10.5 x 12.5"
    • Fixture Weight: 18lbs

    • ELECTRONIC BALLAST SPECIFICATIONS:
    • Power Supply Electronic Ballast 575w/1200w
    • Voltage Range: Electronic Ballast 90-125VAC 18-13A
    • Electronic Ballast Size: 11 x 8 x 6"
    • Electronic Ballast Weight: 16 lbs

    • SHIPPING SPECIFICATIONS:
    • Shipping Dimensions: 24 x 20 x 12"
    • Shipping Dimensions (Metric): 60.96 x 50.8 x 30.48cm
    • Shipping Weight: 41lbs
    • Shipping Weight (Metric): 18.5kg

  • Item Includes:

    • 575/1200W Electrnoic Ballast
    • 575W HMI Fresnel Light Fixture
    • 8 Meter Head To Ballast Cable
    • Barn Doors
    • Gel Holder
    • Yoke

  • Warranty:

    • 1 Year

  • GTIN:

    0847983015092
